DreamLine Infinity-Z Chrome 3-Piece Alcove Shower Kit (Common: 32-in x 60-in; Actual: 32-in x 60-in)
Regular price $0.00Infinity-Z 60 x 32 Alcove Shower Kit with Sliding Door, Base & Backwall

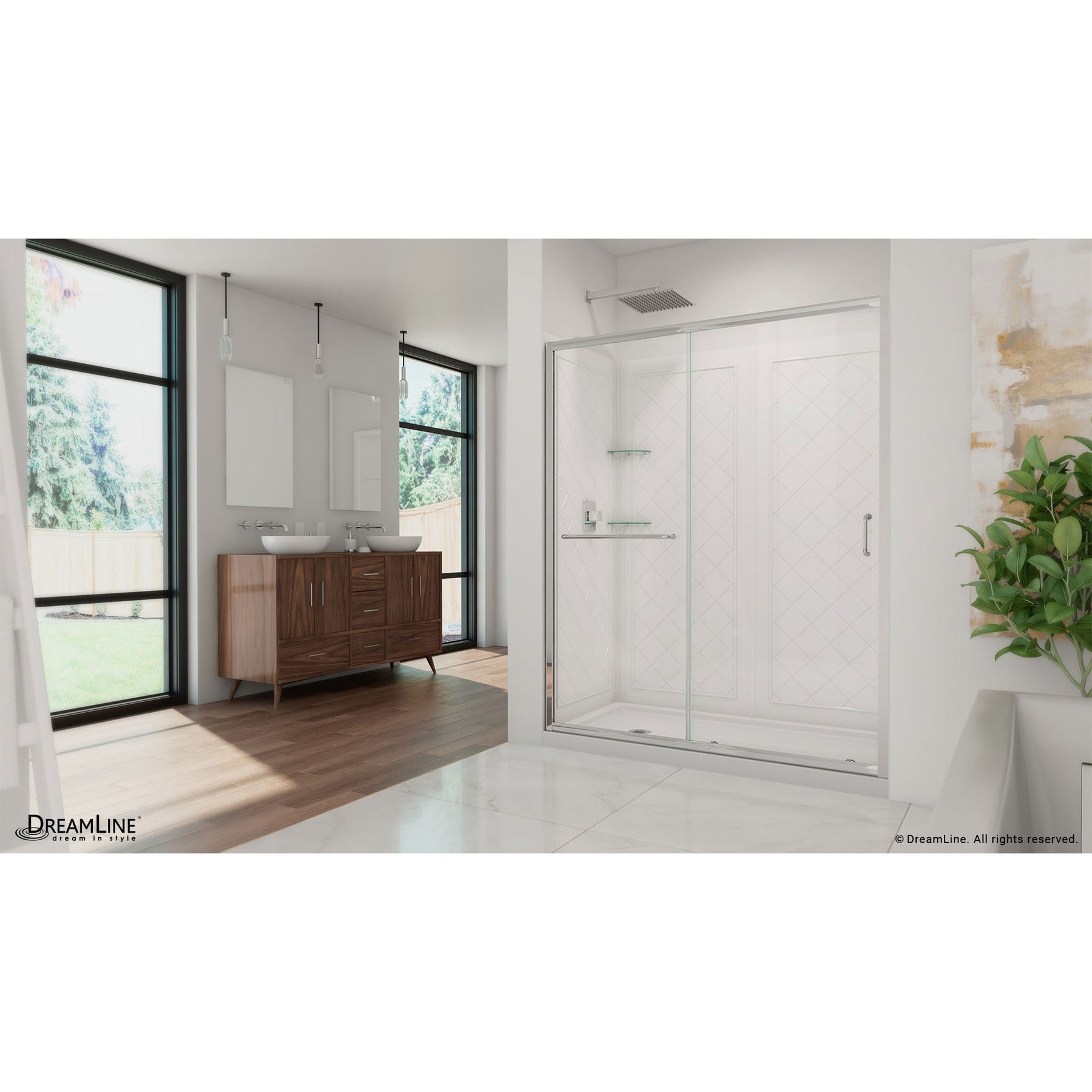

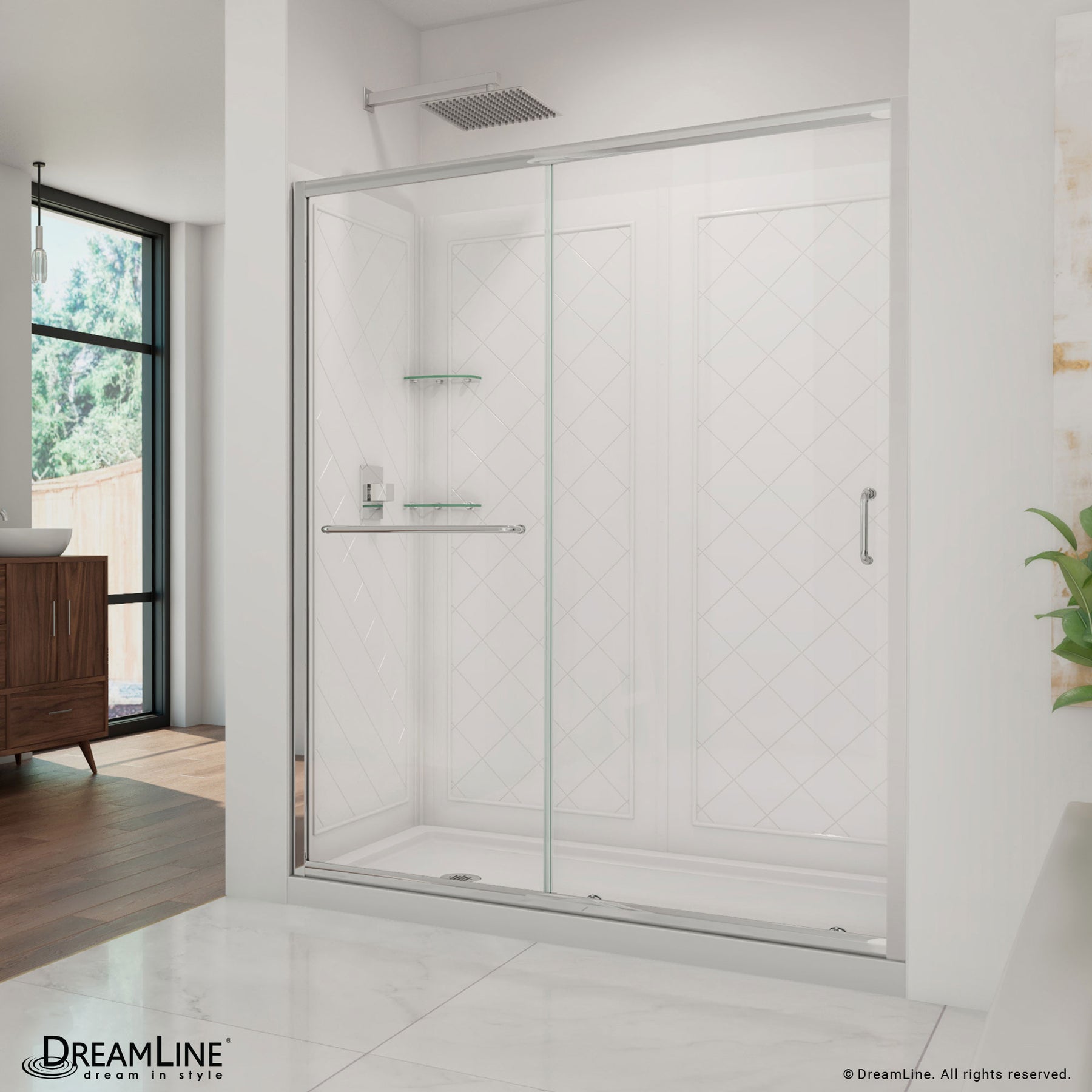

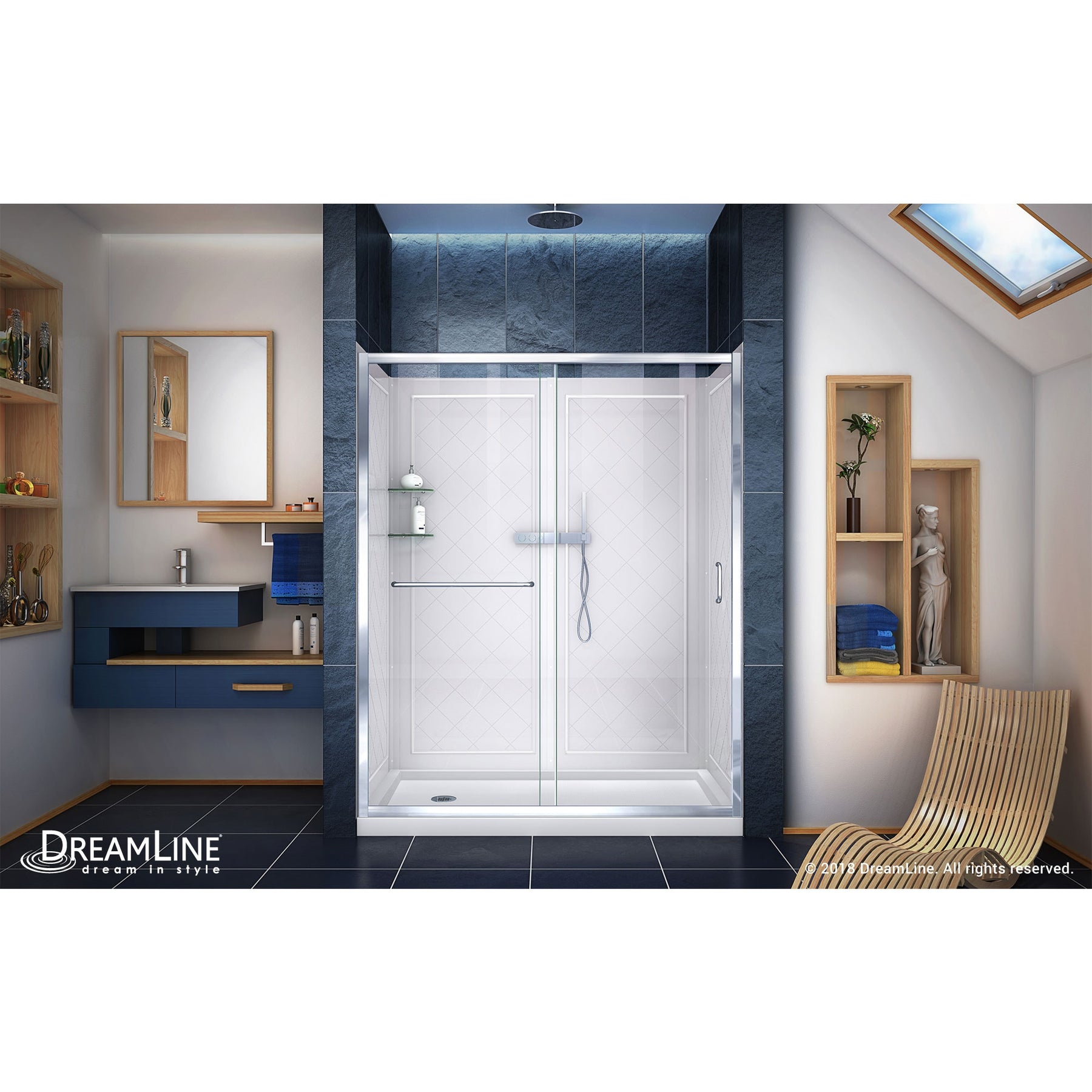

A complete alcove shower solution combining the Infinity-Z sliding glass door, SlimLine low-threshold acrylic base, and Q-Wall backwalls. Clear tempered glass, chrome hardware, and trim-to-size panels deliver a sleek, durable upgrade for 60 x 32 bathrooms.
Key Features:
- Complete Kit: Includes sliding shower door, SlimLine base, and Q-Wall backwalls for a coordinated install

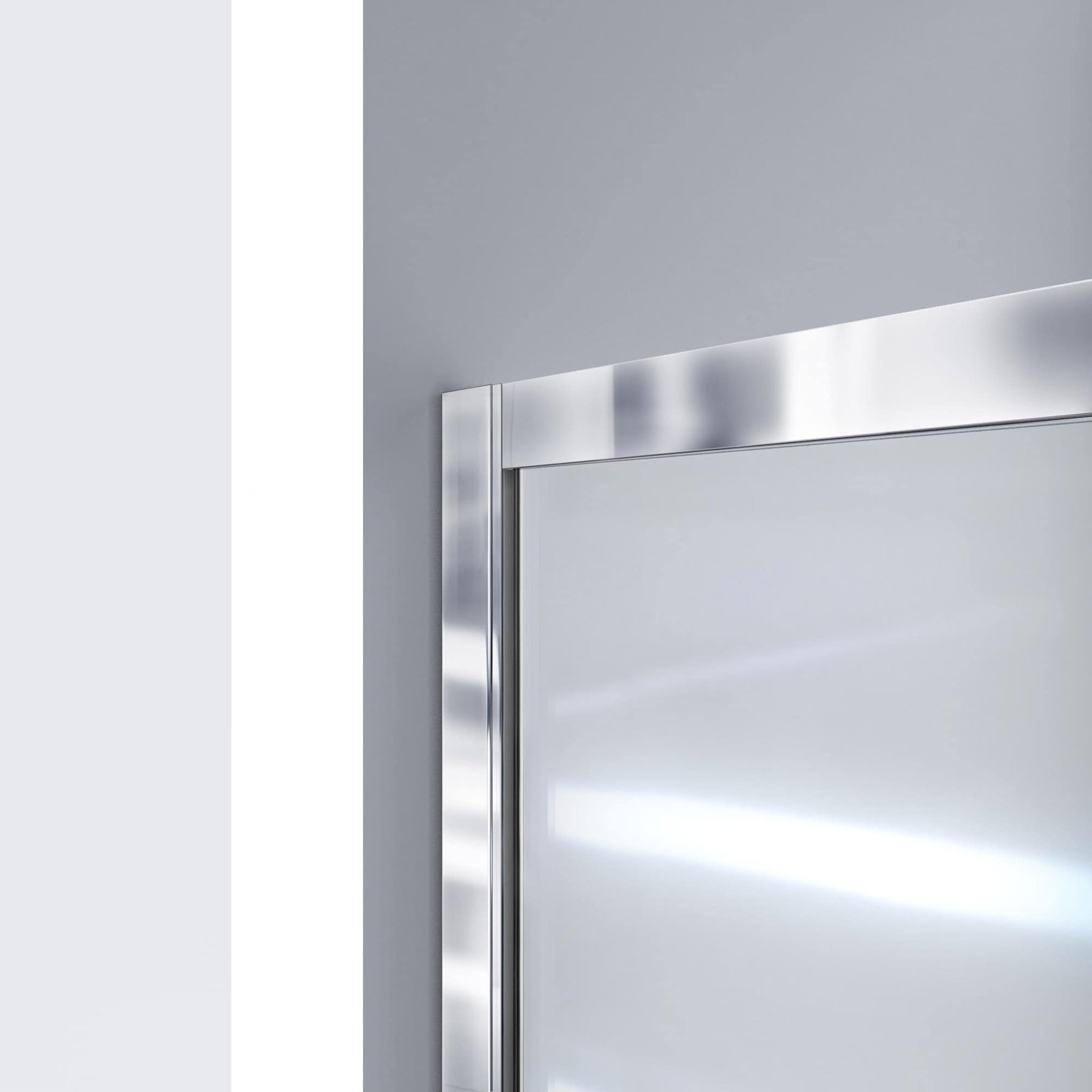

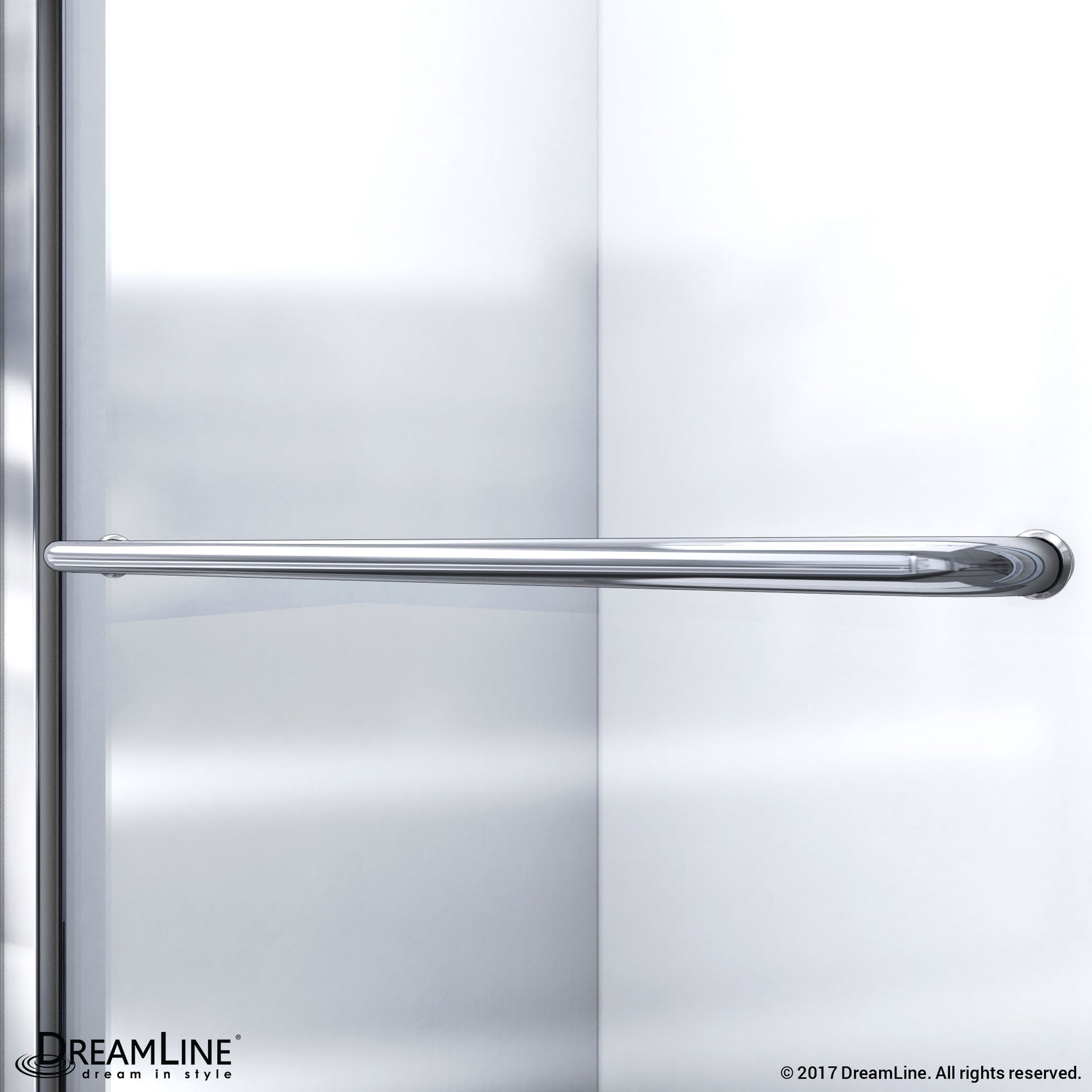

- Durable Glass & Hardware: 1/4-in certified tempered clear glass with chrome semi-frameless frame and towel bar

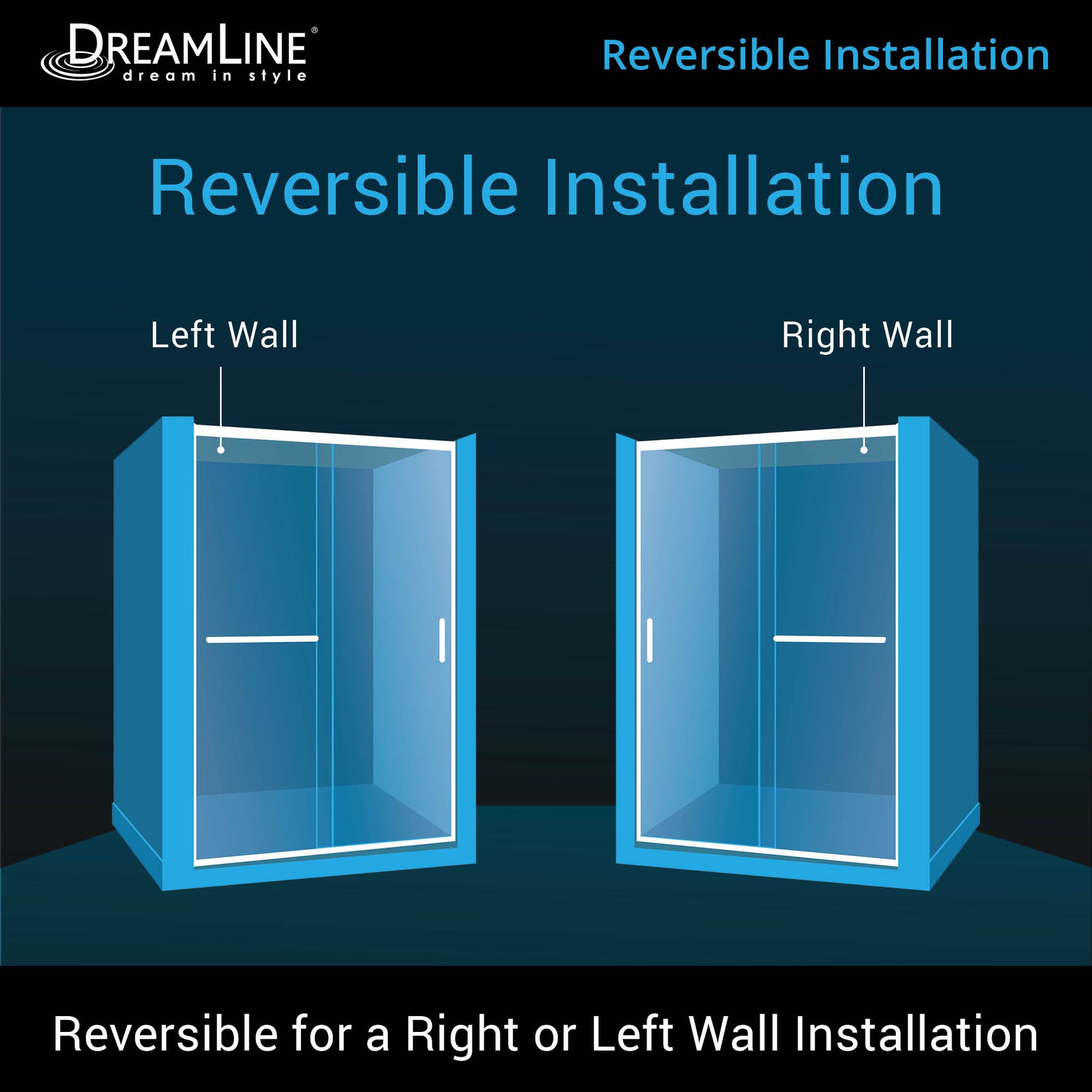

- Flexible Fit: Reversible layout with up to 1-in out-of-plumb adjustment and up to 4-in width trim capability

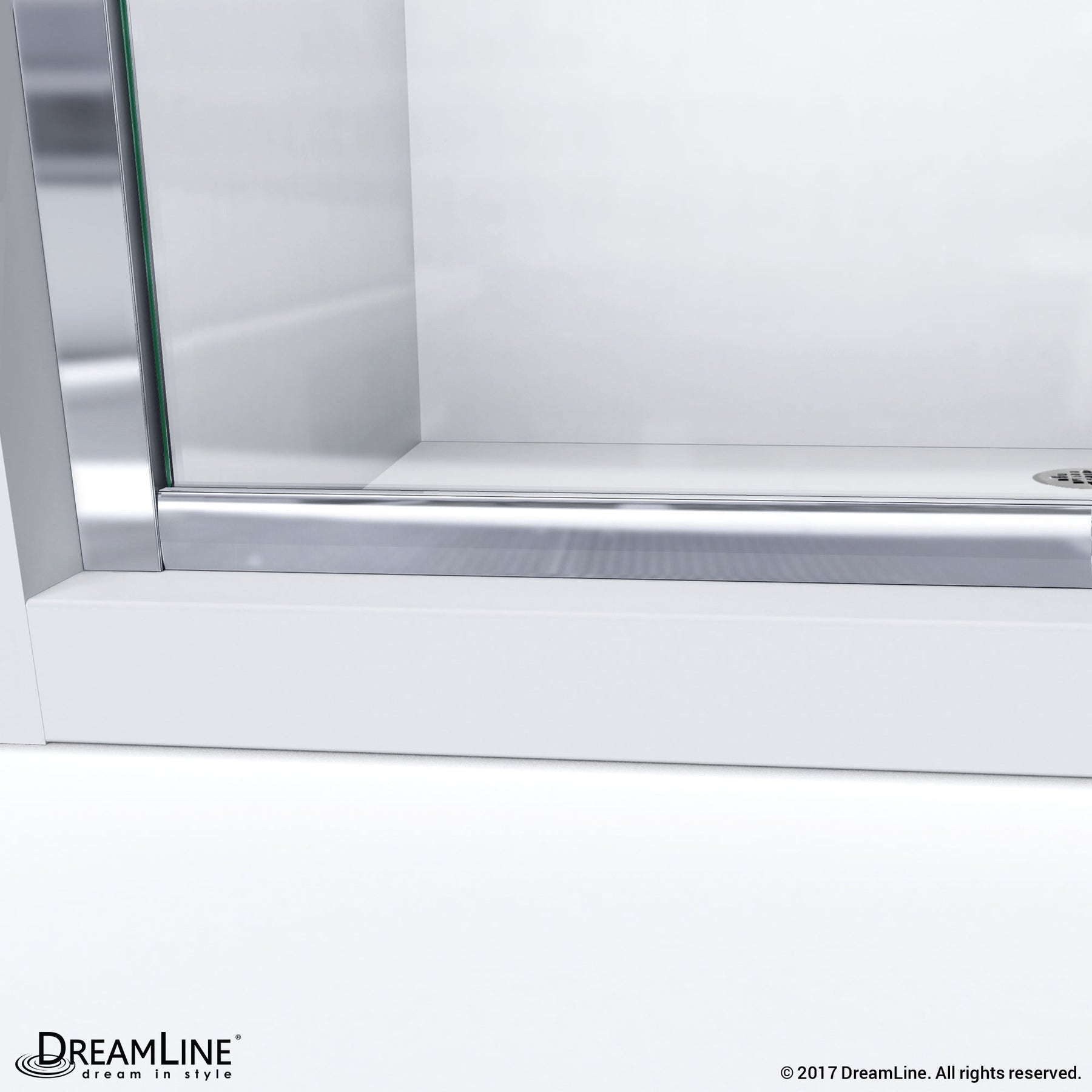

- Safe, Low-Profile Base: Glossy acrylic/ABS base reinforced with fiberglass; scratch, slip, and stain resistant
- Easy Maintenance Backwalls: Acrylic/ABS panels with modern tile pattern and two glass shelves; trim-to-size
Specifications Table:
| Specification | Details |
|---|---|
| Collection Name | Infinity-Z |
| Series Name | Infinity-Z |
| Type | Alcove shower kit |
| Color/Finish Family | Chrome |
| Hardware Finish | Chrome |
| Manufacturer Color/Finish | White |
| Manufacturer Door Finish | Chrome |
| Actual Assembled Height (Inches) | 76.75 |
| Actual Assembled Length (Inches) | 32 |
| Actual Assembled Width (Inches) | 60 |
| Actual Door Opening Height (Inches) | 72 |
| Actual Door Opening Width (Inches) | 25.375 |
| Common Assembled Height (Inches) | 77 |
| Common Assembled Length (Inches) | 32 |
| Common Assembled Width (Inches) | 60 |
| Common Measurement (W x L) Inches | 60 x 32 |
| Drain Diameter (Inches) | 3.375 |
| Glass Thickness | 1/4-in (6mm) |
| Opening Size (Inches) | 60 |
| Product Weight (lbs.) | 223.99 |
| Threshold Height (Inches) | 1.75 |
| Wall Height (Inches) | 74 |
| ADA Compliant | No |
| Base Included | Yes |
| Components Included | Base/wall/door |
| Corner | No |
| Door Included | Yes |
| Door Material | Tempered glass |
| Door Position | Reversible |
| Door Type | Sliding |
| Drain Included | No |
| Drain Location | Left |
| Faucet Included | No |
| Faucet Panel Position | Left or right |
| Floor Material | Acrylic |
| Folding Seat | No |
| Frame Type | Semi-frameless |
| Glass Pattern Name | Clear glass |
| Glass Style | Clear |
| Hardware Included | Yes |
| Installation Type | Direct to Stud |
| Integrated Seat | No |
| Interlocking | No |
| Items Required for Standard Installation | Tape Measure, Level, Silicone/caulk gun, Drill bits, Carpenter's square, Hex head driver bits, Metal file, Power drill, Professional grade glass suction cup, Safety glasses, Soft head hammer |
| Material | Tempered glass; Aluminum; Acrylic capped ABS |
| Number of Seats | 0 |
| Number of Shelves | 2 |
| Number of Thresholds | Single |
| Number of Towel Bars | 1 |
| Package Contents | Shower door, back wall and shower base, hardware |
| Privacy | No |
| Seat Location | Left or Right |
| Shape | Rectangle |
| Shaving Ledge/Foot Rest | No |
| Shower Door Type | Semi-frameless |
| Shower Head Included | No |
| Steam Feature | No |
| Threshold Profile | Low threshold |
| Wall Design/Pattern | Yes |
| Wall Included | Yes |
| Wall Material | Acrylic |
| Compatible Drain | Drain Location: Left; Drain not included |
| Warranty | Limited lifetime (door and base); 1-year (backwalls) |
| CA Residents: Prop 65 Warning(s) | No |
| UNSPSC | 30181500 |
Frequently Asked Questions (FAQ):
Q: Is the drain included?
A: No. The base fits a standard 2-in compression-fitted drain; purchase separately.
Q: Can this kit be installed for either left or right layout?
A: Yes. The Infinity-Z door is reversible and the backwalls trim to size.
Q: What are the overall assembled dimensions?
A: Common size 60-in W x 32-in L x 77-in H; actual height approximately 76-3/4 in.
Q: What is the glass thickness?
A: 1/4 inch (6 mm) tempered glass.
Q: Is professional installation required?
A: Professional installation is recommended.
Streamlined elegance for a modern, spa-ready alcove
Infinity-Z’s clean chrome lines and crystalline glass bring a calm, luminous presence to the bath. The low-threshold base and tailored tile-pattern backwalls feel intentionally crafted, balancing function with refinement. Style the towel bar with plush textiles and add warm wood accents to echo the sleek geometry. It’s a polished essential that elevates everyday rituals to luxurious living.
Upgrade your bath with this complete, flexible alcove kit—order now for a sleek, durable shower that fits your space.
