Frameless Hinged Shower Door with Inline Panel, 46–46.5 in. W x 72 in. H

The DreamLine Unidoor Plus is a premium frameless hinged shower door with a fixed inline panel, featuring 3/8 in. thick clear tempered glass and a brushed nickel hardware finish. ClearMax protective coating resists water stains, while the reversible design and adjustable U-channel simplify installation in alcove showers.

---

Key Features:

• Frameless Design: Sleek, open look with 3/8 in. certified tempered clear glass
• ClearMax Coating: Factory-applied water-repellent layer reduces limescale and spotting

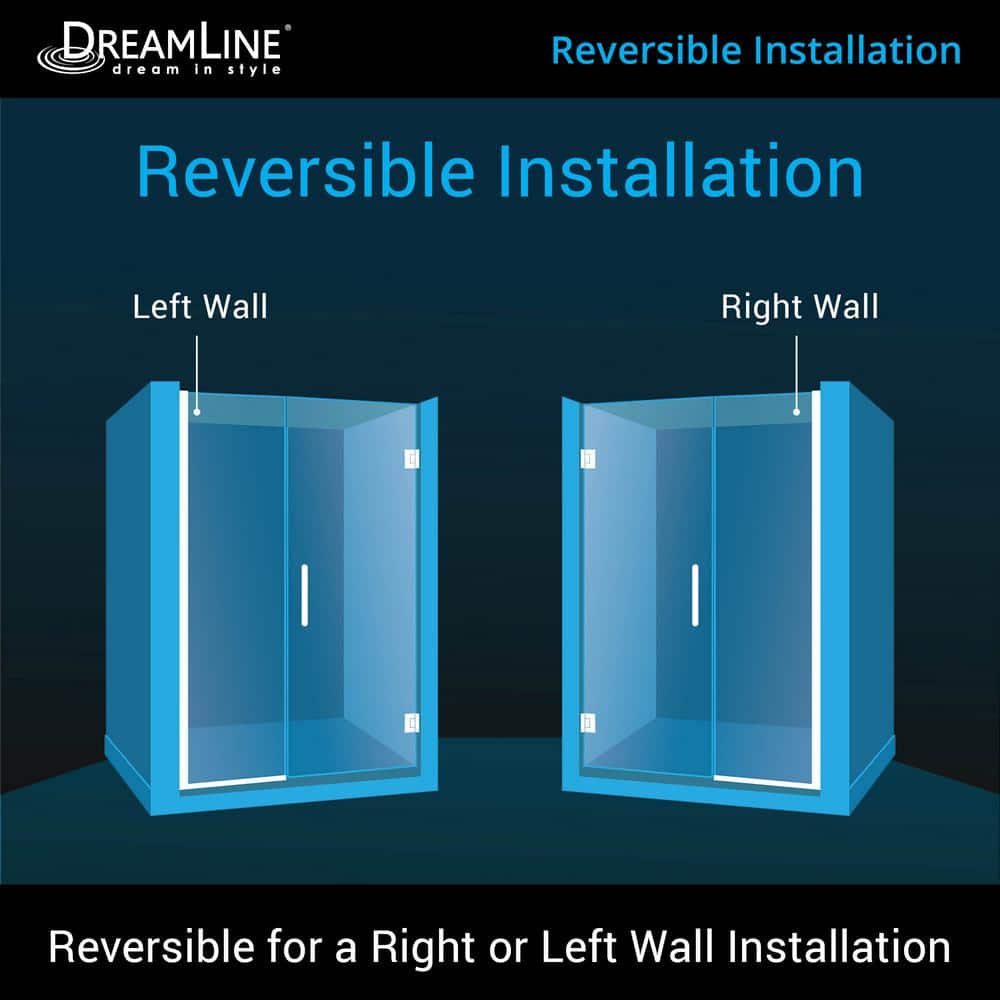

• Reversible Installation: Configure for right- or left-side door opening

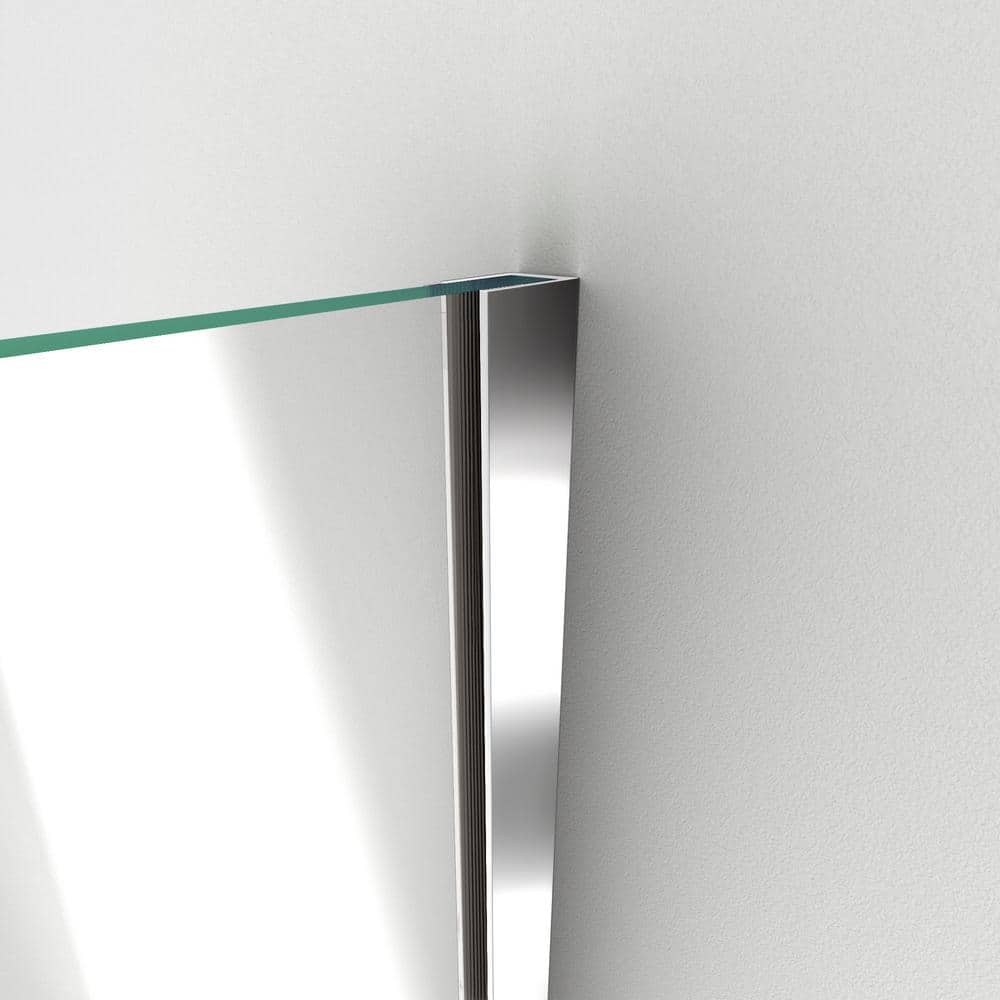

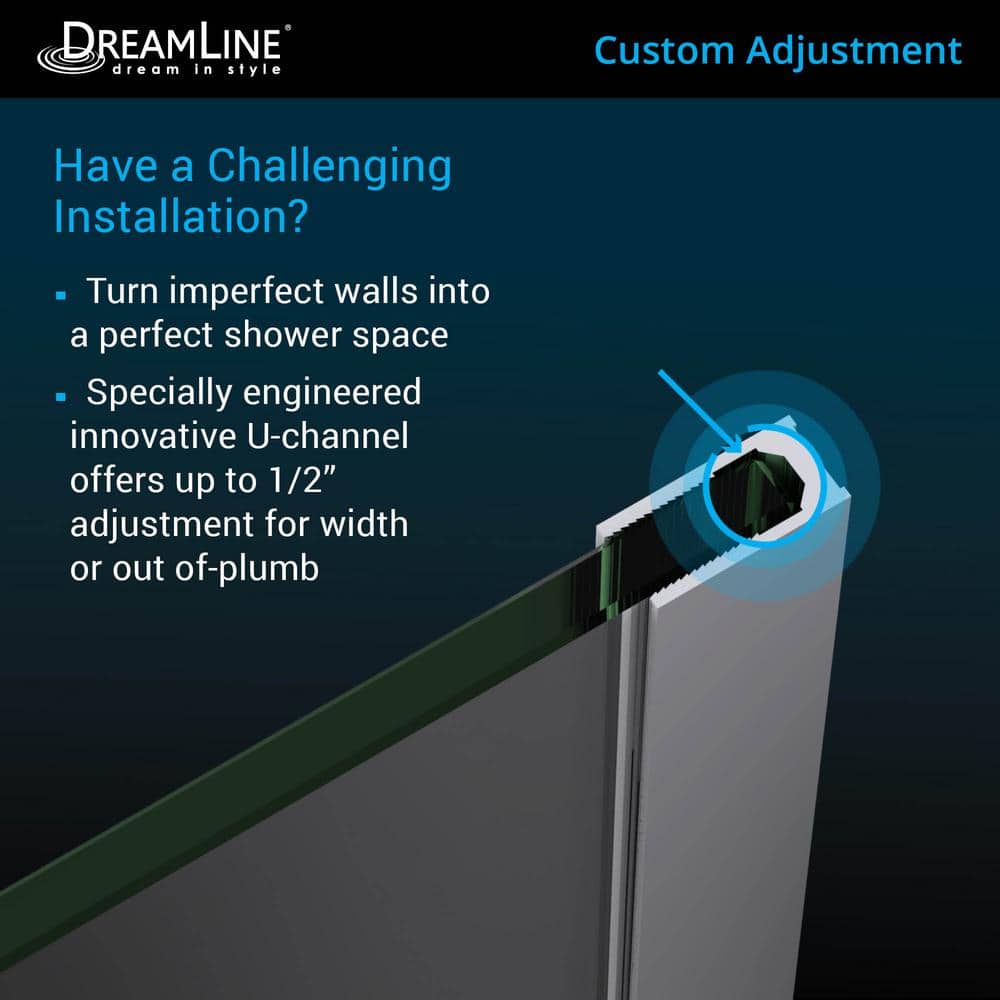

• Adjustable Inline Panel: U-channel provides up to 1/2 in. width/out-of-plumb adjustment

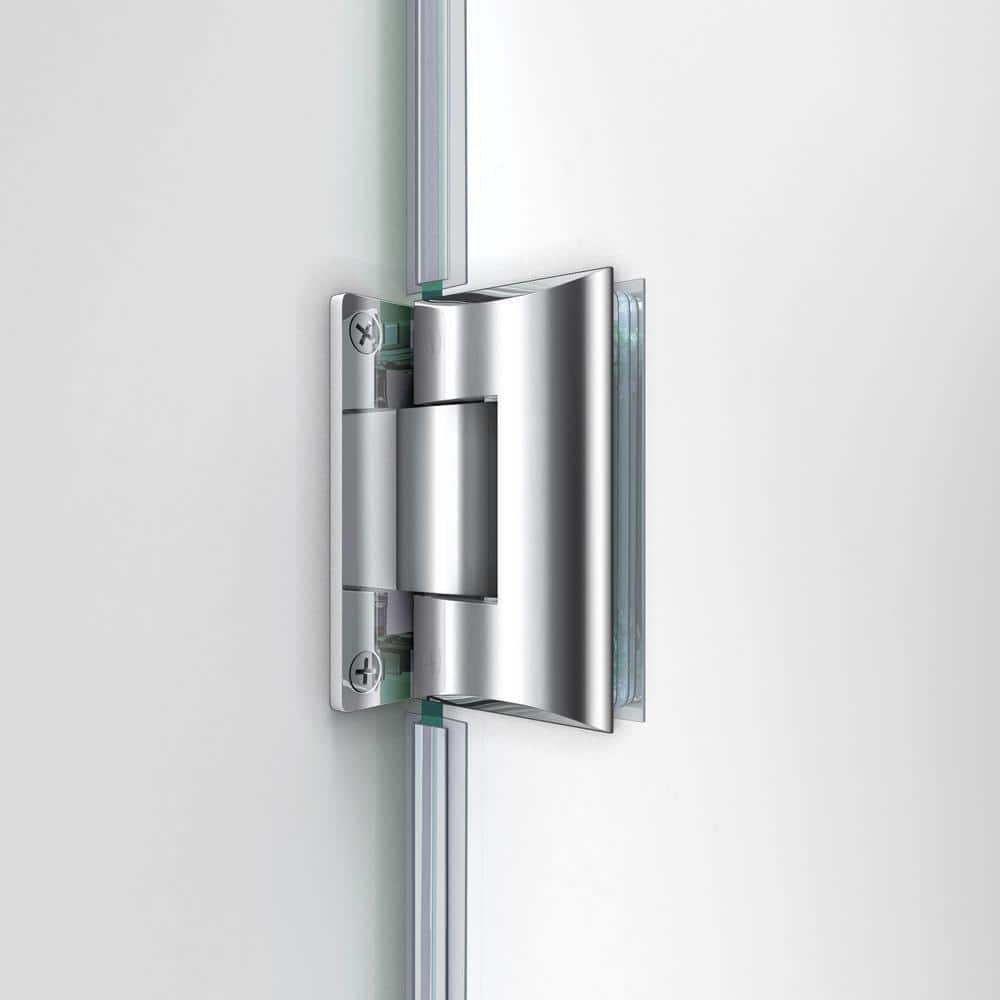

• Durable Hardware: Solid brass self-closing wall-to-glass hinges in brushed nickel

---

Specifications Table:

Specification	Details
Configuration	Swing door with fixed inline panel
Installation Width	46 in. - 46.5 in.
Product Height	72 in
Approximate Max Installed Width	46.5 in
Walk-Through Opening Width	23 in
Walk-Through Opening Height	72 in

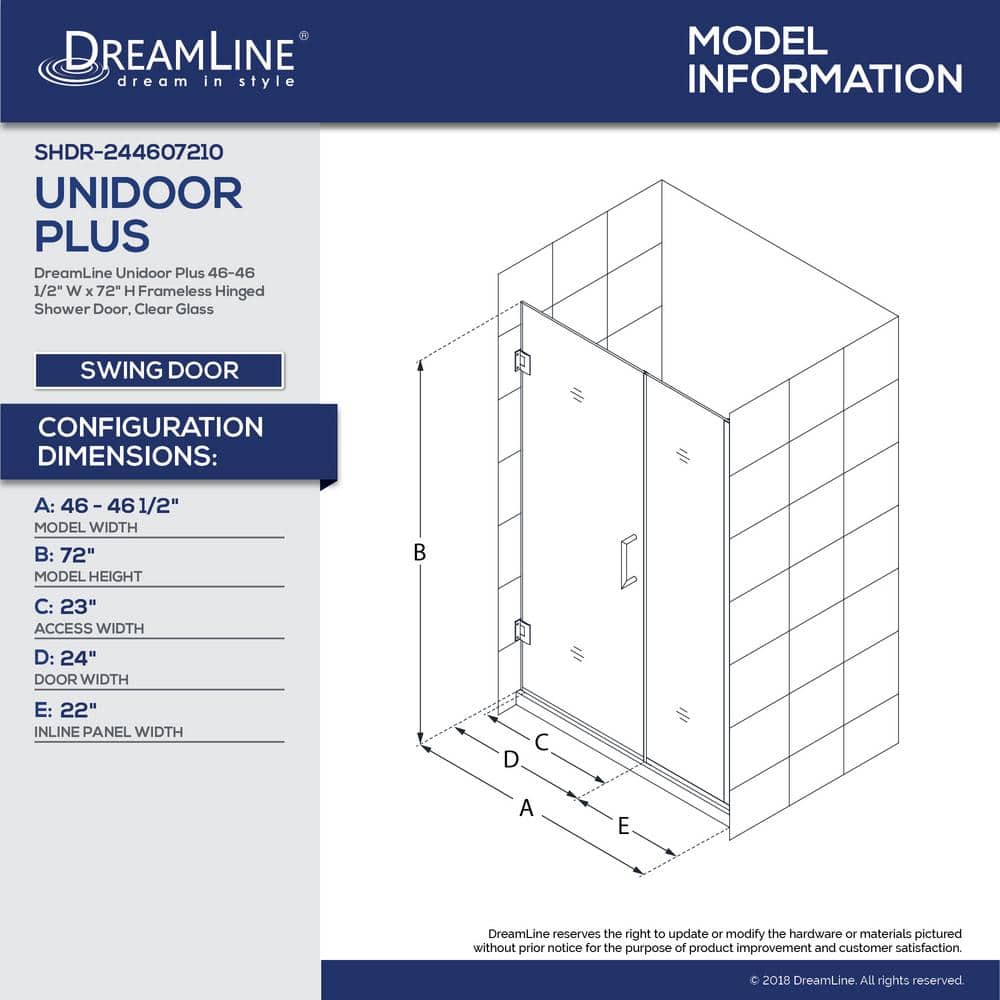

Door Width	24 in (per model info image)
Inline Panel Width	22 in (per model info image)
Door Type	Hinged
Frame Type	Frameless
Frame Finish	Brushed Nickel
Handle Finish	Brushed Nickel
Door Handle Type	Square
Glass Type/Finish	Clear tempered glass
Door Glass Thickness	3/8 in (10 mm)
Adjustment	Up to 1/2 in. for width or out-of-plumb on inline panel side via U-channel
Hinges	Solid brass wall-to-glass self-closing hinges
Included	Door hardware
Style	Modern
Shower Type	Alcove
Protective Coating	DreamLine ClearMax water-repellant and stain-resistant
Product Weight	134 lb
Certifications and Listings	None

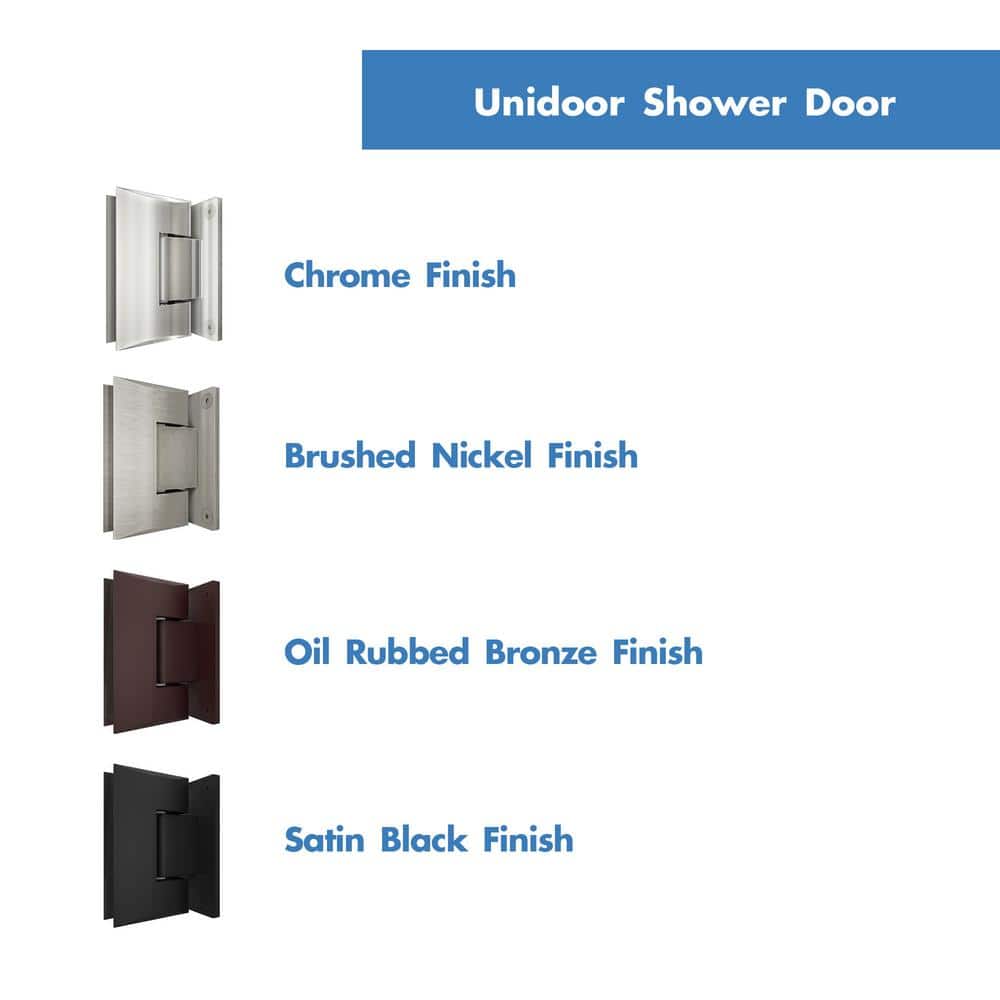

Manufacturer Warranty	Limited lifetime (oil rubbed bronze and satin black finishes limited to 1 year)

---

Frequently Asked Questions (FAQ):

Q: What are the overall dimensions?
A: Model size is 46–46.5 in. width by 72 in. height, with a 23 in. walk-through opening.

---

Q: Can it be installed for either door opening direction?
A: Yes, it is reversible for right- or left-side openings.

---

Q: How thick is the glass?
A: The door and panel feature 3/8 in. (10 mm) thick tempered glass.

---

Q: Is there any adjustment for walls that are out of plumb?
A: Yes, the inline panel side offers up to 1/2 in. adjustment via the U-channel.

---

Q: Does it include the shower base?
A: No, the SlimLine shower base shown is not included.

---

A Modern, Airy Statement for Your Shower

Unidoor Plus frames the bath with pure, uninterrupted glass, letting light dance across the room for a fresh, spacious feel. The brushed nickel hardware adds a refined glint, and those crisp lines keep the look tailored and timeless. Style it against patterned tile for contrast and let the ClearMax-coated glass stay pristine with minimal effort. It’s the effortless luxury every contemporary bath deserves.

---

Elevate your shower with the Unidoor Plus—order now for a sleek, easy-care upgrade that fits your space.
