SlimLine 60x30 Shower Base & Backwall Kit, Left Drain

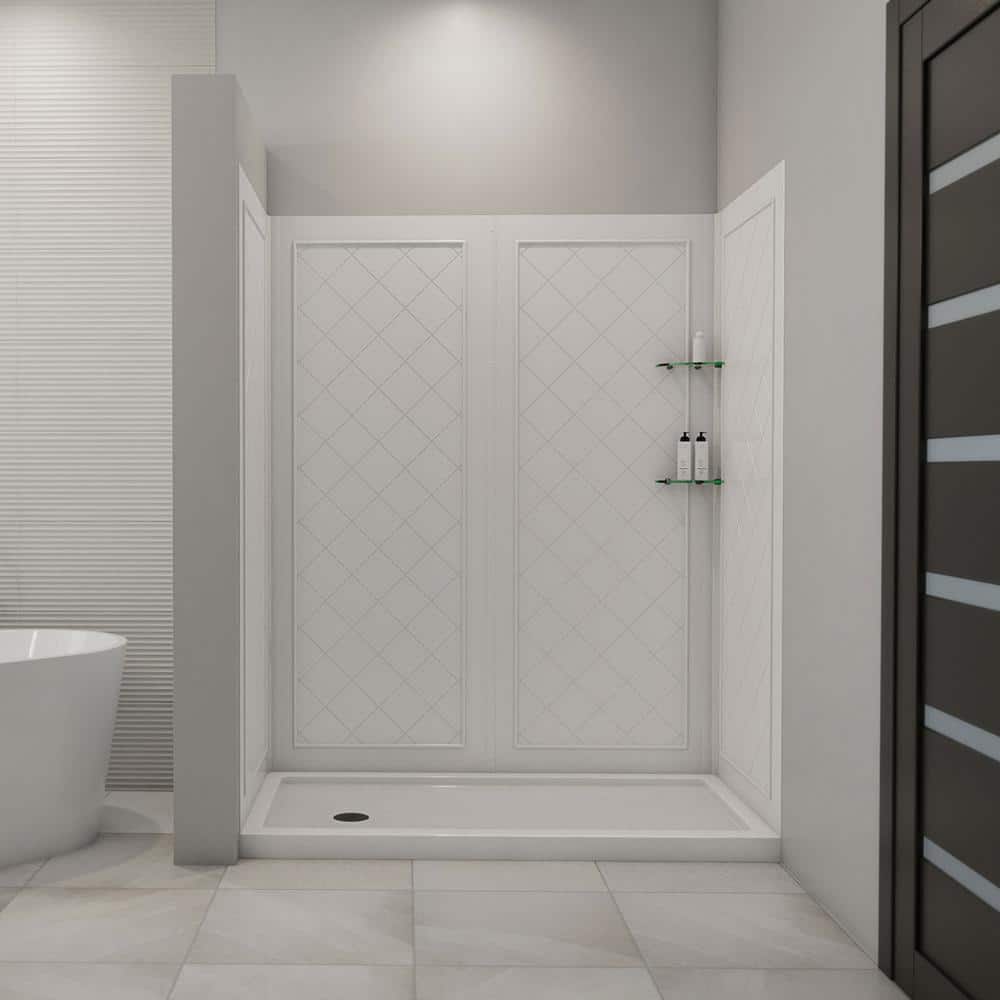

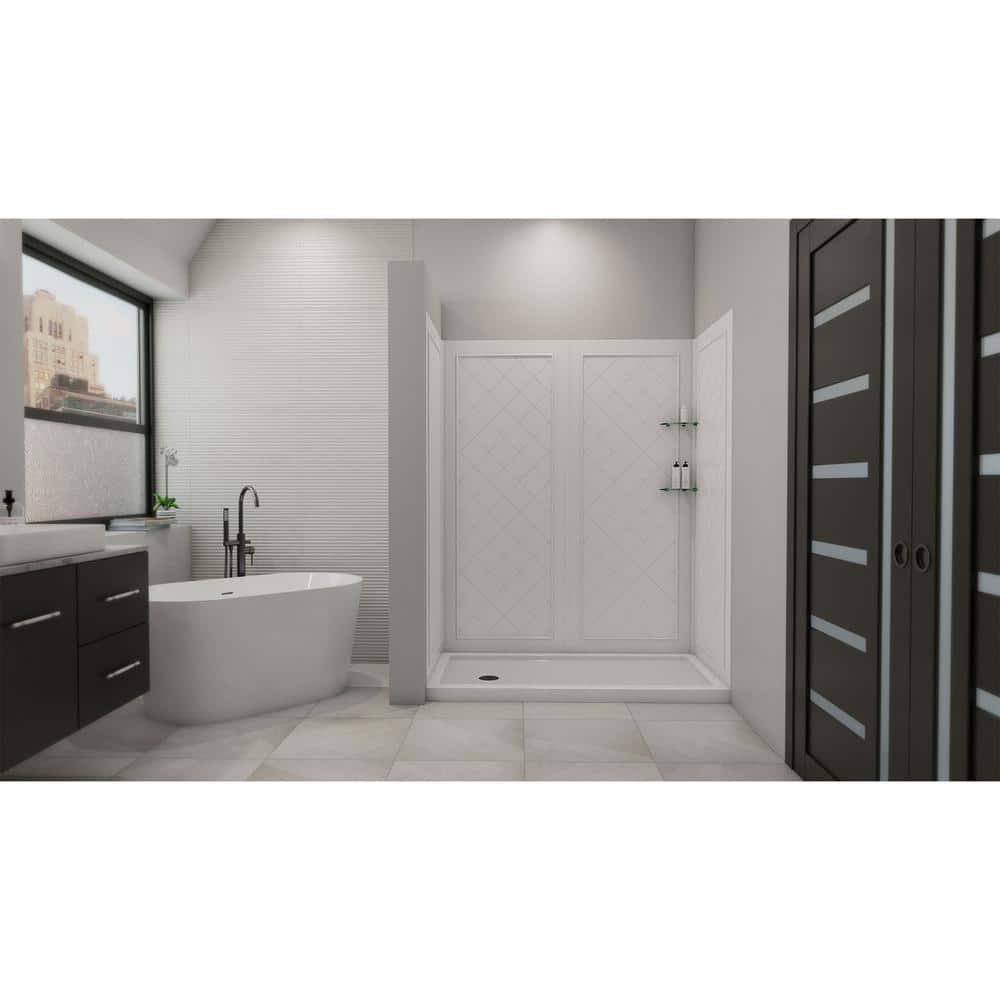

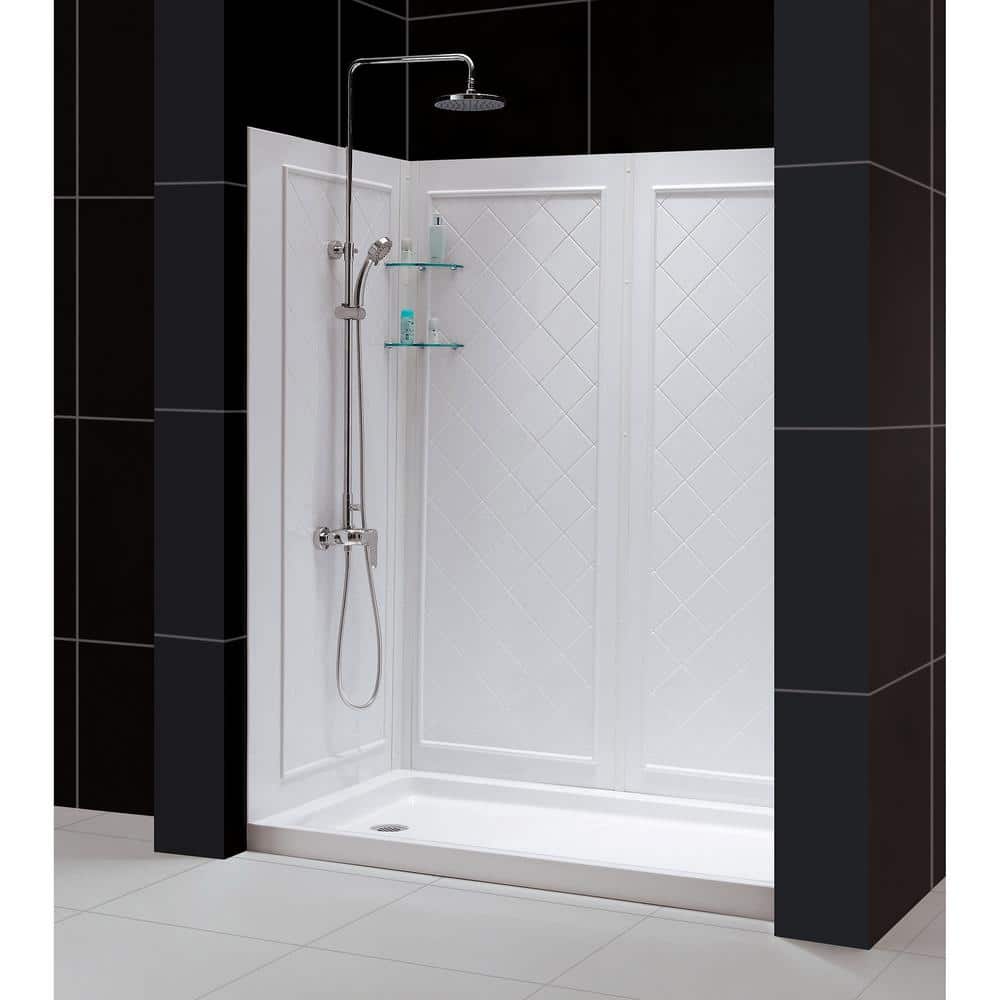

A complete alcove shower solution combining DreamLine’s SlimLine low-profile base with matching Q-Wall back panels. Durable acrylic/ABS with fiberglass reinforcement features a slip-resistant textured floor and integrated tile flange for leak prevention.

---

Key Features:

• Complete Kit: Includes SlimLine shower base and Q-Wall-5 backwalls for an easy alcove upgrade
• Low-Profile Threshold: 1.75 in. entry for safer, comfortable access

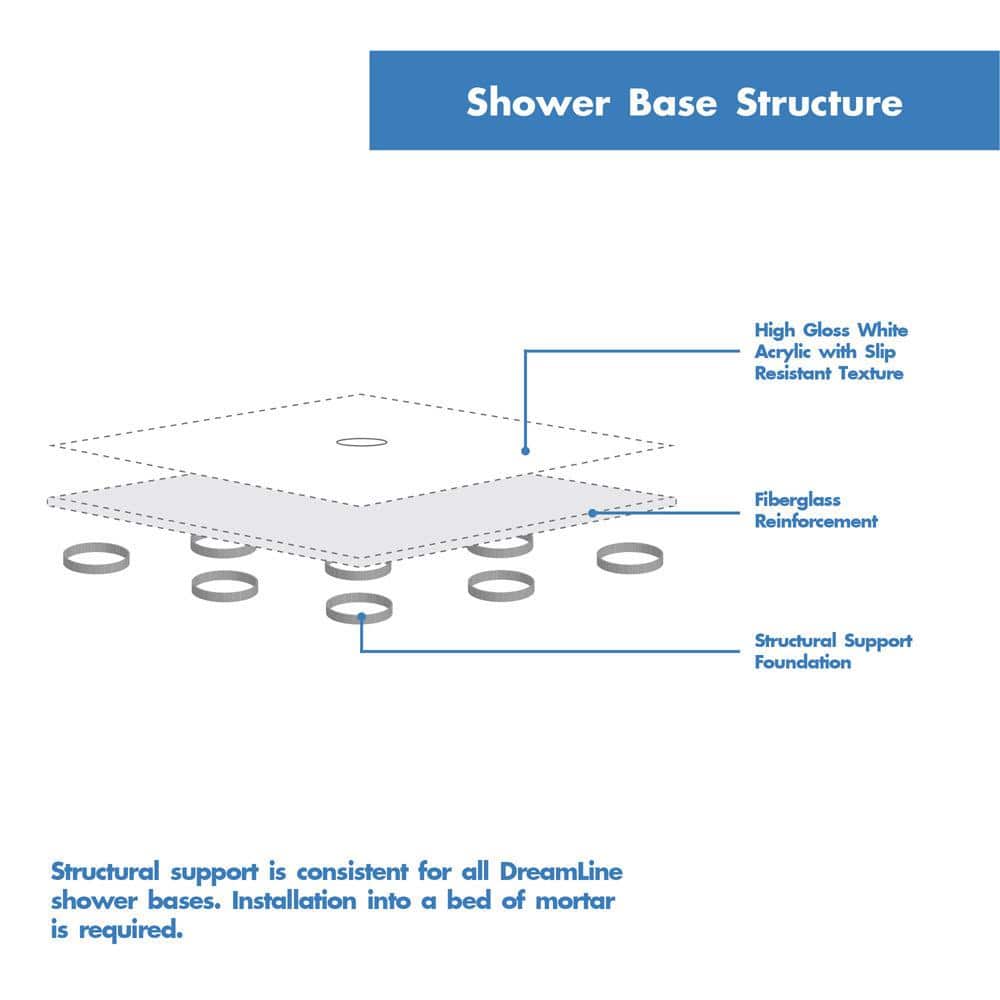

• Durable Acrylic/ABS: Glossy, scratch- and stain-resistant surface reinforced with fiberglass

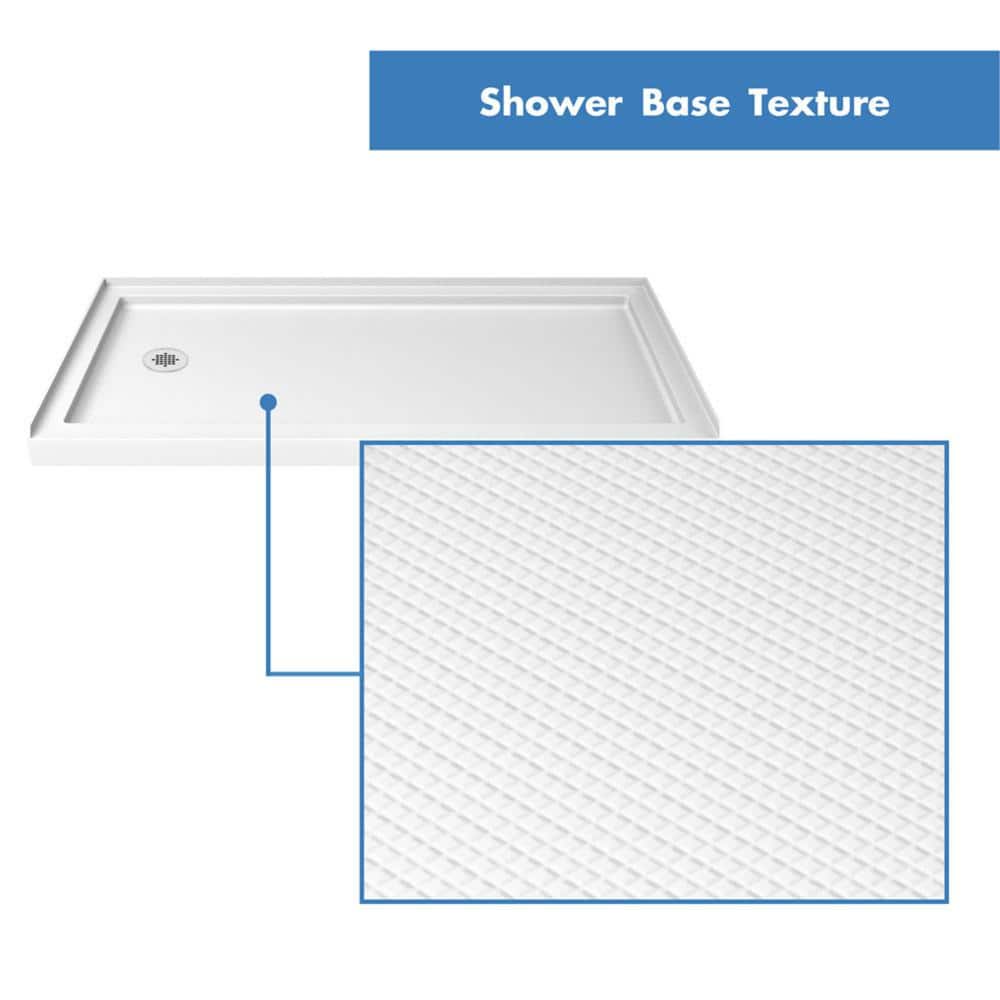

• Slip-Resistant Floor: Textured base improves traction while showering
• Left-Hand Drain Compatibility: Fits standard 2 in. compression-fit drain (not included)

---

Specifications Table:

Specification	Details
Model/Kit	SlimLine base with QWall-5 backwalls
Color/Finish	White
Drain Location	Left
Shower Kit Type	Base & Wall
Shower Type	Alcove
Material	Acrylic/ABS with fiberglass reinforcement
Surface Type	Textured
Features	Slip-resistant floor; Integrated tile flange
Wall Installation Type	Glue-up (against solid surface)

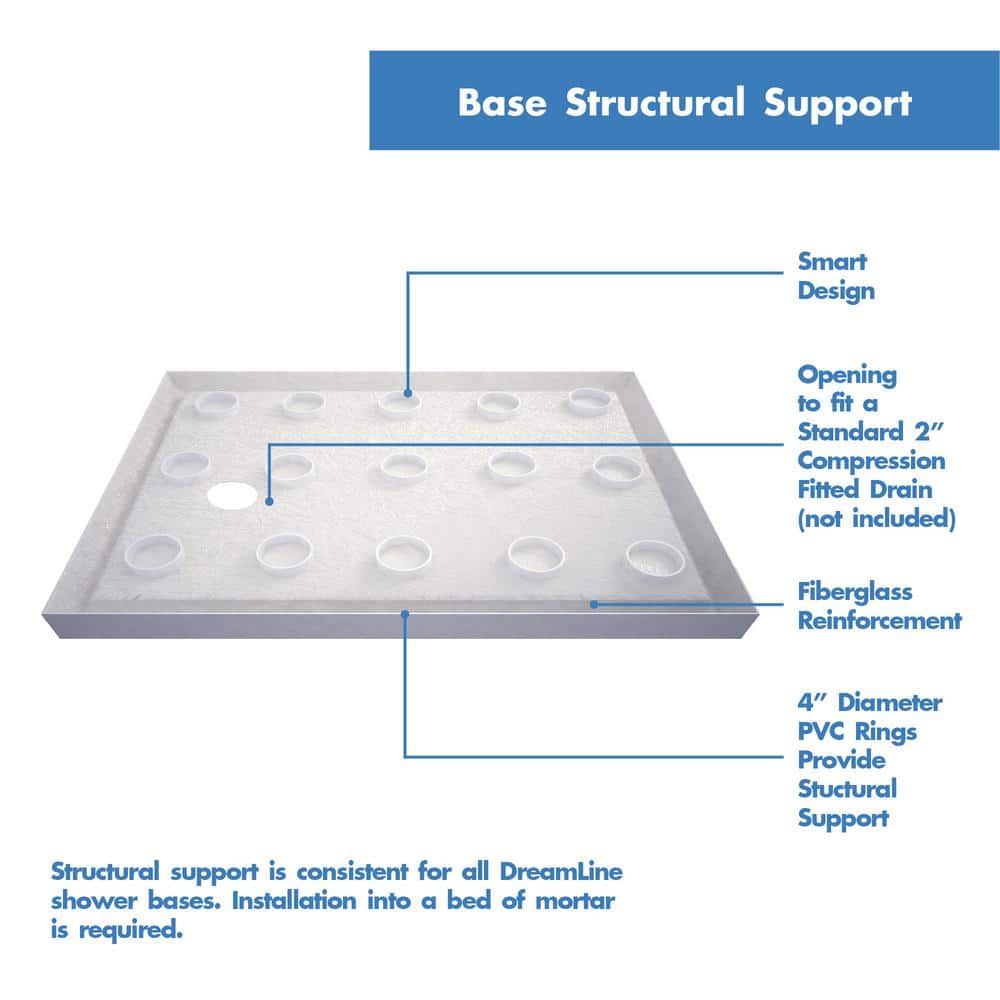

Base Installation	Direct to studs; installation in bed of mortar required
Approximate Length x Width	60 x 30 in.
Base Height	2.75 in.
Threshold Height	1.75 in.
Wall Height	76.75 in.
Number of Shower Pieces	3 pieces
Number of Finished Sides	3

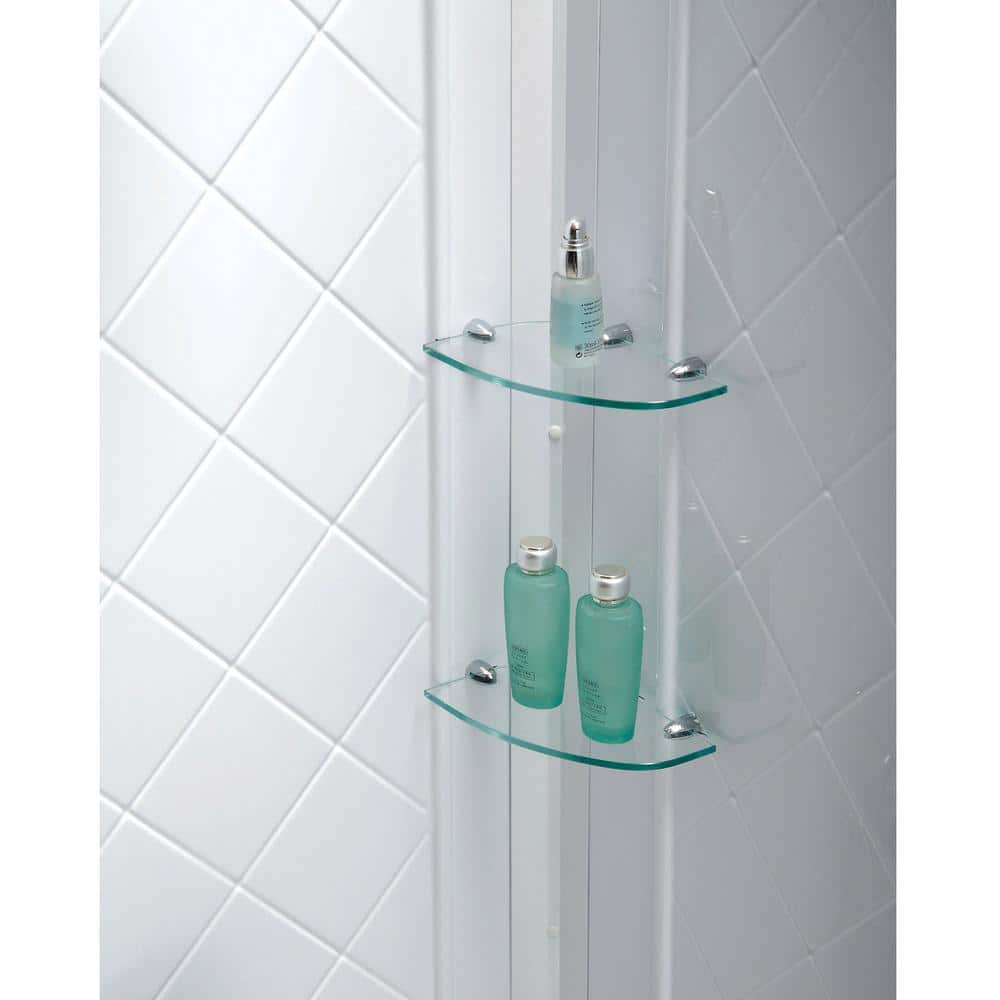

Number of Shelves	2 glass shelves
Product Weight	101 lb
Drain Opening	Fits standard 2 in. compression-fitted drain (not included)
Style	Modern
Certifications and Listings	cUPC for base; backwalls have no certifications listed
Manufacturer Warranty	Base: Limited lifetime; Backwalls: Limited 1-year

---

Frequently Asked Questions (FAQ):

Q: What are the overall dimensions?
A: Model size is 60 in. W x 30 in. D x 76-3/4 in. H.

---

Q: How is the base installed?
A: Direct to studs; installation into a bed of mortar is required.

---

Q: Can the wall panels be trimmed?
A: Yes, Q-Wall backwalls are trim-to-size and can be glued to existing walls or tile.

---

Q: Is the drain included?

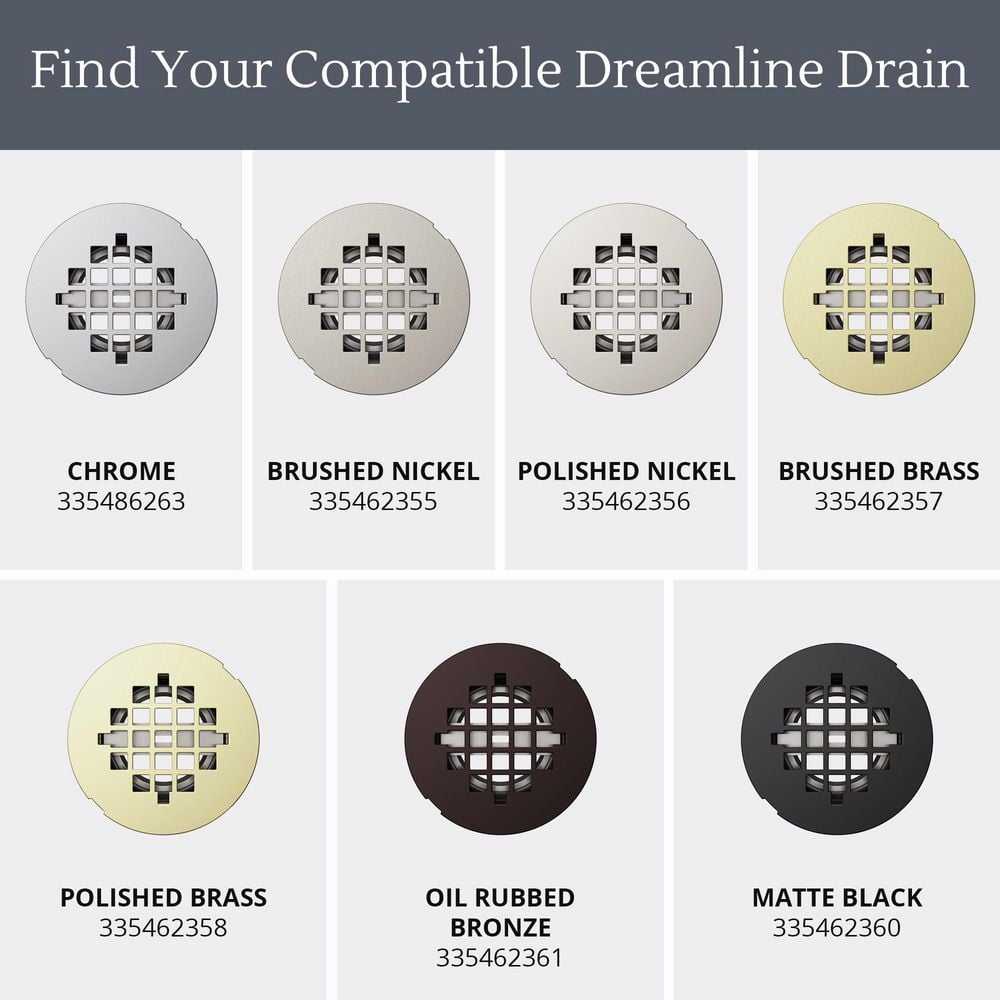

A: No. The opening fits a standard 2 in. compression-fitted drain; compatible DreamLine drain finishes are available separately.

---

Q: What warranties apply?
A: Shower base: limited lifetime; backwalls: limited 1-year.

---

Streamlined Luxury for the Everyday Ritual

This kit brings a tailored, modern presence to the bath, with crisp lines and a luminous white finish that feels fresh and serene. The diamond-patterned panels add subtle texture, while the low-profile base creates a graceful, barrier-light entry. Style with matte black or brushed brass drain accents and minimalist glass shelving for a polished, spa-like vignette. It’s an essential upgrade that elevates daily living with refined ease.

---

Transform your alcove into a sleek, safe, and durable shower with DreamLine SlimLine—order your kit today.
