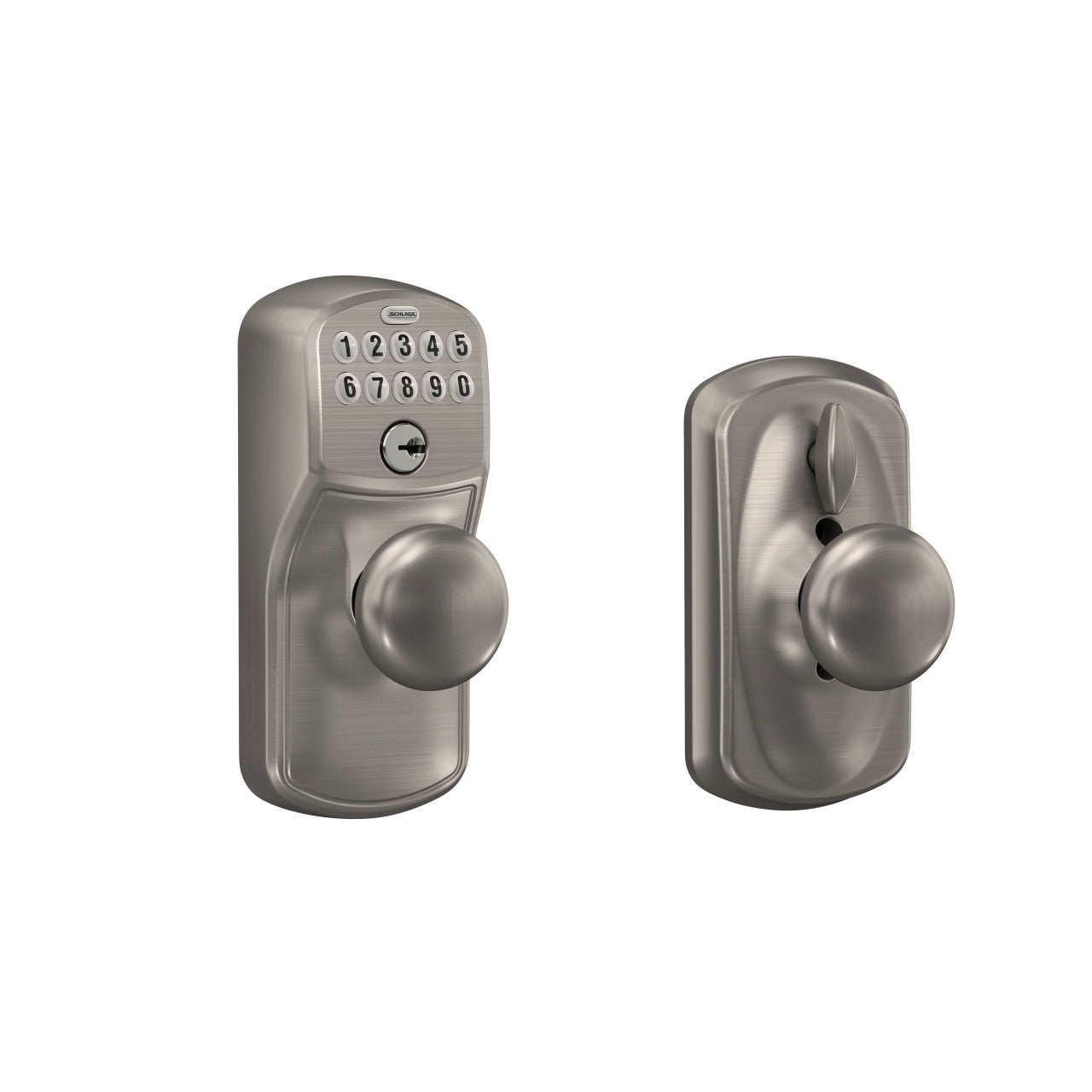

Plymouth Electronic Keypad Lock with Orbit Knob

Upgrade entry security with Schlage’s Plymouth electronic keypad lock featuring the Orbit knob. Flex-Lock technology lets you switch between automatic re-locking and unlocked modes, while the durable Grade 2 construction delivers reliable performance for residential or light commercial doors.

---

Key Features:

• Flex-Lock Convenience: Toggle between automatic re-locking and unlocked passage with an interior switch
• Keyless Access: Two pre-set 4-digit codes included; program up to 19 unique user codes
• Durable Construction: ANSI/BHMA Grade 2 rating with high-quality metal build for long-lasting security
• Easy DIY Installation: Installs with a screwdriver; fits standard 1-3/8 in to 1-3/4 in thick doors and 2-3/8 in or 2-3/4 in backsets
• Battery Powered: Runs on one 9V battery with low-battery indicator and backlit silicone keypad

---

Specifications Table:

Specification	Details
Trim/Collection	Plymouth with Orbit Knob
Finish	Satin (appearance consistent with Satin Chrome/Nickel imagery)
Power Source	1 x 9V battery
User Codes	Up to 19 codes; 2 pre-set 4-digit codes included
Keyway	5-pin tumbler C keyway; includes one nickel silver key
Door Thickness	1-3/8 in to 1-3/4 in
Backset	Fits 2-3/8 in (60 mm) or 2-3/4 in (70 mm)
Certifications	ANSI/BHMA A156.2-2011 Grade 2
Operating Temperature (Exterior)	-35°C to 66°C
Operating Temperature (Interior)	-10°C to 50°C
Keypad	Silicone-coated, backlit numbers
Locking Feature	Flex-Lock (toggle between unlocked or auto re-lock)
Warranty	Limited Lifetime Mechanical & Finish; 3-Year Electronics
Dimensions (Exterior Escutcheon)	3.01 in x 6.84 in x 6.85 in

---

Frequently Asked Questions (FAQ):

Q: Does this lock require hardwiring?
A: No. It is battery powered with a single 9V battery and installs with a screwdriver.

---

Q: How many user codes can I program?
A: Up to 19 unique access codes, plus two pre-set codes included out of the box.

---

Q: What door sizes will it fit?
A: Fits standard doors 1-3/8 in to 1-3/4 in thick with 2-3/8 in or 2-3/4 in backsets.

---

Q: Is it suitable for outdoor temperatures?
A: Yes. Outside escutcheon rated for approximately -35°C to 66°C; inside escutcheon -10°C to 50°C.

---

Q: What warranties are included?
A: Limited lifetime mechanical and finish warranty, plus a 3-year electronics warranty.

---

Streamlined Security with Subtle Modern Gleam

The Plymouth keypad lock introduces a refined, satin sheen that feels effortlessly current while honoring classic forms. The rounded Orbit knob softens the silhouette, adding a sculptural note to entryways. Pair it with brushed hardware and a minimalist door slab to let the backlit keypad glow like jewelry at dusk. It’s a smart, stylish essential that elevates everyday luxury at the front door.

---

Secure your entry in minutes—choose the Schlage Plymouth keypad lock for reliable, keyless convenience and style.
