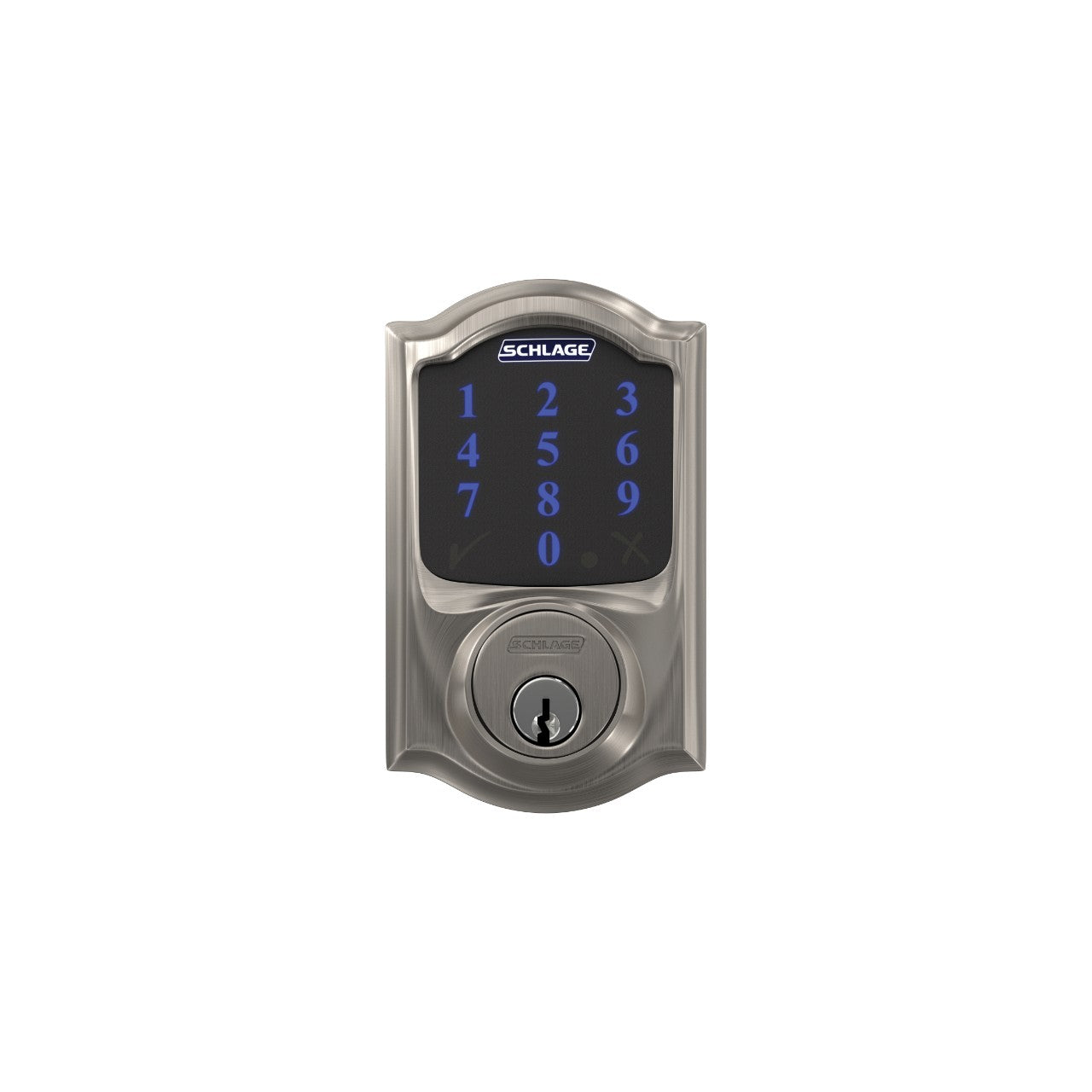

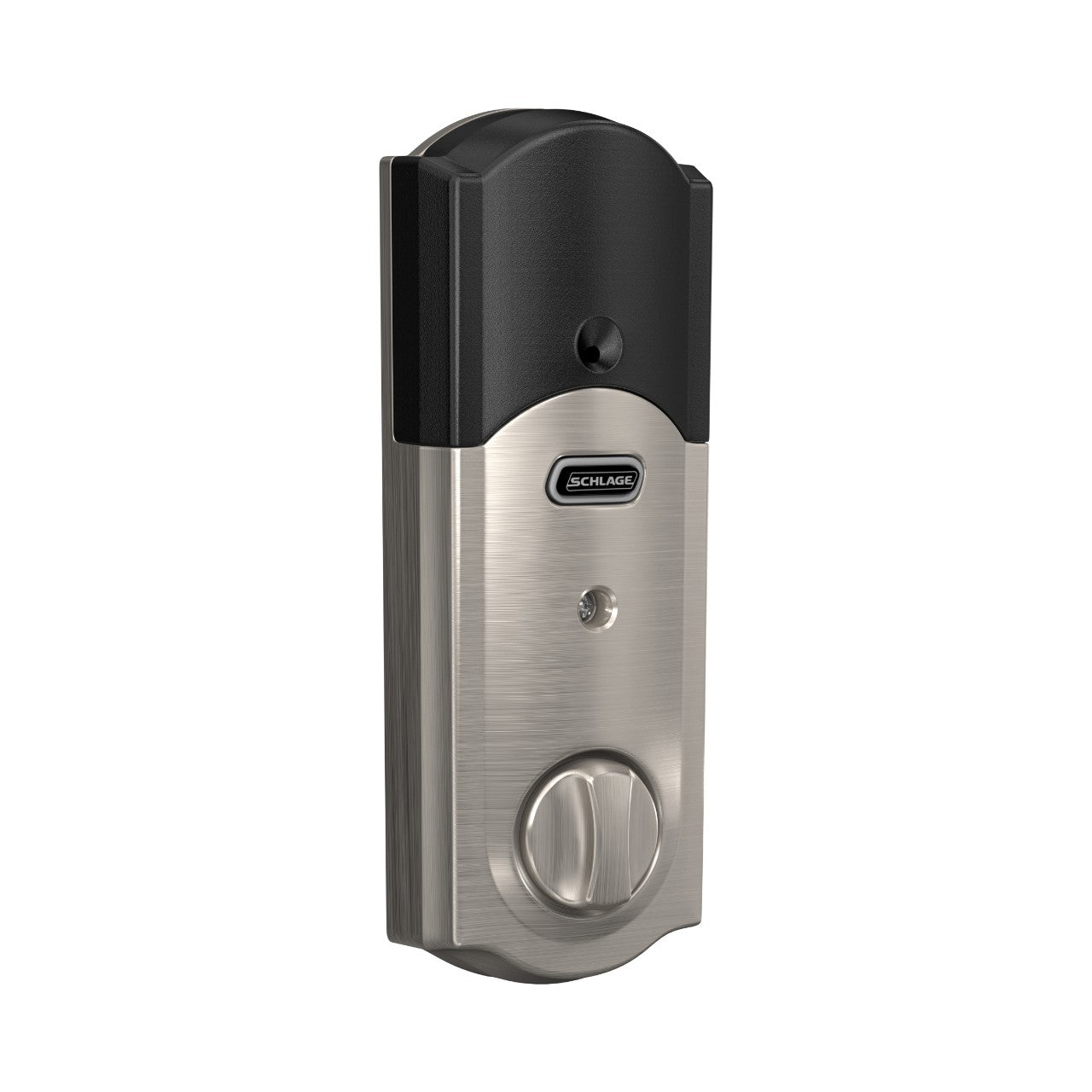

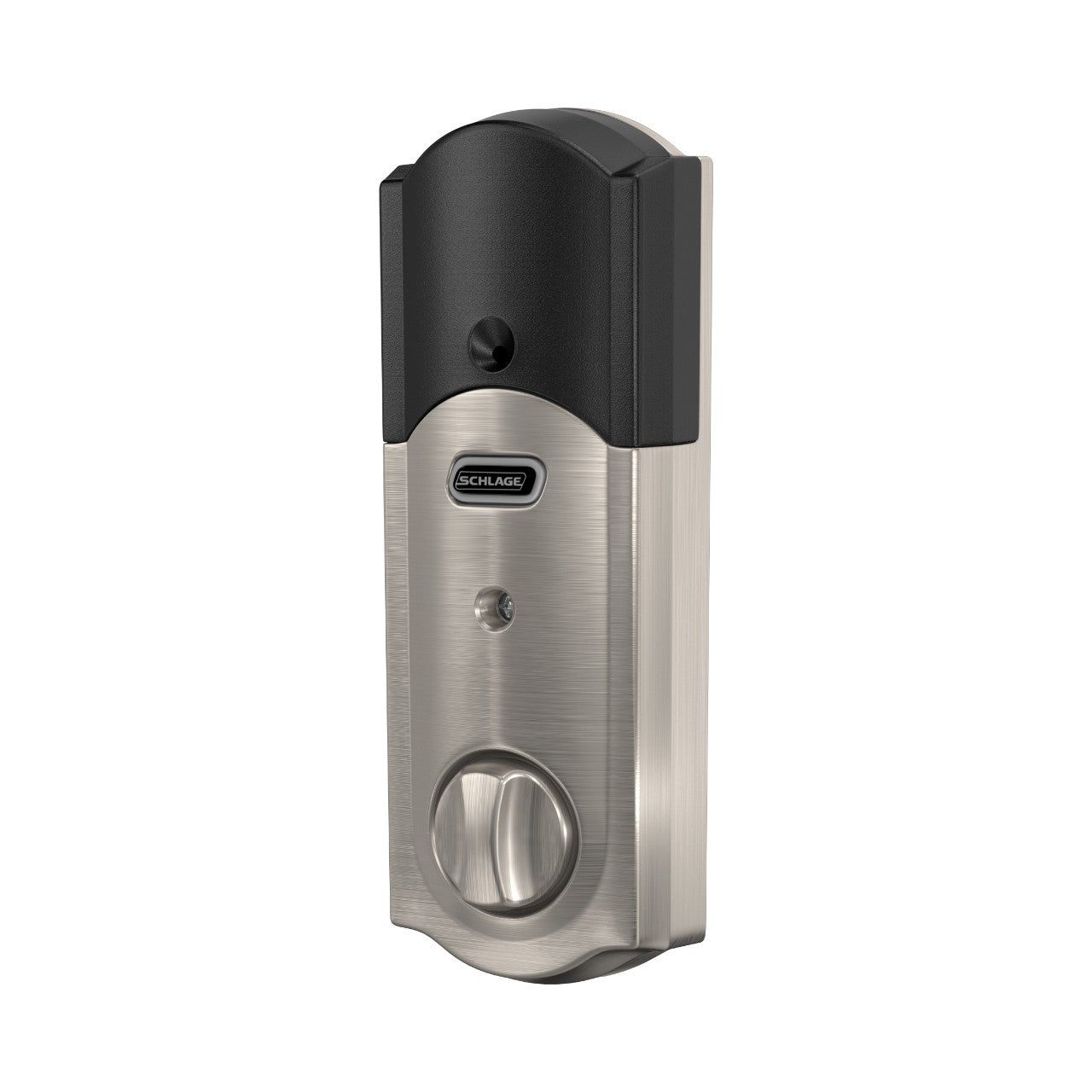

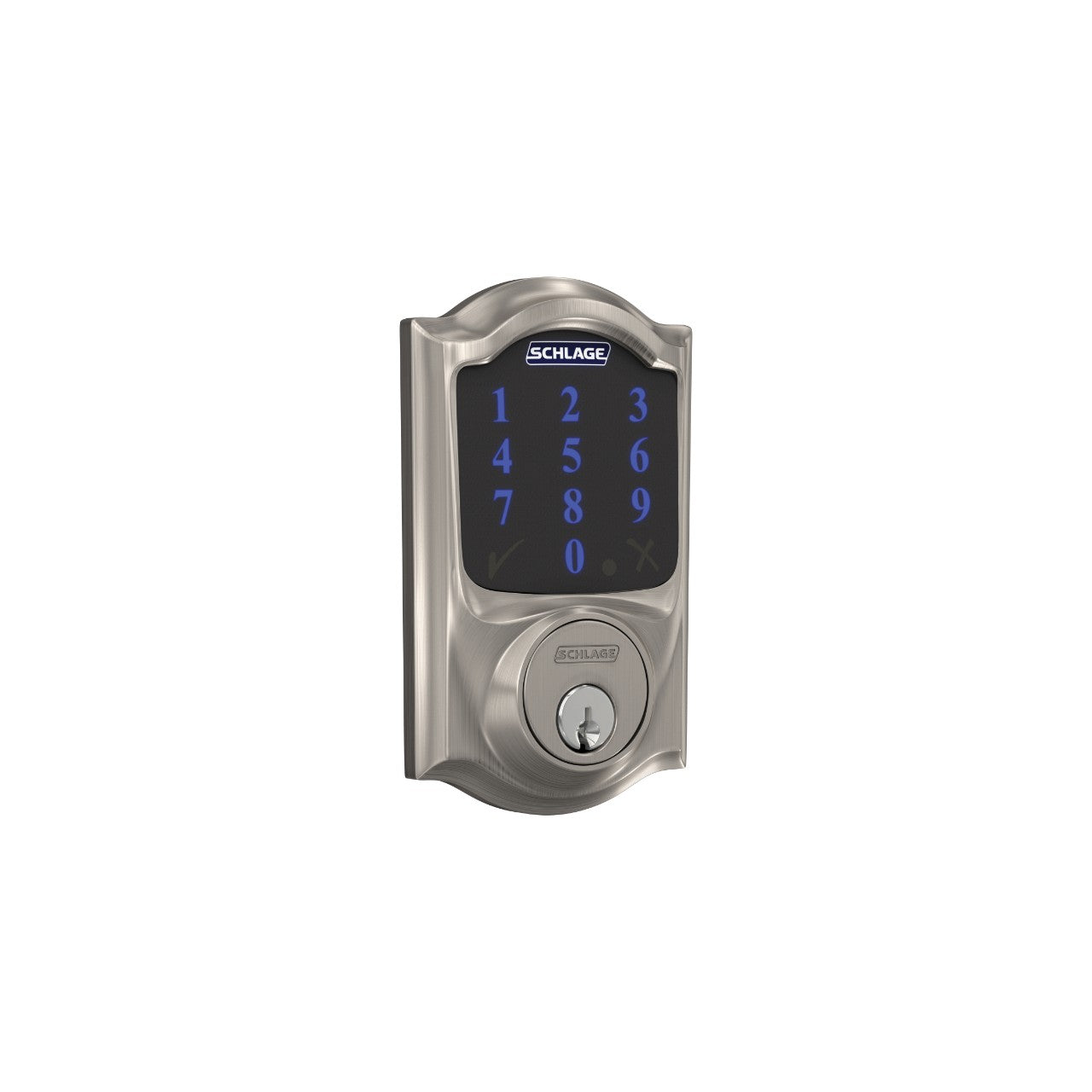

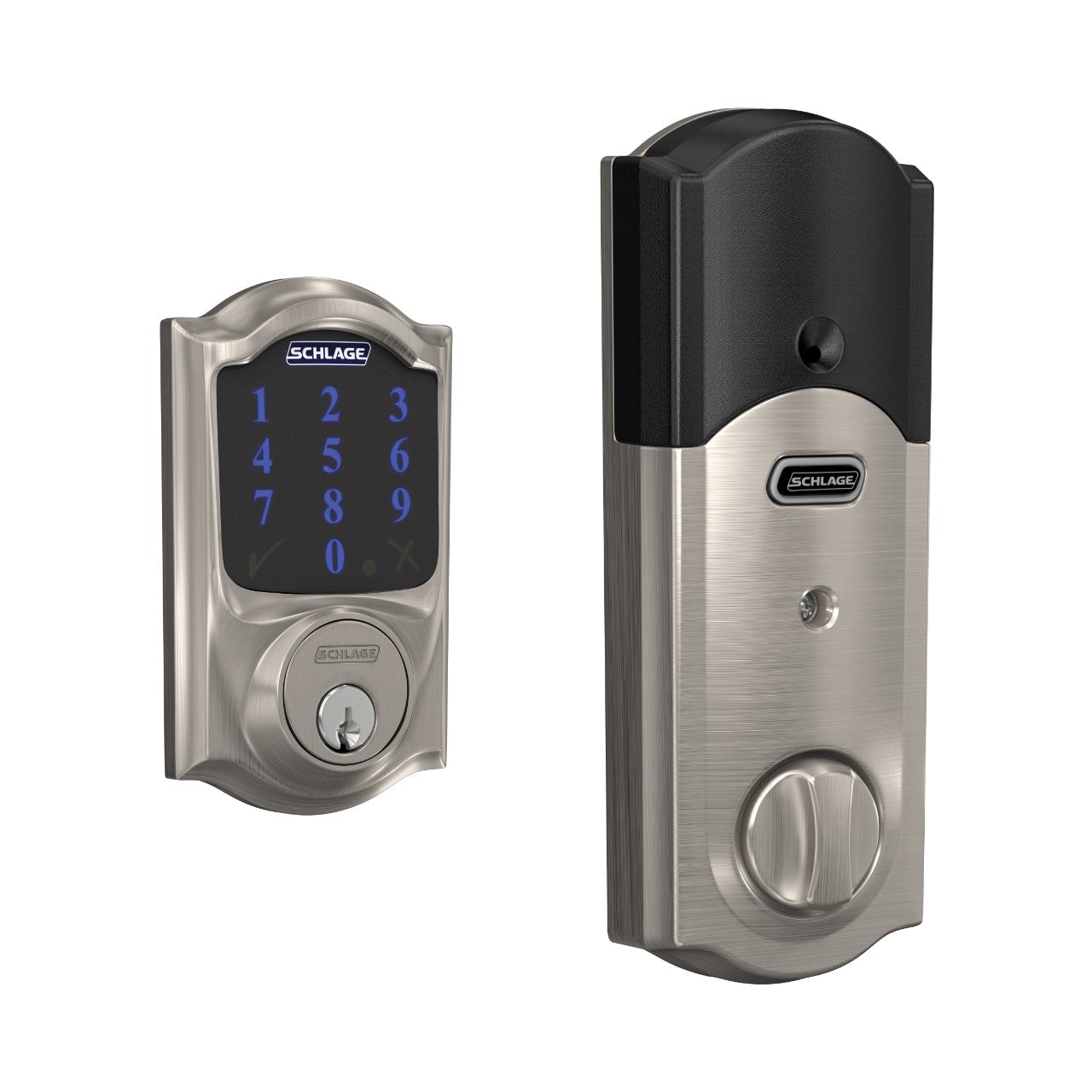

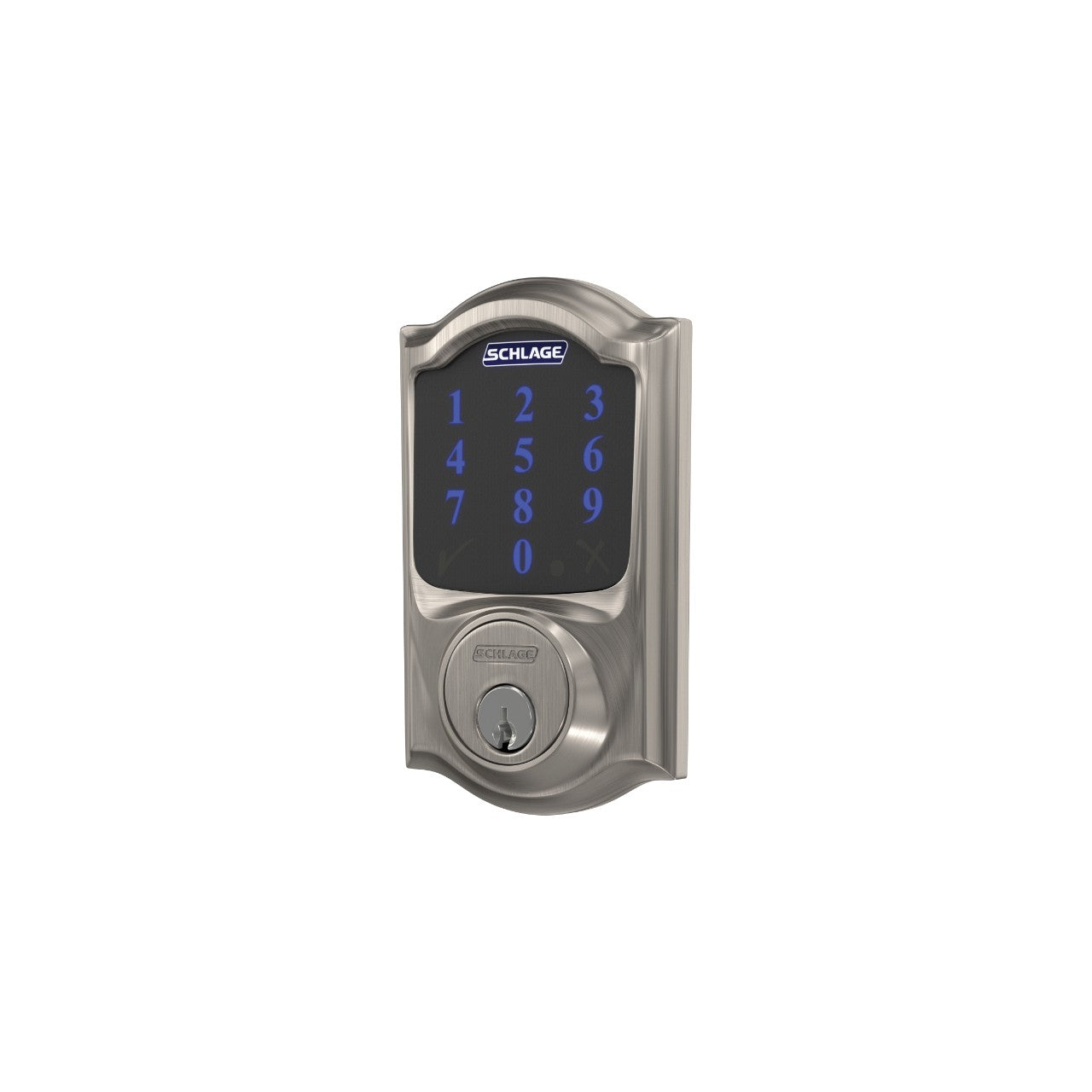

Schlage Connect Camelot Touchscreen Smart Deadbolt with Alarm

A Z-Wave Plus enabled touchscreen deadbolt combining keyless convenience with built-in alarm and robust metal construction. Manage up to 30 access codes, pair with leading smart home systems, and install easily on standard doors.

---

Key Features:

• Smart Home Ready: Z-Wave Plus compatibility for remote lock/unlock via supported hubs like SmartThings or Ring Alarm
• Keyless Access: Capacitive, fingerprint-resistant touchscreen with backlit keypad; store up to 30 unique codes
• Built-In Alarm: Alerts you to potential door attacks for added security
• Easy Installation: Installs in minutes with a screwdriver; fits 1-3/8 in to 1-3/4 in thick doors and 2-3/8 in or 2-3/4 in backsets
• Durable Construction: High-quality metal build; ANSI/BHMA Grade 1/AAA certified

---

Specifications Table:

Specification	Details
Technology	Z-Wave Plus enabled smart deadbolt with built-in alarm
Trim	Camelot
Finish	Aged Bronze (variant listed among finishes)
Access Codes	Up to 30 user codes; includes pre-set unique programming and access codes
Keying	5-pin tumbler, C Keyway; 1 key included
Power	4 AA alkaline batteries (included)
Exterior Dimensions	3" x 5" x 1"
Interior Dimensions	3" x 8" x 2"
Door Thickness	1-3/8" (35 mm) to 1-3/4" (44 mm)
Backset	Fits 2-3/8" (60 mm) or 2-3/4" (70 mm)
Certifications	ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish; ANSI/BHMA A156.36-2010 Grade 1
Operating Temperatures	Outside: -35°C to 66°C; Inside: -10°C to 49°C
Installation	Installs in minutes with a screwdriver; no hardwiring required; Snap ‘n Stay design
Compatibility	Pairs with Z-Wave smart home systems (e.g., Samsung SmartThings, Ring Alarm) for remote control
Warranty	Limited Lifetime Mechanical & Finish; 3-Year Electronics
Included Documents	Quick Start Guide (schlage.com)

---

Frequently Asked Questions (FAQ):

Q: Does it work without a smart hub?
A: Yes, the lock functions standalone with keypad and key; a Z-Wave hub is required for remote control and smart home integration.

---

Q: How many user codes can I program?
A: Up to 30 unique access codes, plus pre-set programming and access codes included.

---

Q: What batteries does it use and how long do they last?
A: Uses 4 AA alkaline batteries; typical use provides up to 1 year of battery life, with a low-battery indicator.

---

Q: Will it fit my door?
A: Fits standard doors 1-3/8" to 1-3/4" thick with 2-3/8" or 2-3/4" backsets; includes universal latches and deadbolts.

---

Q: Is it weather rated?
A: Operating temperatures: Outside escutcheon -35°C to 66°C; Inside escutcheon -10°C to 49°C.

---

A Heritage Camelot Silhouette, Elevated by Smart Security

The Camelot trim brings a timeless, sculpted profile that frames the glossy touchscreen like a modern jewel. Its refined metal finish feels substantial, balancing classic aesthetics with contemporary tech. Style it with clean-lined hardware and a bold entry paint for a polished welcome. This lock is the quiet luxury your doorway deserves—beauty, brains, and unwavering security.

---

Upgrade your entry with secure, keyless convenience—add the Schlage Connect Camelot Smart Deadbolt to your home today.
