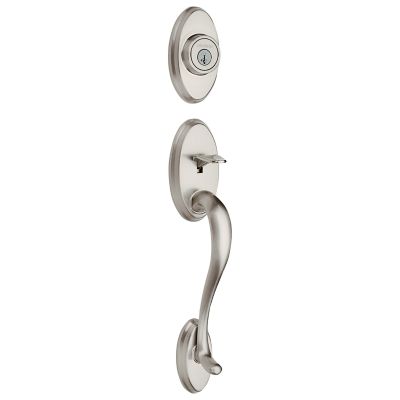

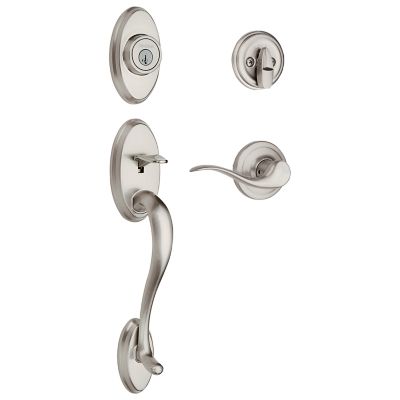

Shelburne Handleset with Tustin Lever, SmartKey, Satin Nickel

Kwikset’s Shelburne entry handleset pairs a graceful, transitional profile with Signature Series security. The set includes a Grade 1 deadbolt and Tustin interior lever, featuring SmartKey Security to re-key in seconds and Microban protection on high-touch surfaces.

---

Key Features:

• SmartKey Security: Re-key your lock in seconds and protect against advanced break‑in techniques
• Grade 1 Deadbolt: ANSI/BHMA certified for premium residential security

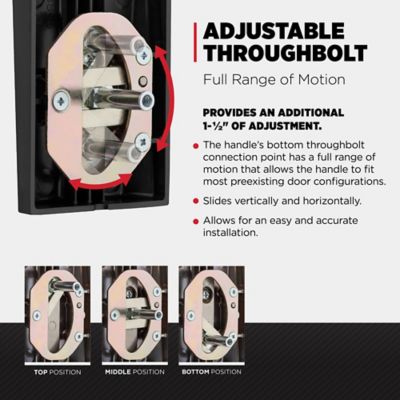

• Adjustable Fit: Latch backset adjusts 2-3/8 in. to 2-3/4 in.; bottom throughbolt adjusts for easy alignment
• Reversible Lever: Installs on right- or left-handed doors
• Durable Finish with Microban: Satin Nickel finish with antimicrobial product protection

---

Specifications Table:

Specification	Details
Collection / Family	Shelburne
Product Type	Handleset with Tustin Lever
Function	Keyed one side (single-cylinder deadbolt)
Finish	Satin Nickel
Style	Transitional
ANSI/BHMA Grade	Handleset Deadbolt Grade 1
SmartKey Security	Yes; compatible with KW1 or SC1 keyways
Microban Antimicrobial	Yes
Latch Backset	Adjustable 2-3/8 in. to 2-3/4 in.
Cross Bore	2-1/8 in.
Door Thickness	1-3/4 in. min and max listed
Assembled Height	18-1/4 in.
Assembled Width	2-5/8 in.
Assembled Length / Projection	2-7/8 in.
Deadbolt Throw	1 in.
Interior Lever Handing	Reversible for right- or left-handed doors
Included Keys	2 keys
Faceplates	Round corner and square corner interchangeable
Strikes Included	Deadbolt and full lip round strikes

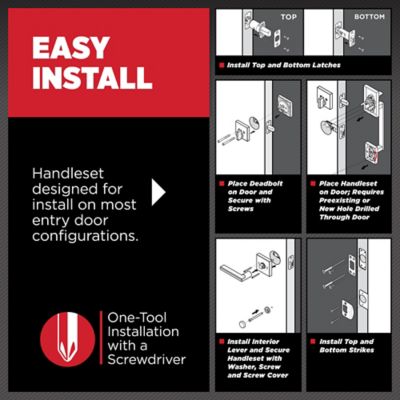

Installation	One-tool installation with a screwdriver; adjustable throughbolt for alignment
UL Time Rating	Not rated
ADA Compliant	No

---

Frequently Asked Questions (FAQ):

Q: What door thickness and bore sizes does this fit?
A: Designed for standard doors with 2-1/8 in. cross-bore; listed min/max thickness 1-3/4 in.

---

Q: Is the interior lever handed?
A: No. The Tustin lever is fully reversible for right- or left-handed doors.

---

Q: Does it include both the handleset and deadbolt?
A: Yes—includes exterior handleset, interior Tustin lever, and single-cylinder deadbolt with 2 keys.

---

Q: How difficult is installation?
A: Installs in minutes with a screwdriver; adjustable throughbolt helps align pre-existing holes.

---

Q: Can I re-key it to match my other Kwikset locks?
A: Yes, SmartKey re-key technology is compatible with KW1 and SC1 keyways.

---

Graceful Curb Appeal, Elevated Security

The Shelburne handleset sweeps down the door with a poised, sculptural curve, lending any entry a tailored sophistication. Its satin nickel sheen feels modern yet timeless, while the Tustin lever adds an elegant counterpoint inside. Style it with crisp white trim and a bold door color for instant presence. With top-tier security seamlessly integrated, it’s a luxe essential for everyday living.

---

Upgrade your entry with the Shelburne—refined style, Grade 1 security, and SmartKey convenience in one easy install.
