Prescott Entry Handleset with Tustin Lever, SmartKey

Upgrade your front door with the Prescott handleset featuring a single-cylinder deadbolt and Tustin lever. Built from Kwikset’s Signature Series, it delivers SmartKey Security for quick re-keying and strong protection, in a Venetian Bronze finish.

---

Key Features:

• SmartKey Security: Re-key your lock in seconds while protecting against advanced break‑in techniques
• Single‑Cylinder Deadbolt: Exterior key with interior turn piece for secure, everyday use

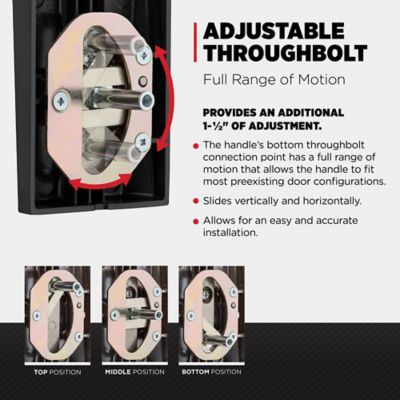

• Adjustable Installation: Latch backset adjusts 2-3/8" to 2-3/4"; throughbolt offers extra alignment flexibility
• Reversible Interior Lever: Fits right‑handed or left‑handed doors for versatile placement
• ANSI/BHMA Grade AAA: Certified highest residential security, durability, and finish

---

Specifications Table:

Specification	Details
Kwikset family	Prescott
Product type	Handleset
Function	Deadbolt keyed one side (single cylinder)
Finish	Venetian Bronze
Entry has SmartKey	Yes
Has Microban	Yes
ANSI/BHMA grade	AAA (Deadbolt Only)
UL time rating	Not rated
Minimum door thickness	1-3/4"
Maximum door thickness	2"
Assembled height	17-3/4"
Latch backset size	Adjustable 2-3/8" to 2-3/4"
Cross bore	2-1/8"
ADA compliant	No
Included keys	2
Interior lever	Fully reversible
Deadbolt throw	1"

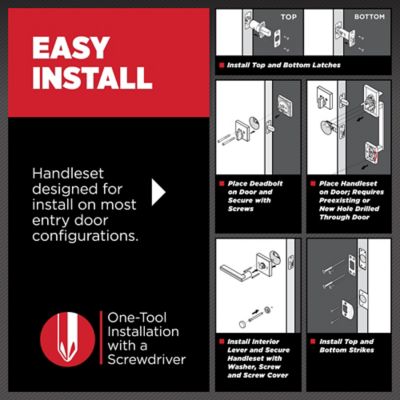

Installation	Installs in minutes with a screwdriver

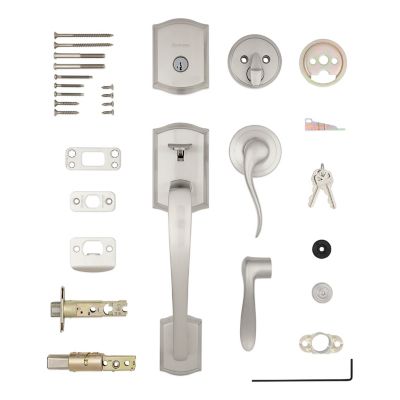

Includes	Round deadbolt strike; round corner faceplate; drive‑in collar attached
Warranty	Lifetime mechanical and finish warranty

---

Frequently Asked Questions (FAQ):

Q: Is the lever reversible for left- or right-handed doors?
A: Yes, the interior Tustin lever is fully reversible to fit both right- and left-handed doors.

---

Q: Can I re-key this lock myself?
A: Yes. SmartKey Security lets you re-key the lock in seconds using the included tool.

---

Q: What door thickness does it fit?
A: Designed for standard exterior doors; min 1-3/4" and max 2" per Kwikset specs.

---

Q: What backset sizes are supported?
A: The latch backset adjusts between 2-3/8" and 2-3/4" to match most door preparations.

---

Q: Does it include all parts for installation?
A: Yes, it includes the handleset, deadbolt, interior lever, latches, strikes, screws, keys, and installation tool; installs with a screwdriver.

---

A Sculpted Statement for the Modern Entry

Prescott’s clean architecture and the graceful Tustin lever bring a tailored elegance to the threshold. The Venetian Bronze finish adds a rich, dimensional warmth that pairs beautifully with natural woods and painted doors alike. Style it with a sleek kickplate and oversized house numbers for a cohesive, gallery‑ready façade. It’s a refined essential that elevates everyday living the moment you arrive home.

---

Secure and style your entry—choose Prescott with SmartKey Security today.
