Prescott Venetian Bronze Single Cylinder Entry Door Handleset with Tustin Lever Featuring SmartKey Security

Security grade AAAAdjustable

$129.00 each

Orders start at $399. Combine any items to reach it.

Finish: Venetian Bronze
  • Handing Universal
Quantity
1 item
$129.00
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Hardware

Details & specifications.

From the maker · the maker’s description

The Prescott handle set has an elegant but modest appearance that will bring charm to any home. With traditional contours that provide an attractive look and comfortable feel when entering the front door. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style.

  • Certified highest residential security, durability and finish - ANSI/BHMA grade AAA
  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • SmartKey Security Re-Key technology is compatible with Kwikset (KW1) keyway
  • Comes with 2 keys
  • Fully reversible interior lever, fits both right handed and left handed doors
  • Latch has round corner faceplate
  • For use on exterior doors where keyed entry and security is needed
  • Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 in. deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
SKU
314118310
Function
Handleset
Finish
Bronze
ANSI grade
AAA
Backset
Adjustable
Style
Classic
Finish
Venetian Bronze
Item Weight
6.44
Door Handing
Universal
Lock Type
Keyed
Commercial/Residential
Residential
Total Number of Keys Included
2
Keyway
KW1
Deadbolt Type
Single Cylinder Deadbolt
Included

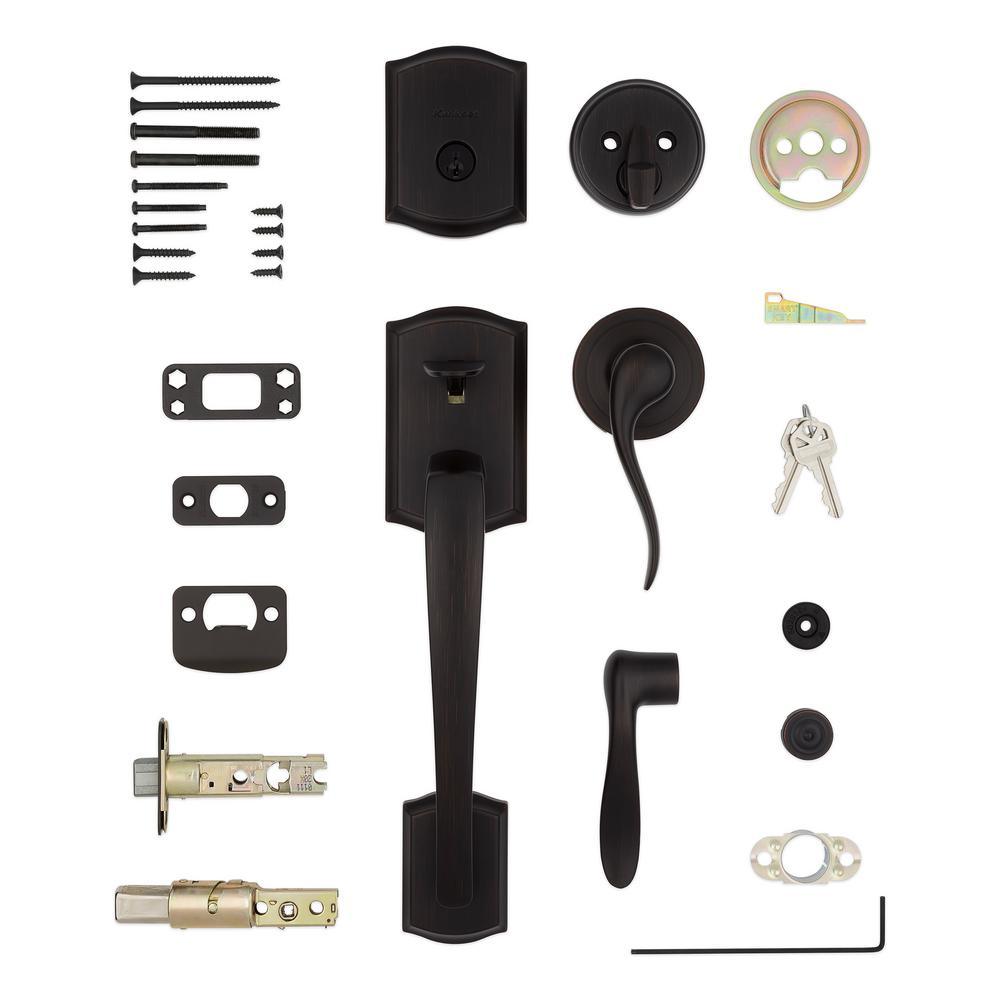

Drilling Template, Hardware, Installation Instructions, Mounting Hardware
Knob/lever strike
Round corner
Handleset Product Type
2 Piece Front & Back
Application Type
Entry
Lock Type2
Keyed Entry
Product Weight (lb.)
6.44
Material
Metal
Keying Type
Keyed Different
Features
Adjustable Backset, Easy Installation, Kwikset SmartKey
Deadbolt strike
Round corner
Door Locks & Knobs Product Type
Keyed Handlesets
Interior/Exterior
Exterior
Lever style
Wave
Minimum door thickness (in.)
1.375
Electronic/Mechanical
Mechanical
Outside bottom handle plate length (in.)
12.64
Deadbolt cross bore diameter (in.)
2.125
Projection (in.)
2.125
Deadbolt bore hole diameter (in.)
1
Lever grip length (in.)
4.21
Knob/lever strike height (in.)
2.25
Assembled Depth (in.)
2.125 in
Inside top plate length (in.)
2.64
Knob/lever strike width (in.)
1.75
Knob/lever housing width (in.)
2.625
Assembled Height (in.)
17.75 in
Handle grip length (in.)
12.64
Outside bottom handle plate width (in.)
2.81
Outside key plate length (in.)
2.125
Deadbolt trim ring diameter (in.)
2.625
Assembled Width (in.)
2.81 in
Deadbolt strike height (in.)
2.25
Outside top handle plate width (in.)
2.81
Maximum door thickness (in.)
1.75
Deadbolt strike width (in.)
1
Outside key plate width (in.)
12.8
Deadbolt throw length (in.)
1
Inside top plate width (in.)
7.21
Outside top handle plate length (in.)
3
Knob/lever housing height (in.)
2.625
Knob/lever throw length (in.)
.5
Knob/lever bore hole diameter (in.)
1
Knob/lever cross bore diameter (in.)
2.125
Certifications and Listings
ANSI Certified
Manufacturer Warranty
Lifetime mechanical and finsih

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Door hardware, by function

  1. 1

    Passage

    No lock. Halls and closets.

  2. 2

    Privacy

    A push-button lock inside. Bedrooms and baths.

  3. 3

    Keyed entry

    Locks with a key from outside. Exterior and garage entry doors, often with a deadbolt.

  4. 4

    ANSI grade

    Grade 1 is the toughest, grade 3 the lightest residential grade.

  5. 5

    Cabinet pulls

    Sized by hole spacing, center to center. Match the holes you have.
