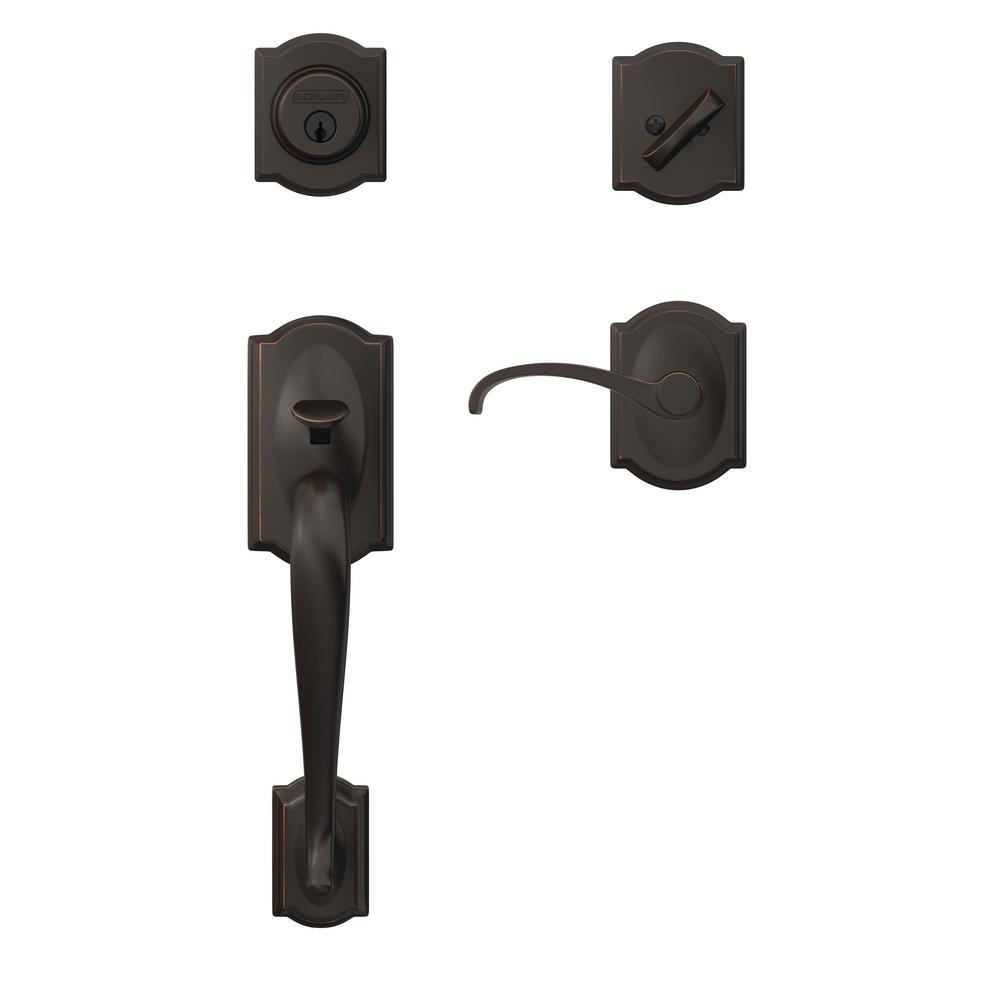

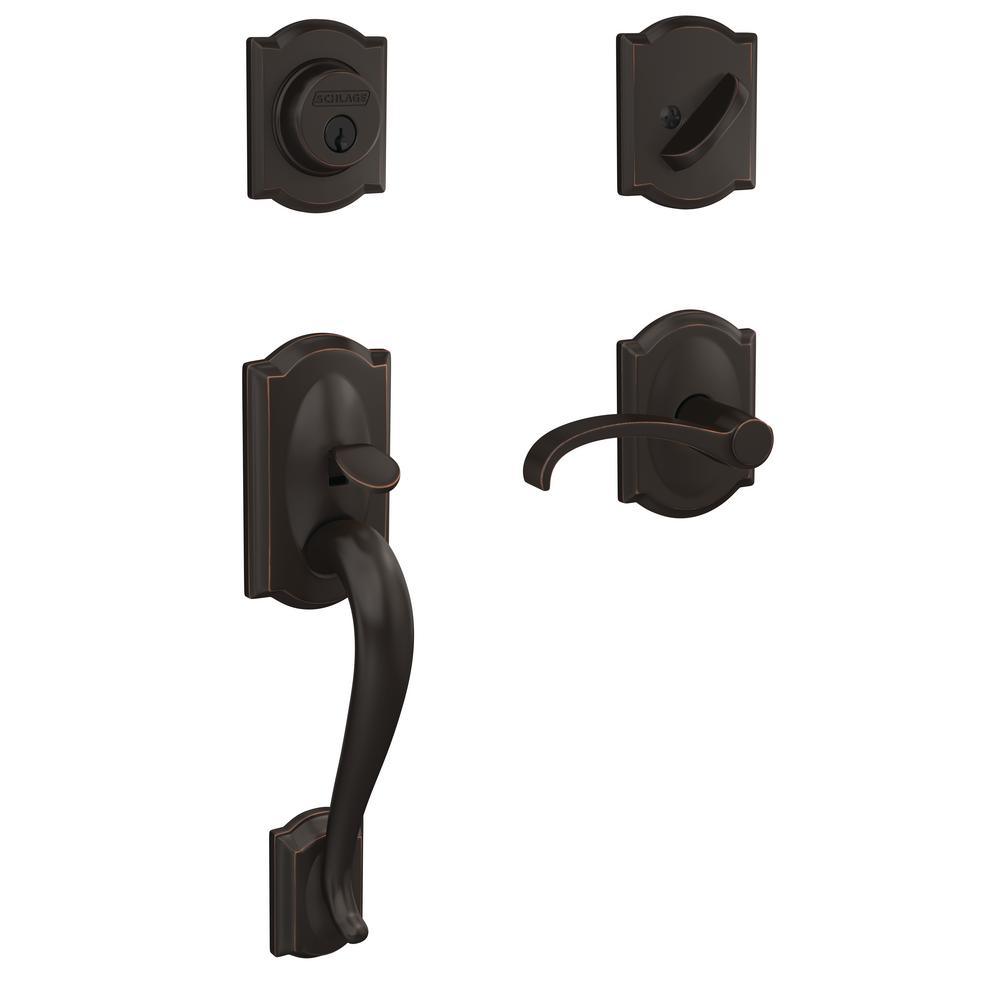

Custom Camelot Aged Bronze Single Cylinder Door Handleset with Whitney Door Lever
Regular price $159.99/
Shipping calculated at checkout.
The ultimate in entryway style, the Schlage Custom Camelot Single Cylinder Handleset and Interior Whitney Lever with Camelot Trim in Aged Bronze makes your front door unforgettable. Low profile interior trim creates a high-style designer look. The Whitney lever adds an authentic touch of traditional style reminiscent of classic wrought-iron scrollwork, while the Camelot grip's scalloped architectural details make any room charming and approachable. The Aged Bronze finish is inspired by traditional design, featuring warm, copper tones that break through its darker, aged exterior. Coordinate the style and finish of your homes door hardware inside and out by pairing with Schlage Custom interior door hardware.
Features
- Handleset design is inspired by the arts and crafts movement and pairs well with styles ranging from transitional to traditional
- Style and finish pair with Schlage custom interior door hardware so you can coordinate your home's hardware style inside and out
- Low profile interior trim creates a high-style look
- Easy installation with guaranteed fit on standard pre-drilled doors all you need is a screwdriver
- Through bolt adjustable by 1-1/2 in. to fit pre-existing holes
- Lock and finish come with limited lifetime warranty and Schlage's exceptional customer service team
Features
| Item Weight | 6.18105 |
| Door Handing | Universal |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Hardware Finish Family | Zinc |
| Lock Type | Keyed |
| Commercial/Residential | Residential |
| Total Number of Keys Included | 2 |
| Included | Drilling Template,Hardware,Installation Instructions,Self Guiding Screws |
| Deadbolt Type | Single Cylinder Deadbolt |
| Knob/lever strike | Round corner |
| Finish | Aged Bronze |
| Features | Adjustable Backset,Easy Installation,Rekeyable |
| Keying Type | Keyed Alike |
| Application Type | Entry |
| Keyway | C |
| Door Lock Style | Modern |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Deadbolt strike | Round corner |
| Returnable | 180-Day |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Interior/Exterior | Exterior |
| Lever style | Wave |
| Minimum door thickness (in.) | 1.625 |
| Handleset Product Type | 1 Piece Front & 2 Piece Back |
| Material | Zinc |
| Electronic/Mechanical | Mechanical |
| Product Weight (lb.) | 5.32785 |
| Single or Double Cylinder Deadbolt | Single |
| Handle grip length (in.) | 12.9 |
| Knob/lever housing height (in.) | 2.8 |
| Knob/lever strike height (in.) | 2.3 |
| Deadbolt bore hole diameter (in.) | 2.2 |
| Knob/lever housing width (in.) | 5.1 |
| Inside top plate length (in.) | 2.5 |
| Knob/lever throw length (in.) | .4 |
| Deadbolt strike height (in.) | 2.3 |
| Outside bottom handle plate width (in.) | 2.8 |
| Knob/lever strike width (in.) | .9 |
| Assembled Width (in.) | 8.1 in |
| Assembled Height (in.) | 18.0625 in |
| Deadbolt trim ring diameter (in.) | 2.5 |
| Knob/lever bore hole diameter (in.) | 2.2 |
| Deadbolt strike width (in.) | 1.6 |
| Outside handle and key plate width (in.) | 2.9 |
| Maximum door thickness (in.) | 1.75 |
| Outside handle plate on-center measurement (in.) | 7 |
| Deadbolt throw length (in.) | 1 |
| Projection (in.) | 2.9 |
| Inside top plate width (in.) | 2.5 |
| Knob/lever cross bore diameter (in.) | 1 |
| Outside bottom handle plate length (in.) | 3.1 |
| Outside handle and key plate length (in.) | 3.3 |
| Lever grip length (in.) | 4.1 |
| Deadbolt cross bore diameter (in.) | 1 |
| Assembled Depth (in.) | 6.5 in |
| Certifications and Listings | ANSI Certified |
| Manufacturer Warranty | limited lifetime |
