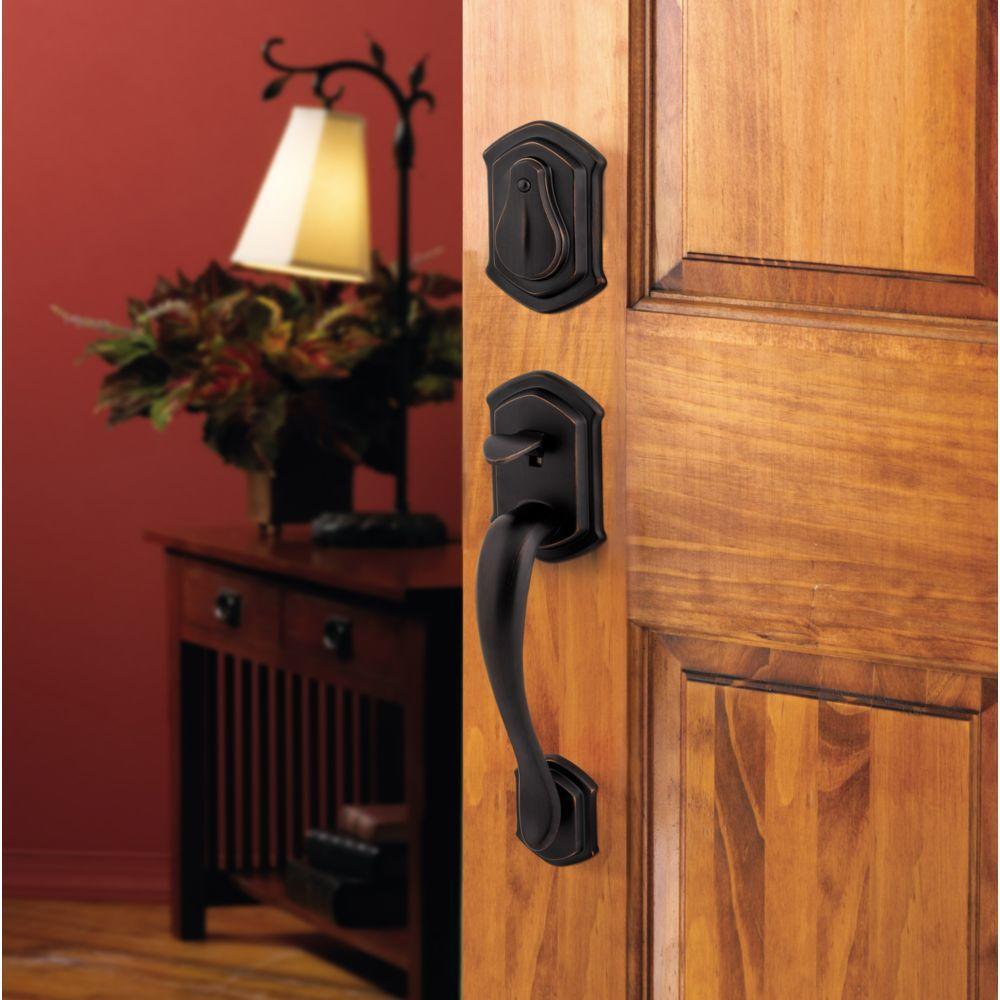

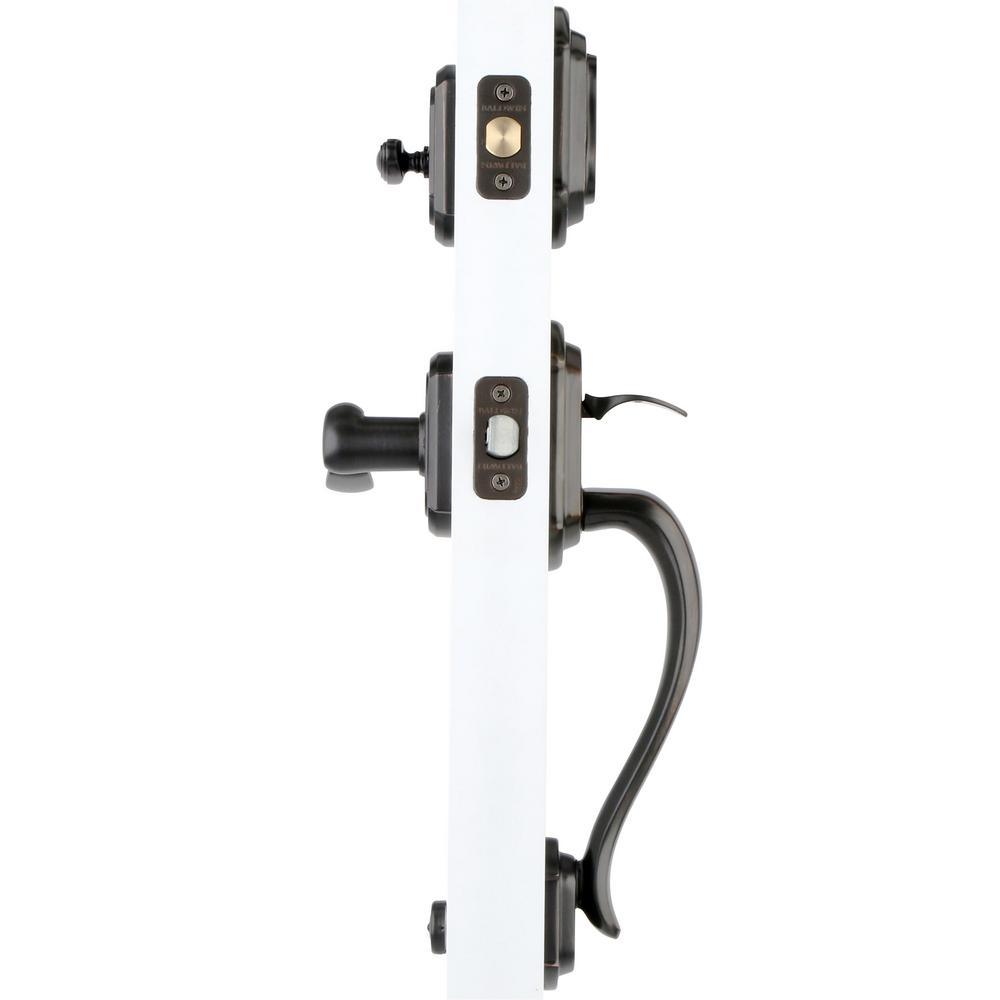

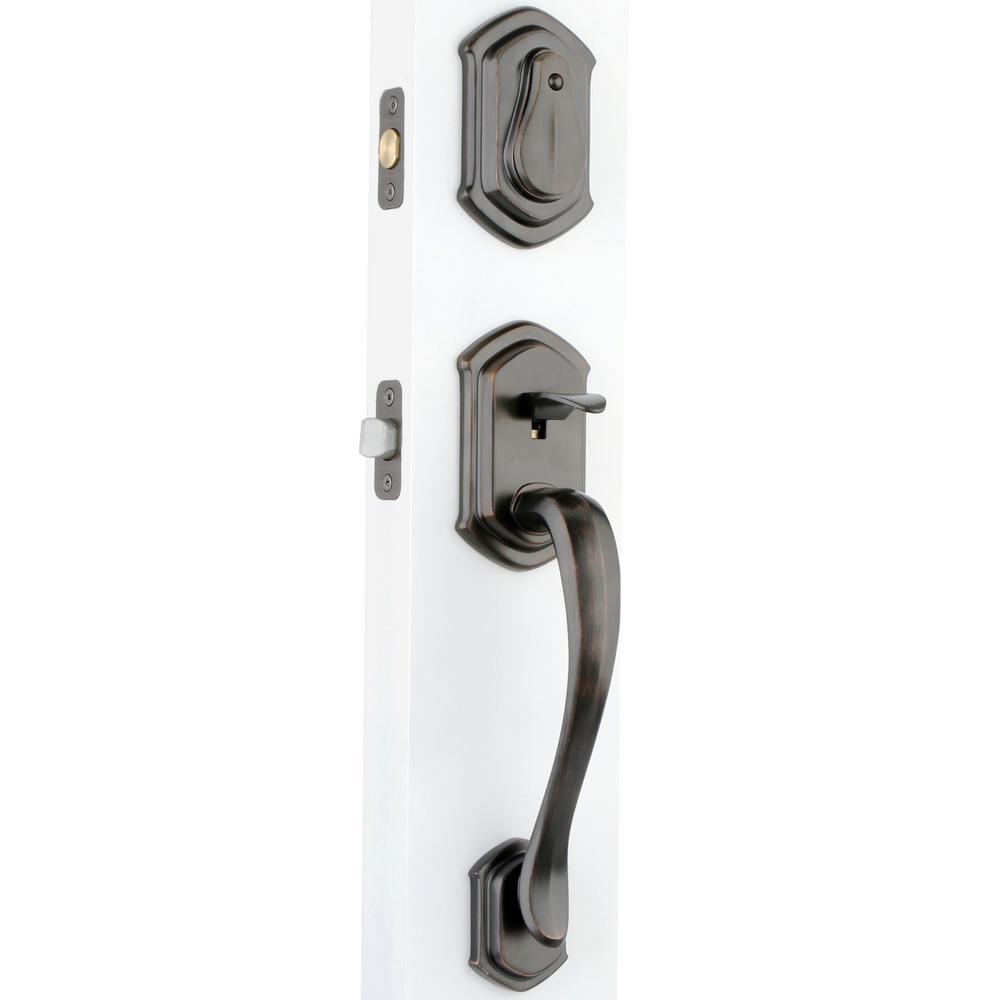

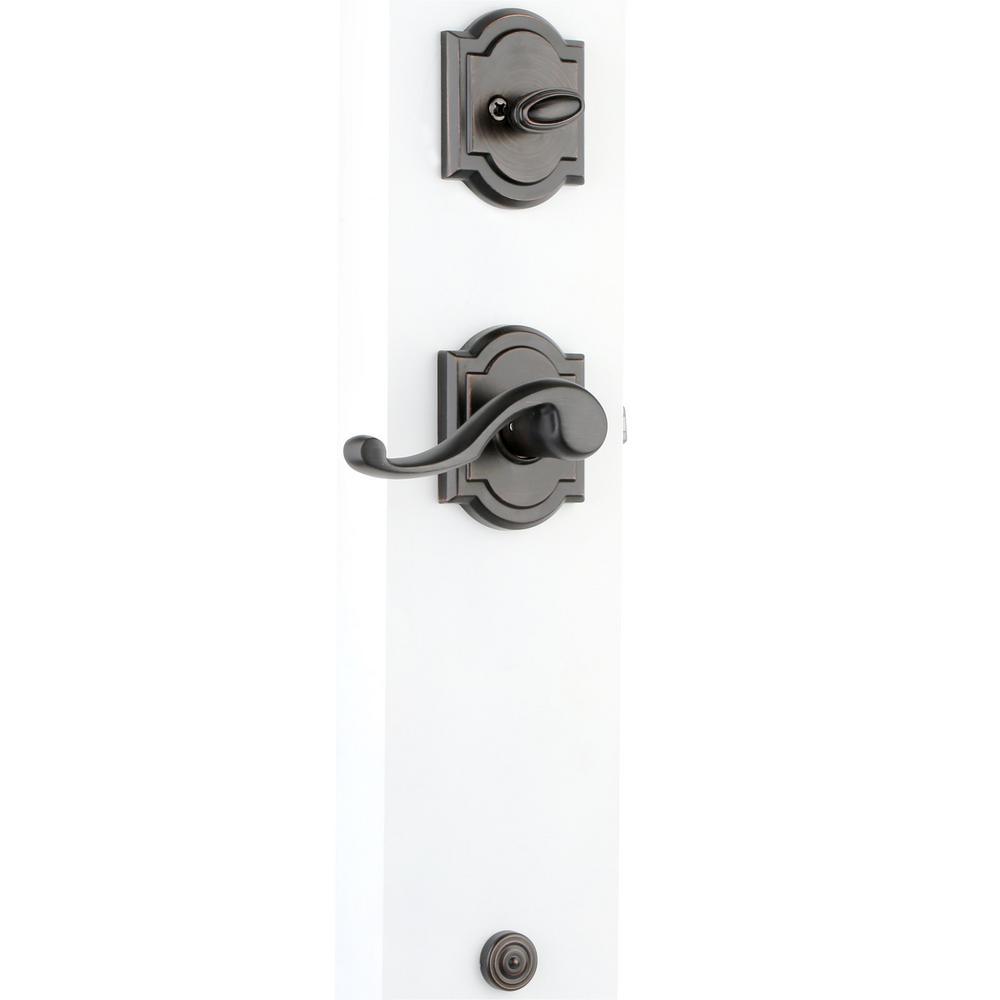

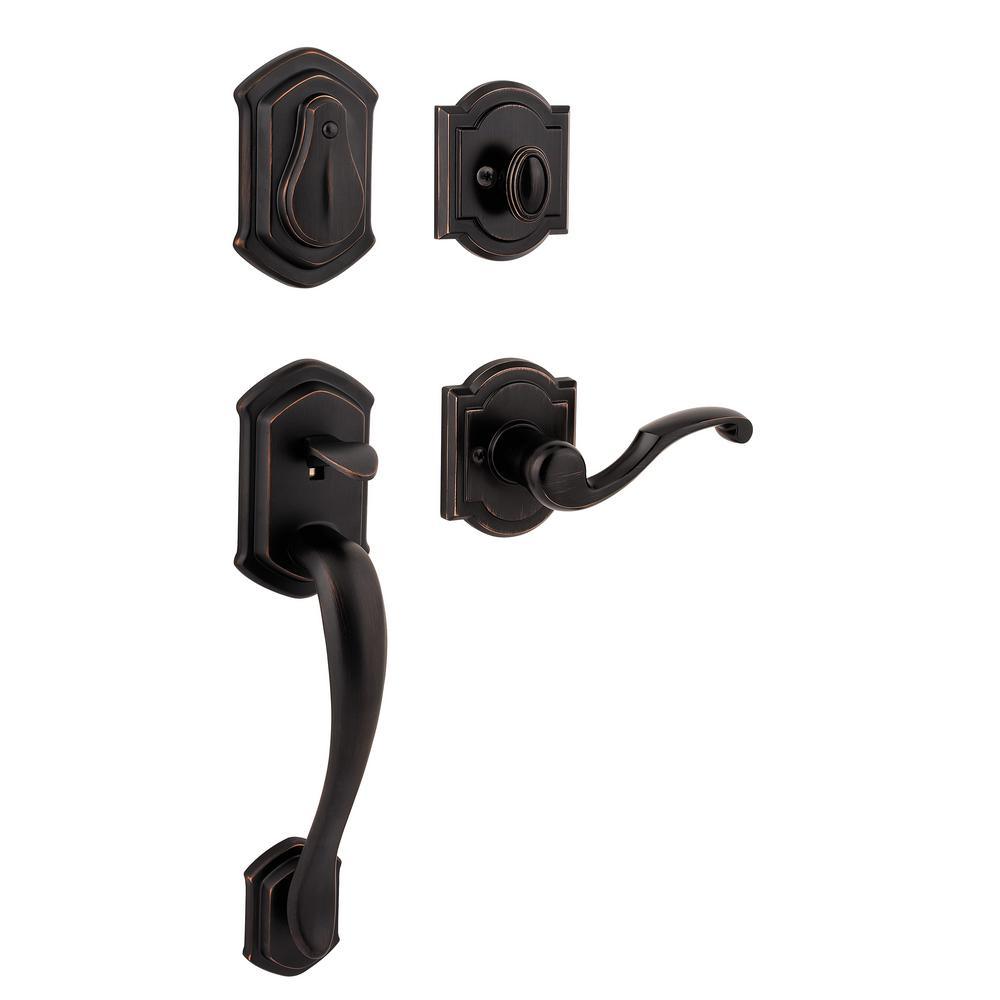

Prestige Medina Single Cylinder Venetian Bronze Door Handleset with Arch Rose Madrina Door Lever feat SmartKey Security

Adjustable

$168.77 each

Orders start at $399. Combine any items to reach it.

  • Handing Universal
Quantity
1 item
$168.77
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Hardware

Details & specifications.

From the maker · the maker’s description

The Prestige is a way to bring the legendary excellence of Baldwin into more homes and more hands. With the Prestige Series, any homeowner can instantly create an atmosphere of confidence from the moment someone knocks on the door. Prestige features the innovative SmartKey Security re-key technology, allowing you to re-key your lock as often as you wish without replacing the entire lock. The flexibility to re-key your locks any time you desire increases home security, allows for 1-key convenience and facilitates home remodeling and hardware updates.

  • Elegant low profile cylinder
  • Architecturally inspired design
  • Easy to install; adjustable backset latch fits 2-3/8 in. (60 mm) or 2-3/4 in. (70 mm)
  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • Accommodates door thickness of 1-3/4 in. (44 mm) conversion kit available for 2-1/4 in. thick doors
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks

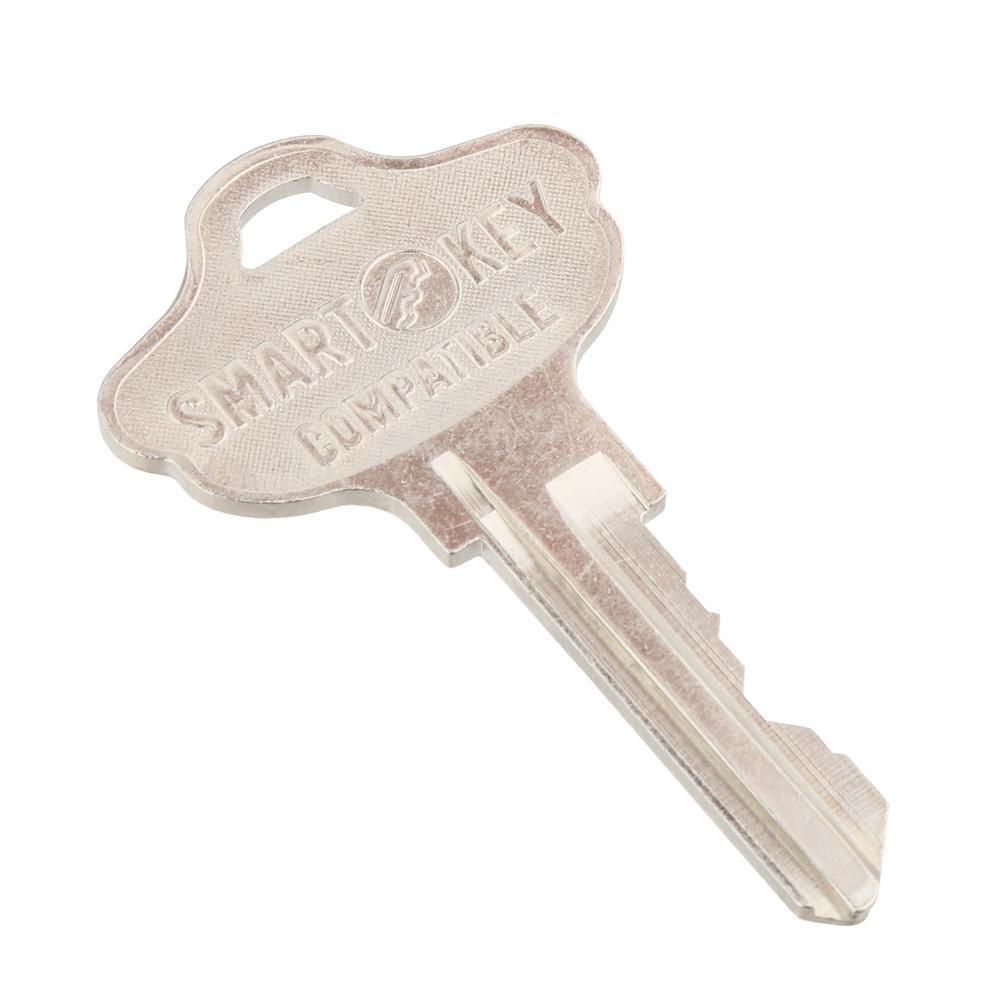

  • SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
SKU
301390253
Function
Handleset
Finish
Bronze
Backset
Adjustable
Style
Classic
Item Weight
9.85
Material
Solid Brass
Door Handing
Universal
Lock Type
Keyed
Features
Adjustable Backset, Kwikset SmartKey
Commercial/Residential
Residential
Total Number of Keys Included
2
Keyway
KW1
Deadbolt Type
Single Cylinder Deadbolt
Minimum door thickness (in.)
1.75
Knob/lever strike
Round corner
Handleset Product Type
2 Piece Front & Back
Application Type
Entry
Lock Type2
Keyed Entry
Keying Type
Keyed Different
Deadbolt strike
Round corner
Door Locks & Knobs Product Type
Keyed Handlesets
Lever style
Wave
Interior/Exterior
Interior/Exterior
Product Weight (lb.)
9.85
Electronic/Mechanical
Mechanical
Included
Hardware, Installation Instructions
Projection (in.)
3.00
Inside top plate width (in.)
2.80
Deadbolt cross bore diameter (in.)
2.125
Deadbolt bore hole diameter (in.)
1
Knob/lever strike height (in.)
2.25
Knob/lever strike width (in.)
1
Assembled Height (in.)
12.89 in
Lever grip length (in.)
4.25
Outside key plate width (in.)
3
Outside bottom handle plate length (in.)
12.89
Knob/lever housing width (in.)
1
Inside top plate length (in.)
3.50
Handle grip length (in.)
3.00
Outside top handle plate length (in.)
4.60
Deadbolt trim ring diameter (in.)
2.80
Deadbolt strike width (in.)
1.125
Knob/lever housing height (in.)
3.50
Assembled Width (in.)
3.00 in
Outside top handle plate width (in.)
3.00
Knob/lever cross bore diameter (in.)
2.13
Maximum door thickness (in.)
2.25
Deadbolt strike height (in.)
2.25
Outside bottom handle plate width (in.)
3.00
Deadbolt throw length (in.)
1
Assembled Depth (in.)
3.00 in
Outside key plate length (in.)
4.60
Knob/lever throw length (in.)
.5
Knob/lever bore hole diameter (in.)
1
Manufacturer Warranty
Limited lifetime warranty
Certifications and Listings
No Certifications or Listings

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Door hardware, by function

  1. 1

    Passage

    No lock. Halls and closets.

  2. 2

    Privacy

    A push-button lock inside. Bedrooms and baths.

  3. 3

    Keyed entry

    Locks with a key from outside. Exterior and garage entry doors, often with a deadbolt.

  4. 4

    ANSI grade

    Grade 1 is the toughest, grade 3 the lightest residential grade.

  5. 5

    Cabinet pulls

    Sized by hole spacing, center to center. Match the holes you have.
