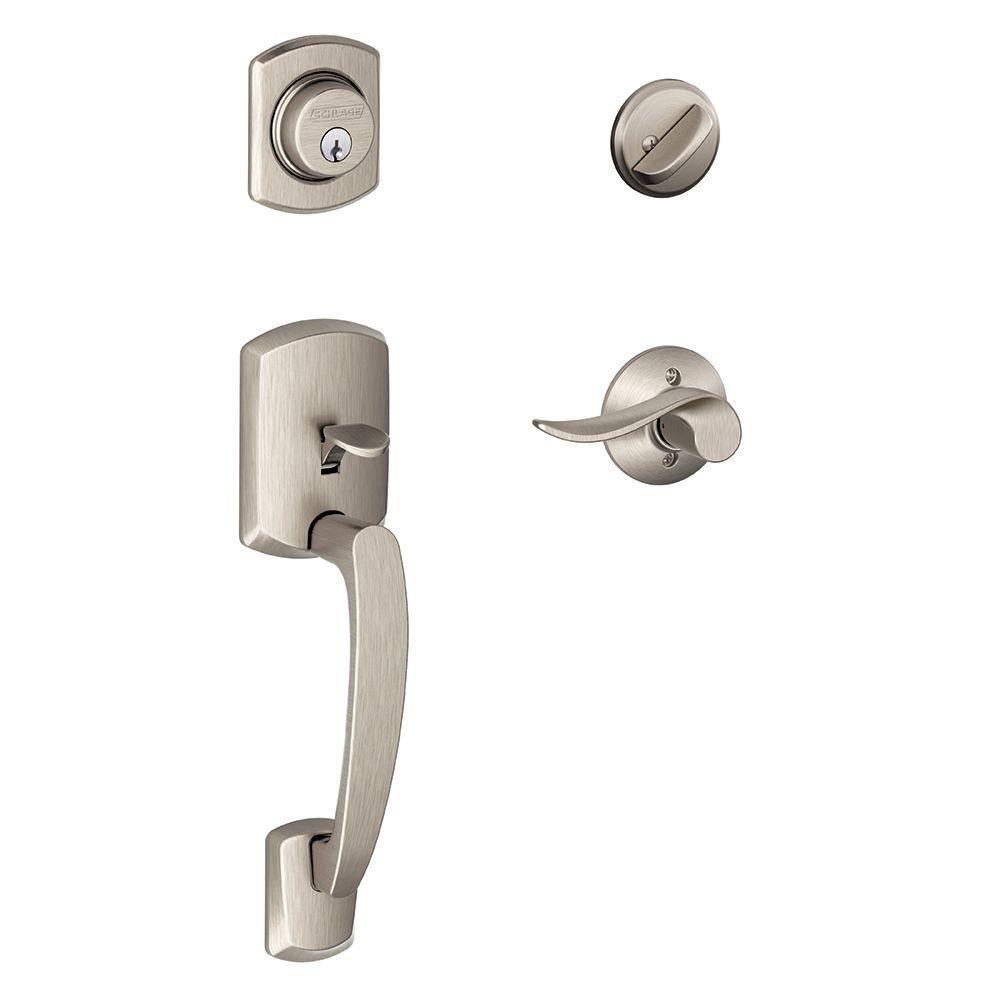

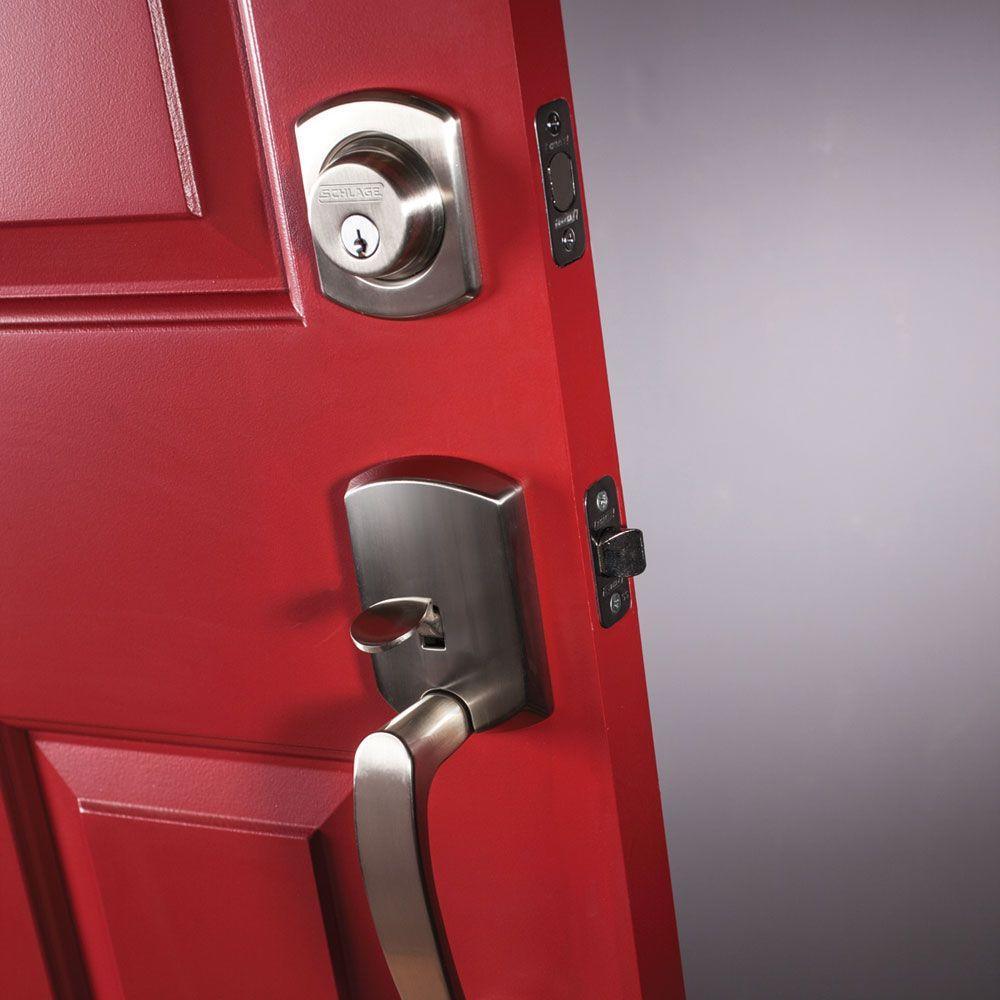

Greenwich Satin Nickel Single Cylinder Deadbolt with Sacramento Lever Door Handleset
Regular price $0.00Shipping calculated at checkout.
The Schlage Greenwich Single Cylinder Satin Nickel Handle set with Sacramento Lever is perfect for use on exterior front doors. The Sacramento lever is polished and playful, with an arched design that lends itself to almost any style. The Greenwich Trim’s simple and chic look is especially glamorous – especially when wrapped in our versatile Satin Nickel finish. Plus, it’s been designed and tested with strength and durability in mind.
Features
- Use with 1-5/8 in. to 1-3/4 in. door
- Adjustable through bolt can move up and down 1-1/2 in. to fit a variety of pre-existing holes
- Self-aligning screw holes make installation easy and hassle-free
- Latch retracted by thumbpiece from outside or by inside knob/lever
- Lever design pairs well with natural wood grains and simple, clean styles
- Finish coordinates easily with plumbing and lighting fixtures
- Works with right and left swing doors
- Lock and finish backed by limited lifetime warranty
Features
| Item Weight | 7.52 |
| Door Handing | Universal |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Lock Type | Keyed |
| Door Lock Style | Classic |
| Commercial/Residential | Residential |
| Total Number of Keys Included | 2 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Knob/lever strike | Round corner |
| Handleset Product Type | 2 Piece Front & Back |
| Keying Type | Keyed Alike |
| Application Type | Entry |
| Keyway | C |
| Lock Type2 | Keyed Entry |
| Product Weight (lb.) | 6.5 |
| Backset size (in.) | Adjustable |
| Finish | Satin Nickel |
| Hardware Finish Family | Nickel |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Minimum door thickness (in.) | 1.4 |
| Deadbolt strike | Round corner |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Interior/Exterior | Exterior |
| Lever style | Wave |
| Material | Other |
| Features | Adjustable Backset,Rekeyable |
| Electronic/Mechanical | Mechanical |
| Outside key plate width (in.) | 2.5 |
| Handle grip length (in.) | 12.4 |
| Outside key plate length (in.) | 3.5 |
| Knob/lever strike width (in.) | 0.9 |
| Knob/lever strike height (in.) | 2.3 |
| Deadbolt cross bore diameter (in.) | 2.125 |
| Deadbolt bore hole diameter (in.) | 1 |
| Knob/lever housing height (in.) | 2.75 |
| Assembled Width (in.) | 3 in |
| Knob/lever housing width (in.) | 5.1 |
| Inside top plate length (in.) | 2.5 |
| Outside bottom handle plate length (in.) | 2.9 |
| Deadbolt strike height (in.) | 2.3 |
| Outside top handle plate width (in.) | 3 |
| Outside bottom handle plate width (in.) | 2.8 |
| Assembled Height (in.) | 17.625 in |
| Outside top handle plate length (in.) | 4 |
| Projection (in.) | 2.3 |
| Deadbolt trim ring diameter (in.) | 2.5 |
| Deadbolt strike width (in.) | 1.6 |
| Maximum door thickness (in.) | 2.75 |
| Deadbolt throw length (in.) | 1 |
| Inside top plate width (in.) | 2.5 |
| Knob/lever cross bore diameter (in.) | 1 |
| Knob/lever bore hole diameter (in.) | 2.25 |
| Knob/lever throw length (in.) | 0.4 |
| Assembled Depth (in.) | 3 in |
| Lever grip length (in.) | 4.1 |
| Manufacturer Warranty | Limited Lifetime Mechanical and Finish Warranty |
| Certifications and Listings | ANSI Certified |
