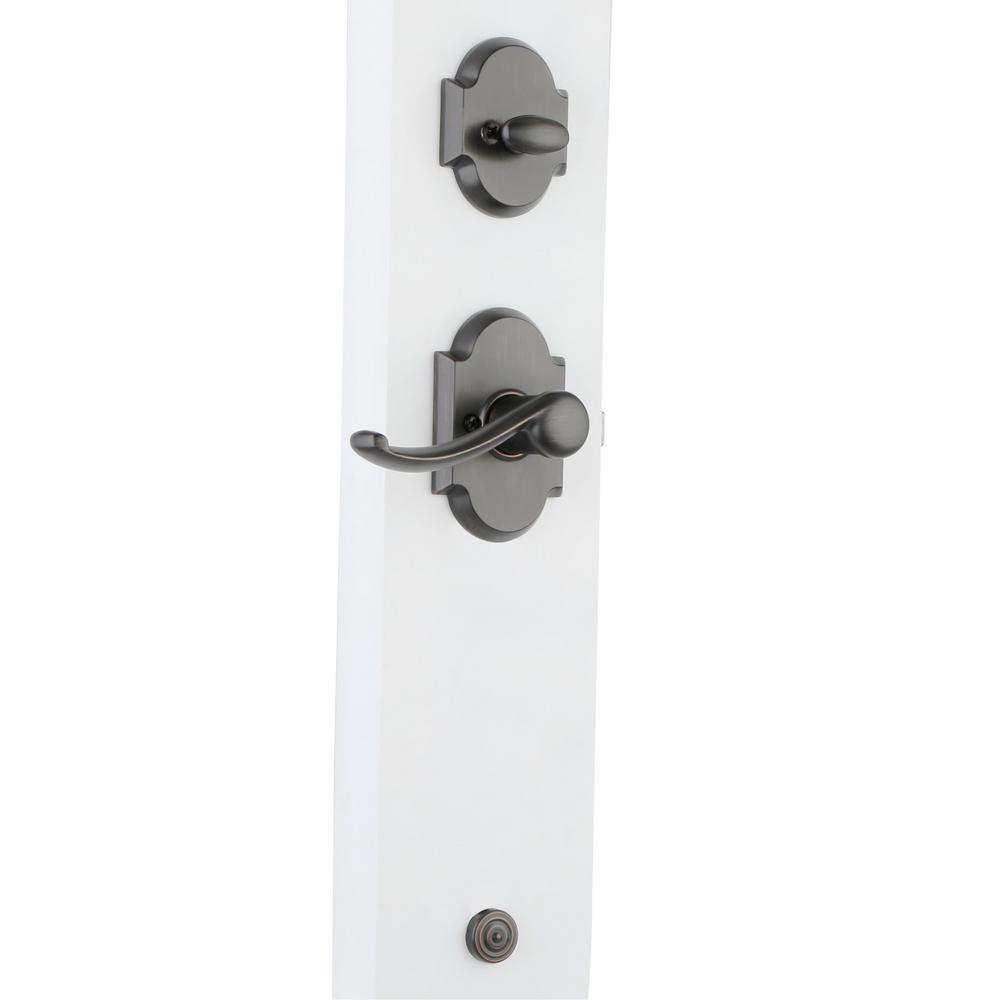

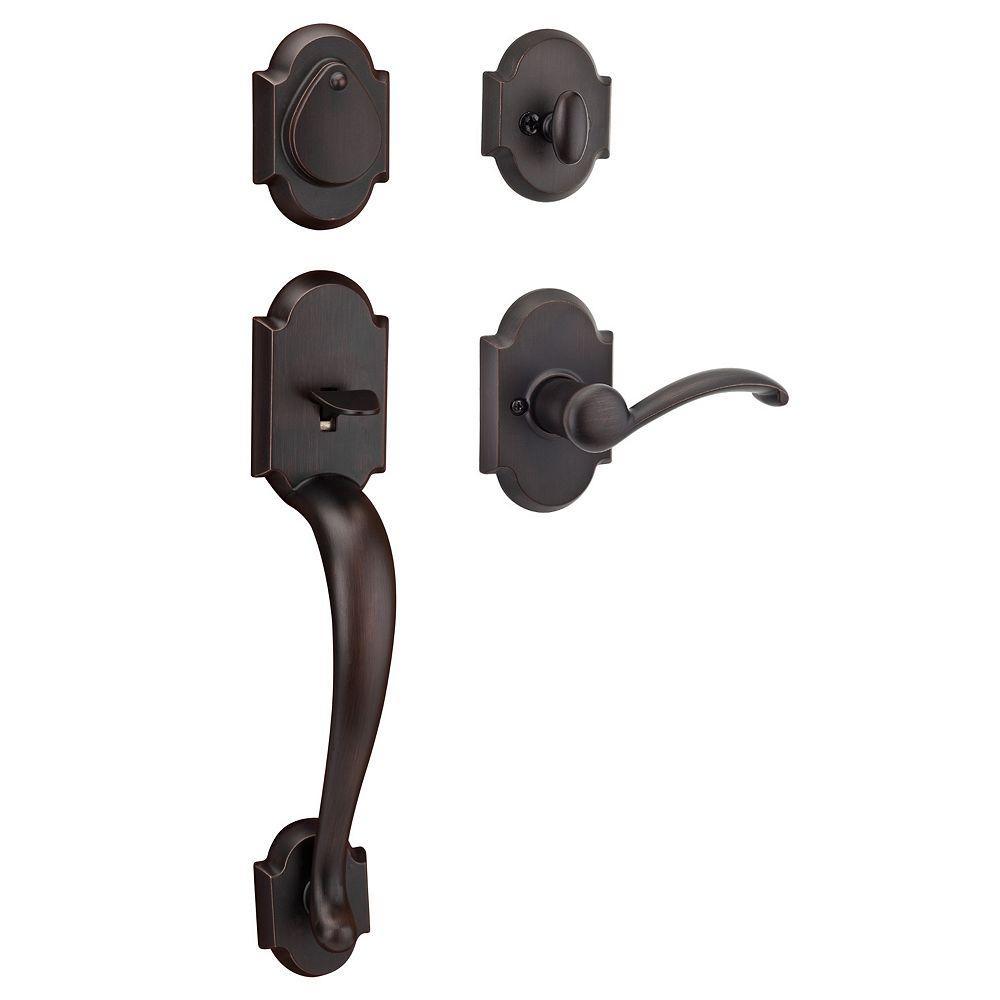

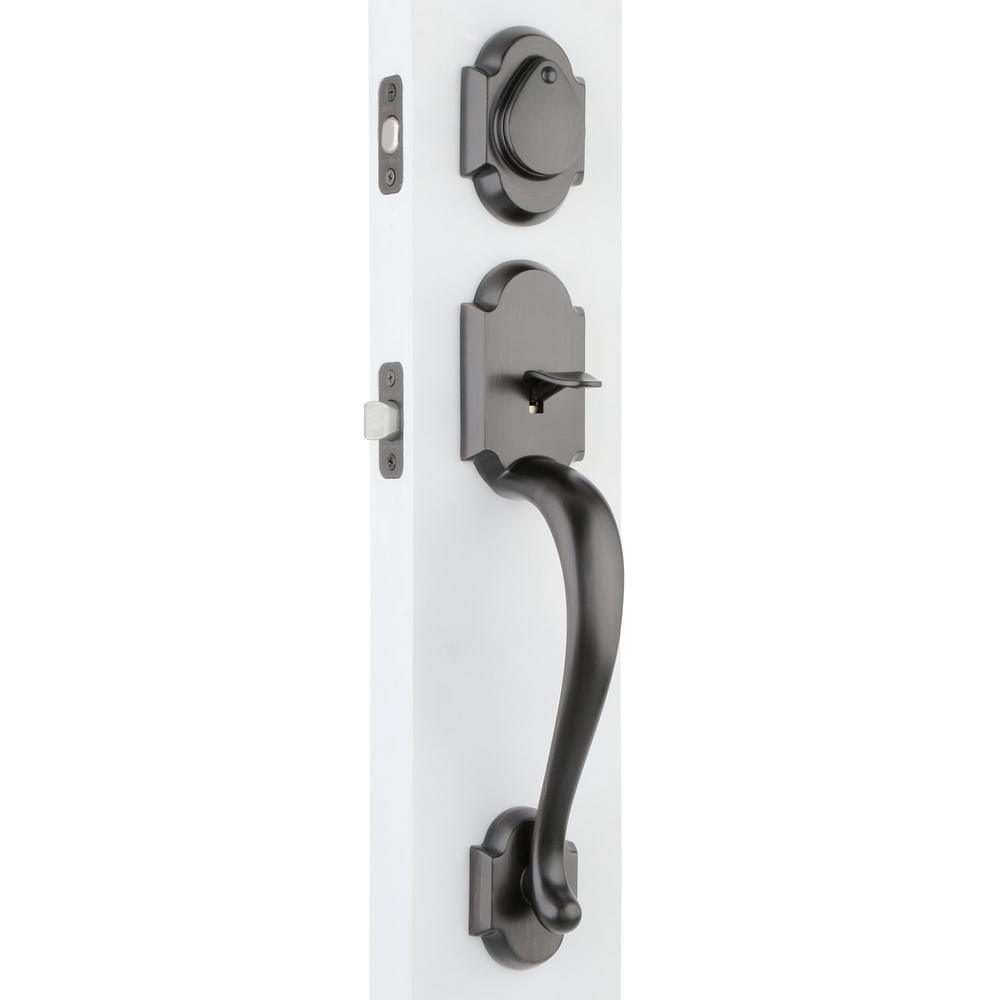

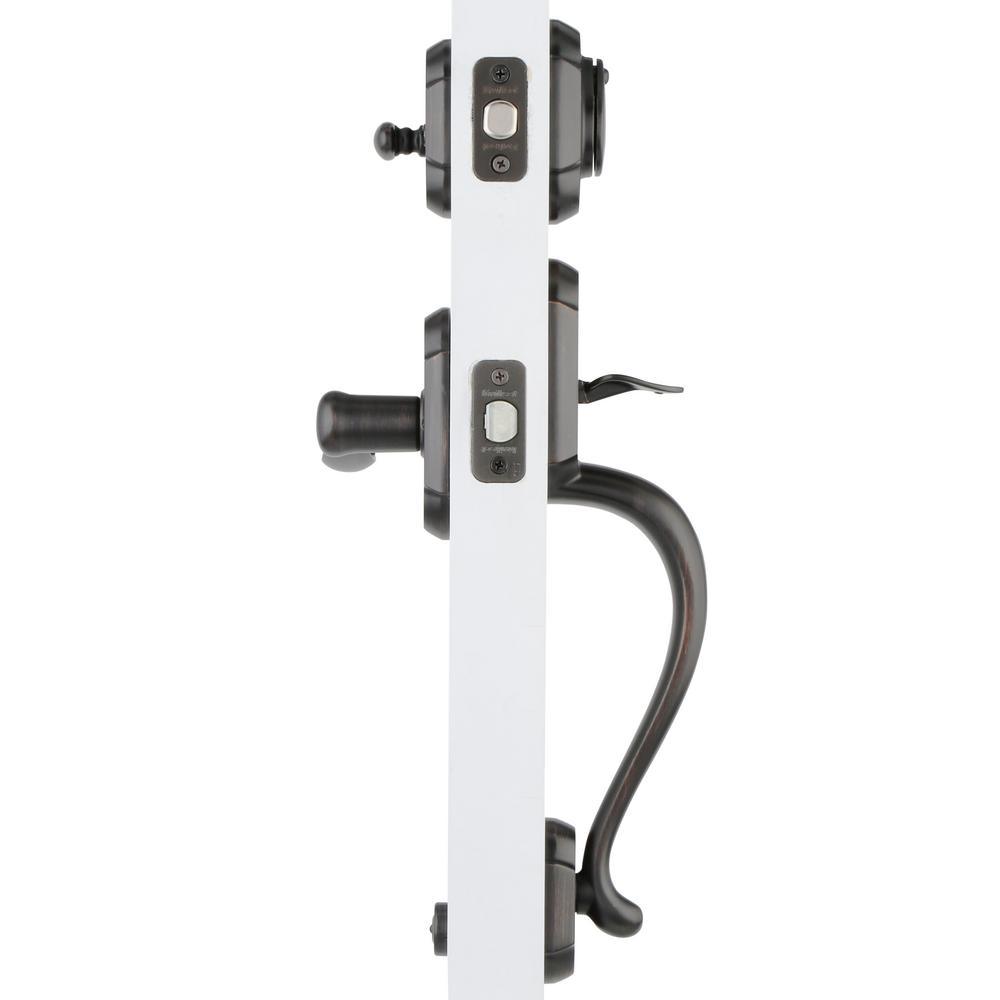

Austin Venetian Bronze Single Cylinder Door Handleset with Austin Entry Door Lever Featuring SmartKey Security
ANSI grade 1Adjustable
$134.83 each
Orders start at $399. Combine any items to reach it.
- Handing Universal
- 1 item
- $134.83
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns
Complete the door
Hardware
Details & specifications.
From the maker · the maker’s description
Step up to designer styles and superior security with Kwikset signature series products. Simple yet rugged, Austin's rustic style brings a new level of charm and appeal to any space, whether in the city or country. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style. The single cylinder handle set can be locked or unlocked by a key on the outside, or the turn button on the inside. SmartKey Security Re-key Technology allows you to control who has access to your home. Re-key the lock yourself in seconds in 3 easy steps. Have you recently moved or had a child lose a key. It's time to re-key. SmartKey Security provides the highest level of residential security and features Bump Guard to protect against lock bumping.
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Kwikset signature series
- Fits door thickness of 1-3/4 in.
- For use on exterior doors where keyed entry and security is needed
- Fully reversible lever; fits both right-handed and left-handed doors
- Features an adjustable latch to fit all standard door preparations
- Single cylinder deadbolt operates by key outside and a thumb turn inside
- Easily installs in minutes with just a screwdriver
- ANSI/BHMA grade 1 security
- Lifetime mechanical and finish warranty
- ADA compliant
- SKU
- 203399796
- Function
- Handleset
- Finish
- Bronze
- ANSI grade
- ANSI Grade 1
- Backset
- Adjustable
- Style
- Rustic
- Item Weight
- 1
- Door Handing
- Universal
- Lock Type
- Keyed
- Tools/Hardware Collections
- Kwikset SmartKey
- Commercial/Residential
- Residential

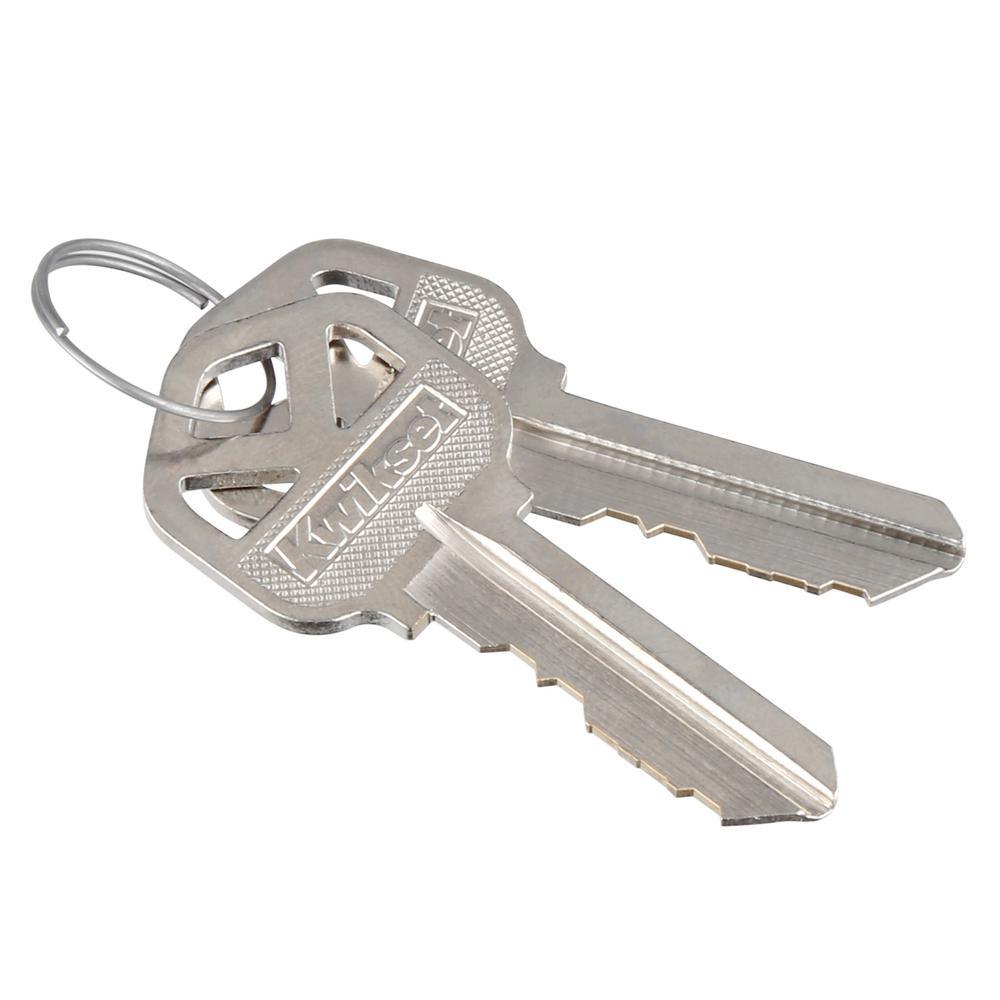

- Total Number of Keys Included
- 2
- Keyway
- KW1
- Deadbolt Type
- Single Cylinder Deadbolt
- Minimum door thickness (in.)
- 1.75
- Knob/lever strike
- Round corner
- Handleset Product Type
- 2 Piece Front & Back
- Application Type
- Entry
- Lock Type2
- Keyed Entry
- Product Weight (lb.)
- 10.3
- Material
- Metal
- Keying Type
- Keyed Different
- Deadbolt strike
- Round corner
- Door Locks & Knobs Product Type
- Keyed Handlesets
- Interior/Exterior
- Exterior
- Lever style
- Wave
- Features
- Easy Installation
- Electronic/Mechanical
- Mechanical
- Included
- Hardware, Installation Instructions
- Deadbolt cross bore diameter (in.)
- 2.125
- Outside bottom handle plate width (in.)
- 1.0
- Knob/lever bore hole diameter (in.)
- 2.125
- Deadbolt bore hole diameter (in.)
- 1
- Deadbolt trim ring diameter (in.)
- 3.0
- Outside key plate length (in.)
- 1.0
- Knob/lever strike height (in.)
- 2.25
- Outside top handle plate length (in.)
- 1.0
- Knob/lever strike width (in.)
- 1
- Knob/lever cross bore diameter (in.)
- 1.0
- Outside bottom handle plate length (in.)
- 1.0
- Knob/lever housing width (in.)
- 2.625
- Knob/lever throw length (in.)
- 0.5
- Assembled Depth (in.)
- 3.15625 in
- Inside top plate width (in.)
- 1.0
- Handle grip length (in.)
- 4.125
- Lever grip length (in.)
- 4.21875
- Outside key plate width (in.)
- 1.0
- Deadbolt strike height (in.)
- 2.25
- Assembled Width (in.)
- 2.6875 in
- Maximum door thickness (in.)
- 1.75
- Deadbolt strike width (in.)
- 1
- Inside top plate length (in.)
- 1.0
- Deadbolt throw length (in.)
- 1
- Outside top handle plate width (in.)
- 1.0
- Knob/lever housing height (in.)
- 2.625
- Projection (in.)
- 2.53125
- Assembled Height (in.)
- 18.42 in
- Manufacturer Warranty
- Lifetime mechanical and finish warranty
- Certifications and Listings
- No Certifications or Listings
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Door hardware, by function
- 1
Passage
No lock. Halls and closets.
- 2
Privacy
A push-button lock inside. Bedrooms and baths.
- 3
Keyed entry
Locks with a key from outside. Exterior and garage entry doors, often with a deadbolt.
- 4
ANSI grade
Grade 1 is the toughest, grade 3 the lightest residential grade.
- 5
Cabinet pulls
Sized by hole spacing, center to center. Match the holes you have.
