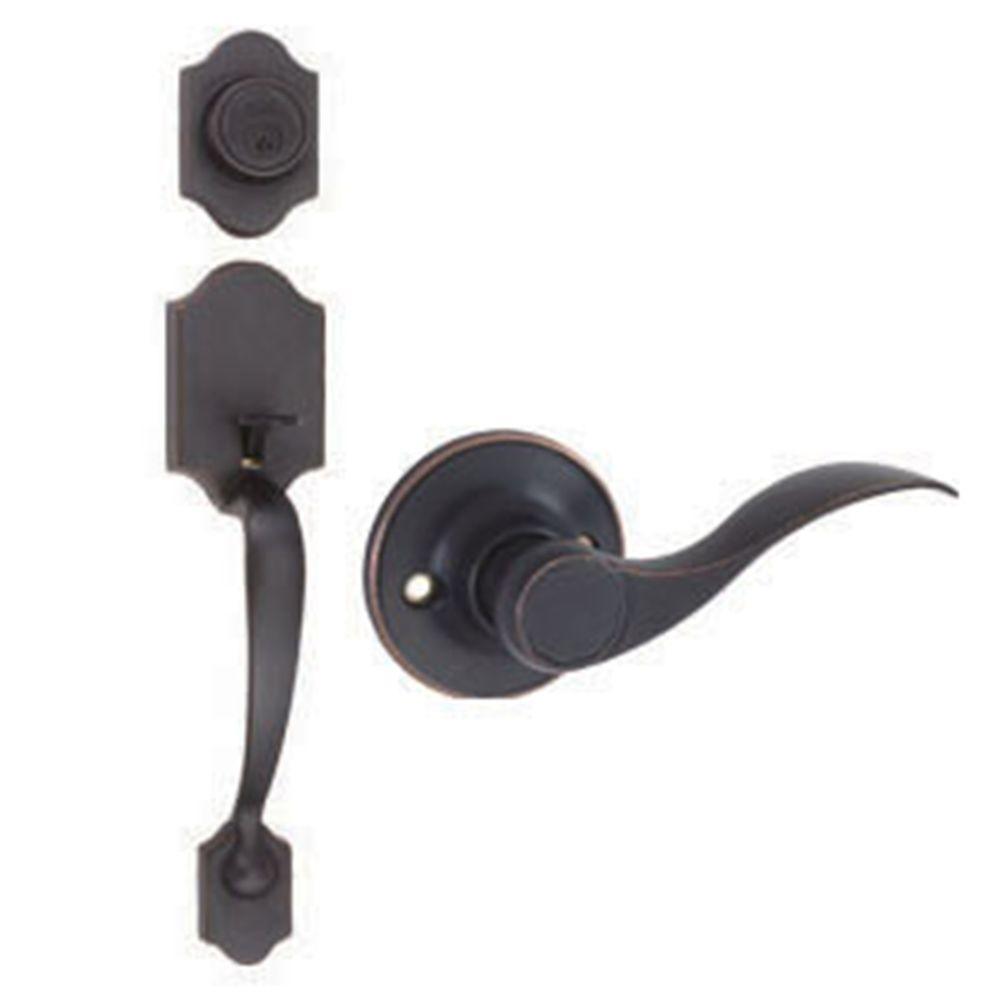

Sussex Oil-Rubbed Bronze Door Handleset with Springdale Lever Interior and Single Cylinder Deadbolt

ANSI grade 3Adjustable

$93.24 each

Orders start at $399. Combine any items to reach it.

  • Handing Universal
Quantity
1 item
$93.24
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Hardware

Details & specifications.

From the maker · the maker’s description

Keep your home or business safe and secure with this combo entry lever and single cylinder deadbolt. The hardware installs on exterior doors that lock with keys from the outside and turn a button from the inside. Single cylinder deadbolts can provide more security than a spring bolt lock and the oil-rubbed bronze finish blends with most any decor. Includes all mounting hardware.

  • Fits doors 1-3/8 in. up to 1-3/4 in. thick
  • Ideal for entry doors where a keyed entryway is needed and security is required
  • Reversible for right/left hand doors and features a thumb turn lock mechanism on inside of single cylinder deadbolt
  • Simple installation with basic tools, all mounting hardware included
  • Grade 3 ANSI/BHMA certified
  • 2-way latch that is adjustable from 2-3/8 in. up to a 2-3/4 in. backset
  • KW1 keyway, 5-pin high security
  • Utilizes anti-bump technology for higher security
  • Full 1/2 in. throw on entry and full 1 in. throw on deadbolt, both nickel plated
SKU
202675815
Function
Handleset
Finish
Bronze
ANSI grade
ANSI Grade 3
Backset
Adjustable
Style
Classic
Item Weight
3.28
Included
Drilling Template, Hardware, Installation Instructions
Door Handing
Universal
Material
Steel
Lock Type
Keyed
Commercial/Residential
Residential
Total Number of Keys Included
2
Keyway
KW1
Deadbolt Type
Single Cylinder Deadbolt
Knob/lever strike
Round corner
Handleset Product Type
2 Piece Front & Back
Keying Type
Keyed Alike
Application Type
Entry
Features
Adjustable Backset, Easy Installation
Lock Type2
Keyed Entry
Product Weight (lb.)
3.28
Deadbolt strike
Round corner
Door Locks & Knobs Product Type
Keyed Handlesets
Lever style
Wave
Minimum door thickness (in.)
1.375
Interior/Exterior
Interior/Exterior
Electronic/Mechanical
Mechanical
Outside key plate length (in.)
3.5
Outside key plate width (in.)
2.375
Knob/lever housing width (in.)
2.94
Lever grip length (in.)
5
Inside top plate width (in.)
2.625
Knob/lever strike height (in.)
2.25
Knob/lever strike width (in.)
1
Deadbolt cross bore diameter (in.)
.94
Inside top plate length (in.)
3.375
Outside bottom handle plate length (in.)
2.5
Handle grip length (in.)
12.5
Outside bottom handle plate width (in.)
1.625
Assembled Width (in.)
6.5 in
Outside top handle plate length (in.)
3.375
Deadbolt trim ring diameter (in.)
2.5
Deadbolt strike height (in.)
2.25
Knob/lever housing height (in.)
2.94
Assembled Depth (in.)
2.38 in
Maximum door thickness (in.)
1.75
Deadbolt strike width (in.)
1
Deadbolt bore hole diameter (in.)
2.09
Knob/lever cross bore diameter (in.)
0.94
Deadbolt throw length (in.)
1
Knob/lever bore hole diameter (in.)
2.09
Assembled Height (in.)
16.63 in
Knob/lever throw length (in.)
.5
Outside top handle plate width (in.)
2.625
Projection (in.)
2.438
Manufacturer Warranty
5yrs on finish / limited lifetime on mechanics
Certifications and Listings
No Certifications or Listings

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Door hardware, by function

  1. 1

    Passage

    No lock. Halls and closets.

  2. 2

    Privacy

    A push-button lock inside. Bedrooms and baths.

  3. 3

    Keyed entry

    Locks with a key from outside. Exterior and garage entry doors, often with a deadbolt.

  4. 4

    ANSI grade

    Grade 1 is the toughest, grade 3 the lightest residential grade.

  5. 5

    Cabinet pulls

    Sized by hole spacing, center to center. Match the holes you have.
