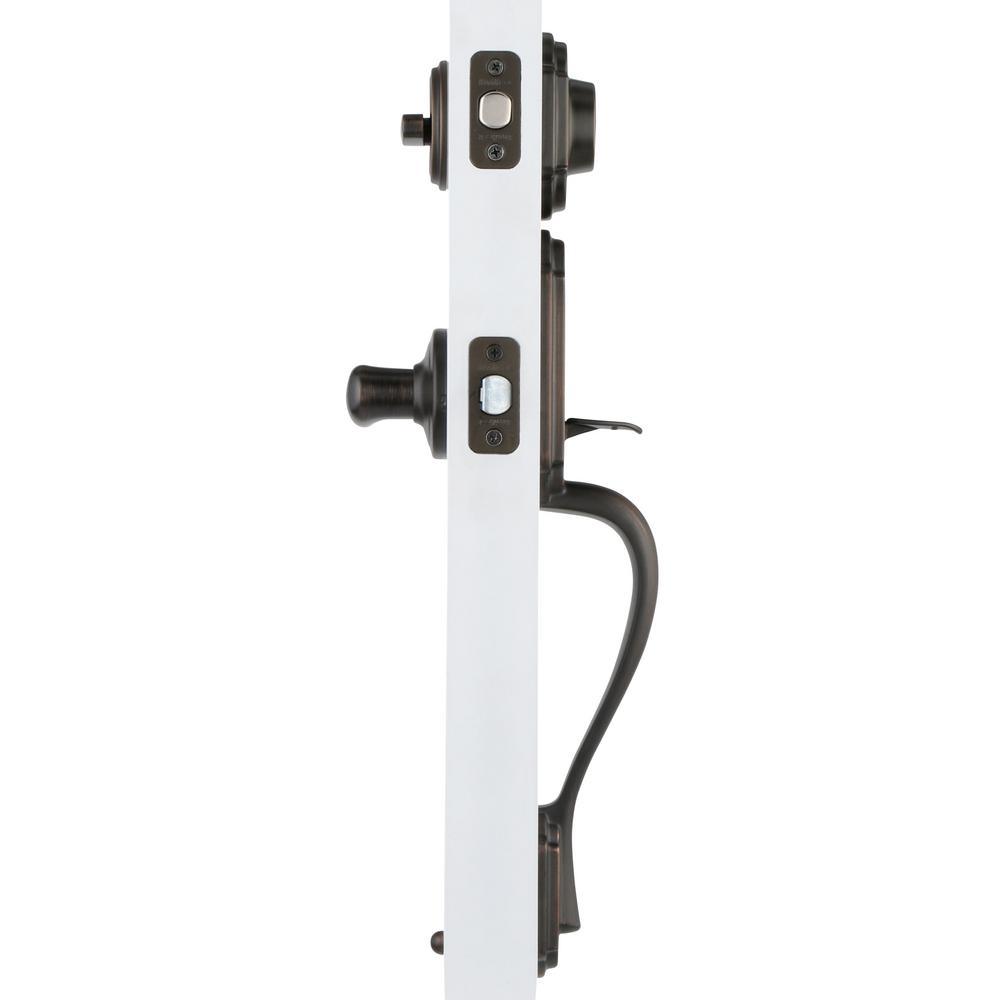

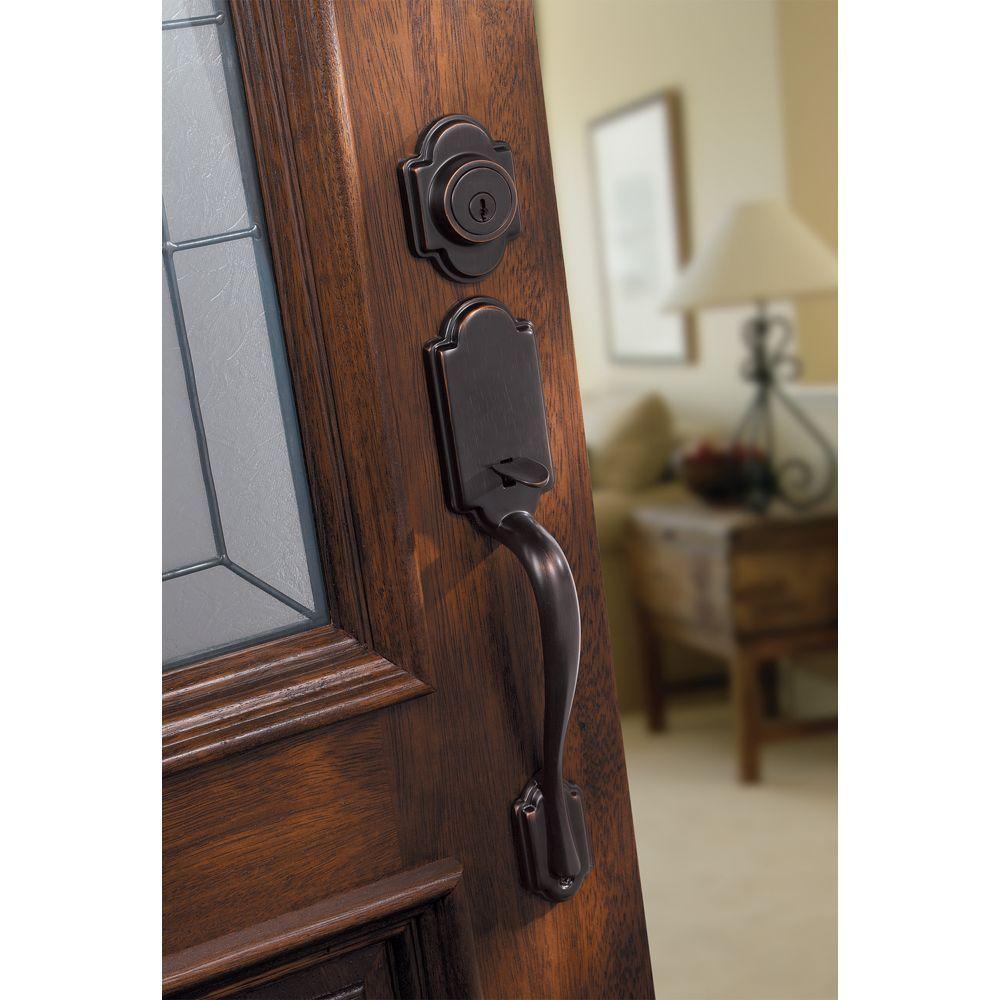

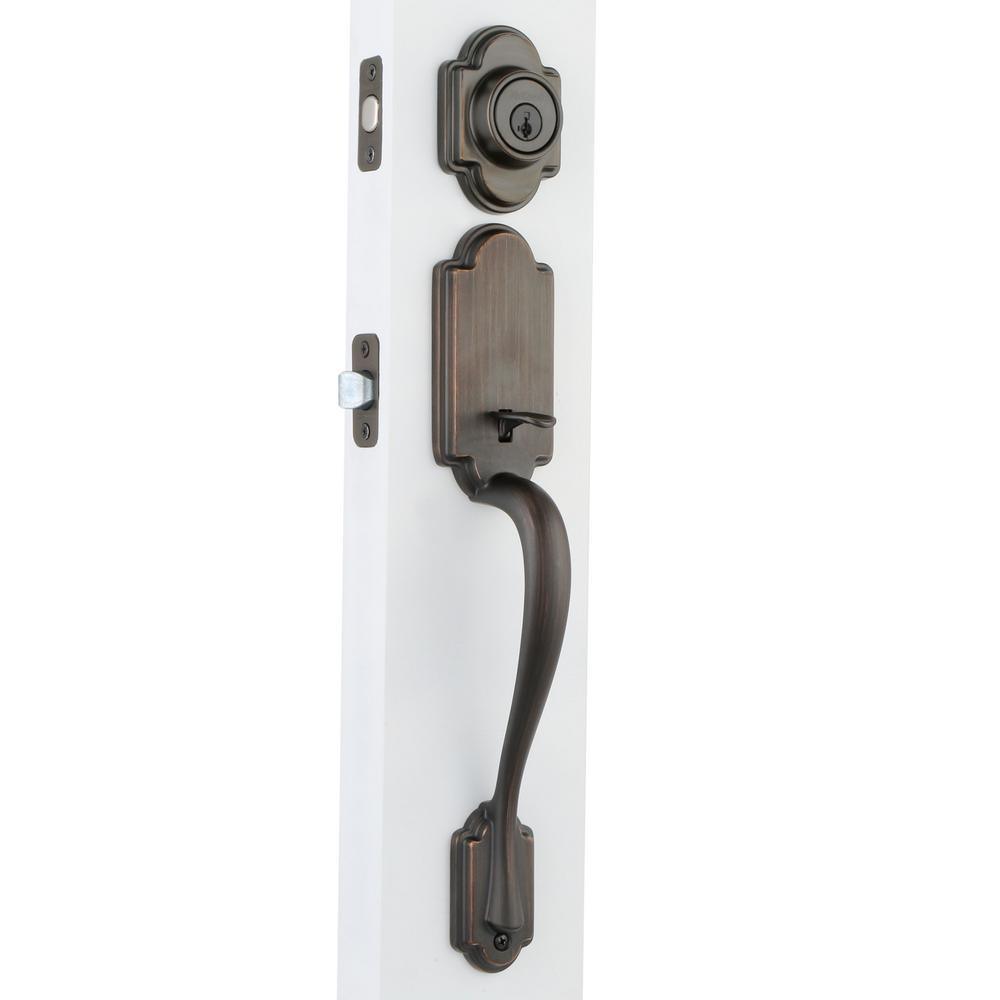

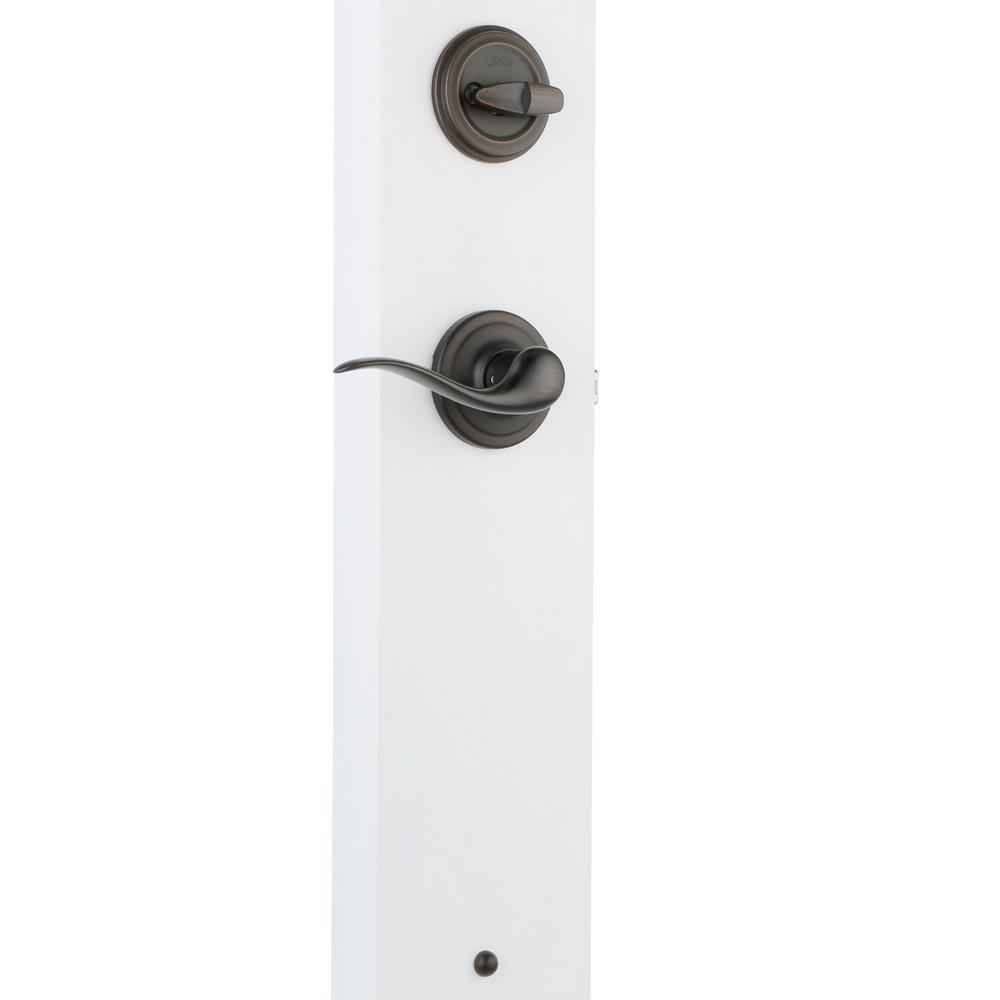

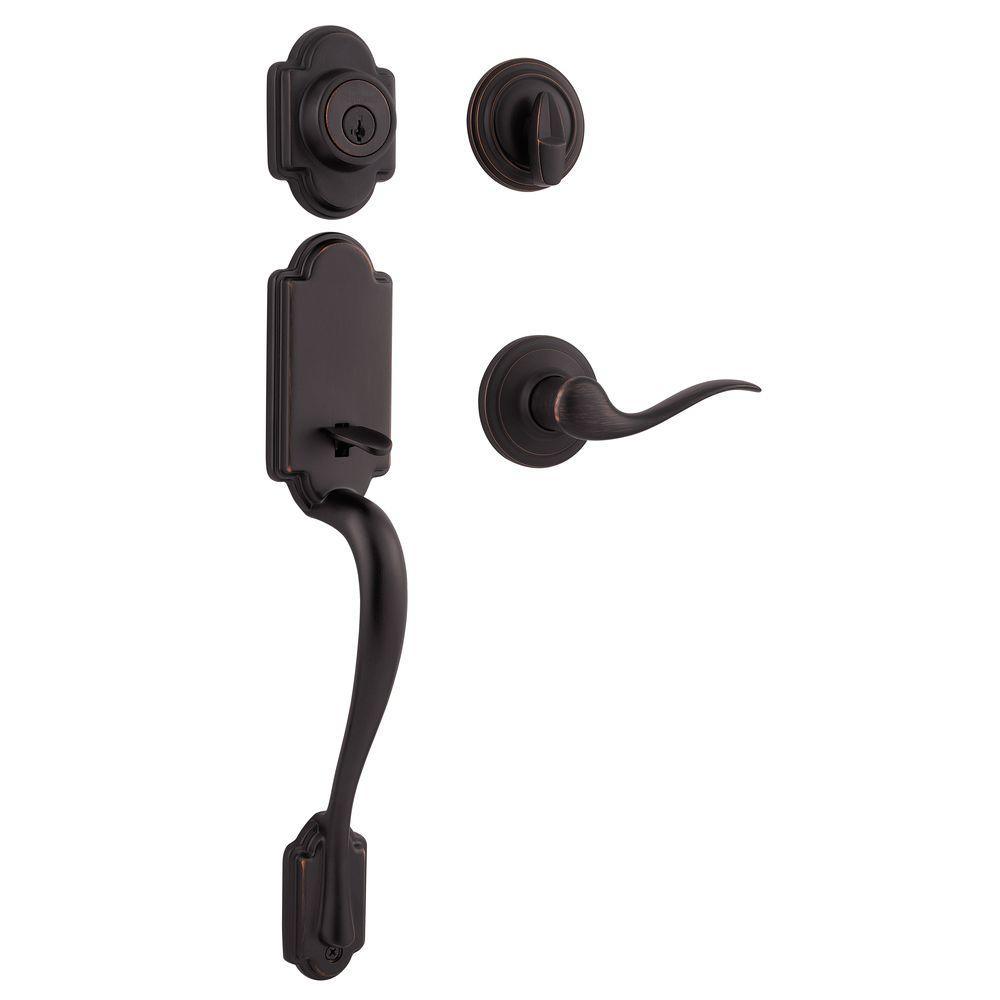

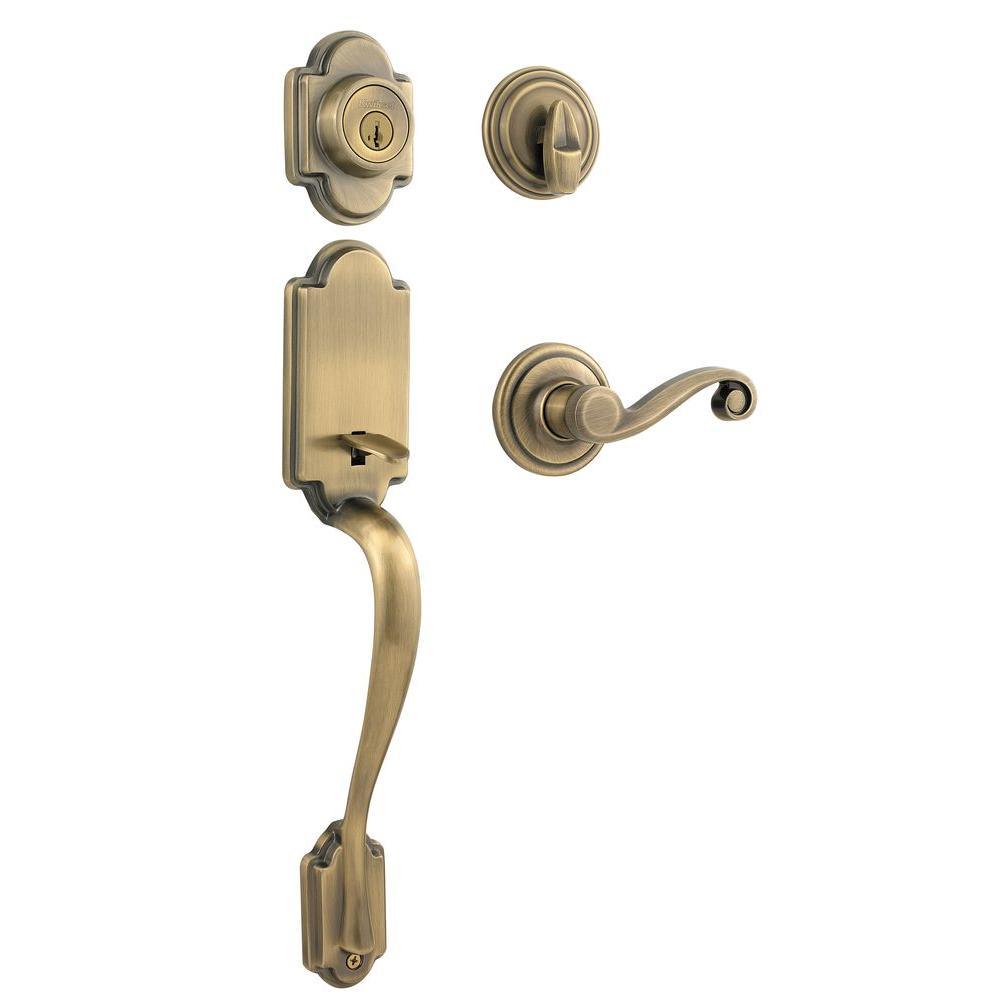

Arlington Venetian Bronze Single Cylinder Door Handleset with Tustin Door Lever Featuring SmartKey Security

ANSI grade 1Adjustable

$139.00 each

Orders start at $399. Combine any items to reach it.

Finish: Venetian Bronze
  • Handing Universal
Quantity
1 item
$139.00
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Hardware

Details & specifications.

From the maker · the maker’s description

Step up to designer styles and superior security with Kwikset signature series products. The detailed styling of the Arlington is a welcome enhancement to your entry doors. Tustin's fashionable wave silhouette design is the perfect complement to homes with inspired style. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style. The single cylinder handle set can be locked or unlocked by a key on the outside, or the turn button on the inside. SmartKey Security Re-key Technology allows you to control who has access to your home. Re-key the lock yourself in seconds in 3 easy steps. Have you recently moved or had a child lose a key. It's time to re-key. SmartKey Security provides the highest level of residential security and features BumpGuard to protect against lock bumping.

  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • Microban protection keeps door hardware 99.9% cleaner than unprotected surfaces
  • SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
  • Kwikset signature series product
  • Fits door thickness of 1-3/4 in.
  • For use on exterior doors where keyed entry and security is needed
  • Fully reversible lever; fits both right-handed and left-handed doors
  • Venetian bronze finish
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks

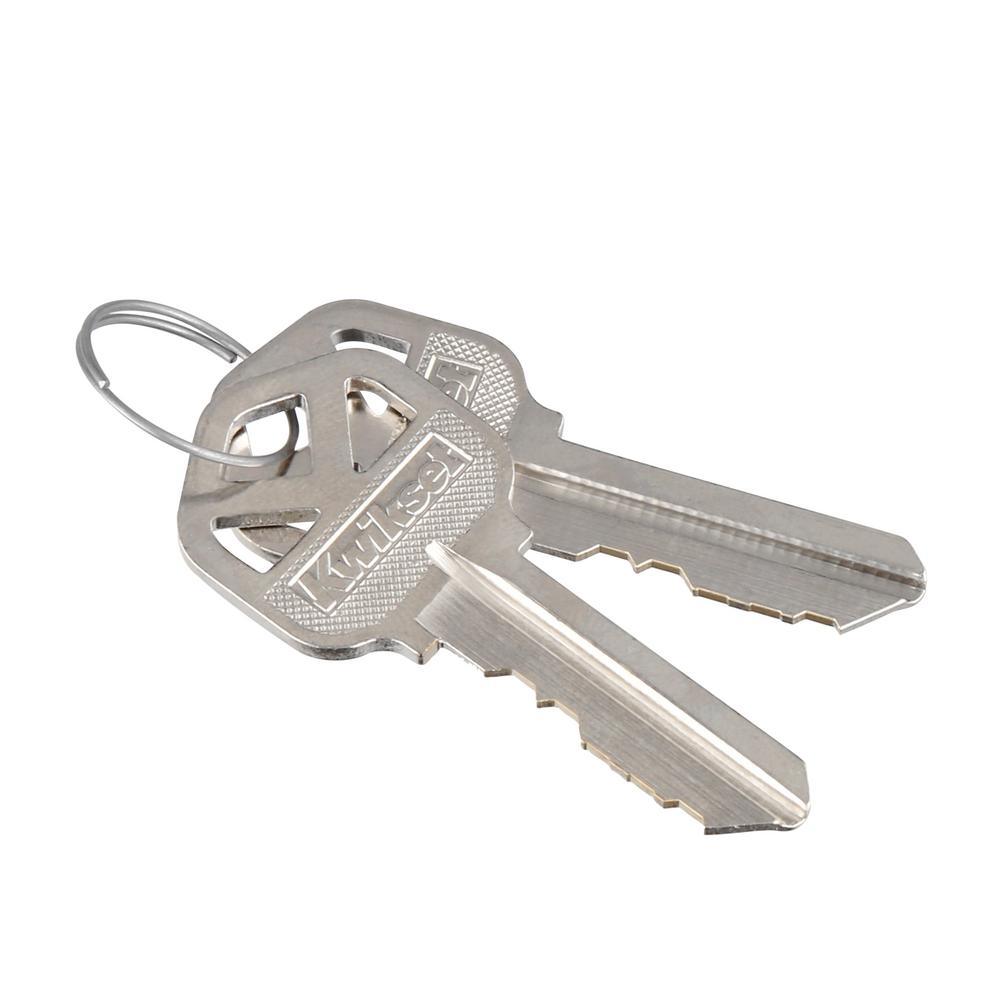

  • 2-keys included
  • Easy installation - installs in minutes with just a screwdriver
  • ANSI/BHMA grade 2 deadbolt
  • Features a fully adjustable latch to fit all standard door preparations

SKU
100597294
Function
Handleset
Finish
Bronze
ANSI grade
ANSI Grade 1
Backset
Adjustable
Style
Classic
Finish
Venetian Bronze
Item Weight
6
Door Handing
Universal
Features
Easy Installation, Kwikset SmartKey
Lock Type
Keyed
Tools/Hardware Collections
Kwikset SmartKey
Commercial/Residential
Residential
Total Number of Keys Included
2
Keyway
KW1
Deadbolt Type
Single Cylinder Deadbolt
Minimum door thickness (in.)
1.75
Knob/lever strike
Round corner
Handleset Product Type
2 Piece Front & Back
Application Type
Entry
Lock Type2
Keyed Entry
Material
Metal
Keying Type
Keyed Different
Product Weight (lb.)
6
Deadbolt strike
Round corner
Door Locks & Knobs Product Type
Keyed Handlesets
Lever style
Wave
Interior/Exterior
Interior/Exterior
Electronic/Mechanical
Mechanical
Included
Hardware, Installation Instructions
Inside top plate length (in.)
2.5625
Deadbolt cross bore diameter (in.)
2.125
Knob/lever bore hole diameter (in.)
2.125
Handle grip length (in.)
4.21875
Deadbolt bore hole diameter (in.)
1
Deadbolt trim ring diameter (in.)
3.0
Outside key plate length (in.)
1.0
Knob/lever strike height (in.)
2.25
Outside top handle plate length (in.)
1.0
Knob/lever cross bore diameter (in.)
1.0
Knob/lever strike width (in.)
1.0
Knob/lever housing width (in.)
2.625
Knob/lever throw length (in.)
0.5
Outside bottom handle plate width (in.)
2.25
Outside bottom handle plate length (in.)
4.0
Inside top plate width (in.)
2.5625
Assembled Width (in.)
2.75 in
Deadbolt strike width (in.)
1.0
Projection (in.)
2.09375
Assembled Height (in.)
19.06 in
Outside key plate width (in.)
1.0
Deadbolt strike height (in.)
2.25
Lever grip length (in.)
3.75
Maximum door thickness (in.)
1.75
Deadbolt throw length (in.)
1.0
Outside top handle plate width (in.)
1.0
Assembled Depth (in.)
3 in
Knob/lever housing height (in.)
2.625
Manufacturer Warranty
Lifetime mechanical and finish warranty
Certifications and Listings
No Certifications or Listings

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Door hardware, by function

  1. 1

    Passage

    No lock. Halls and closets.

  2. 2

    Privacy

    A push-button lock inside. Bedrooms and baths.

  3. 3

    Keyed entry

    Locks with a key from outside. Exterior and garage entry doors, often with a deadbolt.

  4. 4

    ANSI grade

    Grade 1 is the toughest, grade 3 the lightest residential grade.

  5. 5

    Cabinet pulls

    Sized by hole spacing, center to center. Match the holes you have.
