36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device - Super Arbor

36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device

Name: 36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device
Brand: In Stock Hardwarestore Delivery
Price: 178.85 USD
Availability: InStock

$178.85

Shipping calculated at checkout.

[{"id":52394437575023,"title":"Stainless Steel \/ 9.82","option1":"Stainless Steel","option2":"9.82","option3":null,"sku":"203384165","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device - Stainless Steel \/ 9.82","public_title":"Stainless Steel \/ 9.82","options":["Stainless Steel","9.82"],"price":17885,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52394437607791,"title":"Aluminum \/ 9.86","option1":"Aluminum","option2":"9.86","option3":null,"sku":"203384131","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"36 in. Aluminum Touch Bar Surface Vertical Rod Exit Device - Aluminum \/ 9.86","public_title":"Aluminum \/ 9.86","options":["Aluminum","9.86"],"price":17341,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

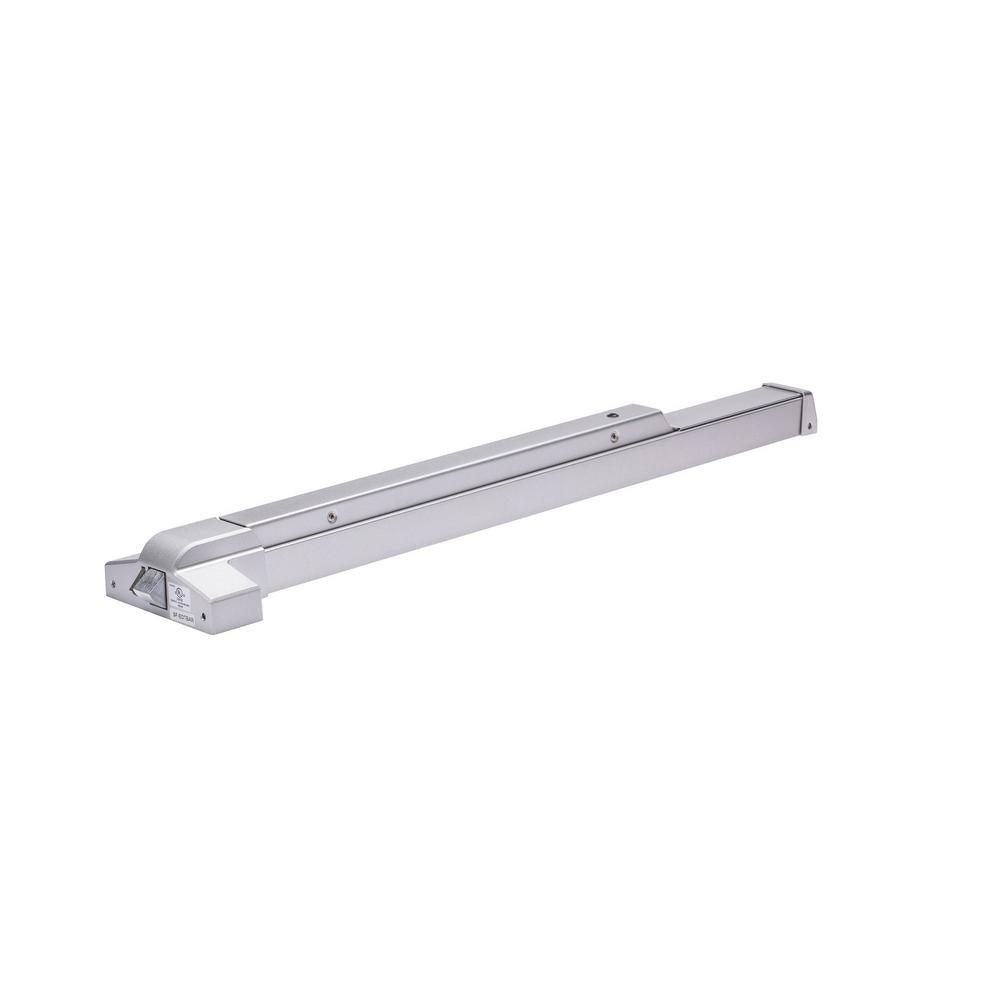

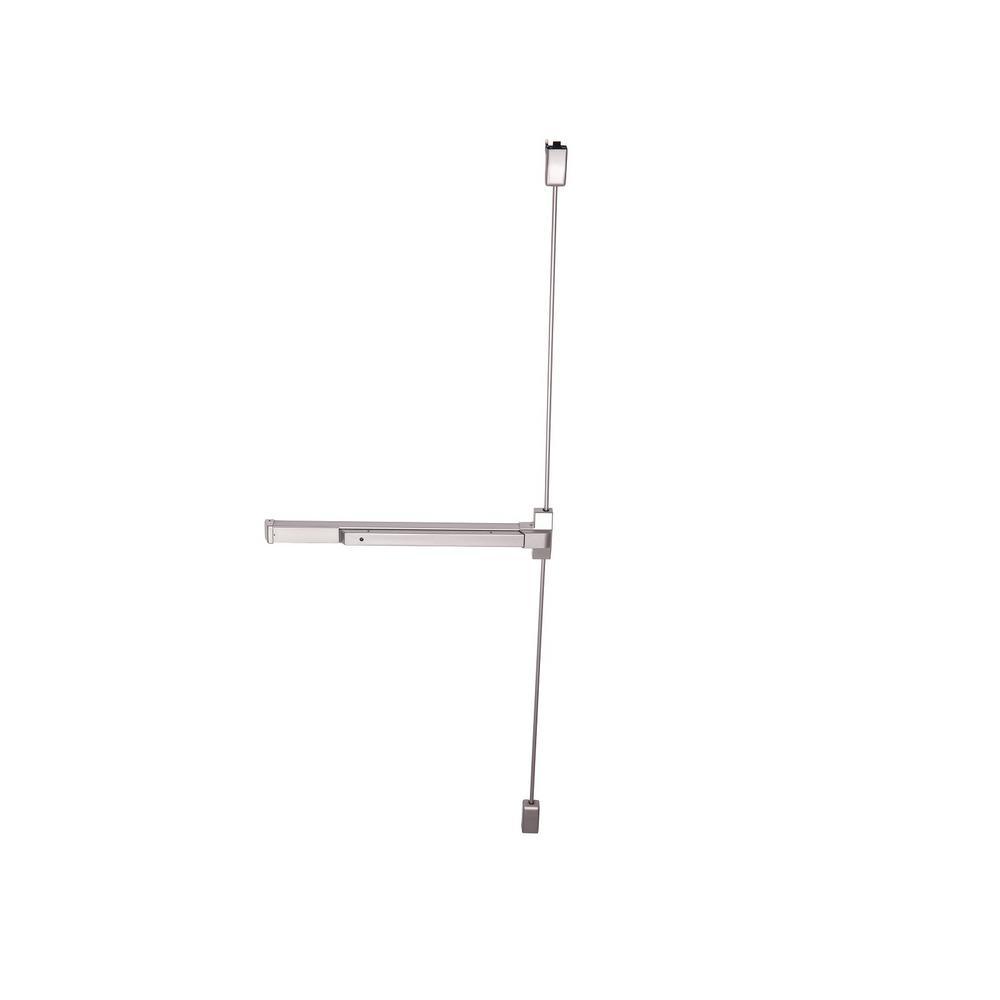

The Global Door Controls TH100EDSVTBAR model is a 36 in. surface vertical rod touch/panic bar exit device in an aluminum finish. It is the perfect choice for the double doors without mullions. Reversible for right or left hand doors. They are made of anodized aluminum with stainless steel springs and are ideal for new construction or renovations.

Latch: top pullman type, bottom bolt assembly
Door height: 7 ft. standard
Backset: 2-3/4 in. on 4-1/2 in. minimum stile width (if less than 4-1/2 in. backset becomes half of the exposed stile width)
Strike: top-surface mounted; bottom-flat mortise or into threshold
Handing: reversible, non-handed
Door width: 36 in., can be field sized to 30 in.
Mounting height: recommended installation at 41 in. from finished floor to center of push rail

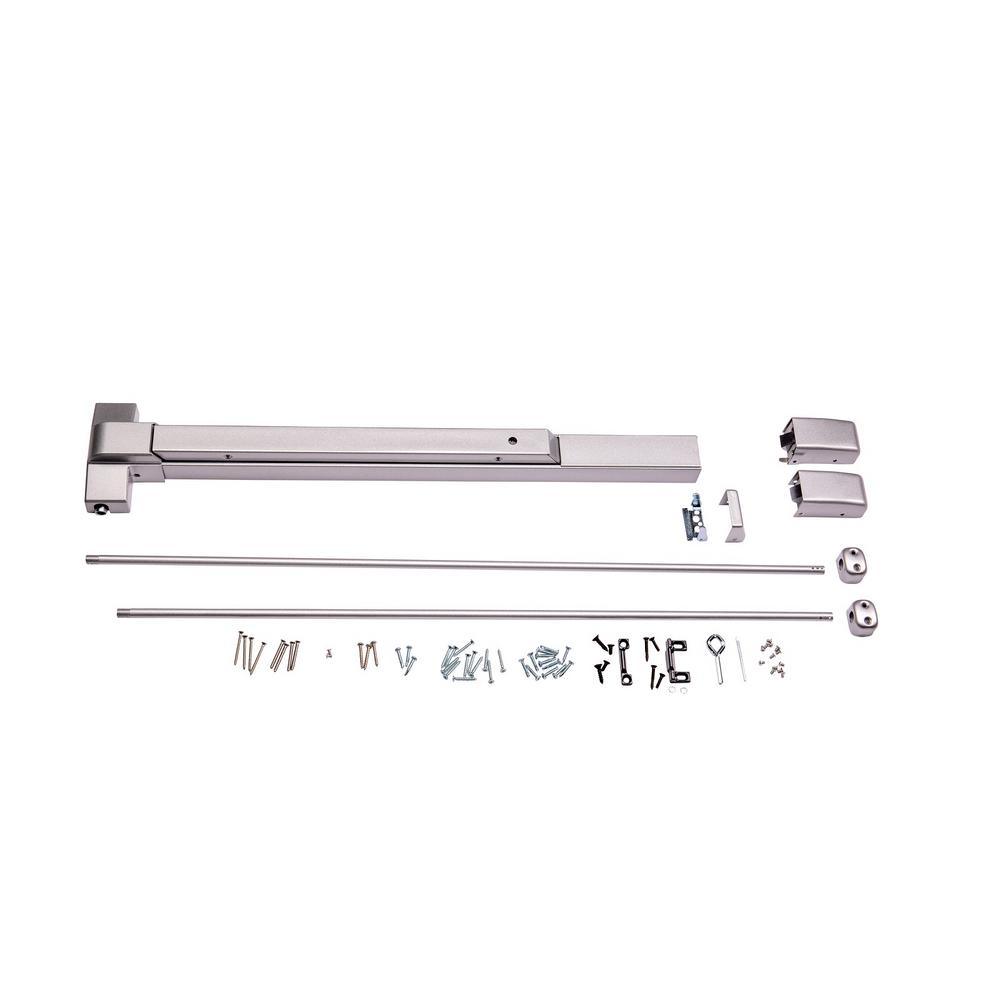

Fasteners: furnished with sheet metal and machine screws
Stile: 4-1/2 in. minimum
Door thickness: 1-3/4 in. standard
Cylinder (not included): accepts rim cylinders, all trims schalge "C" keyway
UL SA32524

Features

Item Weight	9.86
Door Handing	Universal
Builders Hardware Product Type	Exit Devices
Finish	Aluminum
Material	Aluminum
Commercial/Residential	Commercial
Function	Exit Only
Returnable	180-Day
Hardware Finish Family	Silver
Product Height (in.)	2
Projection (in.)	2.5
Product Depth (in.)	2.5
Product Width (in.)	36
Manufacturer Warranty	10 Year Warranty
