Super Arbor
1 / 2

Doors

1-7/8 in. Brass Housing with Chrome Plated Face

$12.21 each

Orders start at $399. Combine any items to reach it.

Quantity
1 item
$12.21
Freight delivery
$149.00 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Freight delivery$149.00

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Doors

Details & specifications.

From the maker · the maker’s description

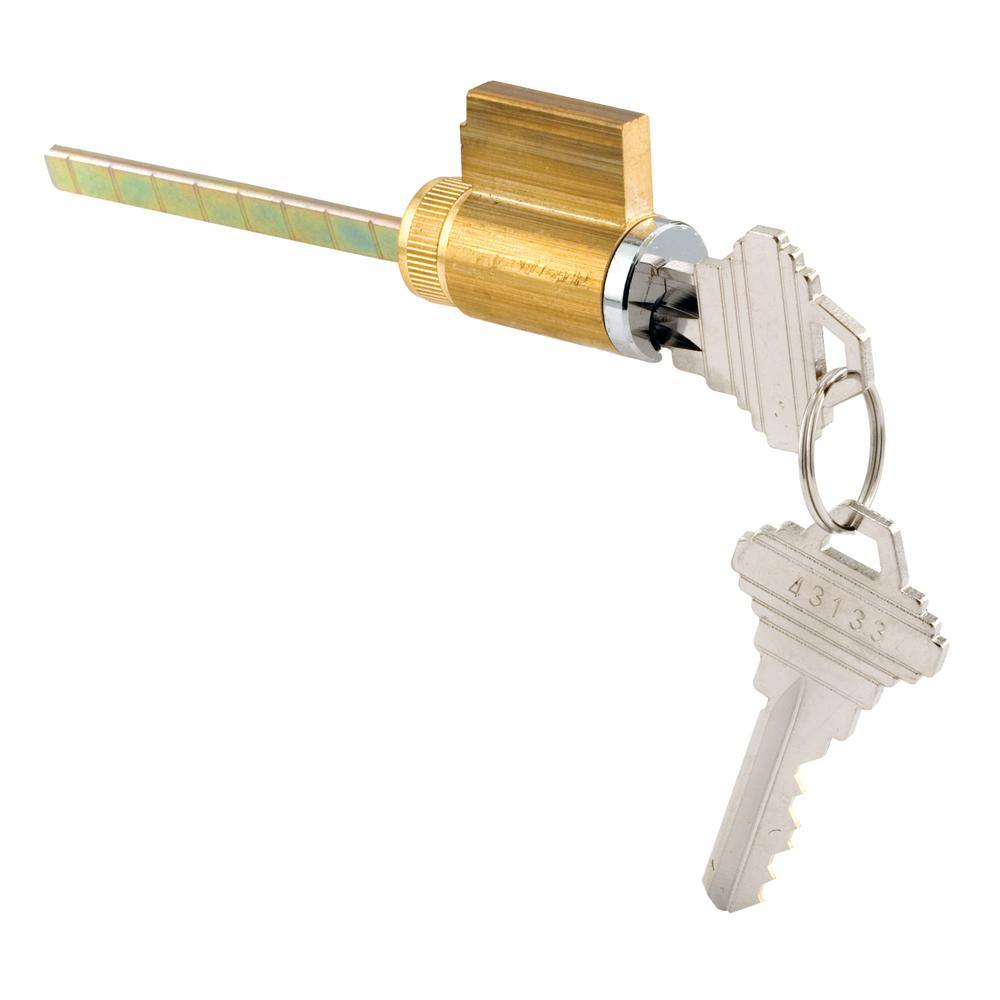

This cylinder lock is constructed of solid brass, it includes a hardened steel tailpiece and a chrome-plated face. The keys and keyway feature patterns designed to aesthetically match other existing Schlage hardware. Use this cylinder lock to add or replace damaged key cylinders in most surface-mount sliding patio door handle sets. It works with both vertical and 45-degree keyways, and it is available keyed-alike by special order. Note: The components of these cylinder locks are not compatible and cannot be rekeyed to match other Schlage locks, nor will Schlage keys fit into this cylinder lock.

  • California residents
  • Replacement cylinder lock for use with outside pulls of sliding patio doors
  • Cut and shaped to aesthetically match Schlage key hardware
  • This is a keyed-alike lock cylinder which allows use of the same key when used in multiples in the same home
  • The housing to this lock is constructed of solid brass and includes a hardened break-away tailpiece
  • 5 pin tumbler lock with 2 keys
  • Easy to install in less than 30 minutes with a few simple tools
  • Installation instructions included

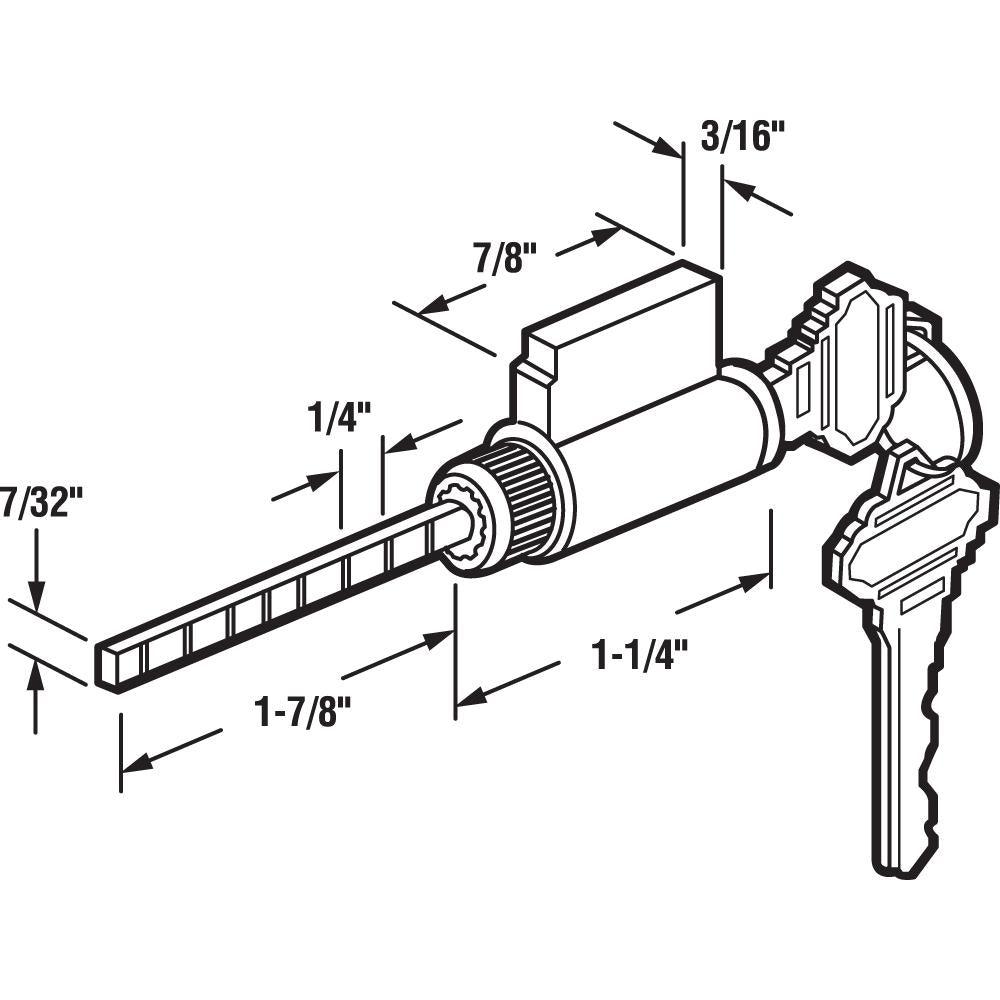

  • For further dimensional information, please see the line drawing
SKU
202624727
Finish
Brass
Item Weight
0.19
Door Locks & Knobs Product Type
Cylinders
Material
Other
Commercial/Residential
Commercial, Residential
Interior/Exterior
Interior/Exterior
Product Weight (lb.)
.20
Kit, Part, & Accessory Type
Cylinders
Product Depth (in.)
3.24
Product Width (in.)
.625
Product Height (in.)
1
Manufacturer Warranty
Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Certifications and Listings
No Certifications or Listings
Full product name
1-7/8 in. Brass Housing with Chrome Plated Face, Cylinder Lock, Schlage Shaped Keyway and Keys

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
