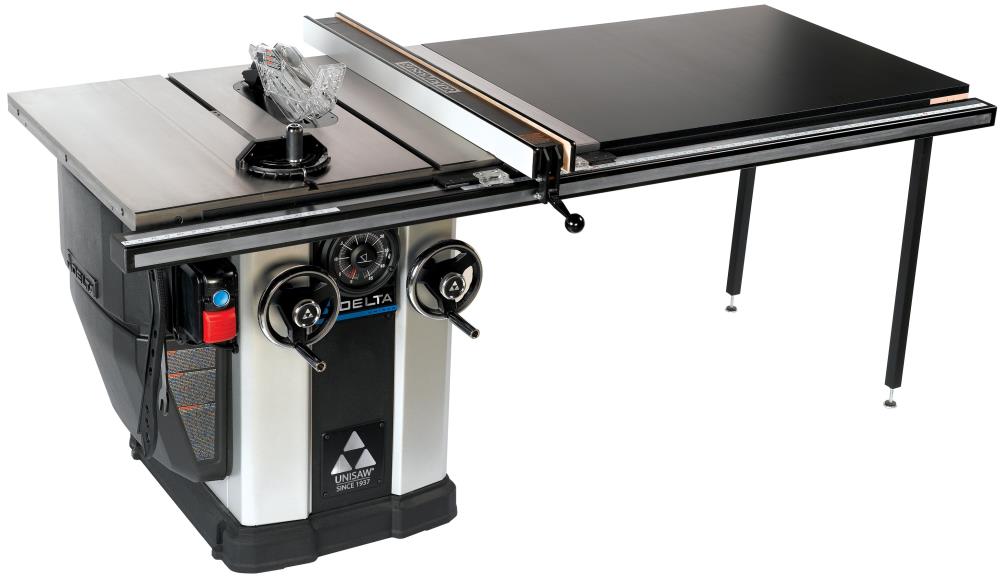

Delta Unisaw 10-in 15A 230V Table Saw

A pro-grade 10-inch cabinet table saw engineered for accuracy and dust control. The Delta UNISAW pairs a 3-HP, 230V motor with a BIESEMEYER fence and bi-level dust extraction to deliver smooth, precise cuts for serious woodworkers.

---

Key Features:

• Precision Fence System: BIESEMEYER fence with hairline pointer and built-in tape for fast, repeatable setups

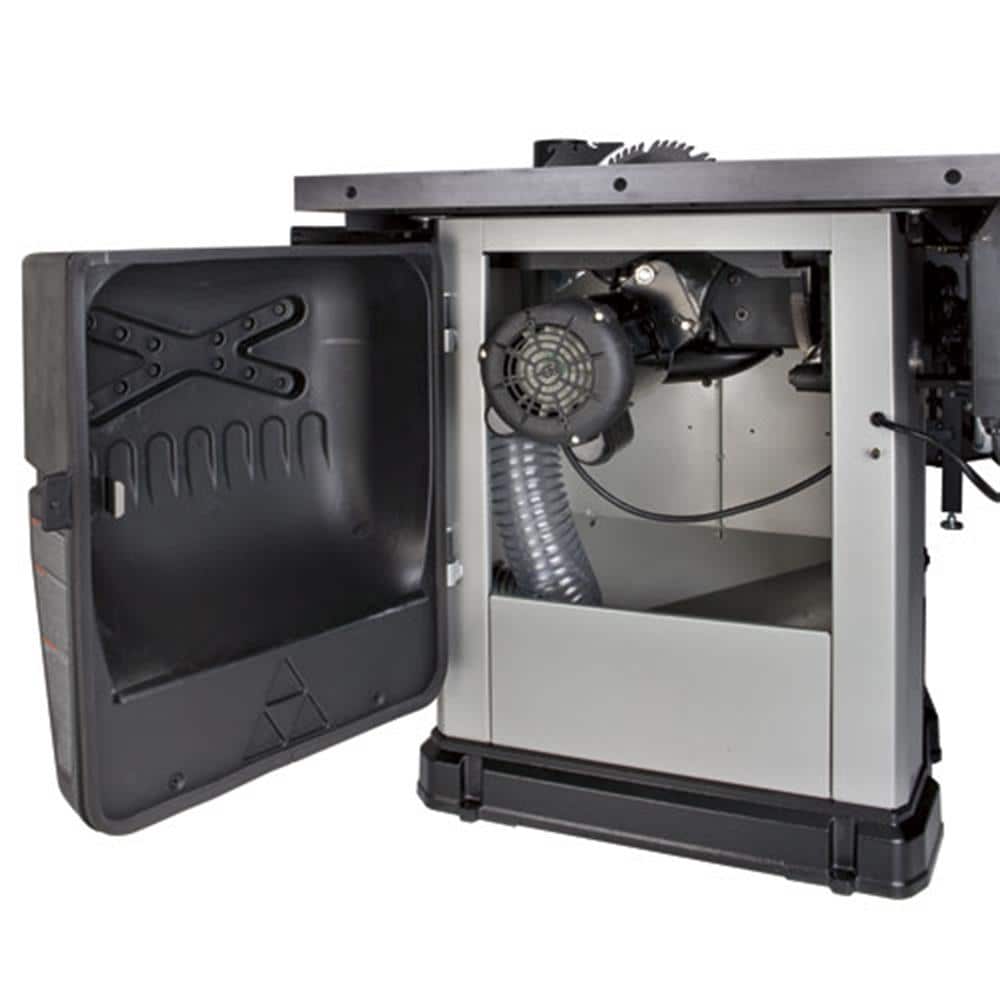

• Clean Work Area: Bi-Level Dust Extraction system optimizes dust collection above and below the blade
• Smooth, Accurate Operation: Single-cast trunnion minimizes vibration for dependable accuracy

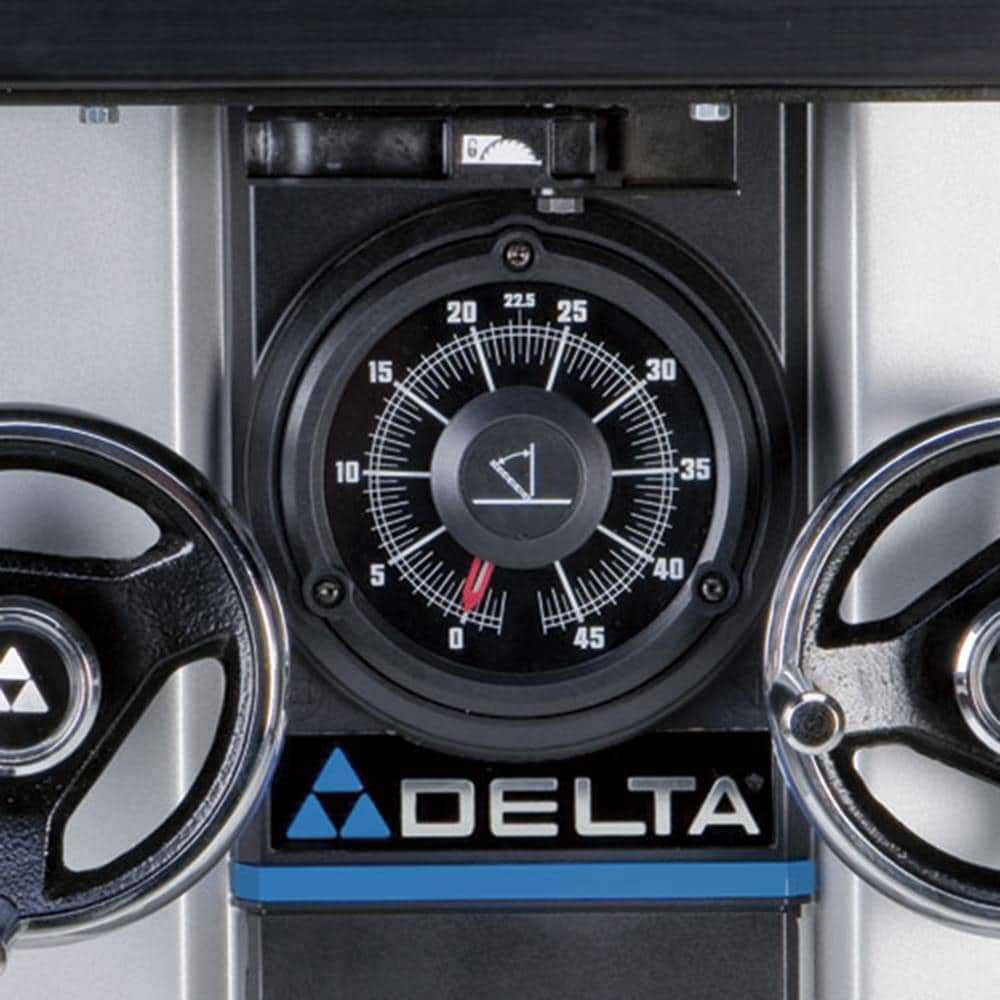

• Easy Adjustments: Sure-Lock dual front cranks simplify blade height and bevel settings
• Large Capacity: 52-in right rip capacity with improved tabletop geometry for stability and support

---

Specifications Table:

Specification	Details
Series Name	UNISAW
Blade Material	Carbide-tipped
Arbor Diameter	5/8-in
Bevel Capacity (Degrees)	90
Blade Size (Inches)	10
Cutting Depth (Inches)	3.125
Depth Control	Yes
Left Rip Capacity (Inches)	13.5
Maximum Depth at 45 Degrees (Inches)	2.125
Maximum Depth at 90 Degrees (Inches)	3.125
Right Rip Capacity (Inches)	52
Saw Blade Diameter	10-in
Table Height (Inches)	35
Table Length (Inches)	31
Table Width (Inches)	82
Weight (lbs.)	644
Amps	15
Maximum Blade Speed (RPM)	4300
Dust Handling	Chute
Micro Adjust Rip Fence	Yes
Portable	No
Repetitive Cut Marking System	No
Spindle Lock	Yes
Voltage	230
Worm Drive	No
Warranty	5-year limited
Motor Power	3-HP, 1-phase, 60-Hz
On-board Storage	Yes
Fence System	BIESEMEYER with hairline pointer and built-in tape

---

Frequently Asked Questions (FAQ):

Q: What power is required?
A: It uses a 3-HP motor on 230V, single-phase, 60 Hz; a dedicated 230V circuit is recommended.

---

Q: What blade size and arbor does it use?
A: It accepts 10-inch blades with a 5/8-inch arbor.

---

Q: What are the cutting capacities?
A: Maximum cut depth is 3.125 in at 90° and 2.125 in at 45°; right rip capacity is 52 in and left is 13.5 in.

---

Q: Is the saw portable?
A: No, it’s a heavy cabinet saw designed for stationary shop use.

---

Q: What warranty is included?
A: 5-year limited warranty.

---

Industrial Precision, Studio Poise

This UNISAW anchors a workshop with sculptural strength and elegant restraint. The BIESEMEYER fence glides like couture tailoring, aligning every detail with exactitude. Style it with a matte-black outfeed table and warm walnut jigs to create a modern atelier vibe. For the maker’s studio that values beauty in performance, this is a cornerstone of luxurious craft.

---

Equip your shop with pro-level accuracy and dust control—choose the Delta UNISAW today.
