Classic 500 Curve Tub/Shower Combo, 32 x 60 x 60, White

This Delta Classic 500 Curve alcove tub/shower combo pairs a deep soaking bathtub with a 3-piece surround and curved, frameless sliding glass door for added space and style. The caulkless, direct-to-stud design and built-in flange streamline installation while the bright white acrylic surface is durable and easy to clean.

---

Key Features:

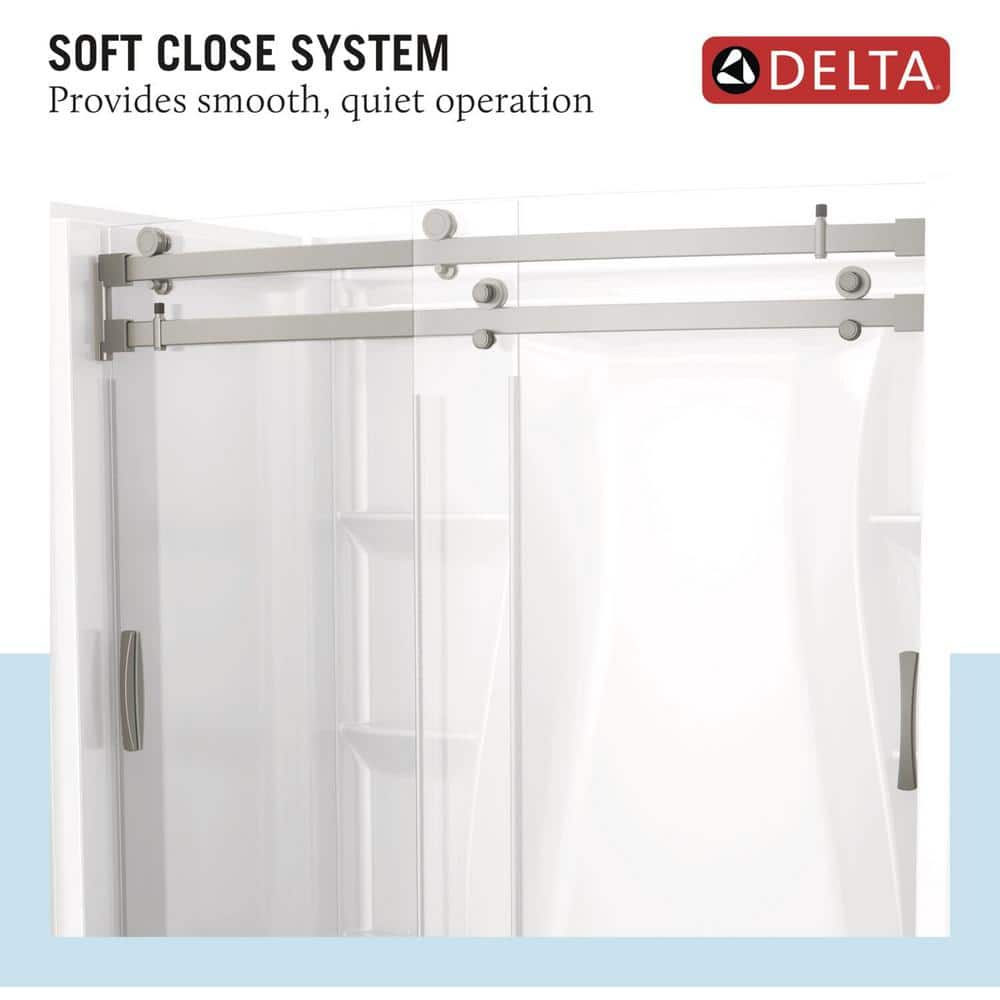

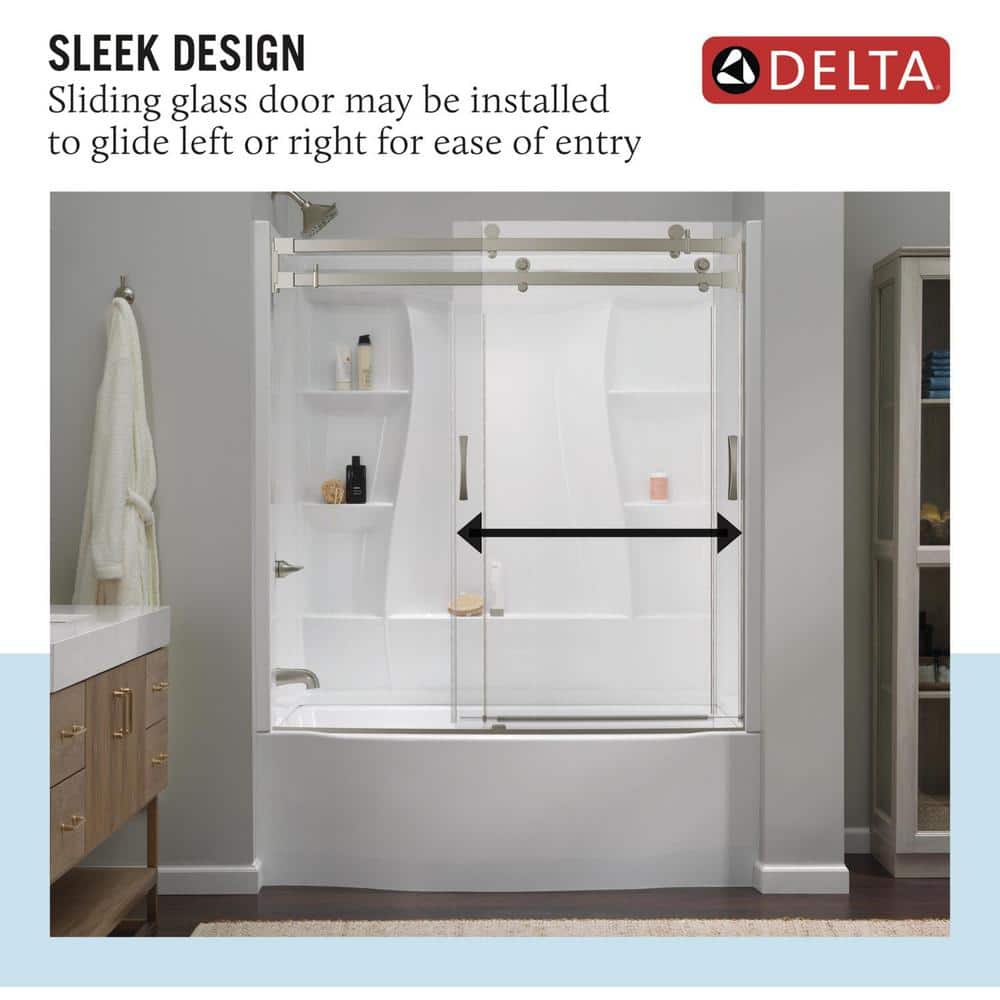

• Curved Sliding Door: Increases showering space by up to 10% and features soft-close operation.
• Easy Installation: Caulkless, direct-to-stud walls with built‑in nailing flanges for a secure fit.

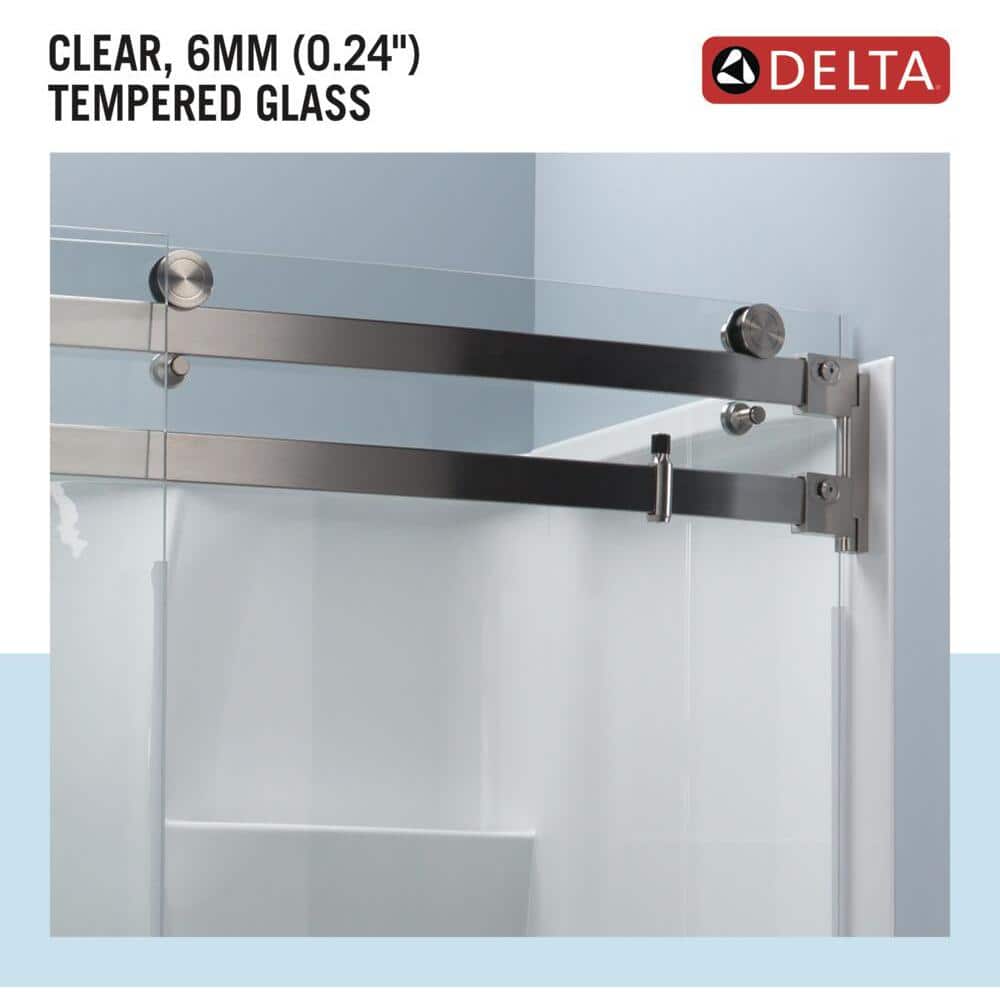

• Durable Materials: Bright white acrylic walls and tub with clear 6 mm tempered glass door and stainless hardware.
• Smart Storage: Integrated shelves and accessory ledge keep bathing essentials organized and within reach.
• Comfort Bathing: Deep bathing well with left-hand drain; reinforced tub support requires no mortar bed.

---

Specifications Table:

Specification	Details
Color Family	White
Color/Finish	White
Construction	Five piece
Door Handle Type	Bar
Door Type	Sliding
Drain Location	Left
Exterior bath shape	Rectangular
Faucet Mount	Variable
Frame/Hardware Finish Family	Stainless Steel
Glass Texture	Clear
Included	Handle(s); door installation nailing flange and hardware
Material	Acrylic walls and base; Clear tempered glass door (6 mm); Stainless hardware
Max Installed Width (in.)	60 in.
Maximum Number of Occupants	1 Person
Number of Shelves	7
Product Weight (lb.)	229.82 lb
Surface Type	Textured
Tub/Shower Features	Built-In Flange; Caulkless; Slip-Resistant Tub; Soft-close door; Protective glass coating
Wall Installation Type	Direct-to-stud
Water capacity (gallons)	48
Certifications and Listings	IAPMO Certified
Manufacturer Warranty	Bathtub 5-year Limited; Bathtub/Shower and Shower Unit 10-year Limited
Approximate Max Installed Width (in.)	60 in.
Basin Length (in.)	41.06
Basin Width (in.)	16.31
Height from Floor (in.)	19.56
Shower Depth (in.)	32
Wall Height (in.)	60
Wall Width (in.)	60
Door Width Range	53.38–58.25 in. (per image)
Door/Tub Overall Width	59.88 in. (per image)
Door/Tub Finished Height	61.75 in. door; 60 in. wall (per image)
Soaking Depth	12.75 in. (per image)
Shelf Depth	2.5–3.63 in. (per image)
Drain Included	No

---

Frequently Asked Questions (FAQ):

Q: What components are included?
A: Bundle includes a 60 in. x 32 in. left‑drain tub, 3‑piece surround, and curved sliding bathtub door with hardware.

---

Q: What is the installation type?
A: Direct-to-stud installation with built‑in nailing flanges; caulkless design reduces leak risk.

---

Q: What are the overall dimensions?

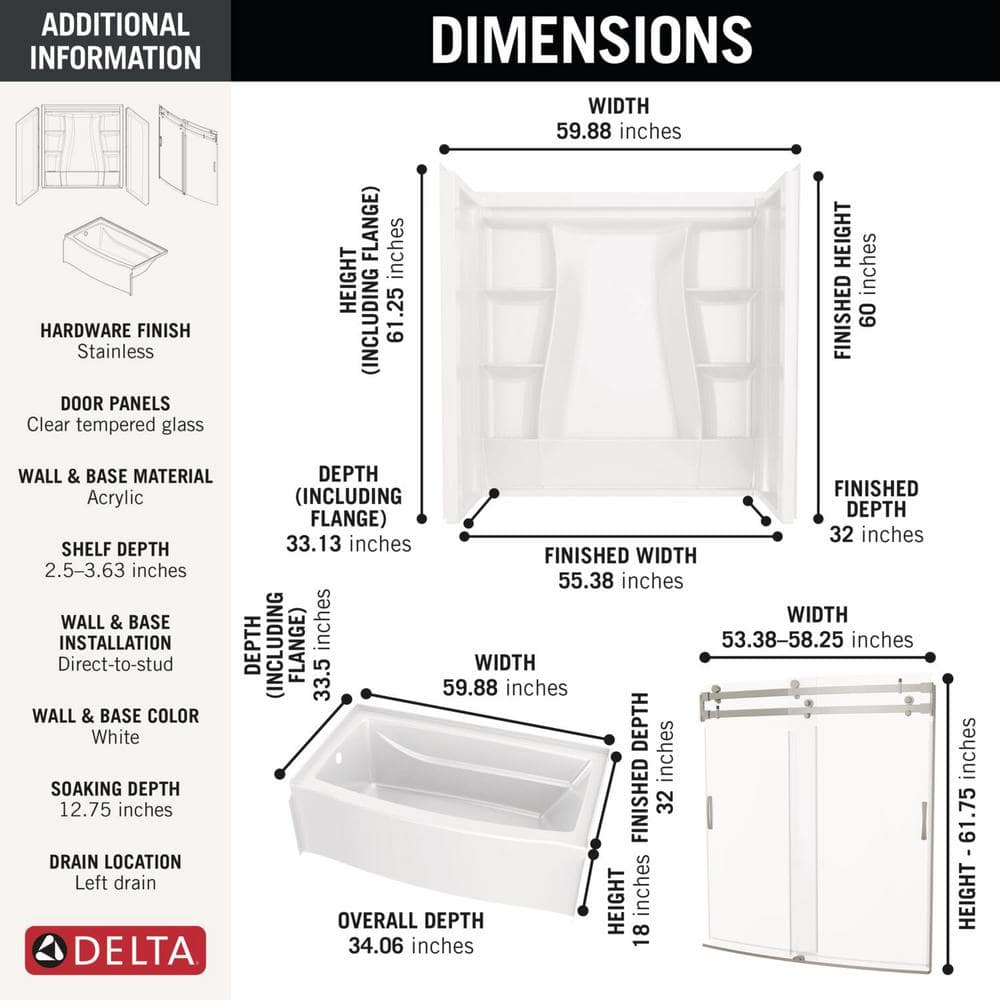

A: Finished alcove size is 60 in. W x 60 in. H x 32 in. D (see dimensional image for detailed measurements).

---

Q: What materials are used?
A: Acrylic wall and base; clear 6 mm tempered glass door; stainless steel hardware/guide rail.

---

Q: Is the drain included?
A: No. The unit has a left-side drain location; drain kit is sold separately.

---

Sculpted Serenity for the Everyday Spa

The Classic 500 Curve envelops the bath in a graceful arc, transforming a simple alcove into a luminous spa moment. Its frameless glass glides along stainless hardware with a whisper, while integrated shelving punctuates the walls like architectural niches. Style it with brushed brass fixtures and soft, mineral-hued towels to echo the sleek geometry. This is an effortless upgrade—pure, modern luxury tailored for daily ritual.

---

Upgrade your bath with the Classic 500 Curve and enjoy more space, easier installation, and everyday spa-level comfort.
