Makita 18V X2 LXT (36V) Brushless Cordless 9-1/4 in. Circular Saw with Guide Rail Compatible Base, Tool Only (XSH10Z)
Regular price $0.0036V Brushless 9-1/4 in. Cordless Circular Saw, Tool Only
Powerful 36V (18V X2) cordless circular saw engineered for large-capacity cutting with guide rail compatibility. Brushless motor delivers 4,500 RPM, with electric brake, soft start, and XPT dust/water resistance for jobsite durability.
Key Features:
- Guide Rail Compatible Base: Interacts with Makita guide rails for dead-on straight or bevel cuts without an adapter

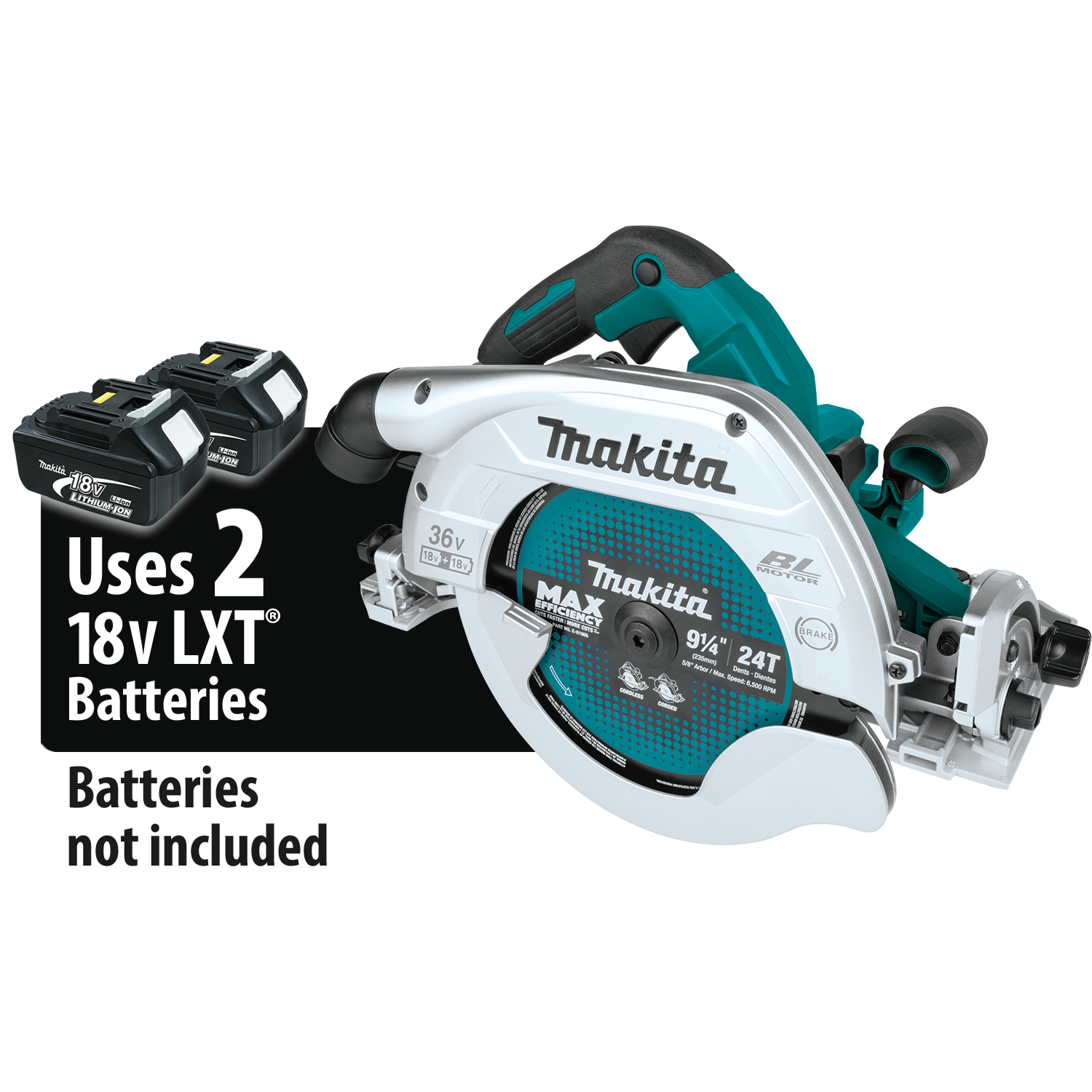

- X2 LXT Power: Runs on two 18V LXT batteries for corded-like performance and extended runtime (batteries not included)
- High-Capacity Cutting: 3-3/8 in. depth at 90°, with -1° to 60° bevel and positive stops at 22.5° and 45°
- Durable, Lightweight Build: Die-cast magnesium base, blade guard, and cover; 13.2 lbs with batteries

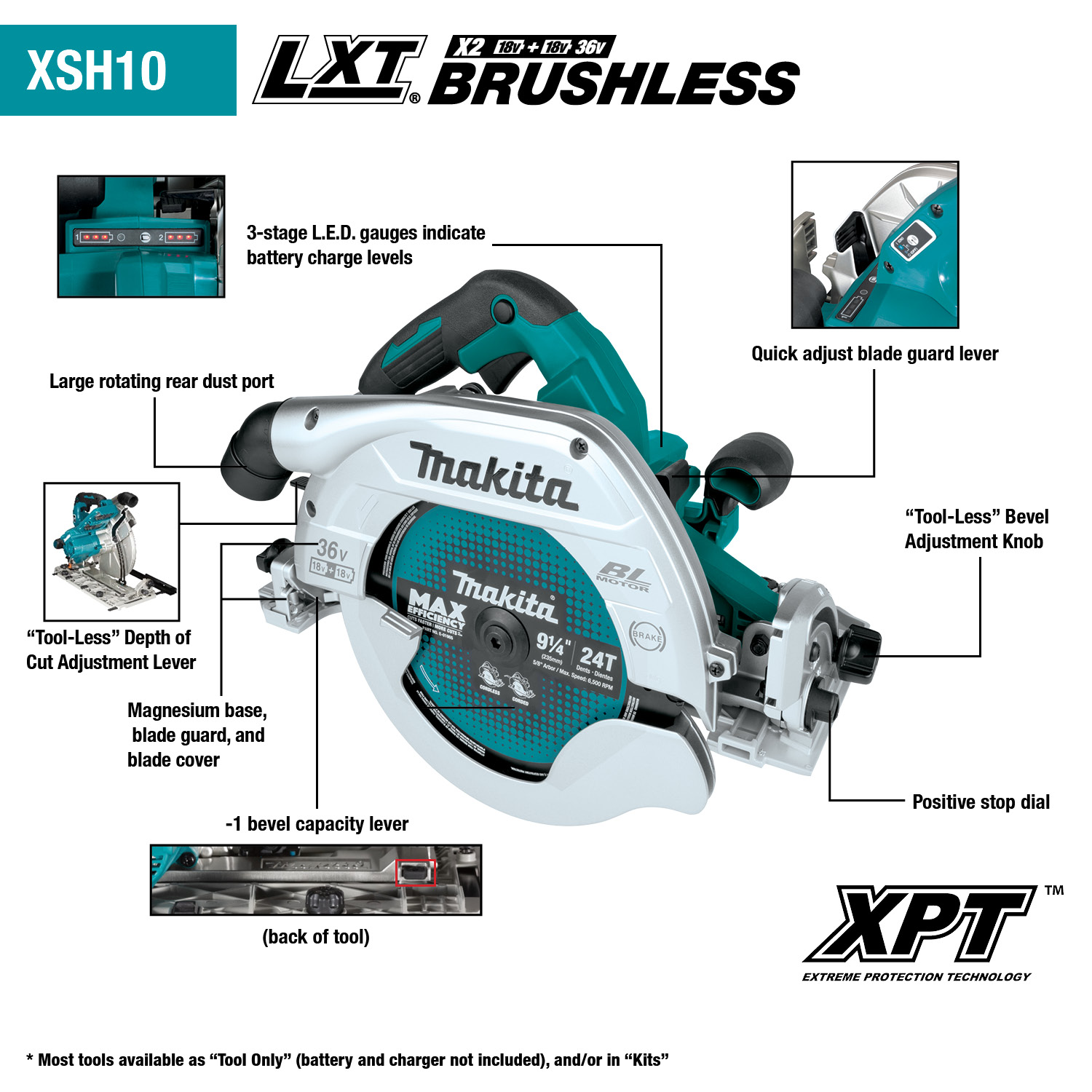

- Jobsite Features: Electric brake, soft start, dual LED lights, large rotating rear dust port, and Automatic Speed Change for optimum performance
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Blade Diameter | 9-1/4" |
| Max. Cutting Capacity (90°) | 3-3/8" |
| Max. Cutting Capacity (45°) | 2-3/8" |
| Max. Cutting Capacity (60°) | 1-3/4" |
| No Load Speed | 4,500 RPM |
| Arbor Size | 5/8" |
| Net Weight (with battery) | 13.2 lbs |
| Battery | 2X 18V LXT Lithium-Ion |
| Overall Length | 16-1/4" |
| Power Type | Cordless |
| AWS | Capable (transmitter sold separately) |
| Electric Brake | Yes |
| LED Light | Yes |
| Soft Start | Yes |
| Form Factor (LXT) | X2 |
| Motor Type | Brushless |
| Bevel Capacity | -1° to 60° with positive stops at 22.5° and 45° |
| Base/Guard/Cover Material | Die-cast magnesium |
| Guide Rail Compatibility | Yes, no adapter required |
| Shipping Weight | 15.7 lbs |
| Packaged Dimensions | 19.45" W x 14.13" H x 10.98" D |
| Dual LED Lights | Yes |
| Dust Port | Large rotating rear dust port |
| UPC Code | 088381-891363 |
Frequently Asked Questions (FAQ):
Q: Is this a kit or tool only?
A: Tool only; batteries, charger, guide rails, and AWS transmitter are sold separately.
Q: What batteries does it use?
A: Two Makita 18V LXT Lithium-Ion slide-style batteries (X2 configuration).
Q: What is the maximum cutting capacity?
A: Up to 3-3/8 in. at 90°, 2-3/8 in. at 45°, and 1-3/4 in. at 60°.
Q: Does it work with dust extractors?
A: Yes, it is AWS capable when equipped with the optional Auto-Start Wireless Transmitter for Bluetooth communication with AWS dust extractors.
Q: Is it compatible with guide rails?
A: Yes, the saw base is designed to work directly with Makita guide rails without an adapter.
Cut with Architectural Precision
This Makita circular saw brings a refined, purposeful energy to the workshop—sleek magnesium accents and a generous 9-1/4-inch blade promise fearless, continuous cuts. The guide-rail ready base is the standout, transforming long rips into crisp, perfectly aligned lines. Pair it with a rail to sculpt plywood, oak, or live-edge slabs into tailored forms. It’s an indispensable instrument for creating luxurious, clean-lined spaces with confidence and ease.
Upgrade to precision and power—add the Makita XSH10Z to your toolkit and master large-capacity cuts without the cord.
