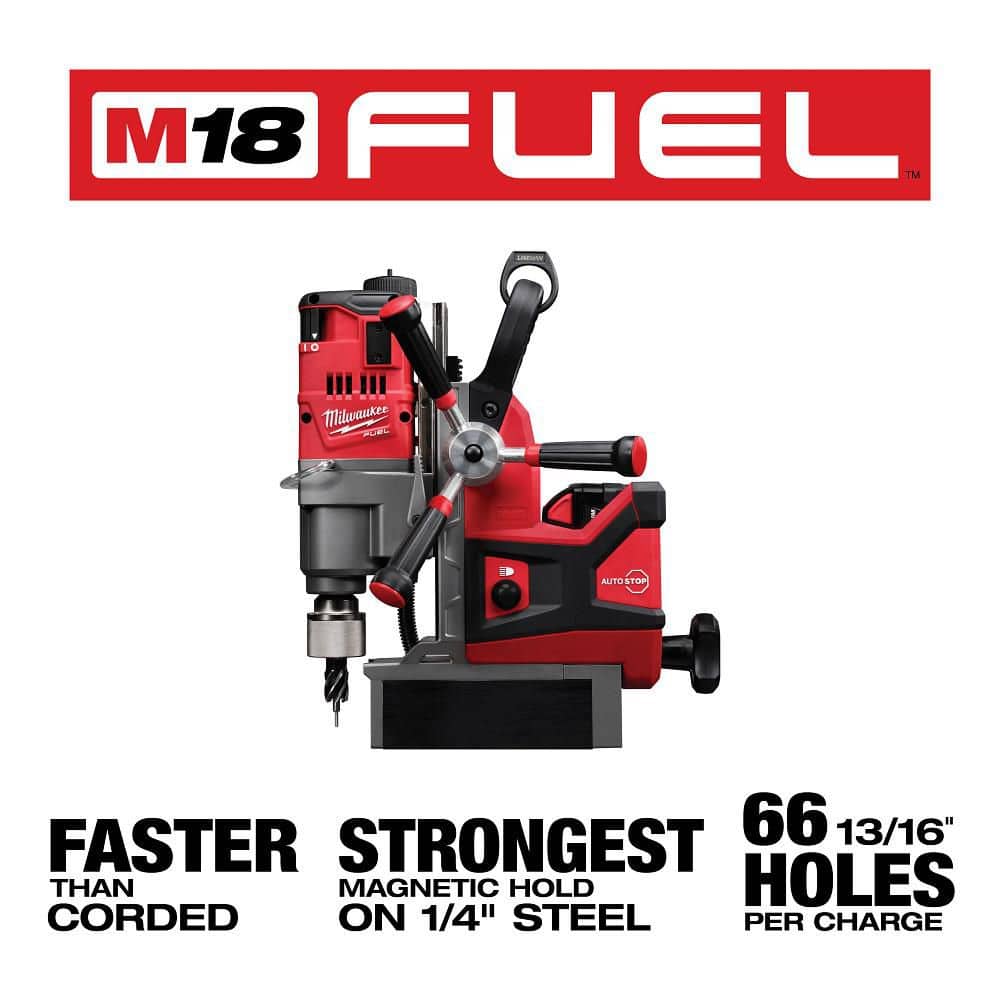

M18 FUEL 1-1/2 in. Cordless Magnetic Drill Kit

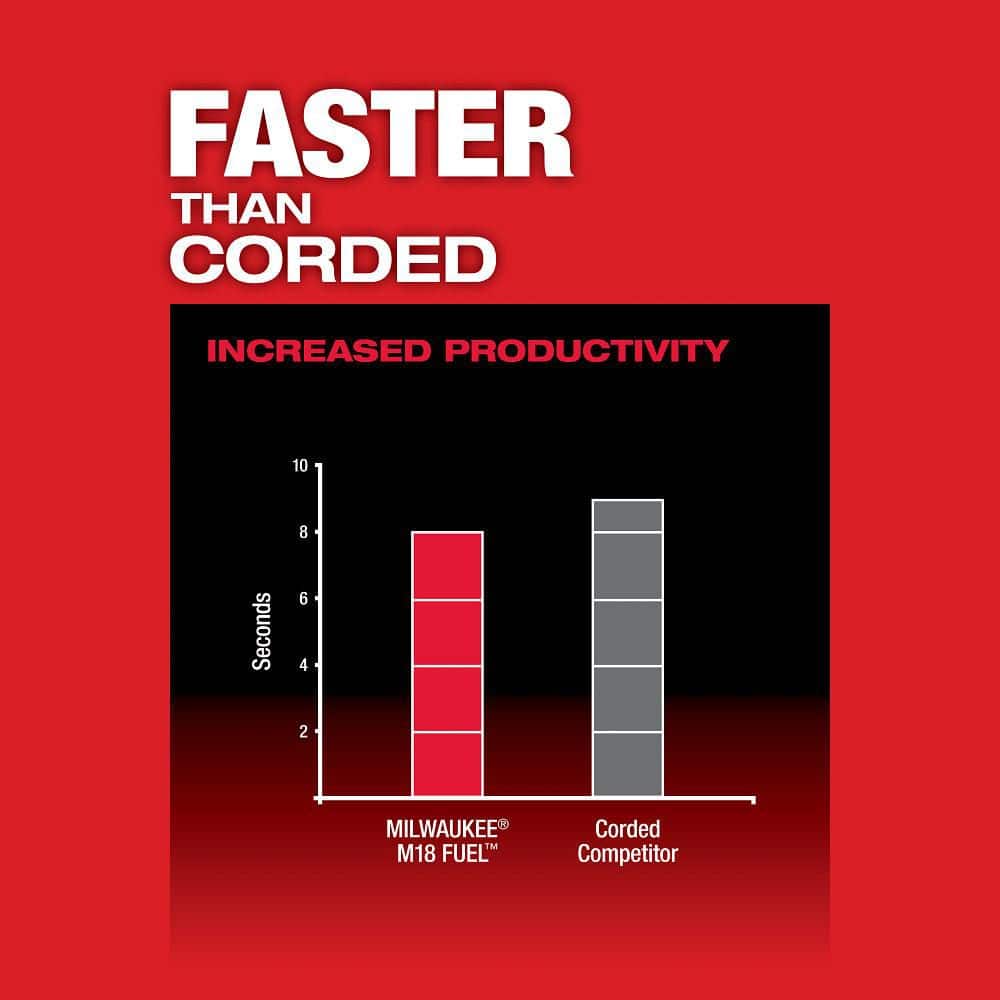

Heavy-duty cordless magnetic drill delivering faster performance than corded models with a self-powered magnetic base for safer drilling on 1/4 in. steel. Powered by the POWERSTATE brushless motor and REDLINK PLUS intelligence, the kit includes two REDLITHIUM XC8.0 batteries, rapid charger, and accessories for quick-change drilling.

---

Key Features:

• Power and Safety: Self-powered magnetic base with up to 2,000 lbs holding force and Auto-Stop lift-off detection for safer operation
• High Performance: POWERSTATE brushless motor and REDLINK PLUS electronics for faster drilling and overload protection
• Versatile Capacity: 1-1/2 in. annular cutter and 1/2 in. twist bit capability with quick-change accessories

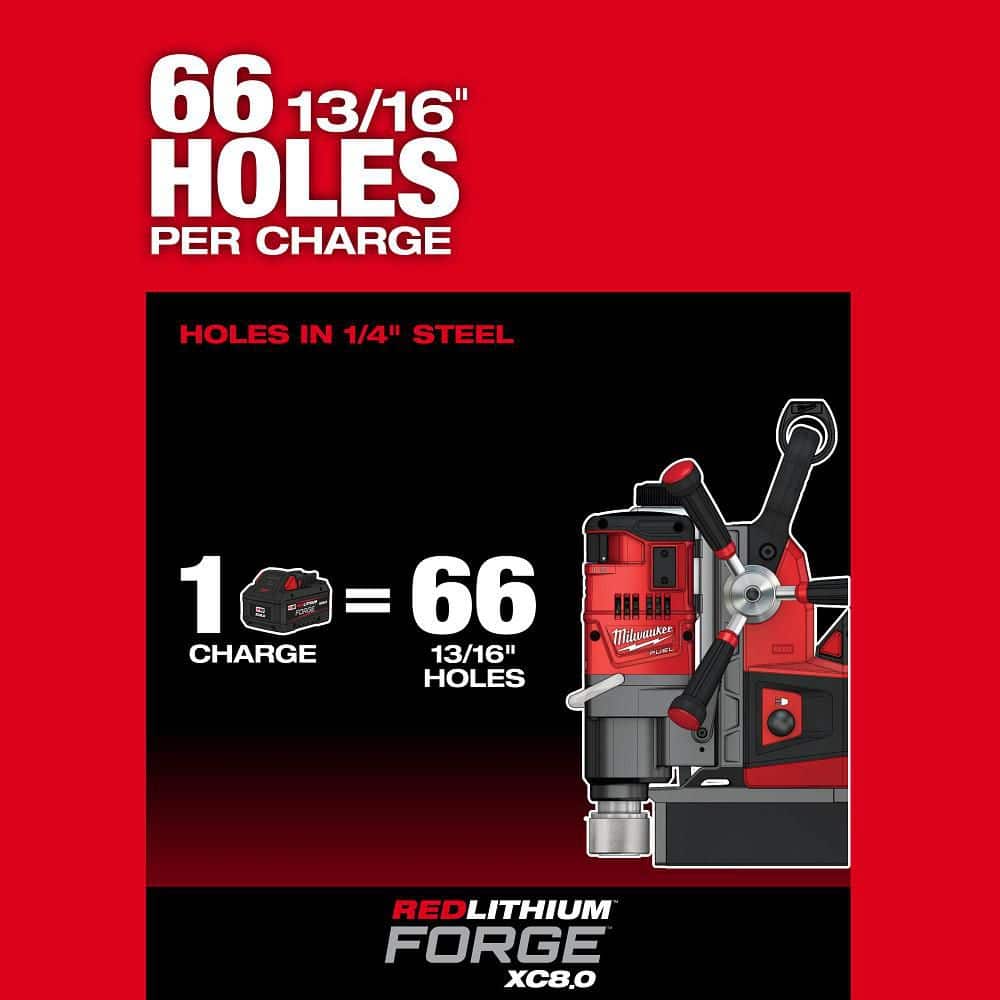

• Runtime: Includes two M18 REDLITHIUM HIGH OUTPUT XC8.0 batteries for extended runtime; up to 66 13/16 in. holes per charge
• Compact Dimensions: 13.75 in. W x 7.5 in. D x 15.5 in. H; 29.5 lb tool weight

---

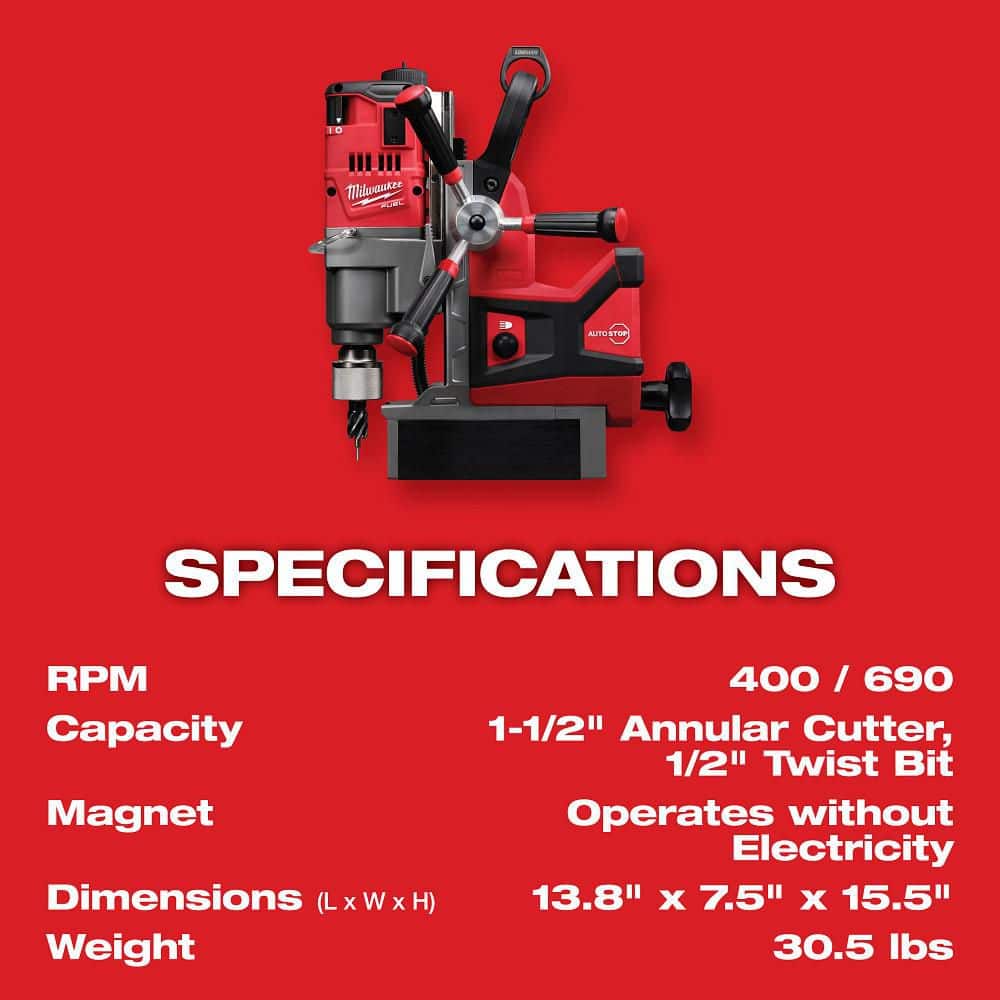

Specifications Table:

Specification	Details
Voltage	18V
Battery Power Type	Lithium Ion
Batteries Included	2
Battery Amp Hours	8.0Ah (each)
Battery/Charger	2 Batteries & Charger Included
Charger Included	Yes (M18 and M12 Rapid Charger)
Cordless/Corded	Cordless
Cordless Tool Type	Drill/Driver
Drill Type	Magnetic Drill
Chuck Size	3/4 in. (adapter); annular cutter capacity 1-1/2 in.; 1/2 in. twist bit
Chuck Type	Keyed
Power Tool Features	Brushless, Case Included, Forward/Reverse Switch, Keyless Chuck, Variable Speed, LED Light
Stroke Length	5-3/4 in.
Motor Head Adjustment	5-1/8 in.
Gearbox Speeds	400/690 RPM
Maximum Speed (RPM)	400 RPM
Magnet	Permanent magnet base operates without electricity; up to 2,000 lbs holding force
Product Dimensions (W x D x H)	13.75 in. x 7.5 in. x 15.5 in.
Product Weight	29.5 lb
Color Family	Red
Certifications and Listings	cUL Listed
Manufacturer Warranty	5 Year On Tool & 3 Year On Batteries
Tools Product Type	Power Tool

---

Frequently Asked Questions (FAQ):

Q: What materials can this magnetic drill handle?
A: Designed for drilling structural steel and metal; provides the strongest magnetic hold on 1/4 in. steel.

---

Q: What is included in the kit?

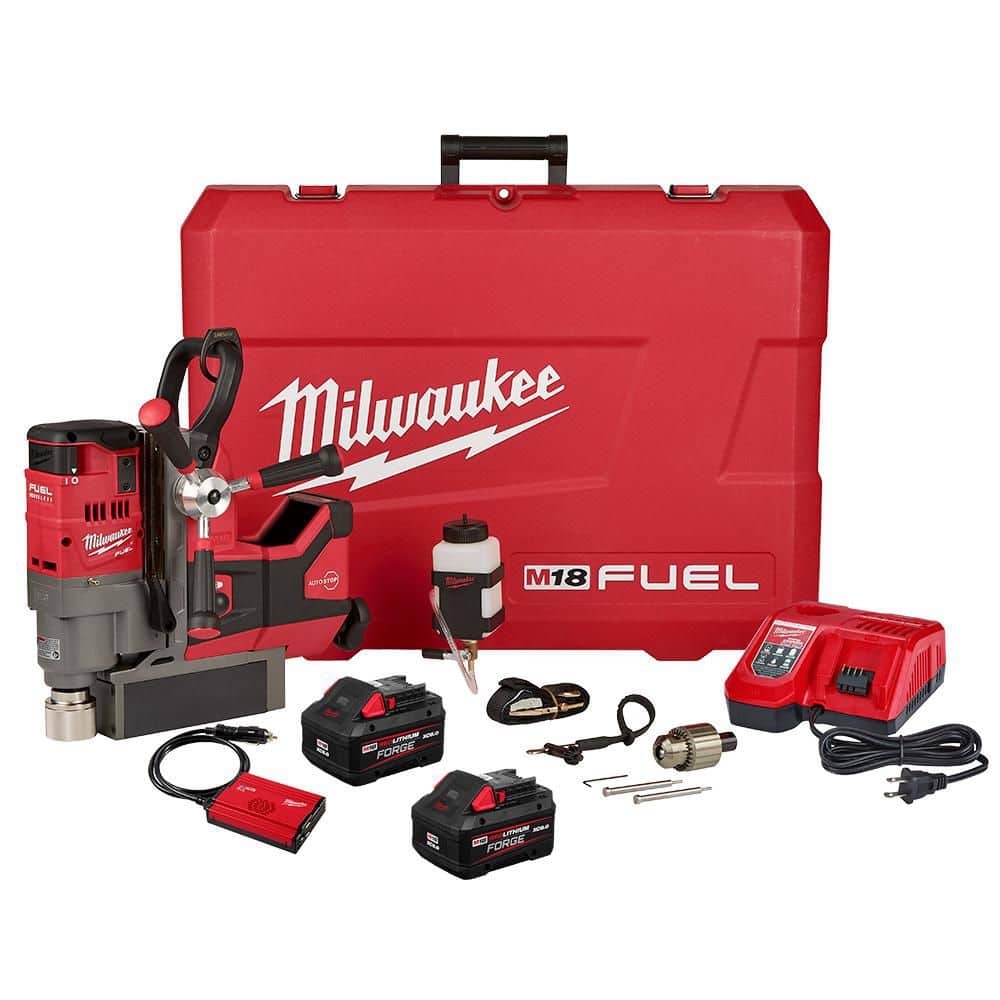

A: Drill, (2) M18 REDLITHIUM HIGH OUTPUT XC8.0 batteries, M18/M12 rapid charger, 3/4 in. Weldon to 1/2 in. chuck adapter, chuck key, magnetic lubrication tank, safety strap, (2) 1 in. retractable pilot pins, carrying case.

---

Q: Is the magnet dependent on battery power?
A: No. The permanent magnet base operates without electricity, so it remains active even if the battery drains.

---

Q: What is the speed range?
A: 4-speed gearbox with 400/690 RPM ranges noted; maximum speed listed at 400 RPM in source data.

---

Q: What warranty is provided?
A: 5-year warranty on the tool and 3-year warranty on the batteries.

---

Industrial Precision, Untethered

This magnetic drill brings the drama of red Milwaukee engineering into the workspace—sleek, compact, and purpose-built. The self-powered magnetic base and robust brushless motor create a powerful silhouette that feels both modern and professional. Style it with a clean, organized kit wall and metal storage to echo its industrial confidence. It’s a statement of capability, elevating any workshop to a luxe, high-performance environment.

---

Power up your metalwork with Milwaukee’s cordless magnetic drill—add the kit to your cart and drill faster, safer, and anywhere.
