Kitchen cabinets

11/16 in. Solid Brass Housing and Plates w/Steel Ball Catch and Inner Spring for Hinged Doors

Metal

$6.25 each

Orders start at $399. Combine any items to reach it.

  • Center to center 40
Quantity
1 item
$6.25
Freight delivery
$149.00 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Freight delivery$149.00

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Kitchen cabinets

Details & specifications.

From the maker · the maker’s description

This ball bullet catch and strike is constructed of solid brass, and the inner ball and spring are constructed of steel. This item features a fully adjustable barrel, and it can be installed on the top edge of hinged-swinging doors, or on the vertical edges. This ball catch helps keep doors in closed position without the use of a standard turn knob or lever, allowing the door to merely be pulled open without having to twist the wrist. These ball catches are for use with hinged-swinging doors, commonly used on closet doors, pantry doors, kid's room, etc. This ball catch is easy to install and it is used by many.

  • California residents
  • Spring-loaded ball catch helps keep interior hinged doors in closed position
  • 11/16 in. diameter by 1-7/16 in. long barrel
  • Constructed of solid brass housing and plates with steel ball and inner spring
  • Ball catch is fully adjustable
  • Can be mounted on top of doors or on vertical edge
  • Easy to install in less than 30 minutes with a few simple tools
  • Item includes mounting hardware and installation instructions so you have everything you need

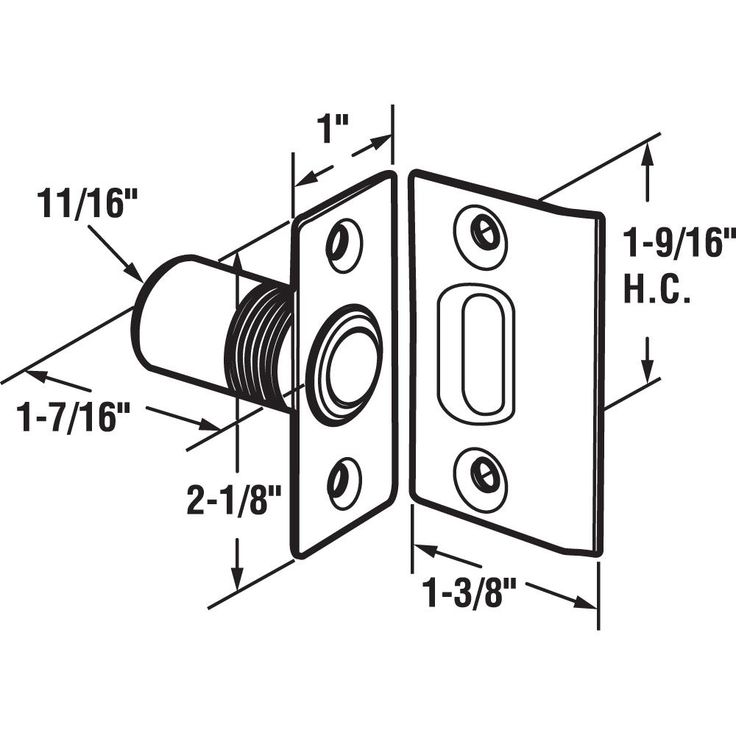

  • For further dimensional information, please see the line drawing
SKU
100575403
Hole spacing (mm)
40 mm
Finish
Brass
Material
Metal
Item Weight
0.175
Builders Hardware Product Type
Cabinet Latch
Latch Type
Spring loaded
Package Quantity
1
Product Height (in.)
2.125
Product Width (in.)
1
Center to Center Measurement (mm)
40
Center to Center Measurement (inches)
0
Product Depth (in.)
1.438
Manufacturer Warranty
Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
