Onward Frame Clip-On 5/8 in. Overlay Euro Hinge (1-Pair)

$17.45

/
Shipping calculated at checkout.

Onward 5/8 in. Overlay Euro Cabinet Hinges, Pair

Compact clip-on European concealed hinges designed for face-frame cabinets. Nickel finish steel construction with 110° opening and three-way adjustment for precise alignment.

Key Features:

  • Concealed Euro Design: Hidden hinge for a clean, modern cabinet look

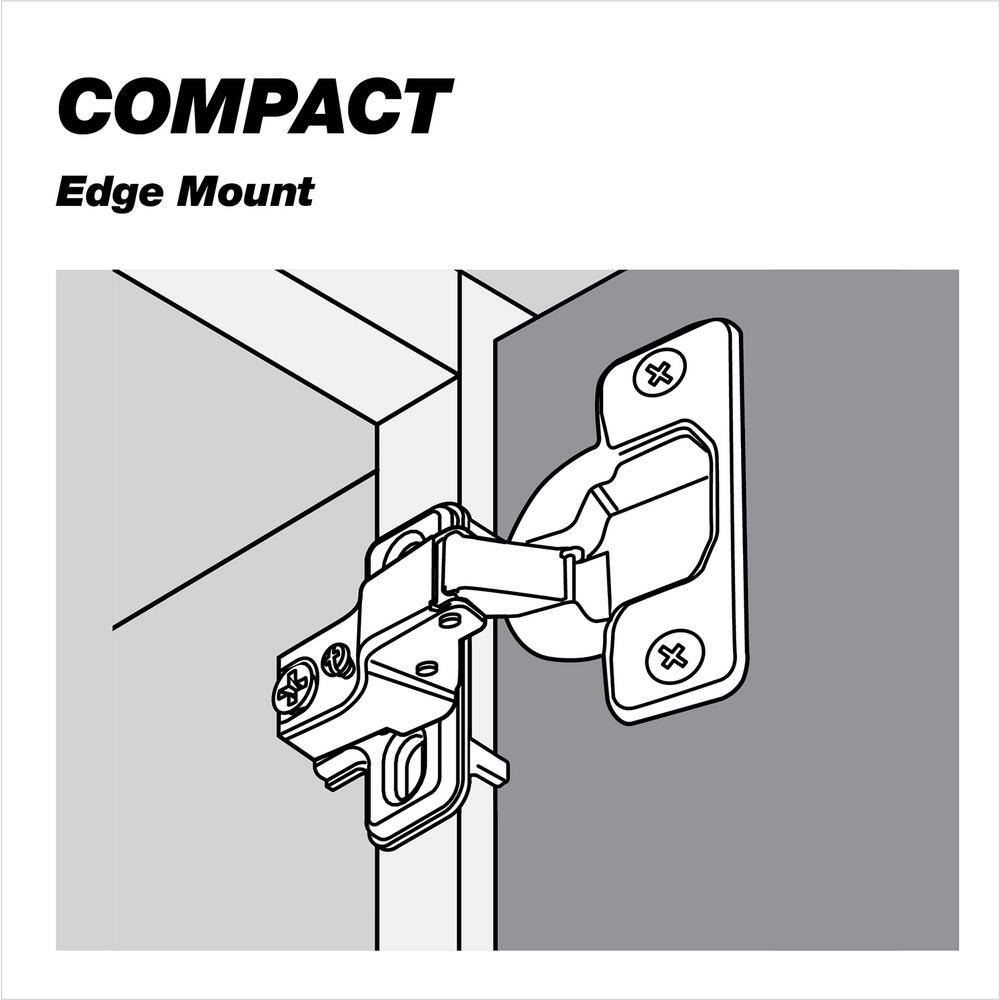

  • Face-Frame Ready: Mounts directly to the frame with included plates and screws
  • Smooth 110° Opening: Wide access with durable engineering

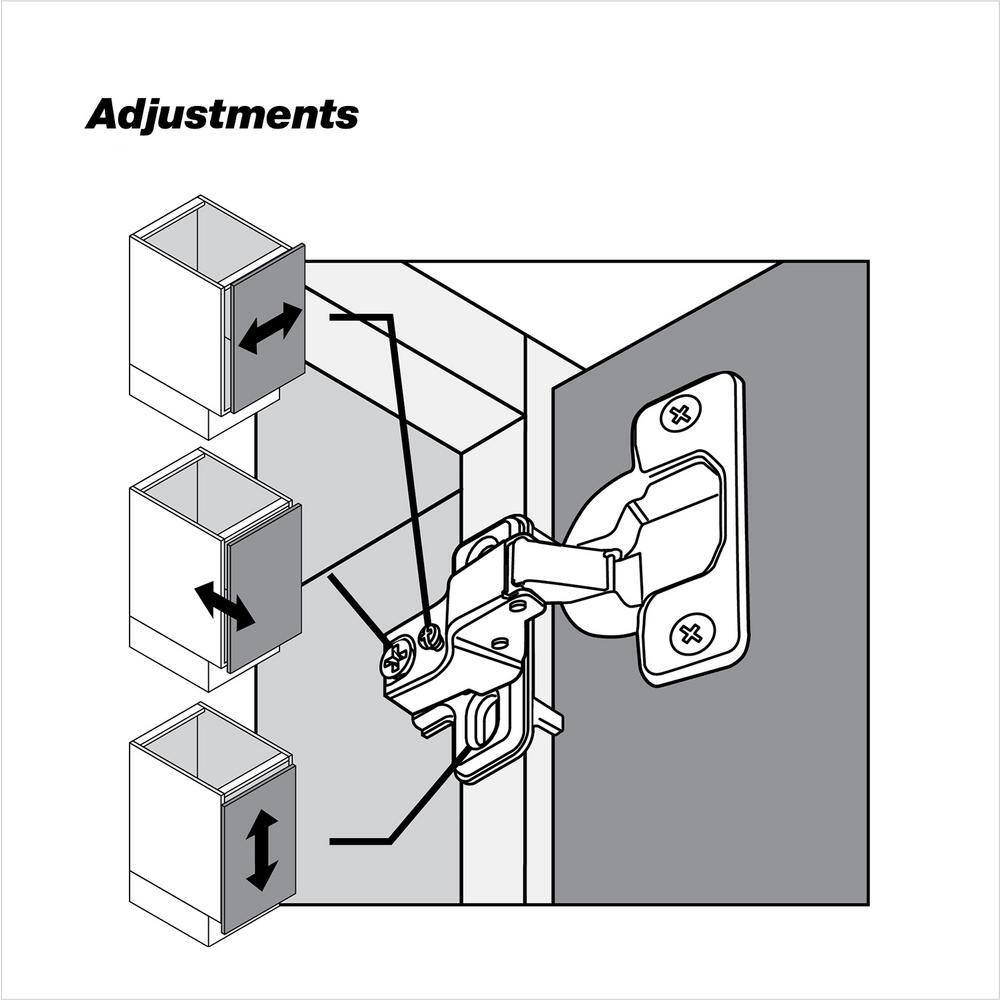

  • Three-Way Adjustment: Fine-tune vertical, horizontal, and depth after installation
  • Durable Steel, Nickel Finish: Long-lasting performance in kitchens and baths

Specifications Table:

Specification Details
Hinge Type Concealed Euro hinge

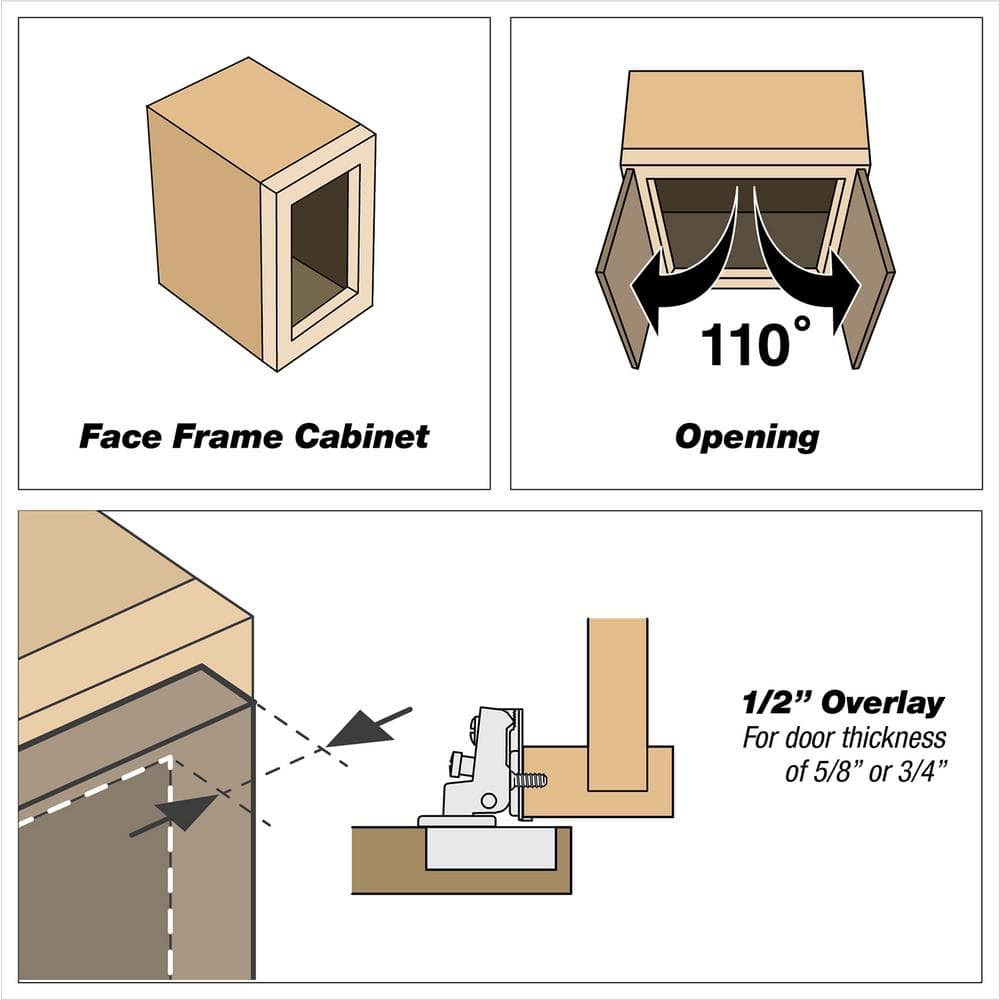

Overlay 1/2 in (13 mm)
Cup Diameter 35 mm
Cabinet Frame Type Face frame
Opening Angle 110°
Door Thickness Compatibility 5/8 in (16 mm) or 3/4 in (19 mm)
Material Steel
Finish Nickel; Satin finish family
Hinge Visibility Hidden
Number of Holes 4
Package Quantity 2 (1 pair)
Builders Hardware Product Type Cabinet hinge
Adjustability Three-dimensional (vertical, horizontal, depth)
Product Dimensions (approx.) Depth: 1 in; Height: 1 in; Width: 1 in
Manufacturer Warranty Limited Lifetime Warranty

Frequently Asked Questions (FAQ):

Q: What cabinet type are these hinges compatible with?
A: They are designed for standard face-frame cabinets.

Q: What overlay and cup size do these hinges support?
A: They are for 1/2 in. overlay applications with a 35 mm cup.

Q: What door thickness works with these hinges?
A: Suitable for 5/8 in. or 3/4 in. thick doors.

Q: Are mounting screws included?
A: Yes, screws and mounting plates are included for easy installation.

Q: What is the opening angle?
A: 110 degrees.

Streamlined Hardware, Elevated Cabinetry

These concealed hinges bring a crisp, tailored finish to cabinetry, letting the wood’s character take center stage. The nickel sheen adds a quiet sophistication while the compact profile keeps lines clean. Pair them with flat-panel doors for a contemporary silhouette, or use on shaker fronts to refine traditional millwork. A small detail with a big impact—essential hardware for a polished, luxurious kitchen.

Upgrade your cabinets with precise, concealed performance—add this Onward hinge pair to your project today.
