Blum 1/2 in. Overlay Face-Frame Cabinet Hinge (Pair)

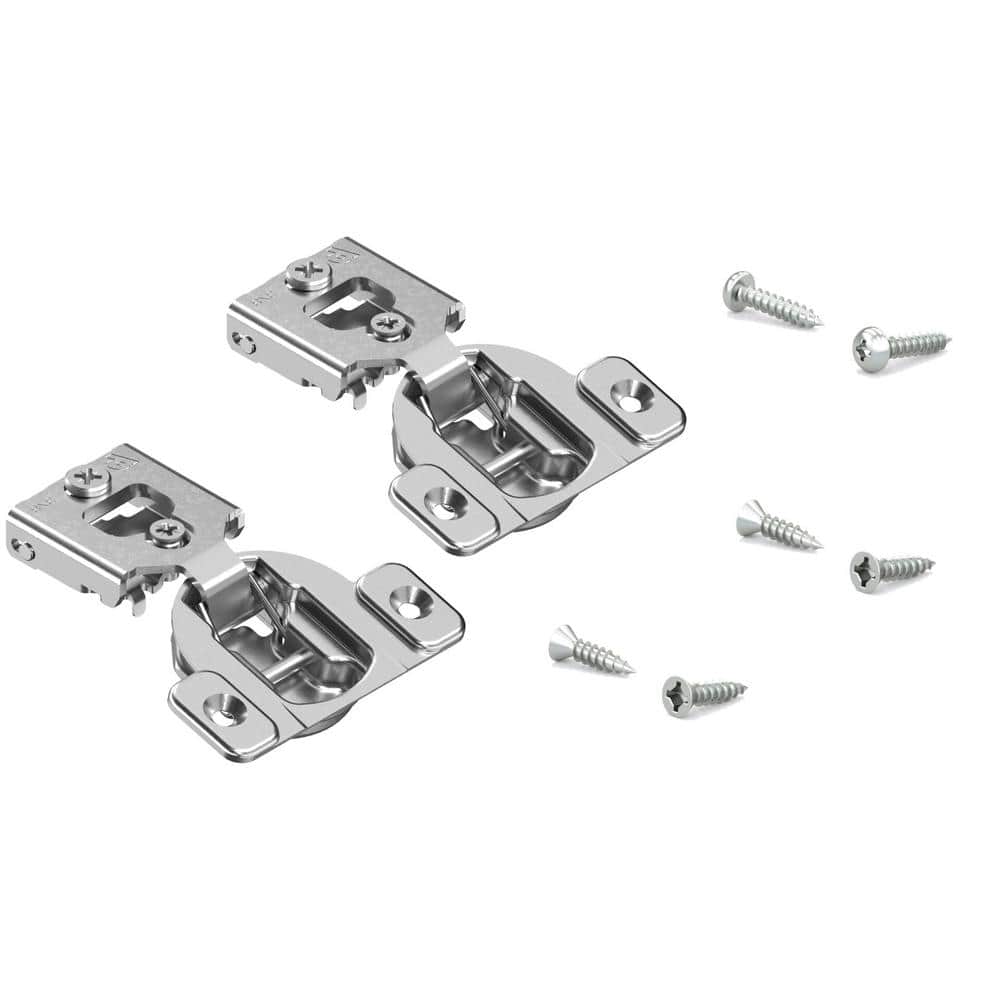

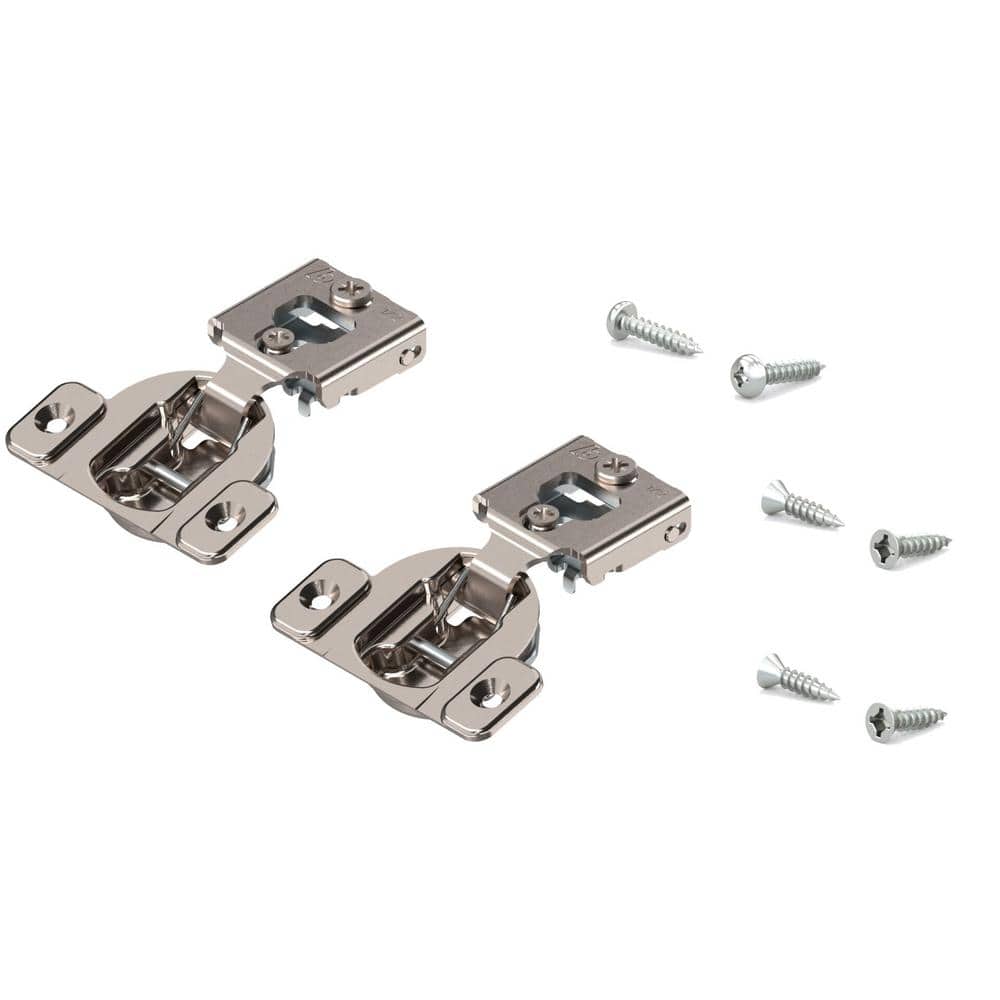

Compact, concealed wrap-around hinges for 1/2 in. overlay face-frame cabinets. Steel construction with nickel finish and spring-closing action opens to 105°. Sold as a 2-pack with screws included.

---

Key Features:

• Concealed Design: Hidden compact hinge maintains a clean cabinet look
• Spring Closing: Self-closing mechanism keeps doors firmly shut

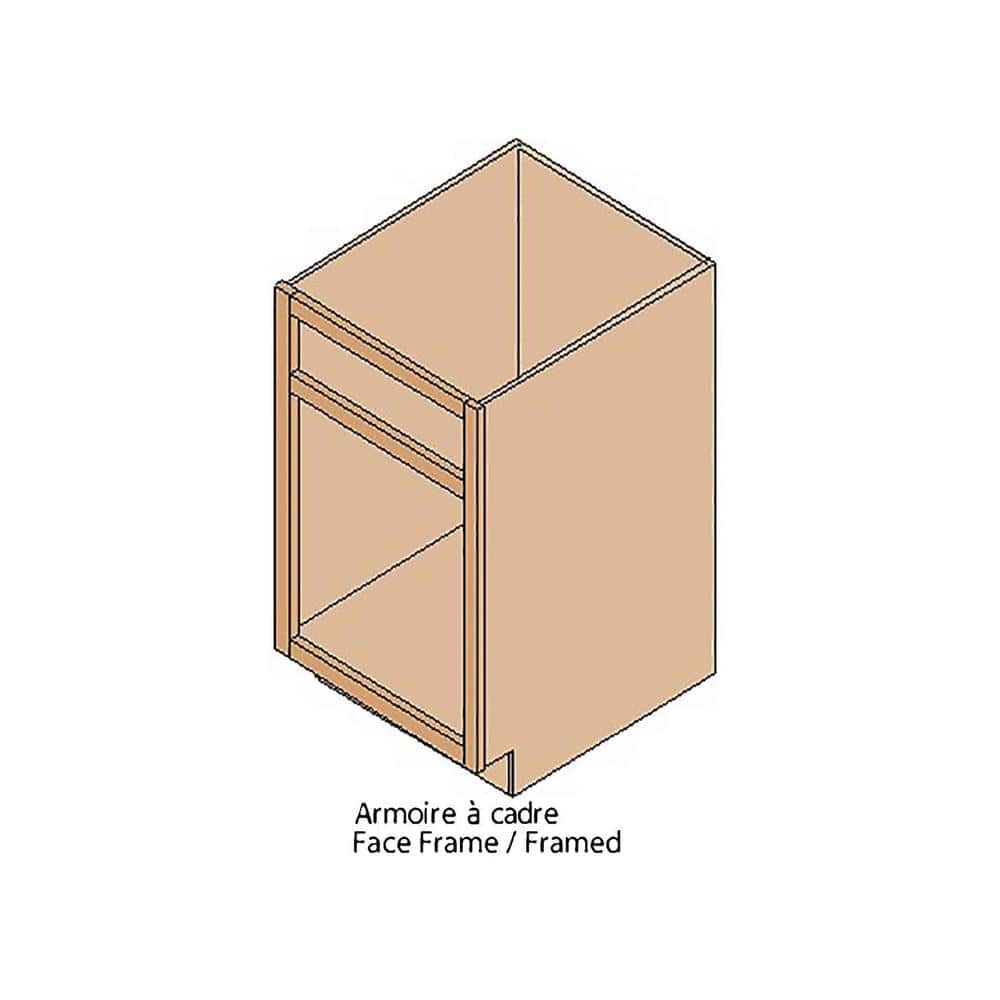

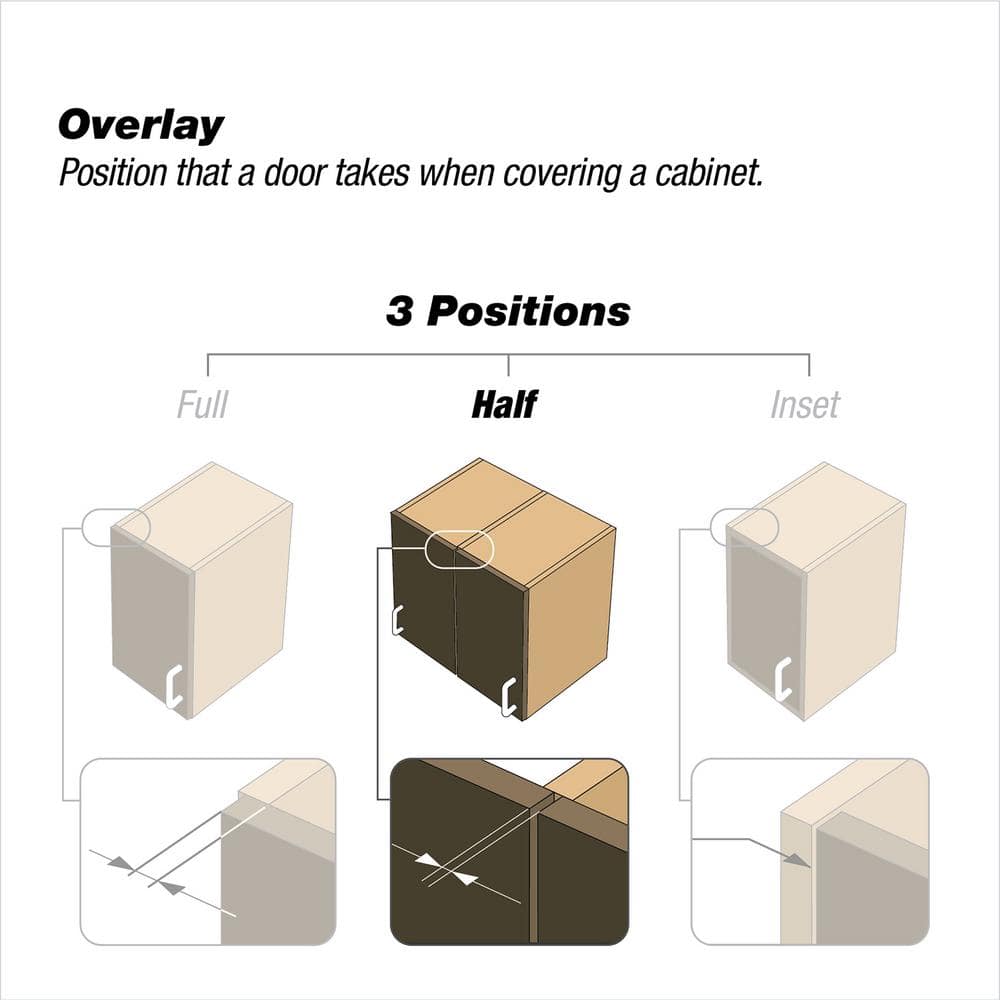

• Face-Frame Ready: Designed for 1/2 in. overlay applications on framed cabinets
• Durable Build: Steel with nickel/satin finish for long-lasting wear
• Adjustability: 3-way independent adjustment for precise alignment

---

Specifications Table:

Specification	Details
Hinge Type	Wrap-around concealed hinge
Cabinet Frame Type	Face frame
Cabinet Door Type	1/2 in. overlay
Material	Steel
Finish	Nickel / Satin
Features	Self-closing (spring closing); 3-way independent adjustment; Edge-mount installation
Hinge Opening (Degrees)	105°
Hinge Visibility	Hidden
Number of Holes	3
Package Quantity	2 (pair)
Required Frame Width	19 mm
Compatible Accessory	Blumotion BP971A9700S
Product Width	4.5 in
Product Depth	5.25 in
Product Height	0.88 in
Manufacturer Warranty	Blum Lifetime Warranty
Builders Hardware Product Type	Cabinet hinge
Hardware Color Family	Nickel

---

Frequently Asked Questions (FAQ):

Q: Is this hinge compatible with face-frame cabinets?
A: Yes, it is designed for face-frame cabinets with a 1/2 in. overlay.

---

Q: What is the opening angle?
A: Up to 105 degrees.

---

Q: Does it include mounting hardware?
A: Yes, screws are included.

---

Q: Can it be used with soft-close adapters?
A: It is compatible with Blumotion model #BP971A9700S soft-close mechanism.

---

Q: How many hinges are in the package?
A: Package quantity is 2 hinges (1 pair).

---

Sleek, Seamless Cabinet Movement

These compact Blum hinges bring a refined, tailored finish to cabinetry, disappearing into the design while delivering smooth, confident closure. The nickel sheen adds a subtle, modern accent, and the 3-way adjustment ensures razor-sharp alignment. Pair them with quiet, matte-front doors and linear pulls for an elevated, gallery-like kitchen. A small detail with a luxuriously polished impact.

---

Upgrade your cabinets with concealed, self-closing precision—add this 2-pack of Blum 1/2 in. overlay hinges to your cart now.
