Kitchen cabinets

9/16 in.

$4.97 each

Orders start at $399. Combine any items to reach it.

Cabinets
1 cabinet
$4.97
Freight delivery
$149.00 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Freight delivery$149.00

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

Kitchen cabinets

Details & specifications.

From the maker · the maker’s description

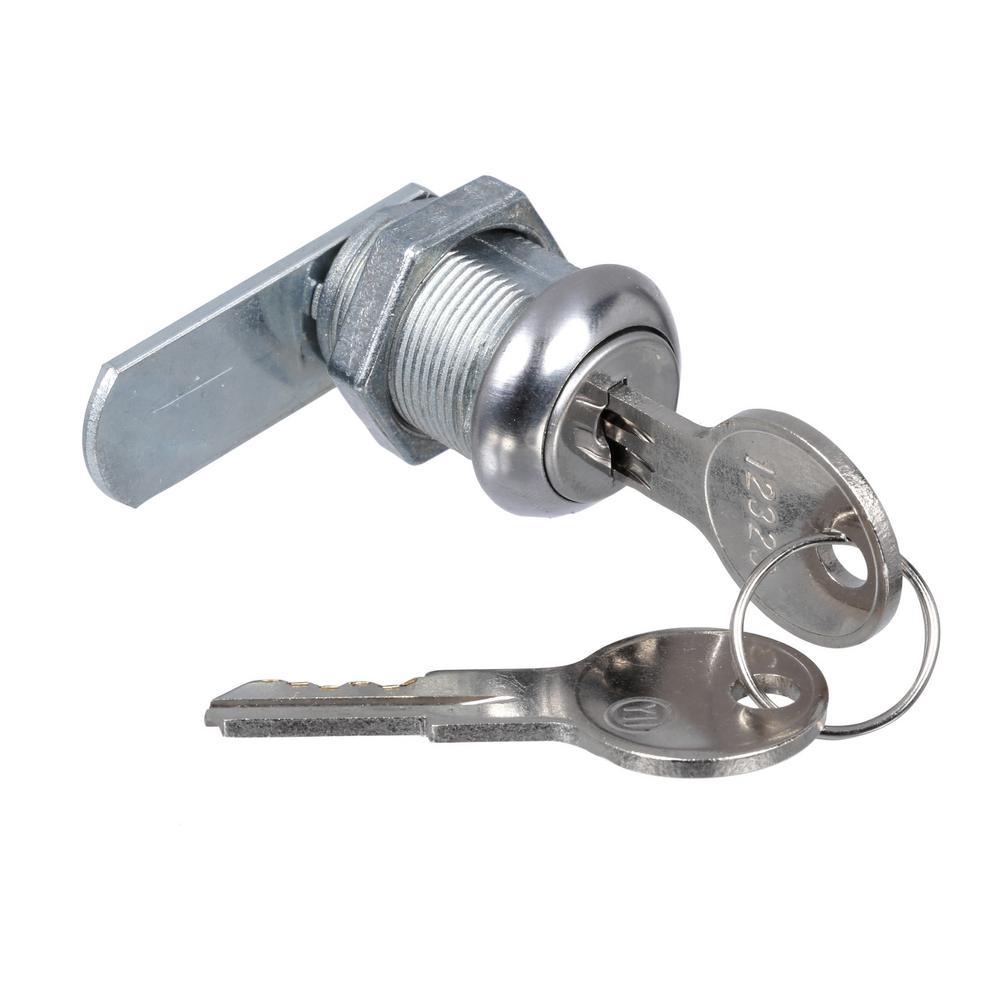

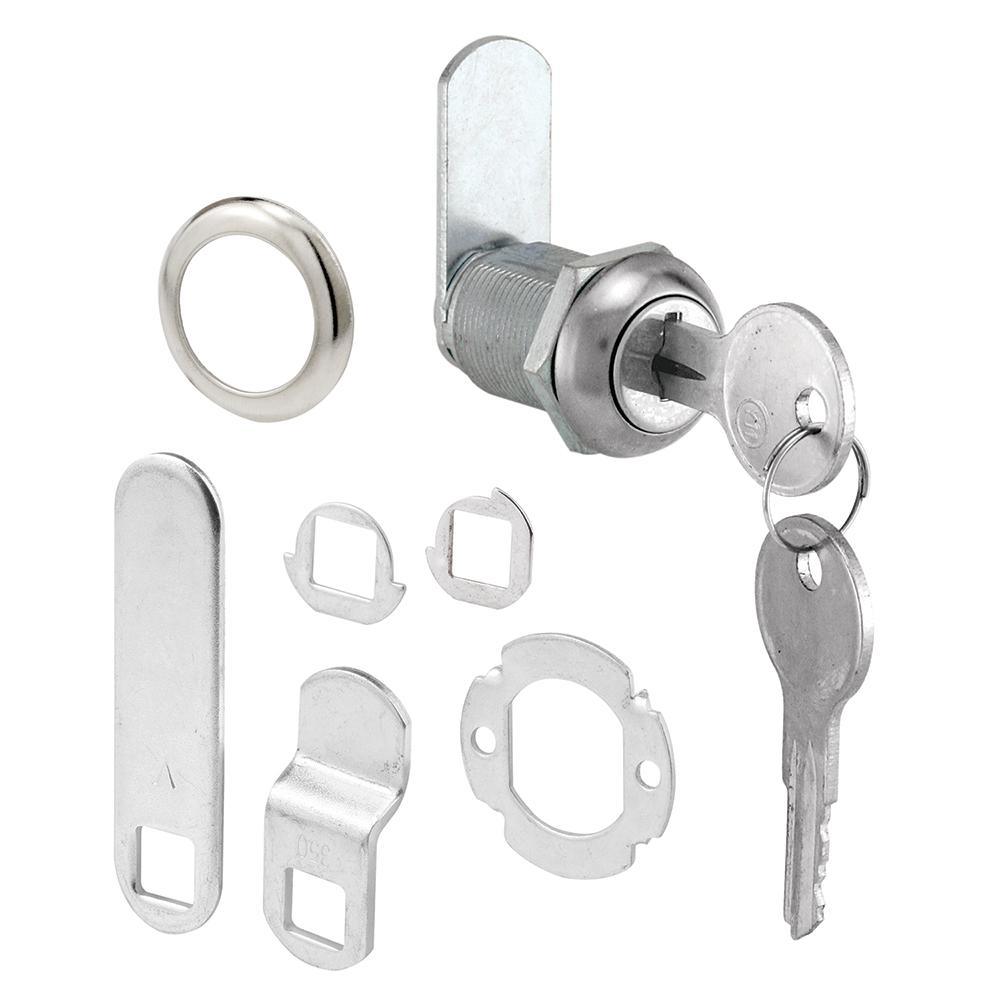

This is a plated diecast housing and steel cam lock. It can be mounted to metal or wood doors or drawers with a maximum 9/16 in. thickness. Lock has a stainless steel face.

  • California residents
  • Used to secure cabinet doors and drawers
  • 3/4 in. outside diameter x 7/8 in. long cylinder. Fits on 9/16 in. maximum panel thickness
  • Stainless steel finish

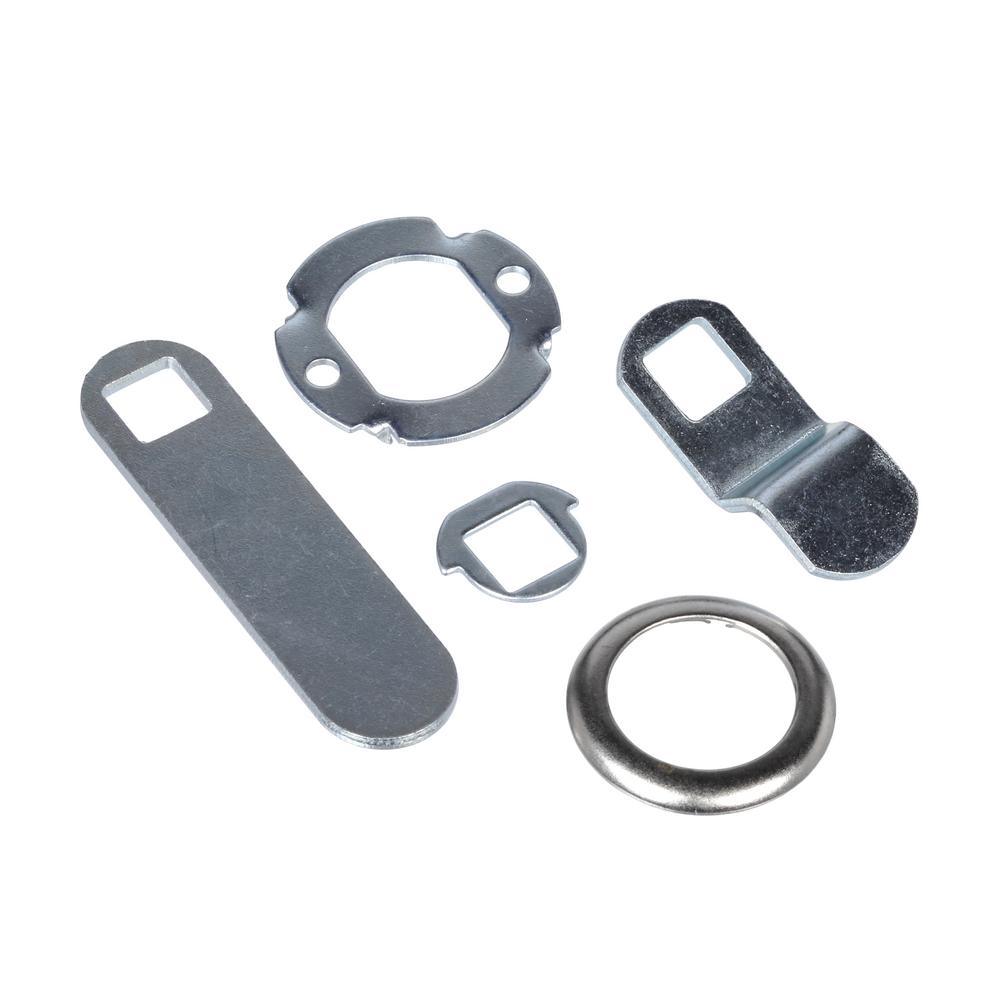

  • Diecast cylinder with steel cams

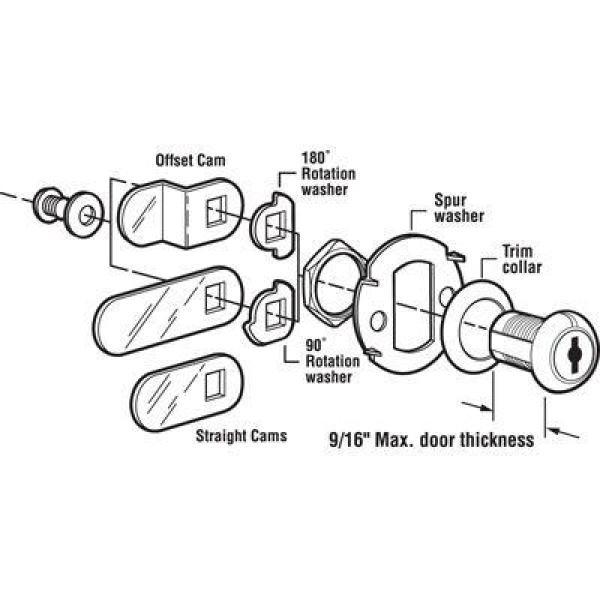

  • This lock fits on 9/16 in. maximum thick panels
  • Can be mounted to wood or metal door and drawer panels
  • Installation is quick and easy with a few simple tools

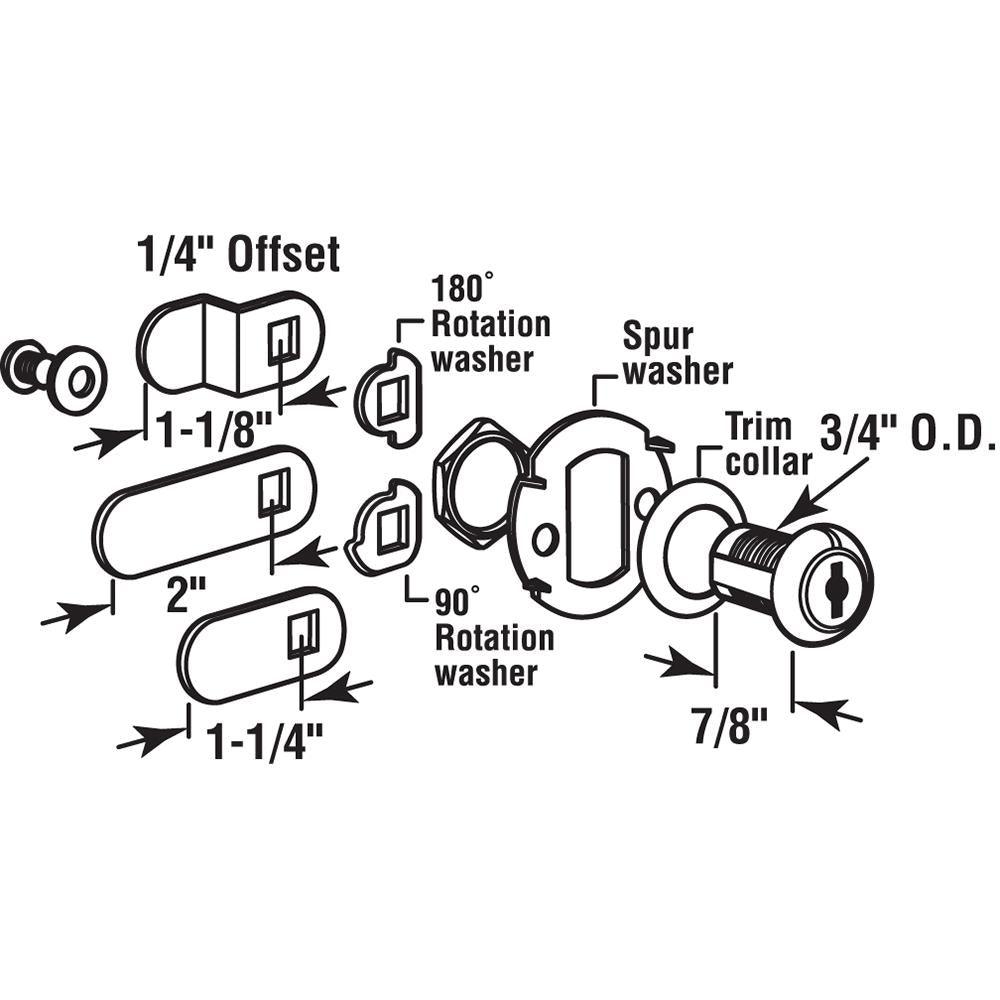

  • For further dimensional information, please see the line drawing
SKU
100124186
Item Weight
0.235
Material
Metal
Builders Hardware Product Type
Cabinet Door Lock
Finish
Chrome
Lock Type
File
Hardware Finish Family
Chrome
Package Quantity
1
Product Height (in.)
5.438
Product Depth (in.)
1.125
Product Width (in.)
3.813
Manufacturer Warranty
Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Full product name
9/16 in., Diecast and Steel, Stainless Steel finish, Drawer and Cabinet lock

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Measure the run

  1. 1

    Wall lengths

    Measure each wall at counter height and at the top of the wall cabinets; use the shorter number. Note every window, door and appliance opening.

  2. 2

    Standard sizes

    Base cabinets are 34-1/2 in tall and 24 in deep; wall cabinets 12 in deep. Widths run in 3 in steps, and a filler strip closes the gap at a wall.

  3. 3

    Handing

    A single-door cabinet lists which side it hinges on; many are reversible. Check the listing before ordering a corner or a sink base.
