Eaton
200 Amp Enclosed 2-Pole Outdoor Circuit Breaker
from $121.78
In stock
SKU 205936229
A human specialist prices every line
Questions on spec, quantity, or freight? Call 1.877.490.7099 or write hello@superarbor.com.
Buying more than one thing? Send the list — however you have itFreight and delivery are confirmed with you by a specialist — no surprise charges.
Details

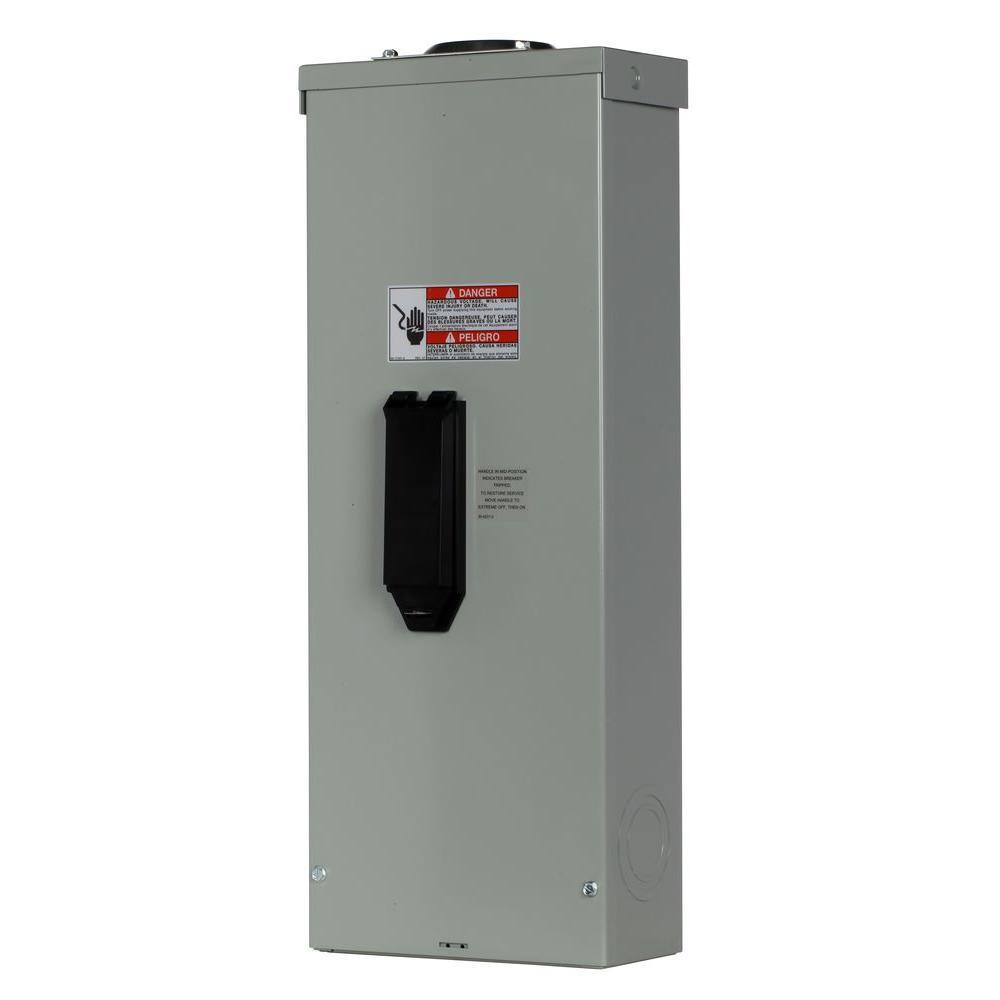

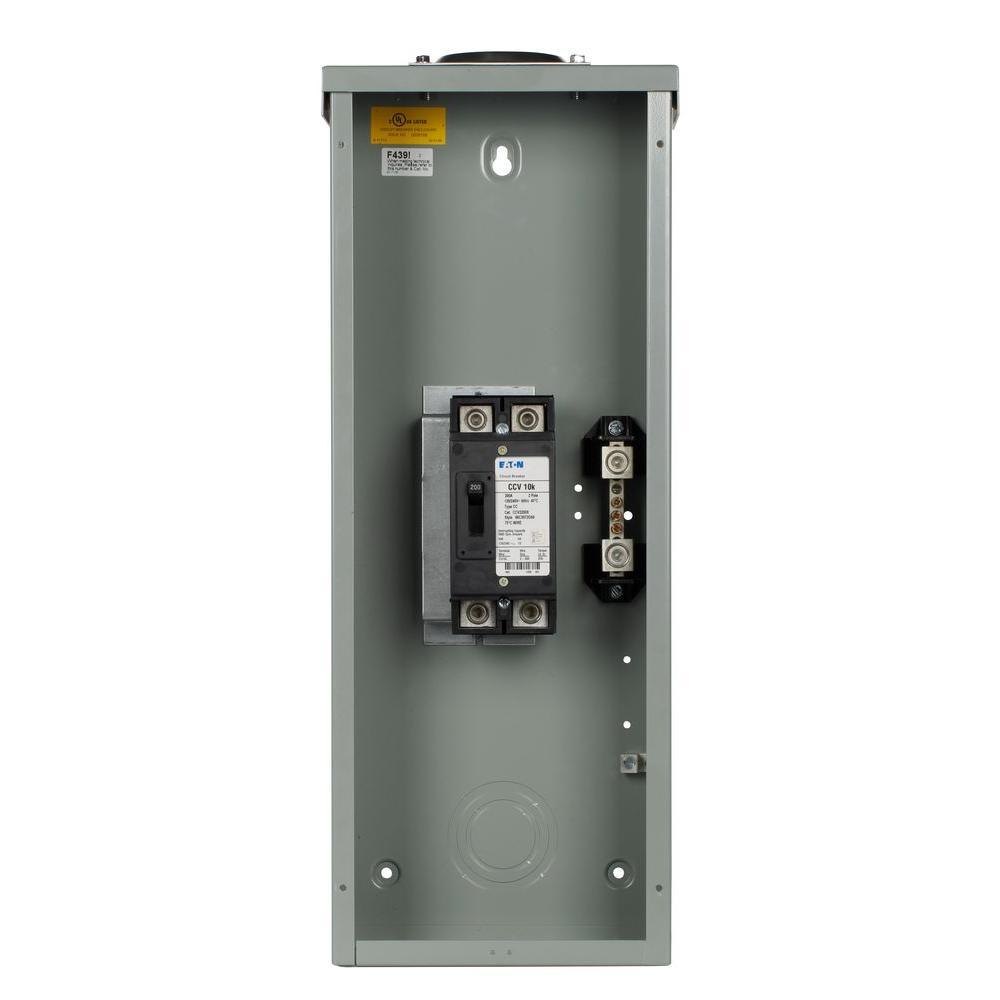

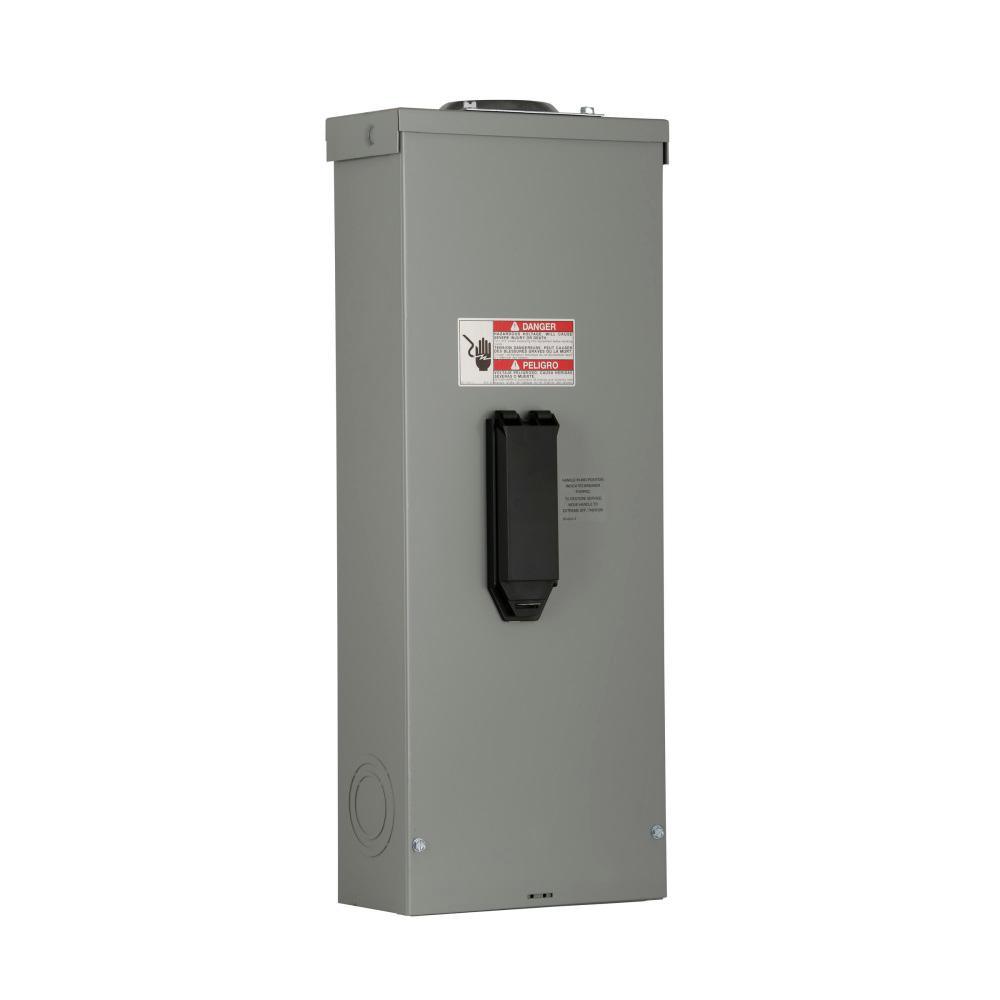

The Eaton 200 Amp double pole, type BR enclosed breaker contains a circuit breaker installed inside a weatherproof steel enclosure. The product is designed to serve as a main disconnect and protective device for feeder circuits. The unit is front operable and is capable of being padlocked in the off position. This unit is a redesign of RCC200SEBP to provide consistent breaker offering for 2P/3P devices (CC/CCV) and added labor savings to our contractors. It's the same size as the existing RCC items.
Features
- New neutral bar design for cleaner installation ((2) 300MCM-#6 and (4) #4-#14)
- Factory installed load side lugs
- Rain tight enclosure - NEMA 3R
- 25 KAIC interrupting rating

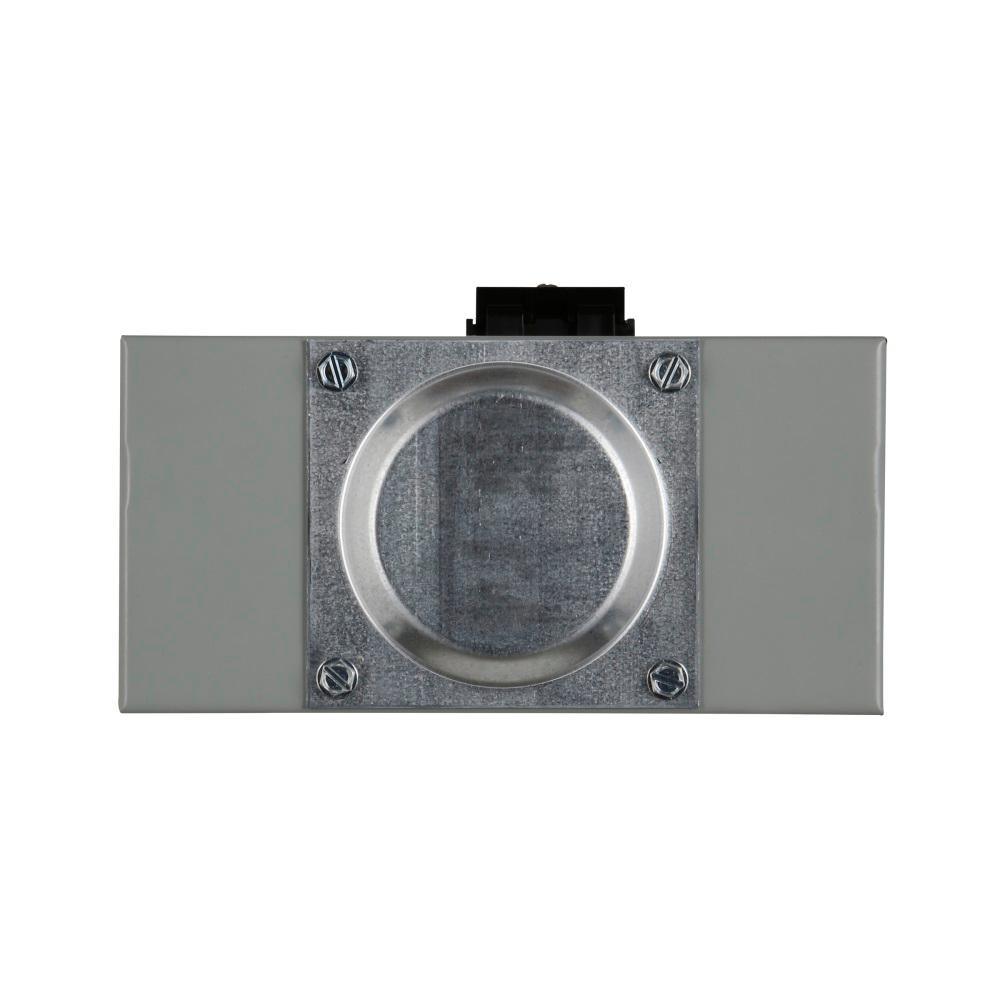

- Uses type DS H2 hub

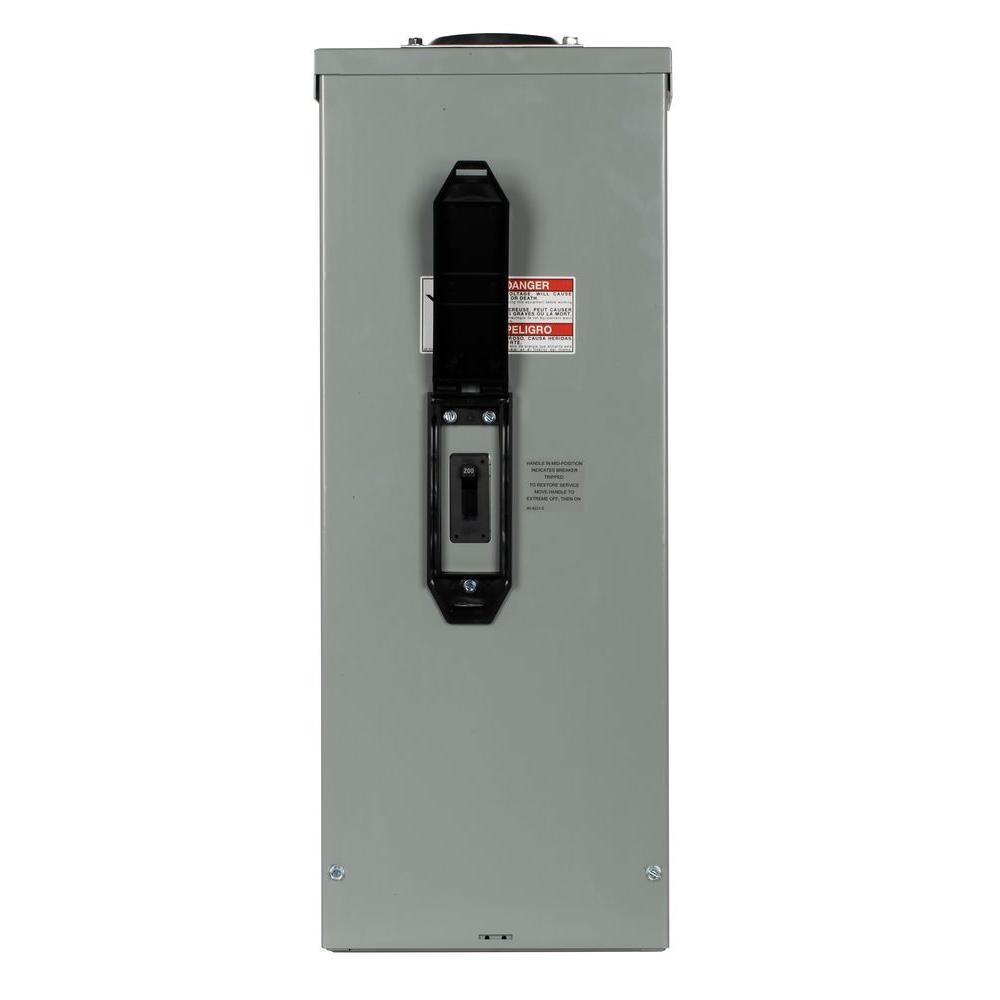

- Front accessible for convenient operation
Features
| Item Weight | 17 |
| Mounting Type | Bolt On |
| Product Weight (lb.) | 18.30 |
| Load Center Type | Main Breaker |
| Electrical Product Type | Load Center |
| Voltage (volts) | 124/240 |
| Indoor/Outdoor | Outdoor |
| Number of Circuits | 0 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Number of Spaces | 0 |
| Load Center Mounting Type | Flush |
| Maximum Amperage (amps) | 200 |
| Load center depth (in.) | 4.63 |
| Load center width (in.) | 9.25 |
| Load center height (in.) | 23.25 |
| Manufacturer Warranty | 10 year |
| Certifications and Listings | UL Listed |
