Square D Homeline 20 Amp Single-Pole Plug-On Neutral Dual Function (CAFCI & GFCI) Circuit Breaker, HOM120PDFC
In stock
SKU HOM120PDFC
A human specialist prices every line
Questions on spec, quantity, or freight? Call 1.877.490.7099 or write hello@superarbor.com.
Buying more than one thing? Send the list — however you have itFreight and delivery are confirmed with you by a specialist — no surprise charges.
Details
Homeline 20A Plug-On Neutral Dual-Function Breaker
This Square D Homeline 20A single-pole breaker combines CAFCI and Class A GFCI protection in one device for code-compliant safety on kitchen and laundry branch circuits. Its Plug-On Neutral design eliminates pigtails for faster, cleaner installs in compatible Homeline load centers.
Key Features:
- Dual Protection: Combination Arc Fault (CAFCI) and Ground Fault (Class A) in one breaker

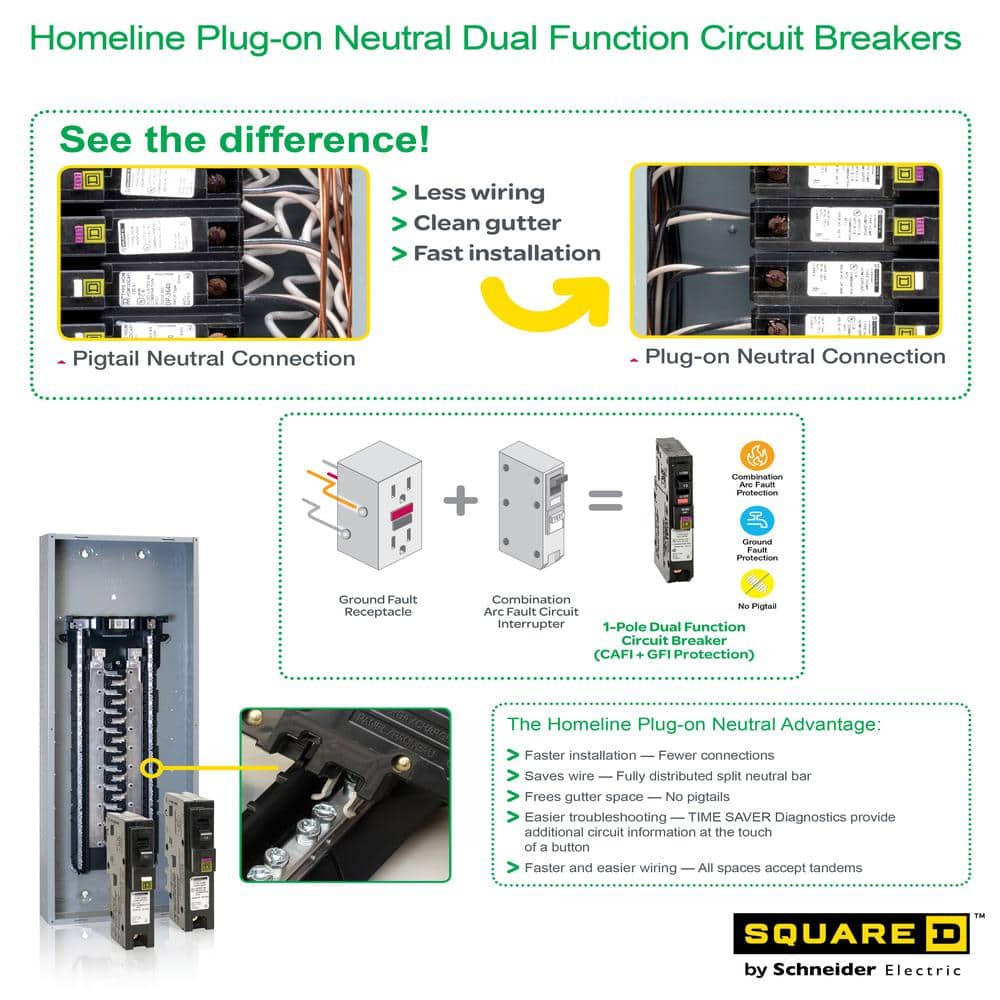

- Plug-On Neutral Design: No pigtails—fewer connections and faster installation
- Panel Compatibility: For Square D Homeline Plug-On Neutral load centers (Series 4 and newer)
- High Interrupting Rating: 10,000 AIR for reliable overcurrent protection
- Space-Saving: Single-pole, 1-space breaker with electronic trip and Time Saver Diagnostics
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard, Dual Function (CAFCI + GFCI) |
| Interruption Type | AFCI/GFCI |
| Maximum Amperage | 20 A |
| Poles | Single-Pole |
| Spaces | 1 |
| Mounting Type | Plug-On |
| Connection Type | Plug-On Neutral |
| Trip Unit | Electronic |
| Voltage | 120/240 V (120 VAC operation) |
| AIC Rating | 10,000 |
| Certifications | UL Listed; ANSI certified |

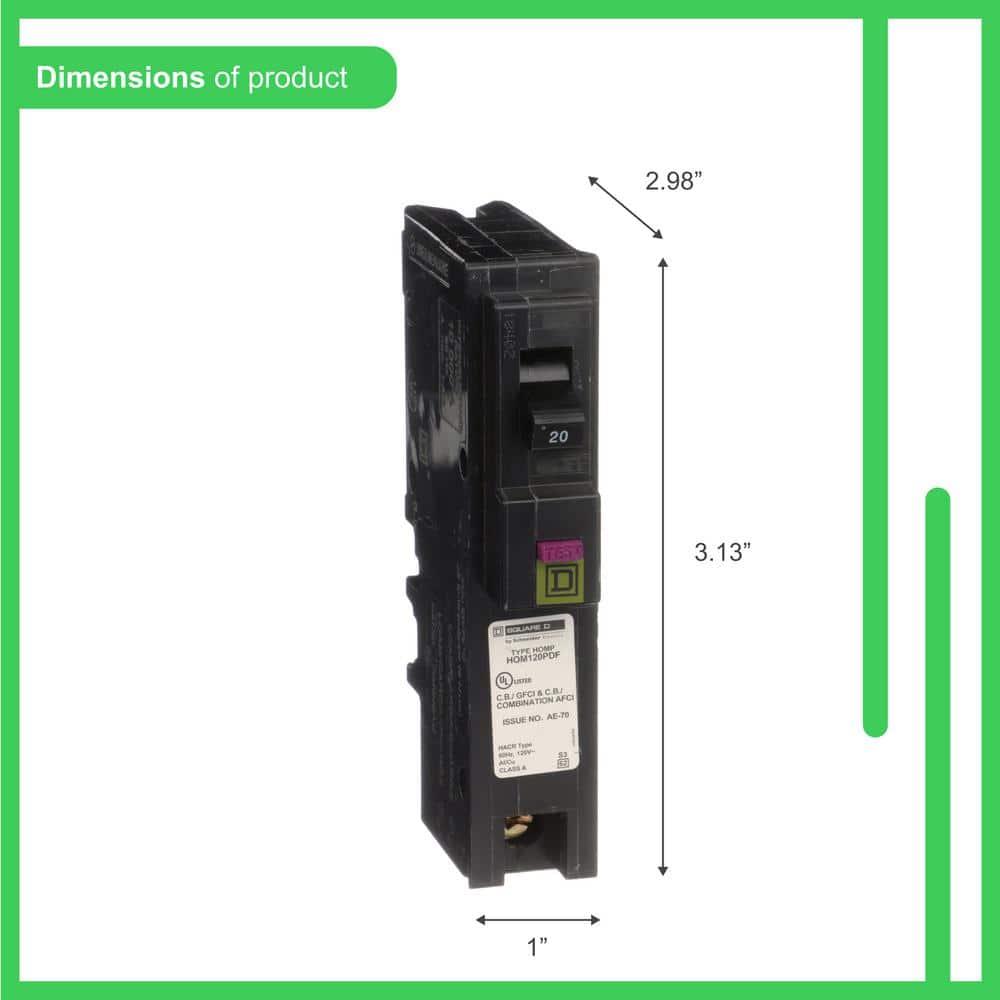

| Dimensions (H x W x D) | 3.13 in x 1 in x 2.98 in |
| Product Weight | 0.28 lb |
| Compatibility | Homeline Plug-On Neutral load centers (Series 4 and newer) |
| Diagnostics | Time Saver Diagnostics feature |
| Warranty | Limited lifetime for the life of the Homeline load center |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with all panels?
A: No. It is only for Square D Homeline Plug-On Neutral load centers (Series 4 and newer).
Q: What voltage does it support?
A: 120/240 V systems; rated 120 VAC operation for single-pole branch circuits.
Q: Does it require a pigtail connection?
A: No. The Plug-On Neutral design connects directly to the neutral bar and eliminates the pigtail.
Q: What is the interrupt rating?
A: 10,000 AIC (AIR).
Q: Is it UL listed and warrantied?
A: Yes, UL Listed with a limited lifetime warranty for the life of the Homeline load center in which it is installed.
Streamlined Safety, Discreetly Elegant
This breaker refines your electrical panel with a sleek, uncluttered profile—no fussy pigtails, just crisp, efficient lines. The standout Plug-On Neutral design keeps the gutter clean and organized, elevating even the hidden details of your home. Pair it with a well-labeled, thoughtfully laid out Homeline panel to keep maintenance effortless and refined. It’s the quiet luxury of safety and order behind the scenes.
Upgrade to dual-function protection and faster installs with this Homeline 20A Plug-On Neutral breaker today.
