Eaton

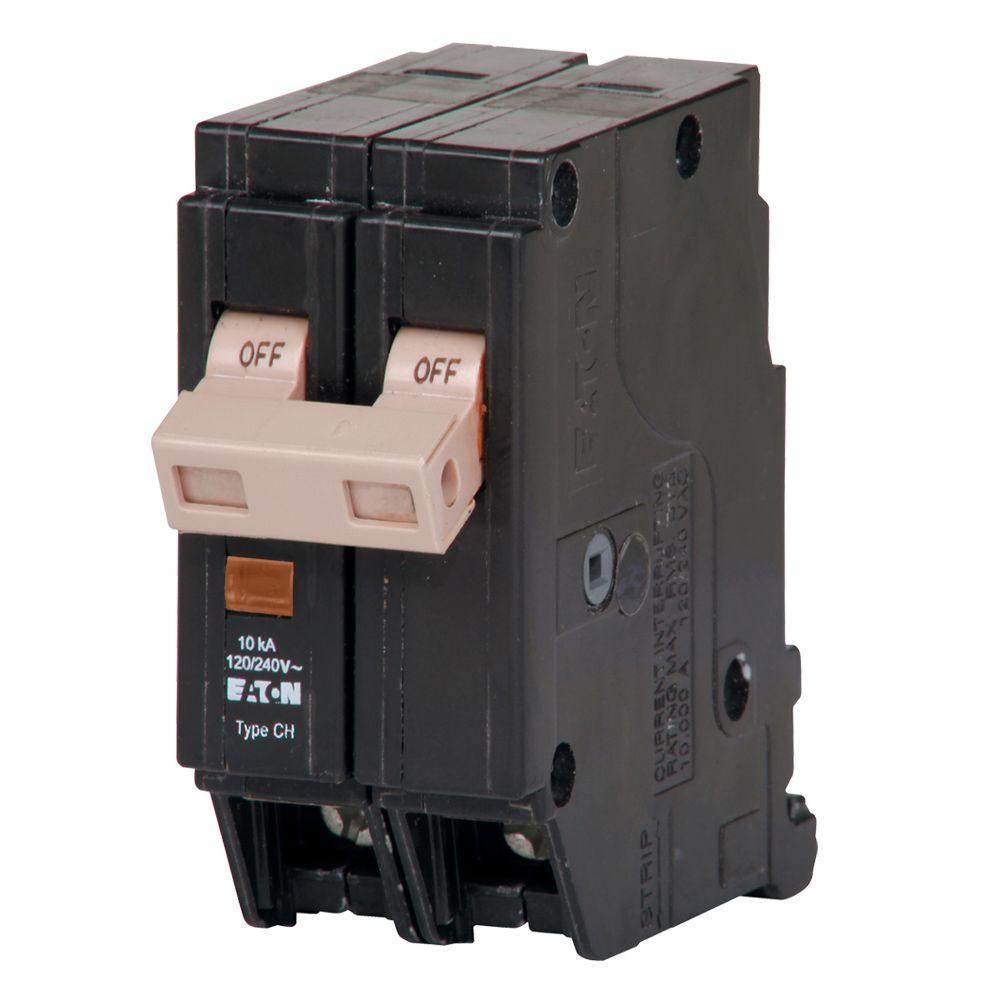

CH 30 Amp 2-Pole Circuit Breaker with Trip Flag
from $14.99
In stock
SKU 204223356
A human specialist prices every line
Questions on spec, quantity, or freight? Call 1.877.490.7099 or write hello@superarbor.com.
Buying more than one thing? Send the list — however you have itFreight and delivery are confirmed with you by a specialist — no surprise charges.
Details
Eaton has enhanced its premium Type CH residential circuit breakers, making the best even better. In addition to the industry exclusive "Trip to OFF" and simple 1-Step Reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand.
Features
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage rating: 30 Amp
- Double pole breaker

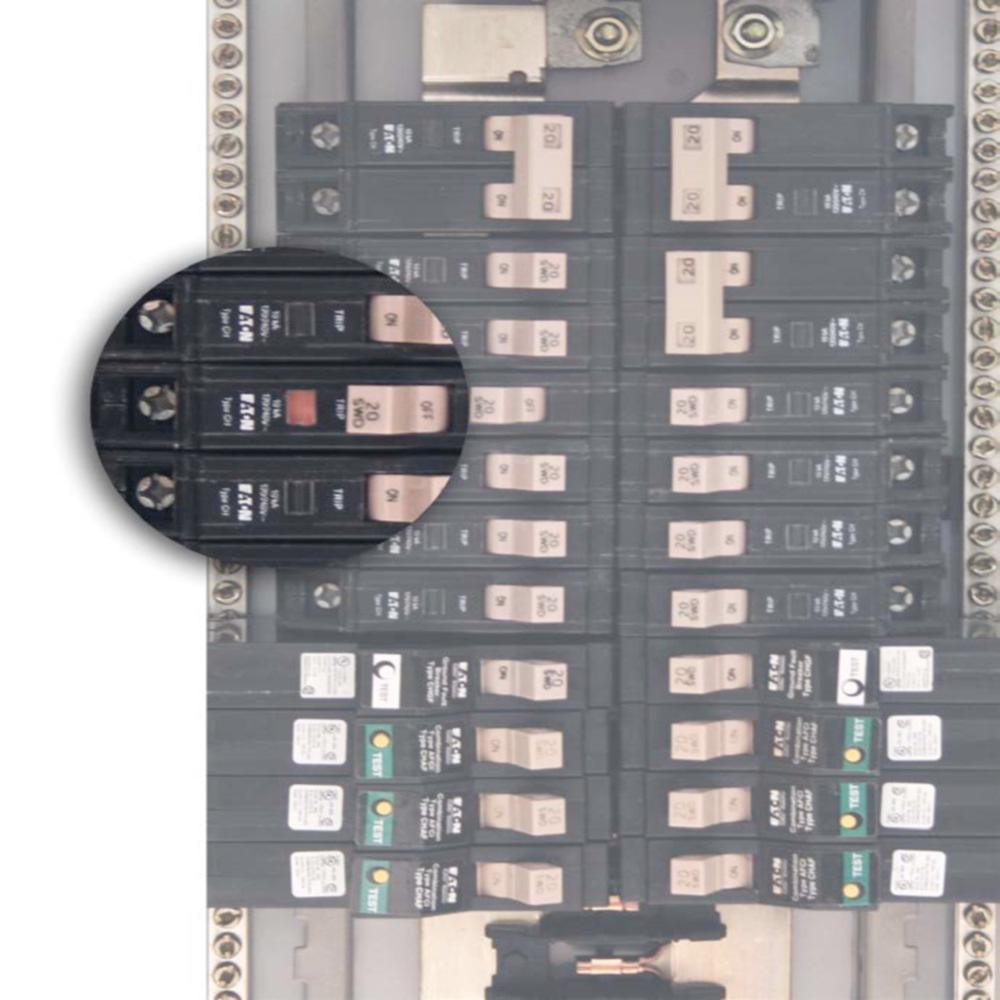

- Flag visually confirms tripped status, making it easy for the homeowner to identify

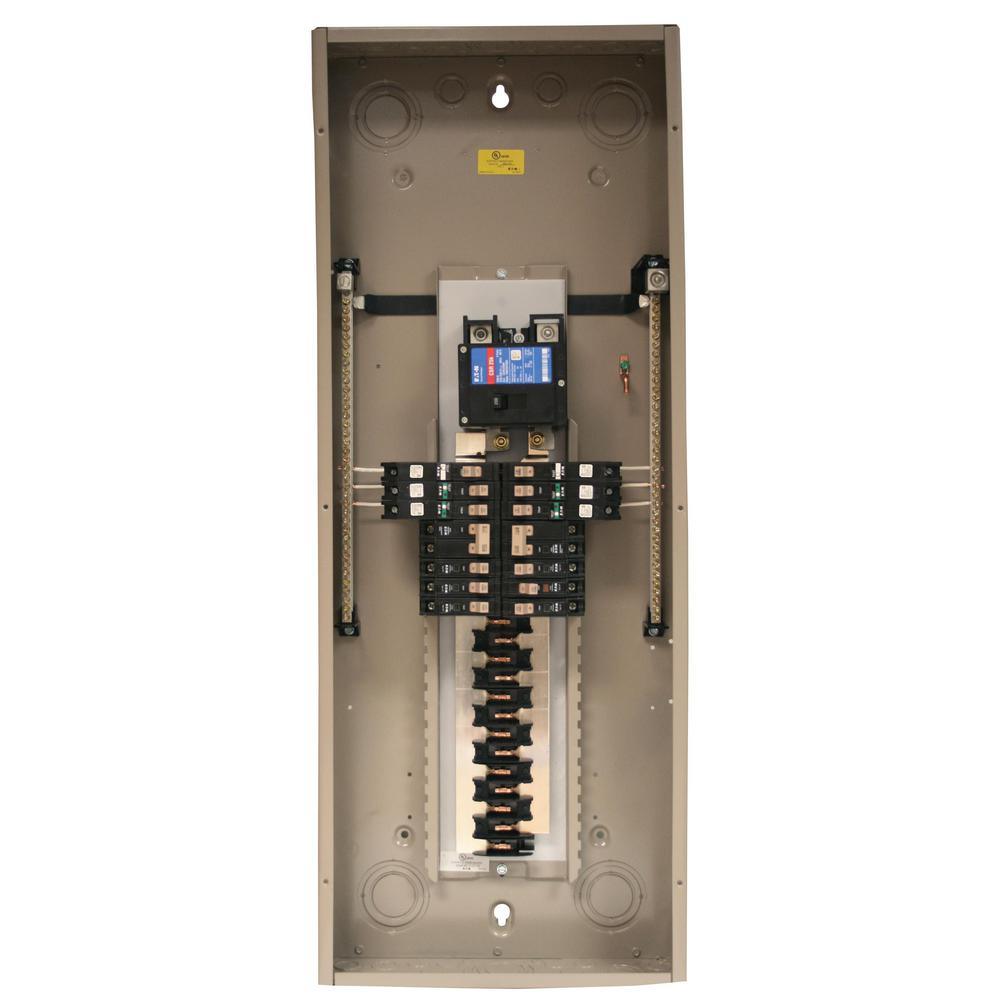

- For use in type CH load centers only
- Interrupt rating - 10 kAIC
- Voltage rating is 120/240-Volt
- (1) #14-8, (2) #14-10 AWG Cu/Al 60°C or 75°C
- HACR rated
Features
| Item Weight | .55 |
| Voltage (volts) | 240 |
| Maximum Amperage (amps) | 30 |
| Number of Poles | 2 |
| Power Distribution Features | Trip Indicator |
| Pack Size | 1 |
| Mounting Type | Plug In |
| Returnable | 180-Day |
| Interruption Type | Standard Trip |
| Breaker Type | Double Pole |
| Product Weight (lb.) | .55 |
| Electrical Product Type | Breaker |
| Product Depth (in.) | 10 in |
| Product Height (in.) | 4 in |
| Product Width (in.) | 1.50 |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | Limited Lifetime Warranty according to the Warranty Policy |
