PowerMark Gold 200 Amp 40-Space 40-Circuit Indoor Main Breaker Value Kit Includes Select Circuit Breaker - Super Arbor

In Stock Hardwarestore Delivery

PowerMark Gold 200 Amp 40-Space 40-Circuit Indoor Main Breaker Value Kit Includes Select Circuit Breaker

$181.28

In stock

SKU 1040181493

A human specialist prices every line

Questions on spec, quantity, or freight? Call 1.877.490.7099 or write hello@superarbor.com.

Buying more than one thing? Send the list — however you have it

Freight and delivery are confirmed with you by a specialist — no surprise charges.

Details

This value kit includes 12 20 Amp Single-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
  • Rust-resistant galvanized steel box
  • Copper buss bar supports high conductivity
  • Factory-installed main breaker, full-length neutral bars and self-adjusting dead-front cover
  • 100% rated split neutral on each side
  • Single phase, 3-wire, 120/240 VAC, 200 Amp and 22K AIC rating
  • All neutral holes are rated for 14-4 wire
  • Accepts standard GFCI, CAFCI and THQL 1 in. circuit breakers
  • Meets UL and ANSI requirements
  • Can be installed as a surface or flush mount
  • For top- or bottom-feed applications

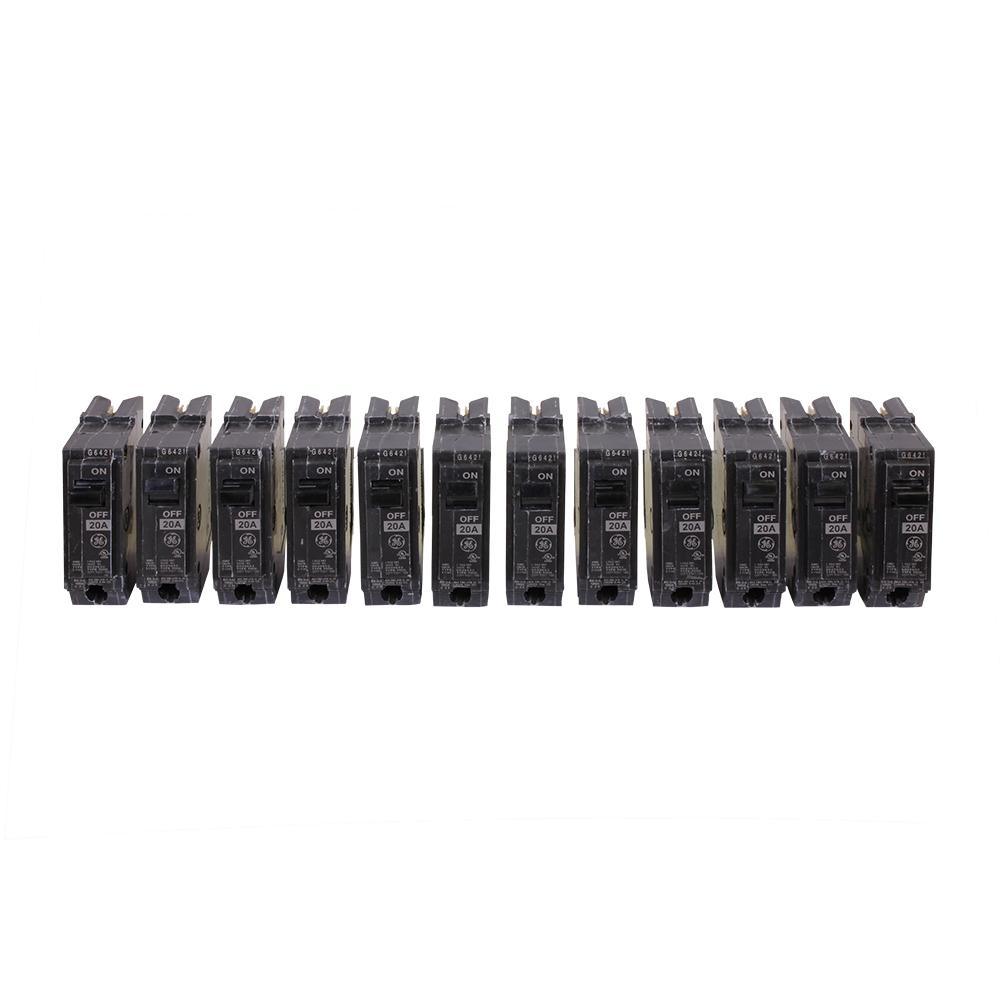

  • Includes 12 THQL1120 single-pole 20 Amp circuit breakers








Features
Item Weight 39.0
Voltage (volts) 240
Load Center Mounting Type Flush,Surface
Electrical Product Type Load Center and Breaker Kit
Load Center Type Main Breaker
Product Weight (lb.) 39
Indoor/Outdoor Indoor
Number of Spaces 40
Returnable 180-Day
Phase Type 1 Phase
Mounting Type Plug-On
Maximum Amperage (amps) 200
Number of Circuits 40

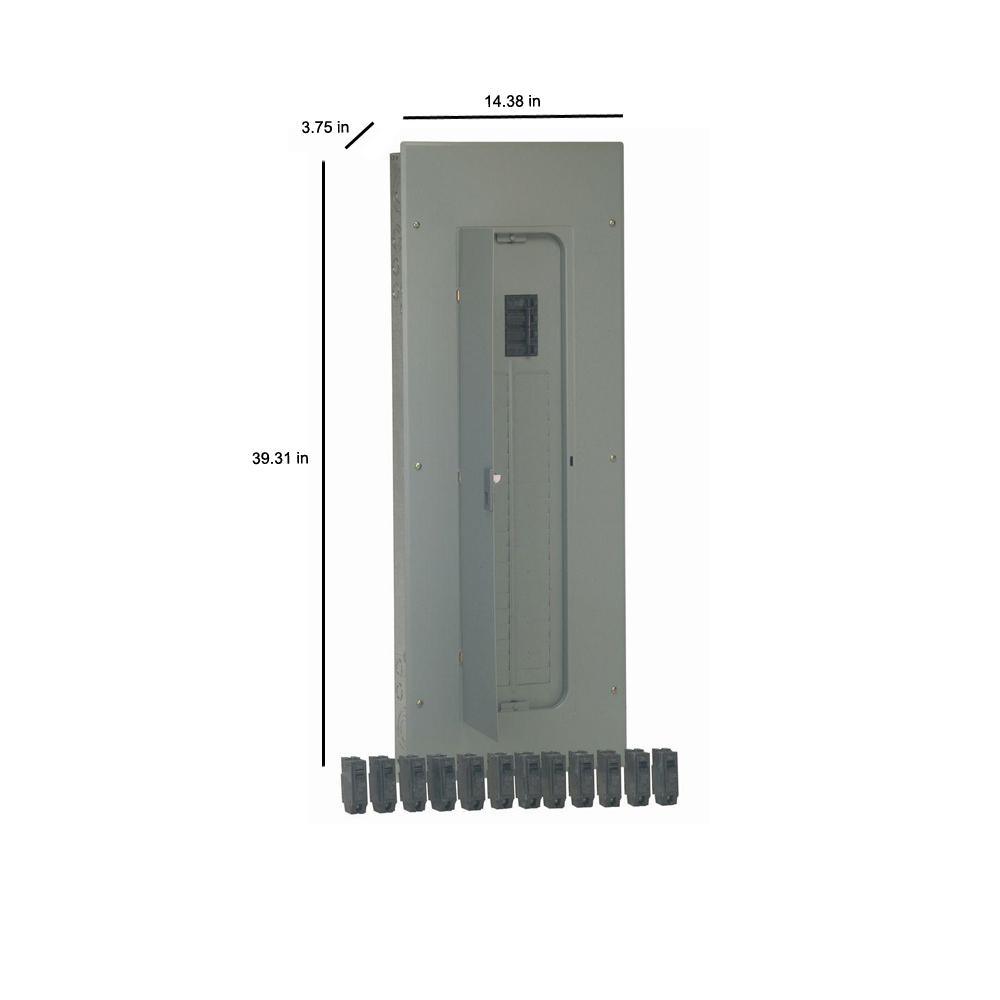

Load center depth (in.) 3.75
Load center height (in.) 39.31
Load center width (in.) 14.38
Certifications and Listings UL Listed
Manufacturer Warranty One year warranty from first use
