18-Gauge 2-In Pneumatic Brad Nailer

Compact, powder-coated brad nailer fires 18-gauge brads from 3/8 to 2 inches. Operates at 60–115 PSI with a 1/4-inch NPT air inlet and features easy depth adjustment, jam-clearing nose latch, and a 106-nail quick-release magazine.

---

Key Features:

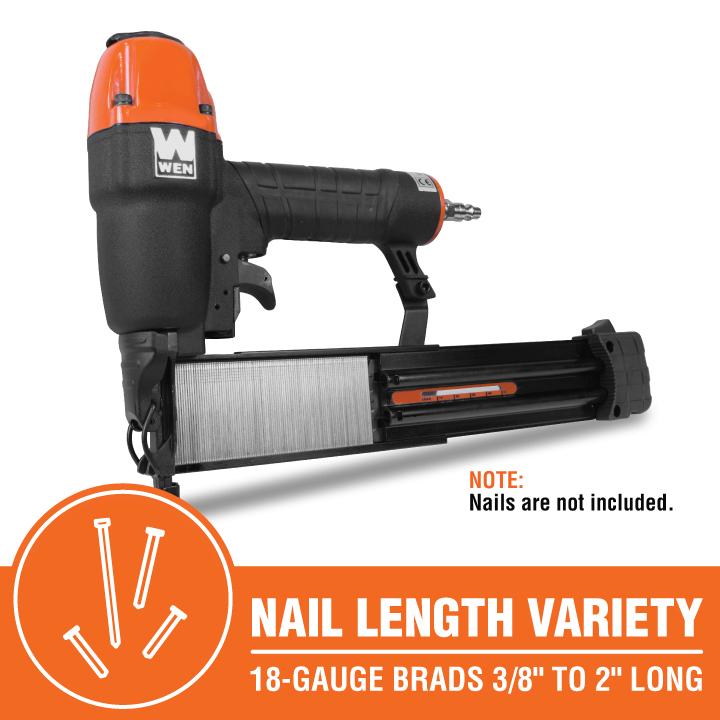

• Wide Nail Range: Shoots 18-gauge brads from 3/8 to 2 inches for trim, molding, and cabinetry
• Adjustable Depth: Tool-free wheel lets you fine-tune drive depth for clean finishes

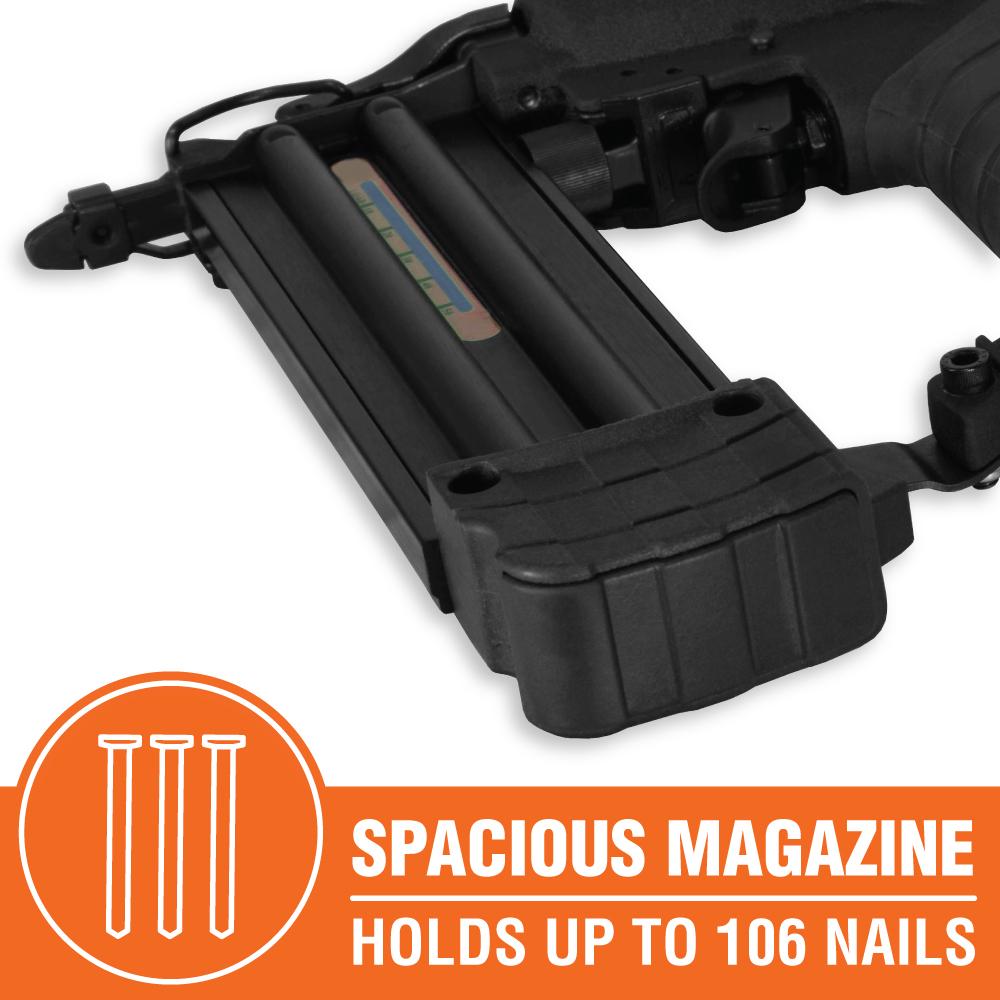

• Quick Reload Magazine: Spring-loaded, 106-nail capacity with gauge window to track supply
• Easy Jam Clearing: Front nose latch speeds maintenance and keeps work flowing
• Durable, Comfortable Build: Powder-coated body with rubber-lined grip reduces fatigue

---

Specifications Table:

Specification	Details
Gauge	18-gauge
Nail Length Range	3/8 to 2 inches
Operating Pressure	60 to 115 PSI

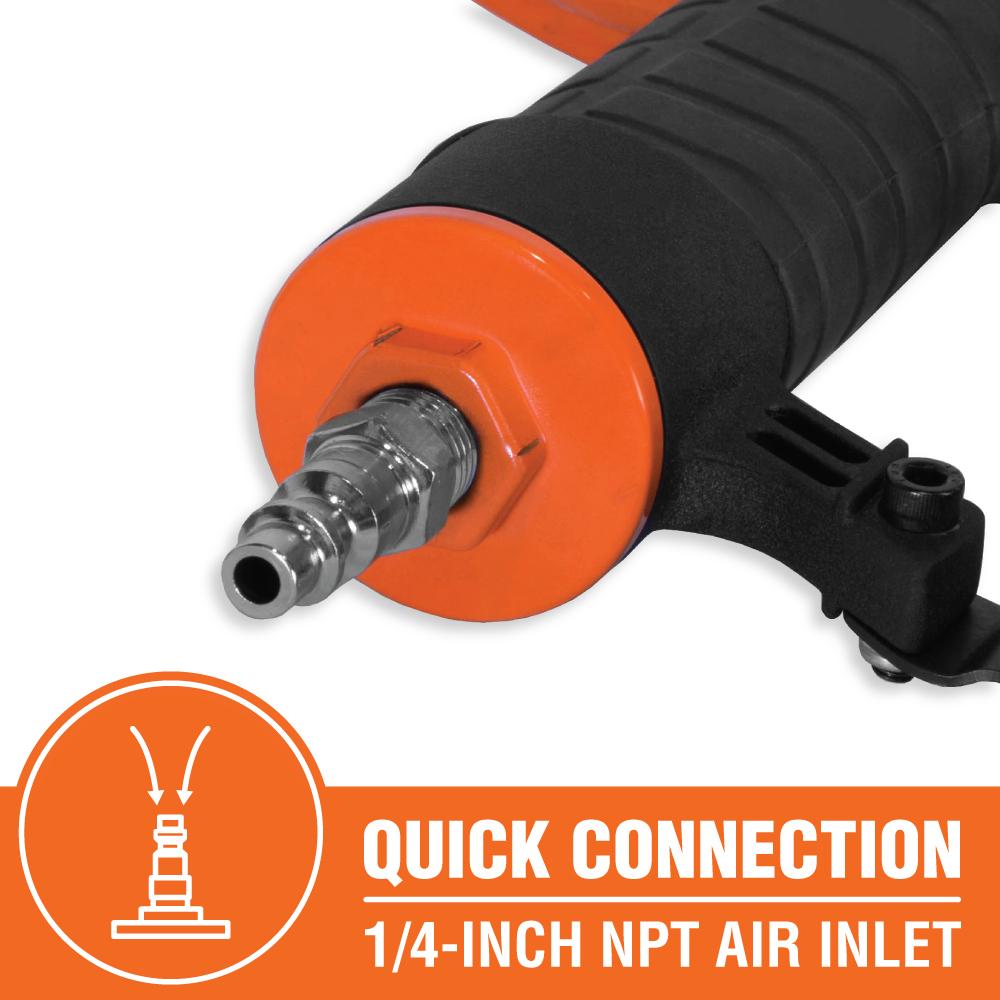

Air Inlet	1/4-inch NPT
Magazine Capacity	106 nails
Air Consumption	0.028 CFM per nail at 88 PSI
Handle	Rubber-lined grip
Body Finish	Powder-coated

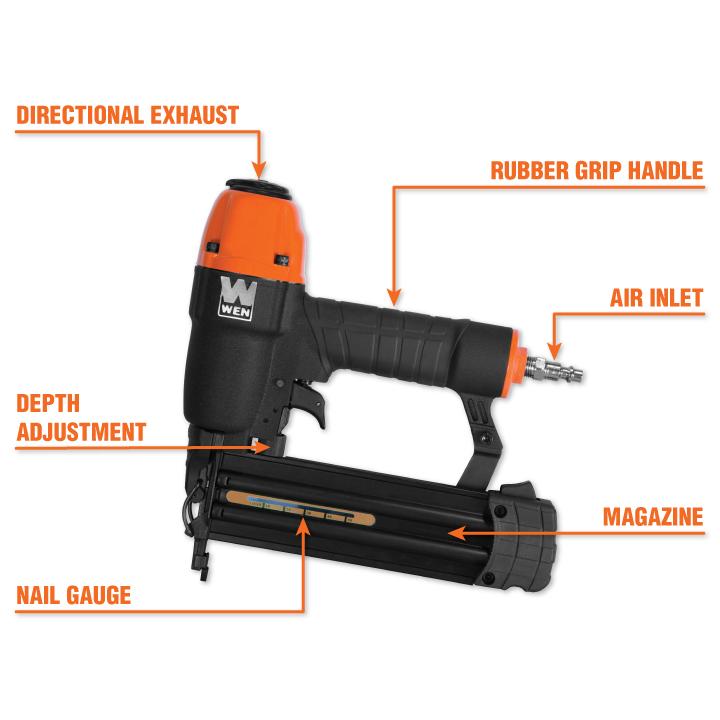

Features	Depth adjustment wheel, nail gauge window, rotatable/directional exhaust, quick-release magazine, nose latch for jam clearing
Weight	4.4 lb
Warranty	Two-year warranty

---

Frequently Asked Questions (FAQ):

Q: What air compressor do I need?
A: Any compressor that can supply 60–115 PSI with a 1/4-inch NPT connection; air use is about 0.028 CFM per nail at 88 PSI.

---

Q: What nail sizes does this accept?
A: 18-gauge brad nails from 3/8 inch up to 2 inches in length.

---

Q: Are nails or a case included?

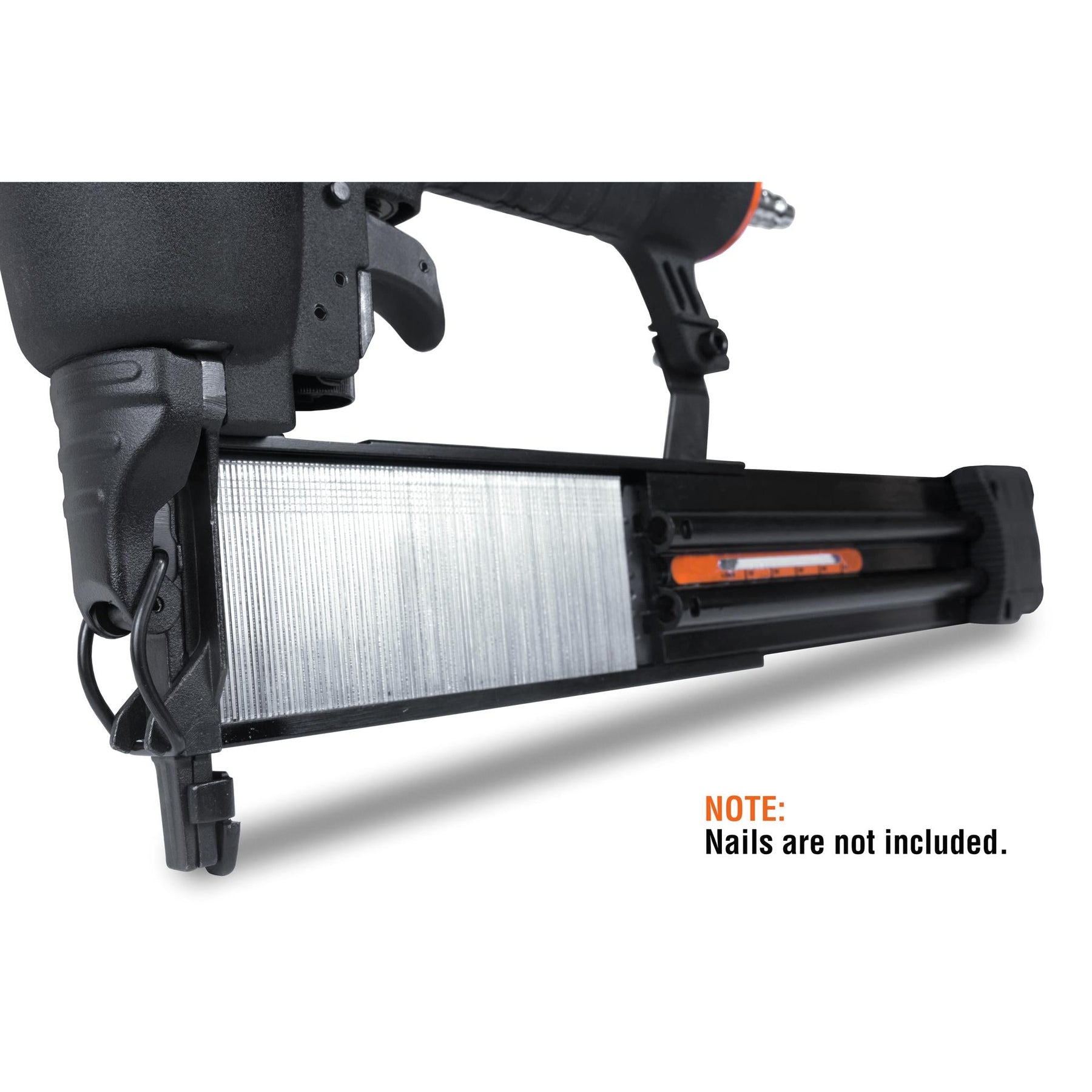

A: No—nails and case are not included.

---

Q: How do I adjust drive depth?
A: Turn the onboard depth adjustment wheel to set how far the brad is driven into the material.

---

Q: What is the warranty?
A: Backed by a two-year WEN warranty.

---

Streamlined Precision for Polished Trim

This nailer brings crisp, tailored detailing to millwork and cabinetry with effortless control. I love the sleek, powder-coated body and the intuitive depth wheel that ensures perfectly flush brads. Style it with warm wood trims and painted moldings to create layered, couture-grade finishes. It’s a small luxury that elevates everyday projects into refined living.

---

Add the WEN 61721 brad nailer to your toolkit for fast, clean trim work with adjustable precision.
