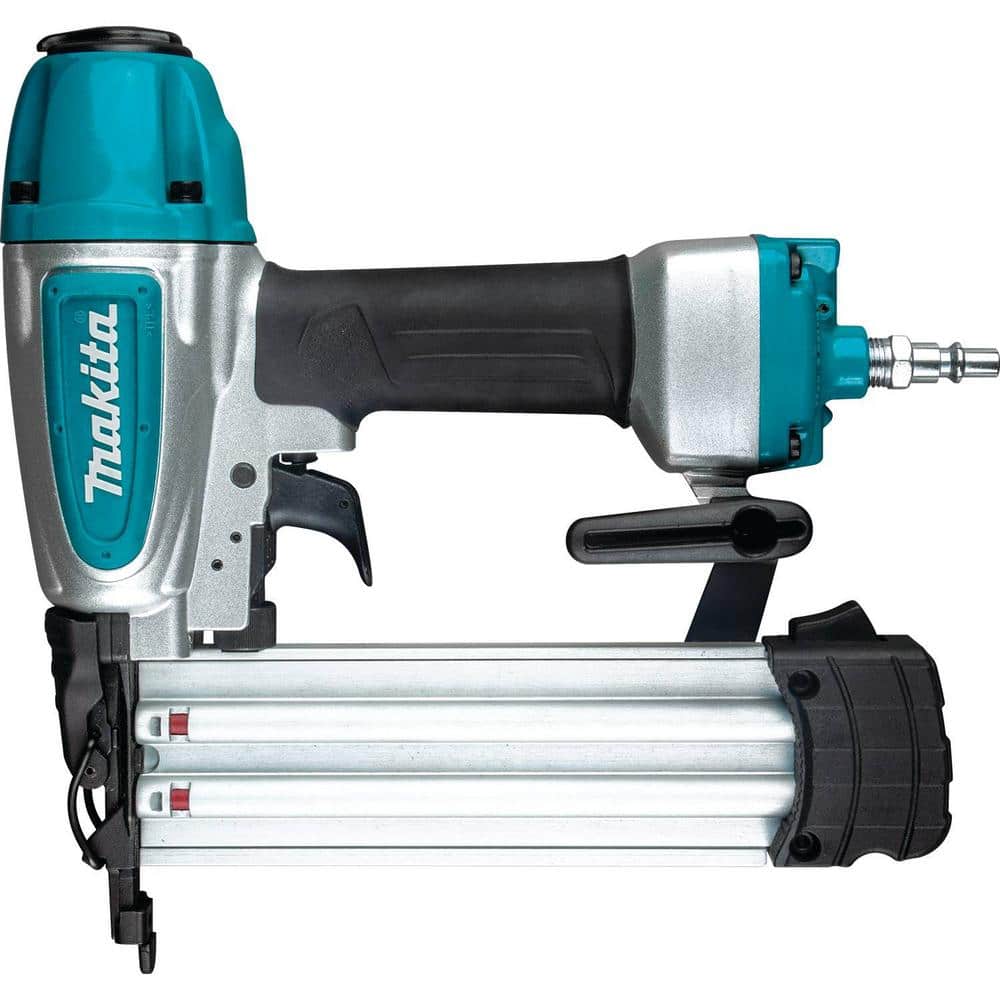

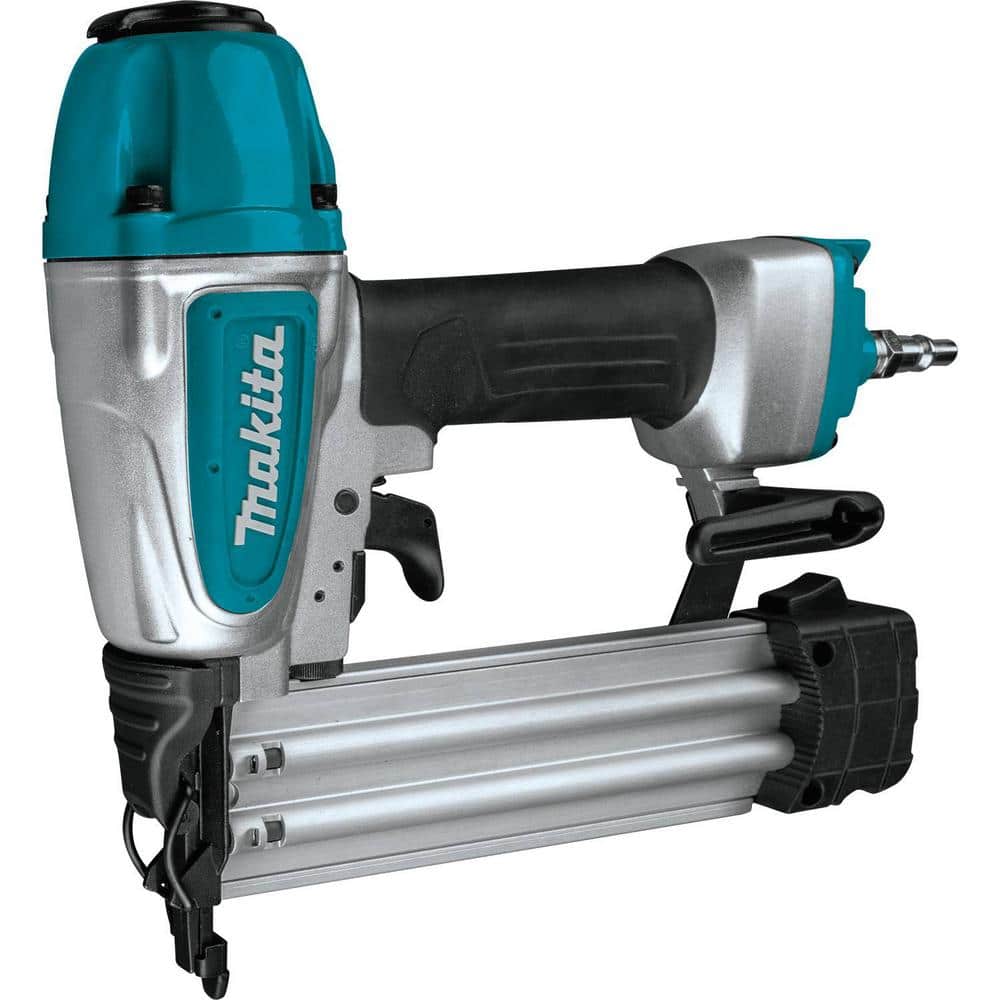

Pneumatic 18-Gauge 2 in. Brad Nailer

Compact and durable, the Makita AF506 drives 18-gauge brad nails from 5/8 in. to 2 in. for precise finish work. Its aluminum body and narrow nose enhance access in tight spaces, with tool-less depth adjustment and easy jam clearing for smooth operation.

---

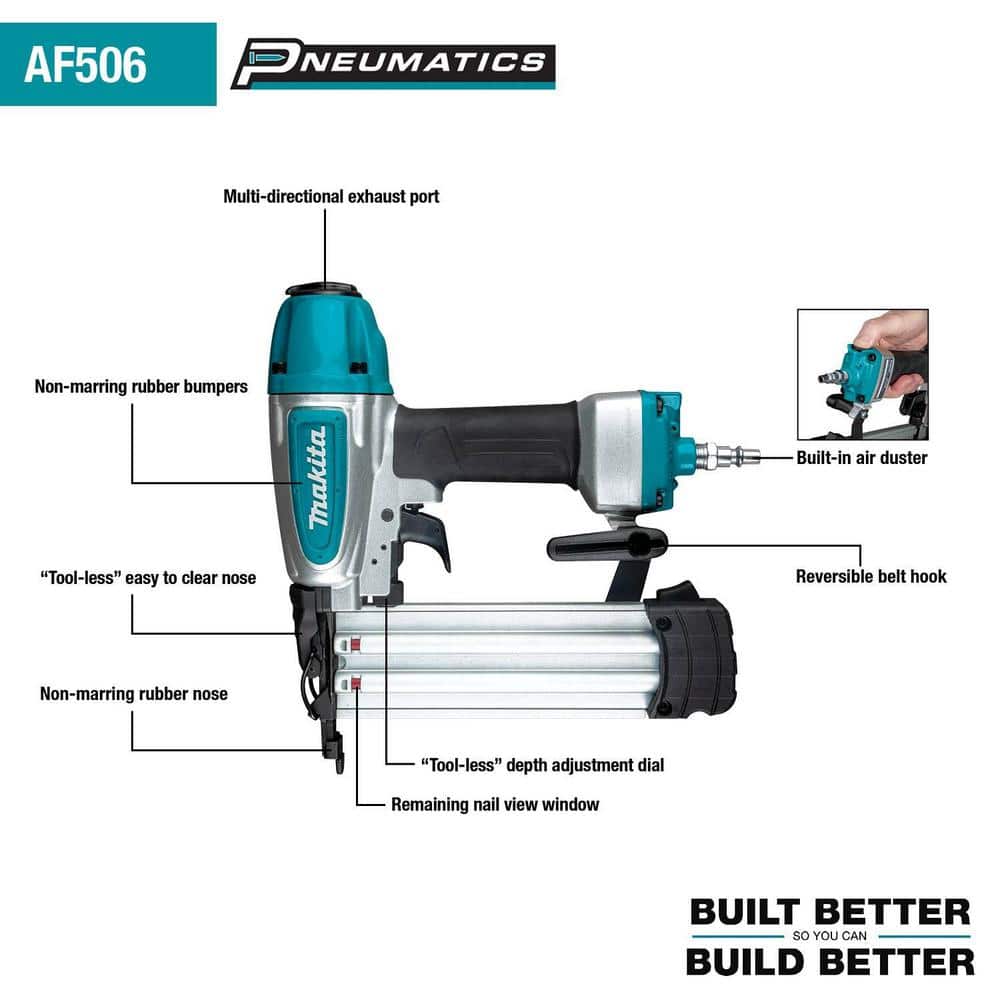

Key Features:

• Precision Finish Nailing: Drives 18-gauge brads from 5/8 in. to 2 in. with a cast and machined nose for accurate placement
• Durable, Lightweight Build: Aluminum body, magazine, and cylinder weigh only 2.9 lb for reduced fatigue
• Fast Adjustments: Tool-less depth dial and easy-to-clear nose minimize downtime between tasks
• Clean, Controlled Operation: 360° multi-directional exhaust and built-in air duster keep the work surface clear

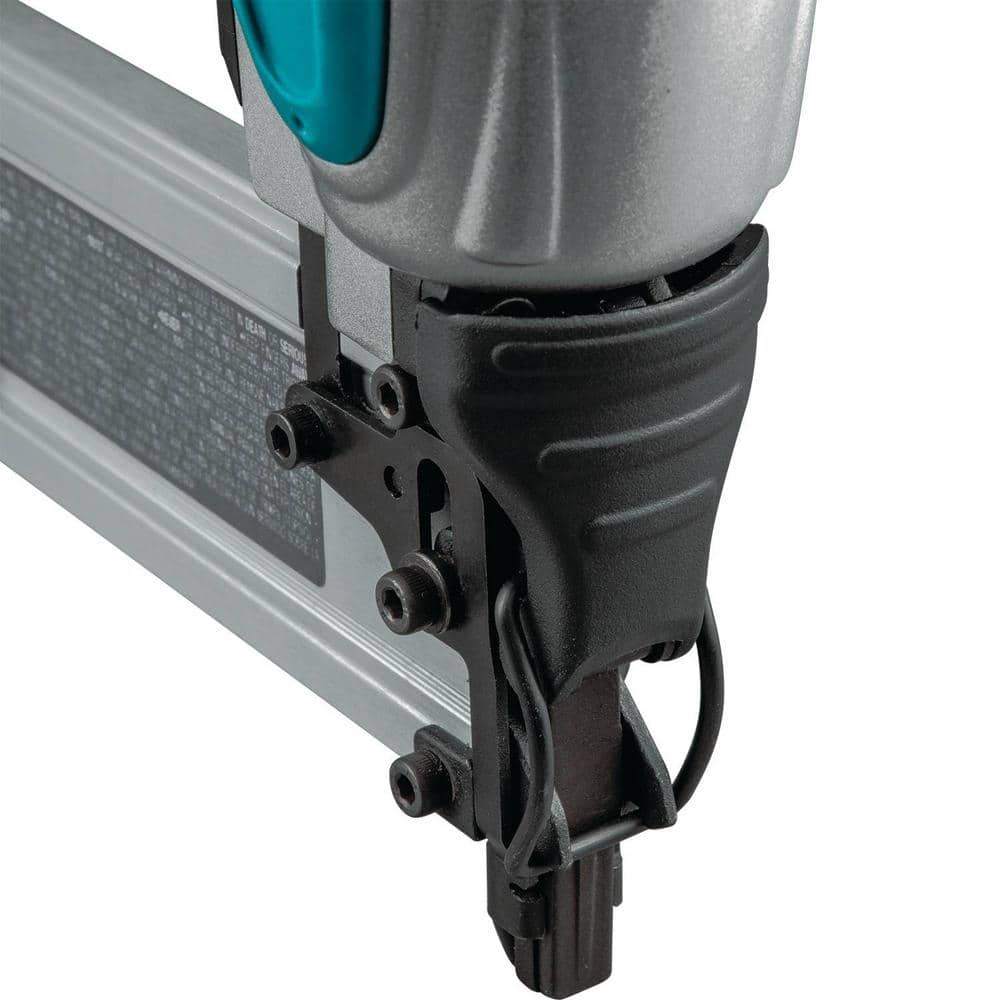

• Surface Protection: Non-marring rubber nose and bumpers prevent scratches on finished materials

---

Specifications Table:

Specification	Details
Power Type	Pneumatic
Air Pressure Operating Range	70–120 PSI
Minimum Air Delivery	1.5 SCFM at 90 PSI
Nail Gauge	18 gauge
Minimum Fastener Size	5/8 in.
Maximum Fastener Size	2 in.
Magazine Capacity	100
Loading Type	Strip
Nail Angle	Straight
Firing Mode	Contact
Depth Adjustment	Tool-less dial
Jam Clearing	Tool-less easy-to-clear nose
Exhaust	360° multi-directional

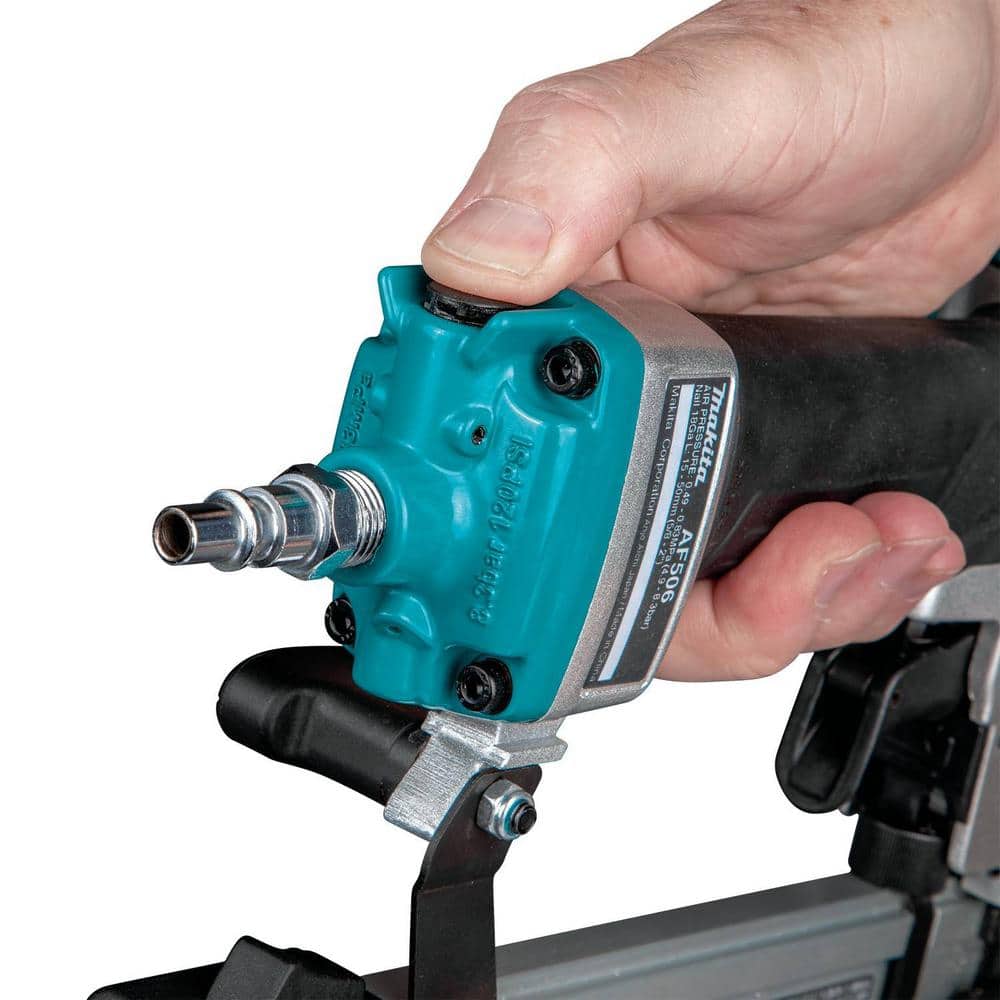

Built-in Feature	Air duster
Nose/Surface Protection	Non-marring rubber nose and bumpers
Body/Materials	Aluminum body, magazine, and cylinder
Weight	2.9 lb
Dimensions (D x H x W)	2.76 in x 10.08 in x 9.84 in
Grip	Integrated rubber soft grip
Belt Hook	Reversible
Reload Indicator	Dual nail reload indicator window
Included	Tool case
Tools Product Type	Air Tool

---

Frequently Asked Questions (FAQ):

Q: What air pressure is required?
A: The AF506 operates from 70 to 120 PSI; Makita recommends a minimum air delivery of 1.5 SCFM at 90 PSI.

---

Q: What size nails does it use?
A: 18-gauge brad nails from 5/8 in. to 2 in., loaded in a straight strip magazine (up to 100 nails).

---

Q: Does it have depth adjustment?
A: Yes, a tool-less depth adjustment dial lets you set nail depth for different materials.

---

Q: How do I clear jams?
A: The tool-less easy-to-clear nose allows quick extraction of jammed nails without additional tools.

---

Q: Is there a case included?
A: Yes, it includes a tool case.

---

Sleek Precision for Flawless Finishes

This brad nailer is a study in streamlined performance, delivering whisper-clean fastening that preserves the integrity of fine trims and moldings. I love the ultra-narrow nose and non-marring tip—details that keep surfaces pristine while you work in tight architectural corners. Style it with a compact compressor and a neatly coiled hose for a refined workshop vignette that means business. For polished, luxurious interiors, this tool is an indispensable ally.

---

Bring home the Makita AF506 and achieve fast, flawless fastening on your next trim or cabinetry project.
