Blum LEGRABOX BLUMOTION Soft-Close Drawer Box Kit, 11-26 in. Lengths, Full Extension, up to 170 lb, Multiple Heights and Finishes

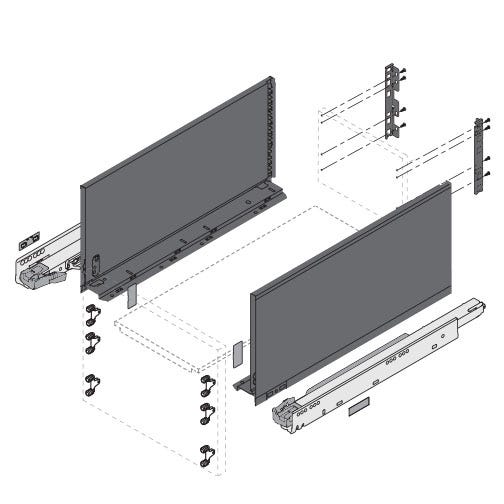

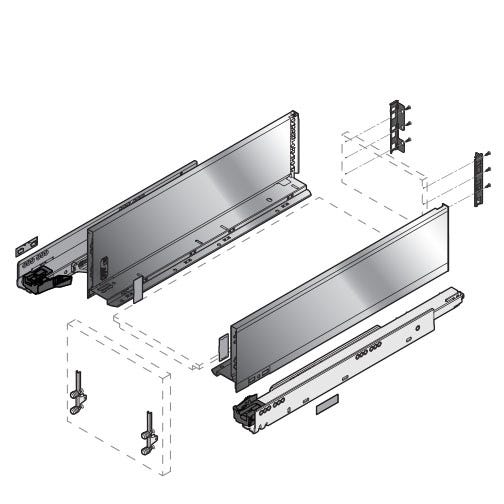

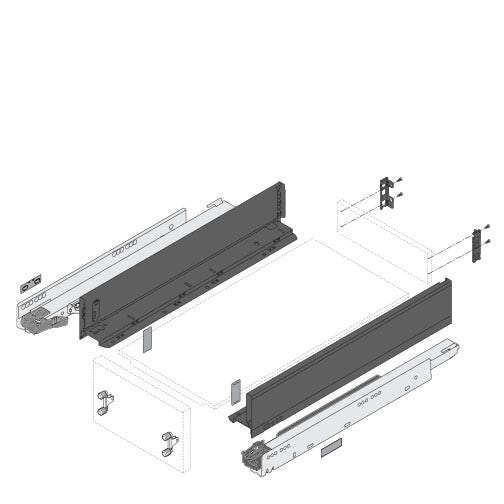

The Blum LEGRABOX BLUMOTION kit is a complete undermount drawer box system with slim 1/2 in. sides, full extension runners and integrated soft-close damping. Kits are offered in 125 lb and 170 lb static load ratings, five side heights, lengths from 11 to 26 in., and Orion Gray, Silk White or Brushed Stainless Steel finishes. Choose the kit that matches your drawer length, side height and load requirement.
Key Features:
-
Slim sides: LEGRABOX drawer sides are just 1/2 in. thick, maximizing usable storage space inside the drawer.
-
Soft-close damping: Every kit includes the integrated BLUMOTION soft-close feature for silent, controlled closing.
-
Full extension: Runners extend fully, giving complete access to the drawer contents.
-
Two load ratings: Available with 125 lb (770 series) or 170 lb (773 series) static carrying capacity.
-
Five side heights: Offered in N (2-5/8 in.), M (3-9/16 in.), K (5-1/16 in.), C (7 in.) and F (9-1/2 in.) heights.
-
Smooth running: The cabinet profile adds stability along the runner so even wide, fully loaded drawers open easily with minimal sag.
-
Stable front fixing: A new front fixing bracket design guarantees maximum stability when opening and closing drawers.
Specifications Table:
| Specification |
Details |
| Brand |
Blum |
| Sell unit |
1 kit (one drawer set) |
| Series |
LEGRABOX |
| Available lengths |
11", 14", 16", 18", 20", 22", 24", 26" |
| Available heights |
N Height (2-5/8"), M Height (3-9/16"), K Height (5-1/16"), C Height (7"), F Height (9-1/2") |
| Extension |
Full extension |
| Load rating |
125 lb (770 series) or 170 lb (773 series) static carrying capacity |
| Closing |
Soft Close (BLUMOTION) |
| Available finishes |
Orion Gray, Silk White, Brushed Stainless Steel |
| Mounting |
Undermount |
| Side thickness |
1/2 in. drawer sides |
| Packaging |
Per-pair drawer kits; item configurations list each length, height, load rating and finish |
| Intended use |
Cabinet and furniture drawer box system |
Fit and Compatibility:
Blum LEGRABOX kits pair with LEGRABOX front fixing brackets, cross rails, front pieces, inner pull-out and interior roll-out hardware sold separately. The 770 series items are rated 125 lb and 773 series items 170 lb, so match drawer depth to the runner length you select.
Frequently Asked Questions (FAQ):
Q: What is included in one BLUMOTION kit?
A: Each kit is one complete LEGRABOX drawer set with soft-close undermount runners for one drawer; sold as a pair of runners with the drawer box components. Check the specific configuration for exact contents.
Q: Which drawer height should I choose?
A: Side heights range from N (2-5/8 in.) for slim drawers up to F (9-1/2 in.) for tall pot and pan drawers; pick the height that suits your front style and interior clearance.
Q: How do I pick the right length?
A: Choose the runner length that is equal to or slightly shorter than your cabinet interior depth; lengths are available from 11 to 26 in.
Q: What is the weight capacity?
A: The 770 series is rated for 125 lb static load and the 773 series for 170 lb, as printed by Blum.
Q: What finishes are available?
A: Orion Gray, Silk White and Brushed Stainless Steel, depending on the height and load configuration.
Q: Is the closing feature adjustable?
A: Each kit includes the BLUMOTION soft-close mechanism integrated into the runner for a controlled, quiet close.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Match the runner length to the cabinet interior depth rather than the drawer front width, and confirm your cabinet opening fits the 1/2 in. side thickness of LEGRABOX. For heavily loaded file or pot drawers, step up to the 773 series 170 lb rating; standard kitchen drawers are well served by the 125 lb series. Tall F and C height sides are ideal for deep storage, while N and M heights keep low-profile fronts clean.
Support the drawer fully when extending to install contents and verify runners are locked before loading heavy items.
Order your Blum LEGRABOX BLUMOTION soft-close drawer kit today.
