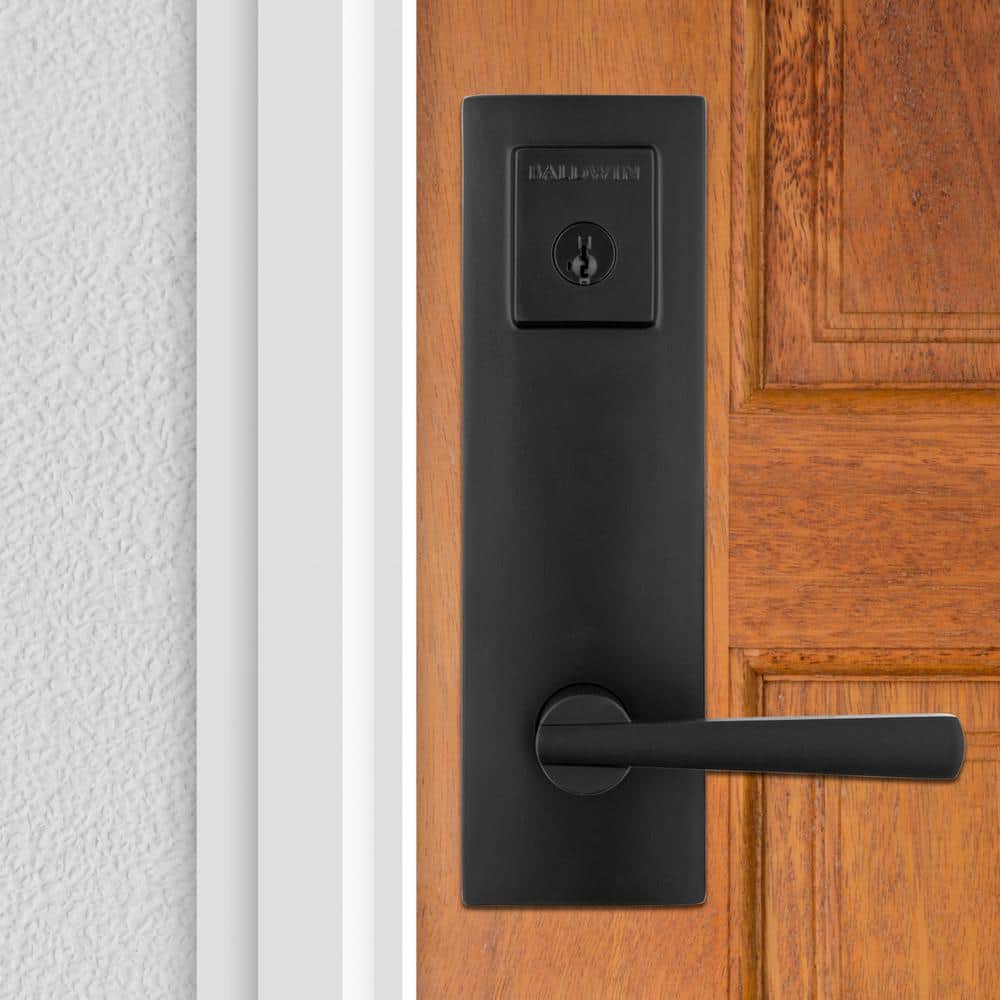

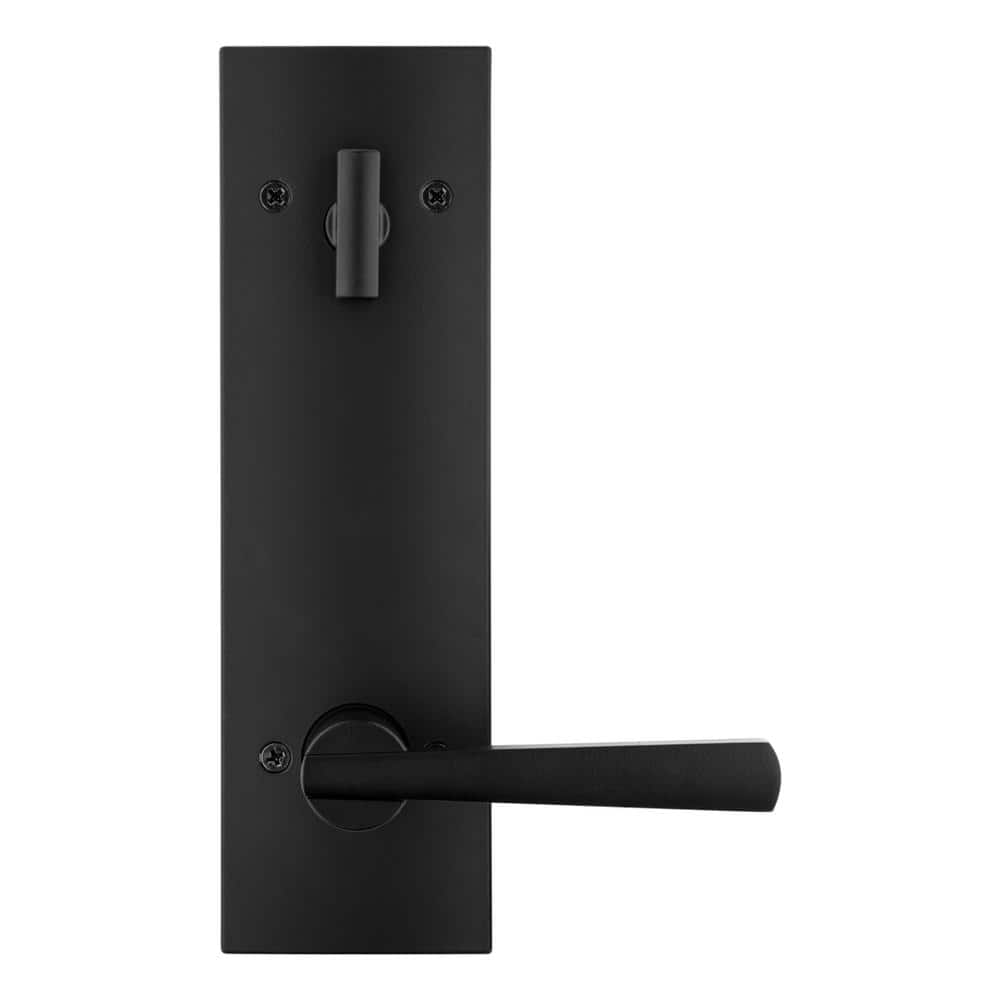

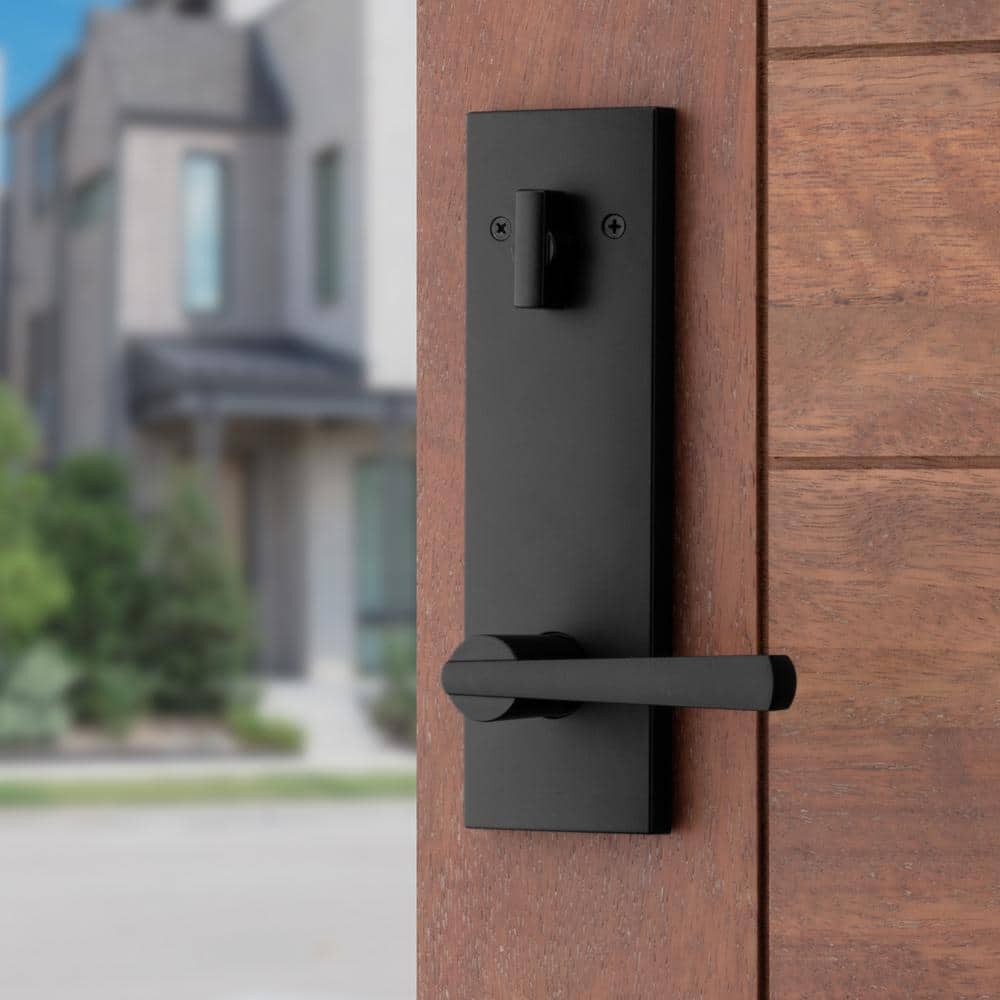

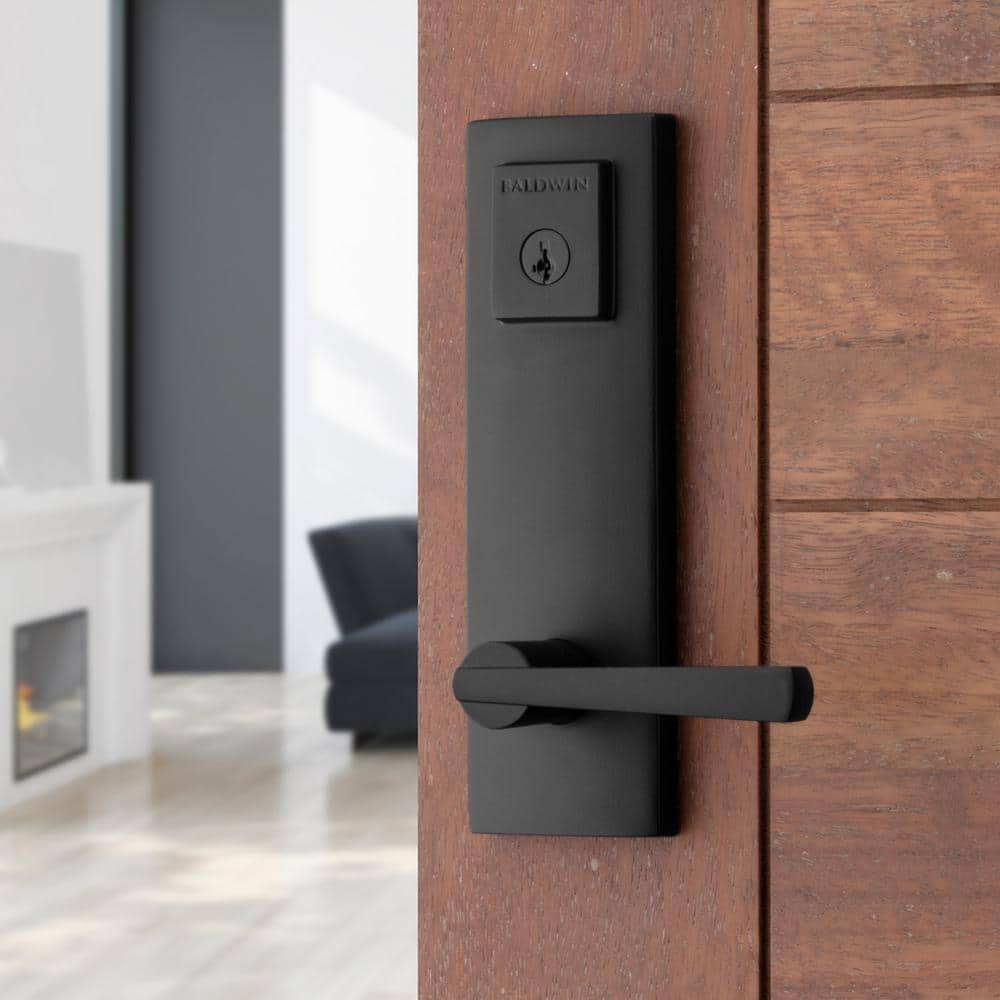

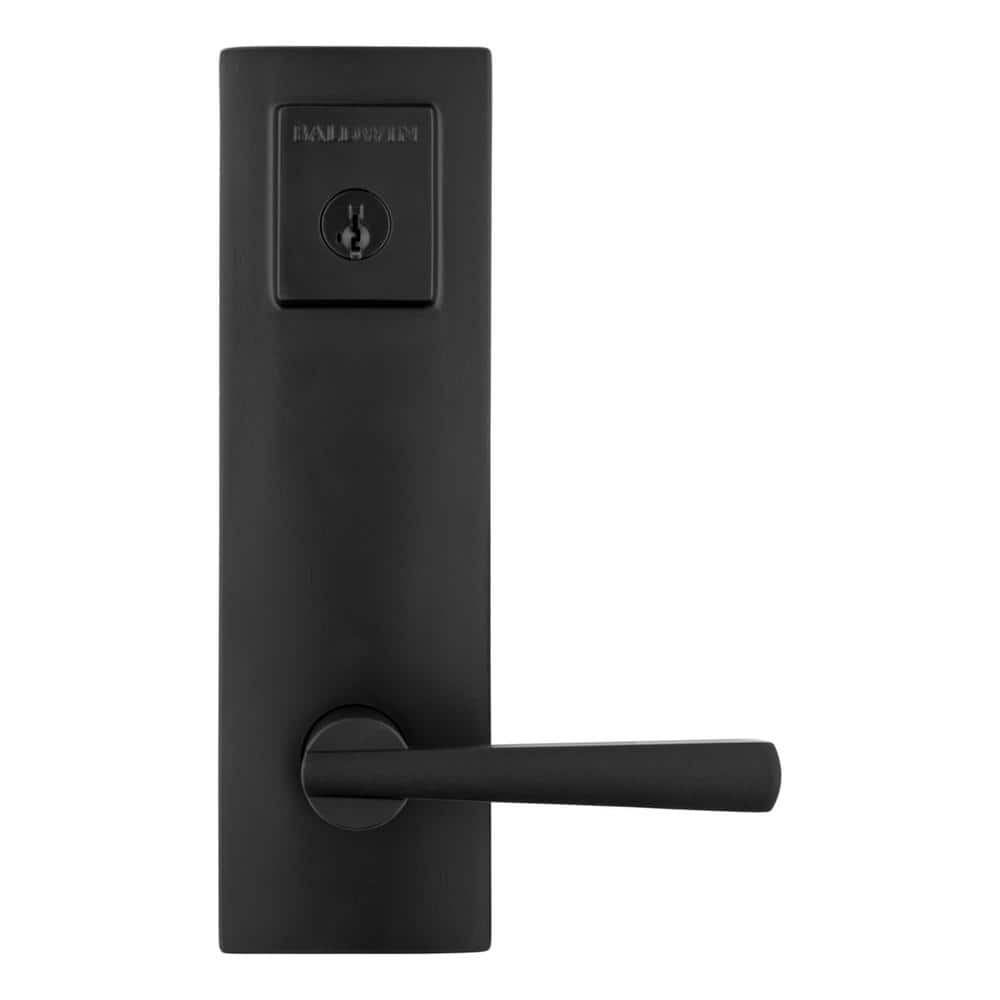

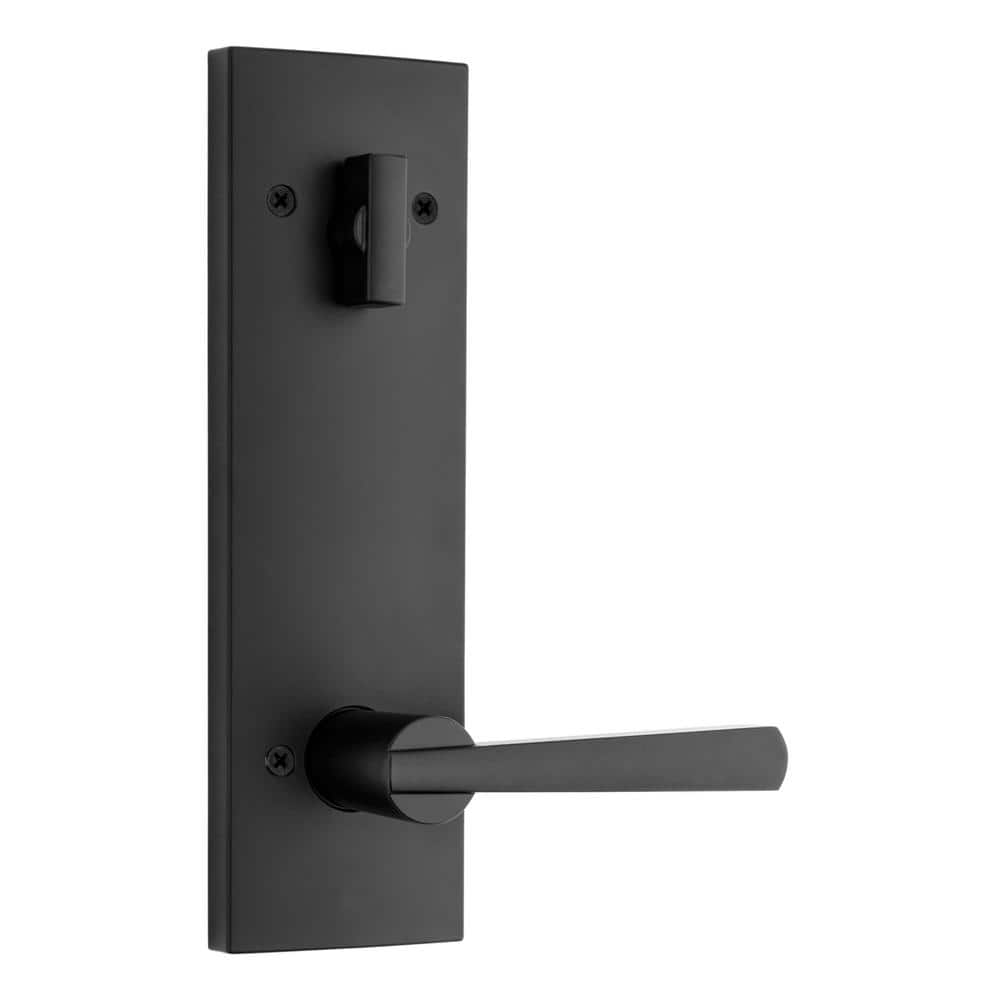

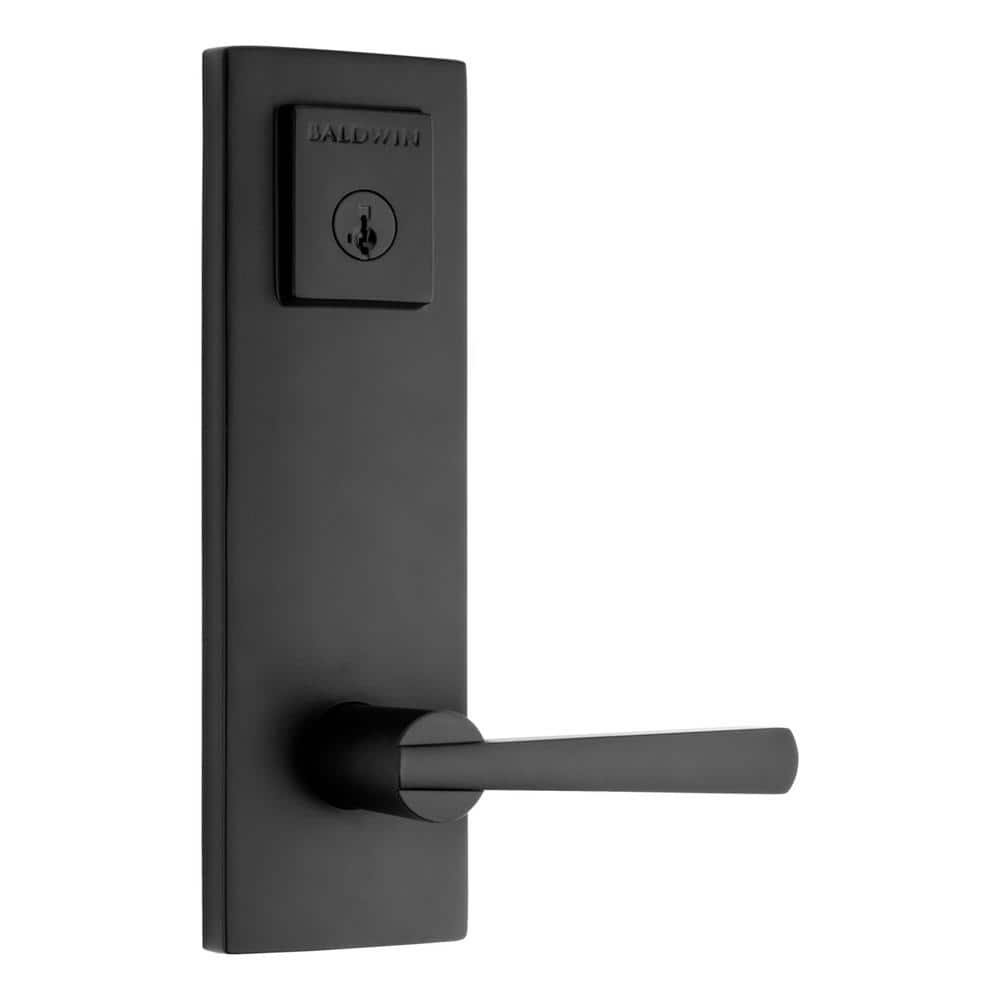

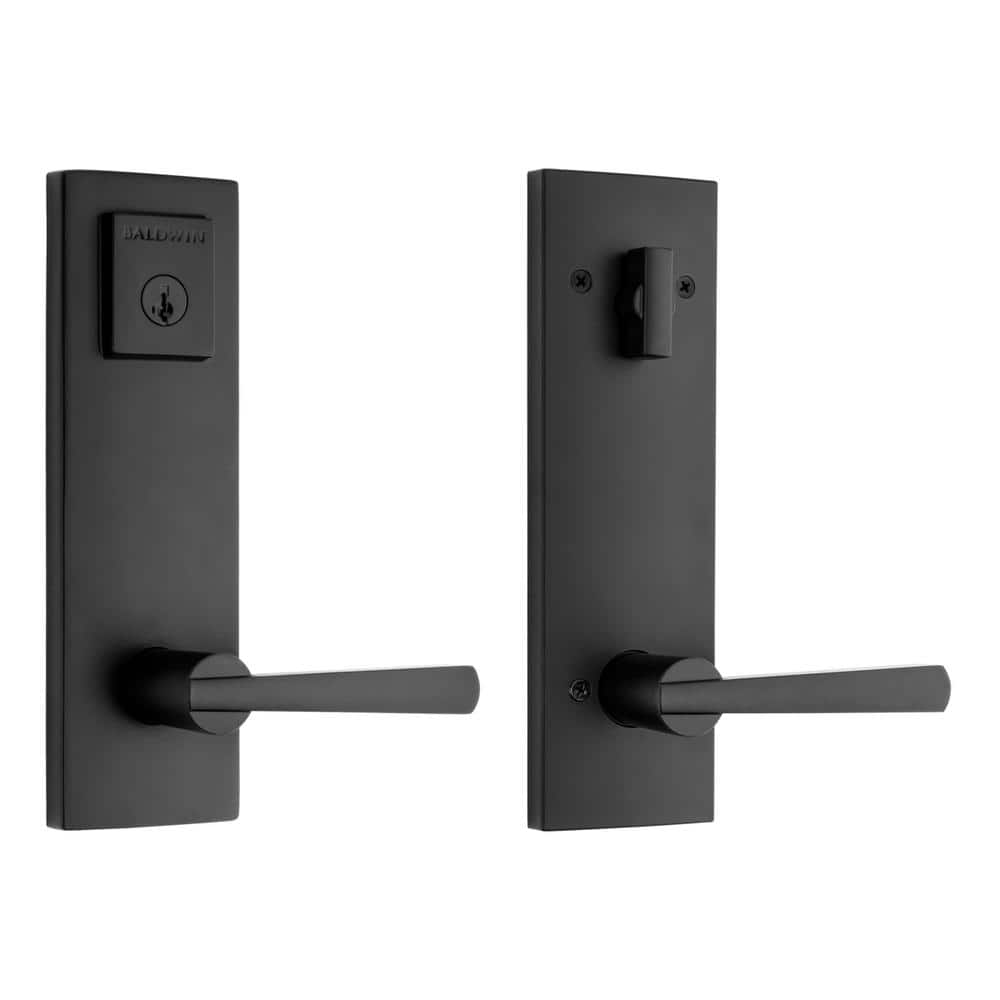

Prestige Spyglass Matte Black Entry Handleset with SmartKey

Contemporary Baldwin Prestige Spyglass entry handleset delivers secure, stylish access in a durable matte black finish. Features SmartKey Security for quick re-keying and adjustable backset to fit standard doors, with a single-cylinder deadbolt and straight lever for modern curb appeal.

---

Key Features:

• SmartKey Security: Re-key the lock yourself in seconds; compatible with KW1 keyway
• Modern Design: Sleek rectangular backplate with straight lever in matte black finish
• Universal Fit: Adjustable 2-3/8 to 2-3/4 in. backset; fits 1-3/8 to 1-3/4 in. thick doors
• Durable Construction: Metal build with ANSI/BHMA security rating and lifetime mechanical/finish warranty
• Complete Set: Single-cylinder deadbolt, hardware, installation instructions, and two keys included

---

Specifications Table:

Specification	Details
Finish	Matte Black
Hardware Color Family	Black
Backplate Shape	Rectangle Backplate
Door Lock Style	Modern
Commercial/Residential	Residential
Deadbolt Type	Single Cylinder Deadbolt
Deadbolt strike	Round corner
Door Handing	Universal
Door Type	Keyed Entry
Electronic/Mechanical	Mechanical
Features	Adjustable Backset; Easy Installation; Kwikset SmartKey
Handleset Product Type	1 Piece Front & Back
Included	Hardware; Installation Instructions; Two keys
Keying Type	Keyed Different
Keyway	KW1
Knob/lever strike	Round corner
Lever style	Straight
Lock Type	Keyed
Material	Metal
Product Weight	7.56 lb
Security/ANSI Grade	ANSI Grade 3 (Good)
Total Number of Keys Included	2
Manufacturer Warranty	Lifetime Mechanical and Finish
Assembled Depth	2.52 in
Assembled Height	9.2 in
Assembled Width	2.78 in
Backset Size	Adjustable (2-3/8 in. to 2-3/4 in.)
Deadbolt Bore Hole Diameter	1 in
Deadbolt Cross Bore Diameter	2.125 in
Deadbolt Strike Height	2.25 in
Deadbolt Strike Width	1 in
Deadbolt Throw Length	1 in
Deadbolt Trim Ring Diameter	2.78 in
Handle grip length	4.25 in
Inside plate length	9.201 in
Inside plate width	2.781 in
Knob/lever bore hole diameter	1 in
Knob/lever cross bore diameter	2.125 in
Knob/lever housing height	2.625 in
Knob/lever housing width	2.625 in
Knob/lever strike height	2.25 in
Knob/lever strike width	1.75 in
Knob/lever throw length	.5 in
Lever Grip Length	4.25 in
Maximum Door Thickness	1.75 in
Minimum Door Thickness	1.375 in
Outside handle and key plate length	9.201 in
Outside handle and key plate width	2.781 in
Outside handle plate on-center measurement	5.5 in
Projection	2.519 in
Descriptive Features	Includes both deadbolt and full lip round strikes; locking mechanism functions with interior turn piece; accommodates 5-1/2 in. center-to-center

---

Frequently Asked Questions (FAQ):

Q: Does this fit my existing door prep?
A: Yes, it fits standard 2-3/8 to 2-3/4 in. backsets and door thickness from 1-3/8 to 1-3/4 in., with 5-1/2 in. center-to-center mounting.

---

Q: Can I re-key it to match my other keys?
A: Yes. SmartKey Security lets you re-key the lock yourself to another KW1 key in seconds.

---

Q: Is the deadbolt single or double cylinder?
A: Single-cylinder; it locks/unlocks with a key outside and a turn piece inside.

---

Q: How many keys are included?
A: Two keys are included in the box.

---

Q: What maintenance is required for the finish?
A: The matte black finish is low maintenance and covered by a lifetime finish warranty; clean with a soft, damp cloth.

---

Sculpted Minimalism for the Modern Entry

The Spyglass handleset is a study in refined geometry—its elongated backplate and streamlined lever bring architectural poise to your threshold. The velvety matte black finish acts like eyeliner for your door, framing it with crisp sophistication. Pair it with warm wood or a painted façade in chalky white or moody navy for a gallery-worthy statement. It’s a small gesture with outsized impact—everyday luxury at your fingertips.

---

Elevate your entry with secure, modern elegance—add the Baldwin Prestige Spyglass to your door today.
