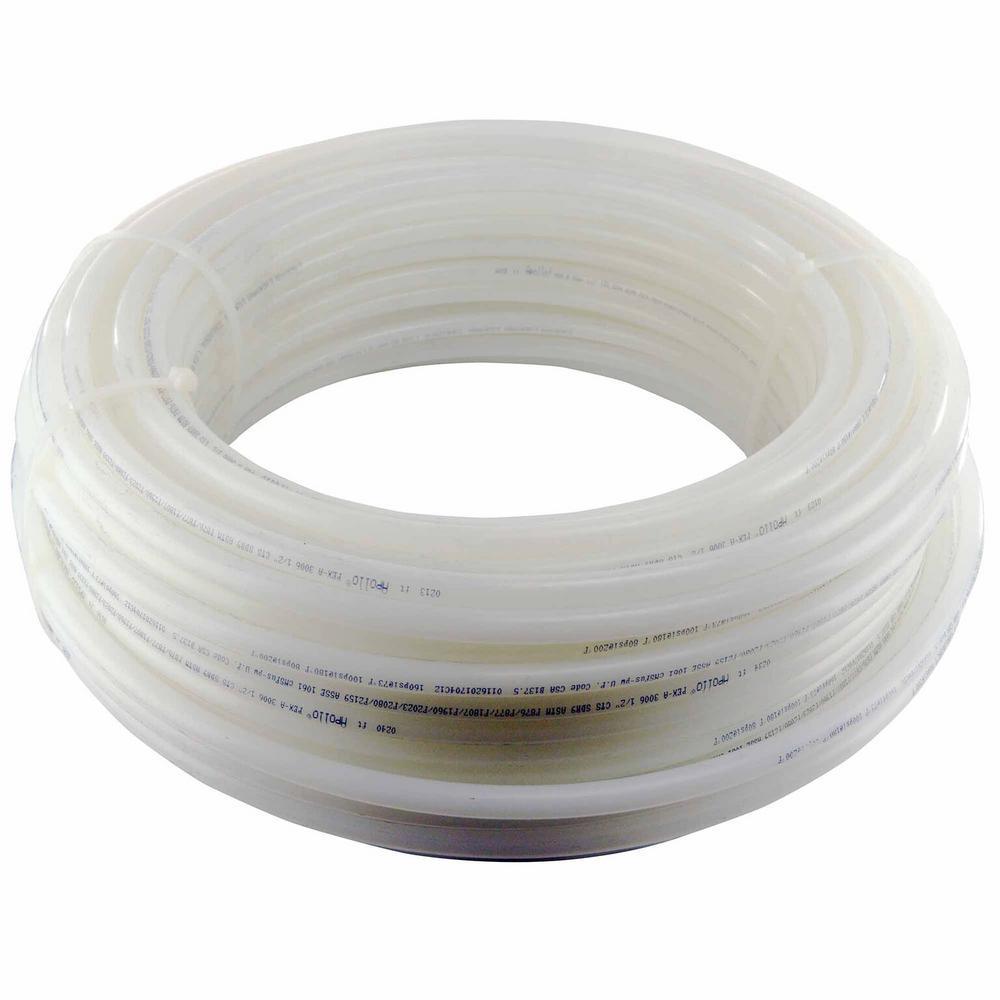

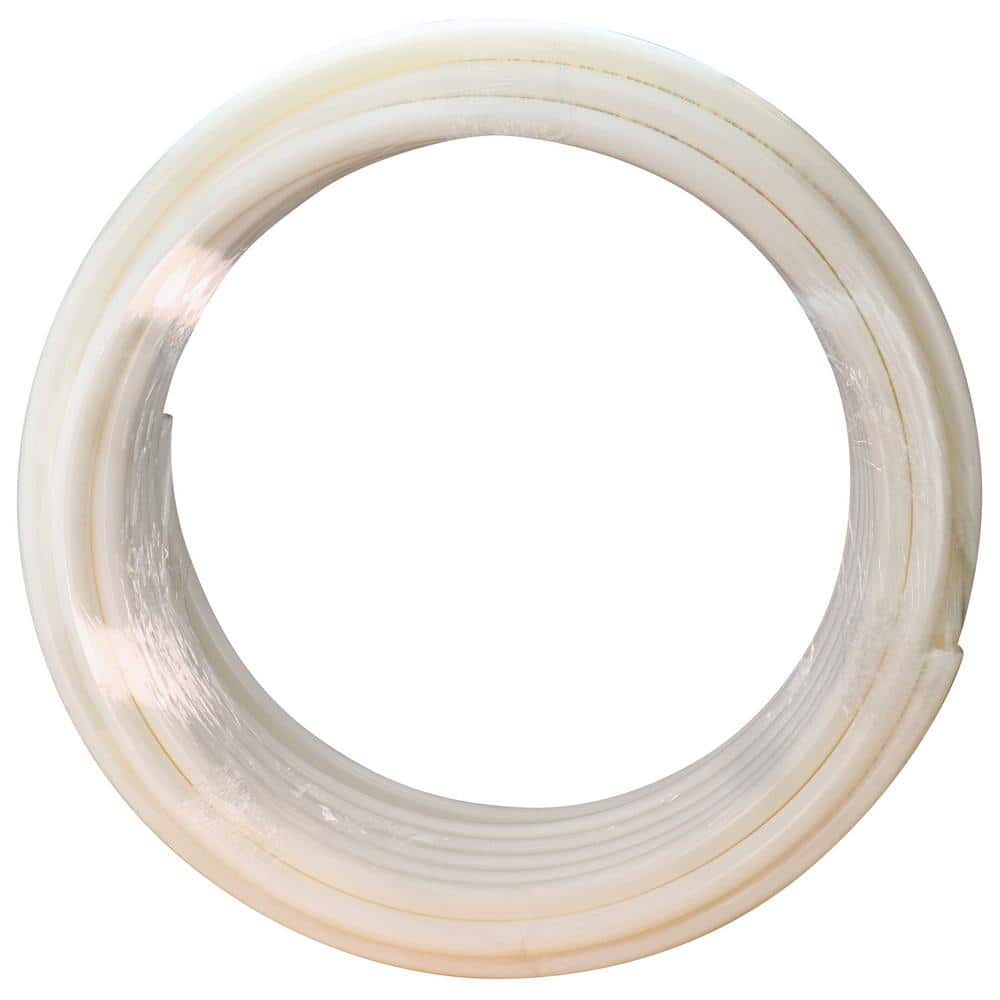

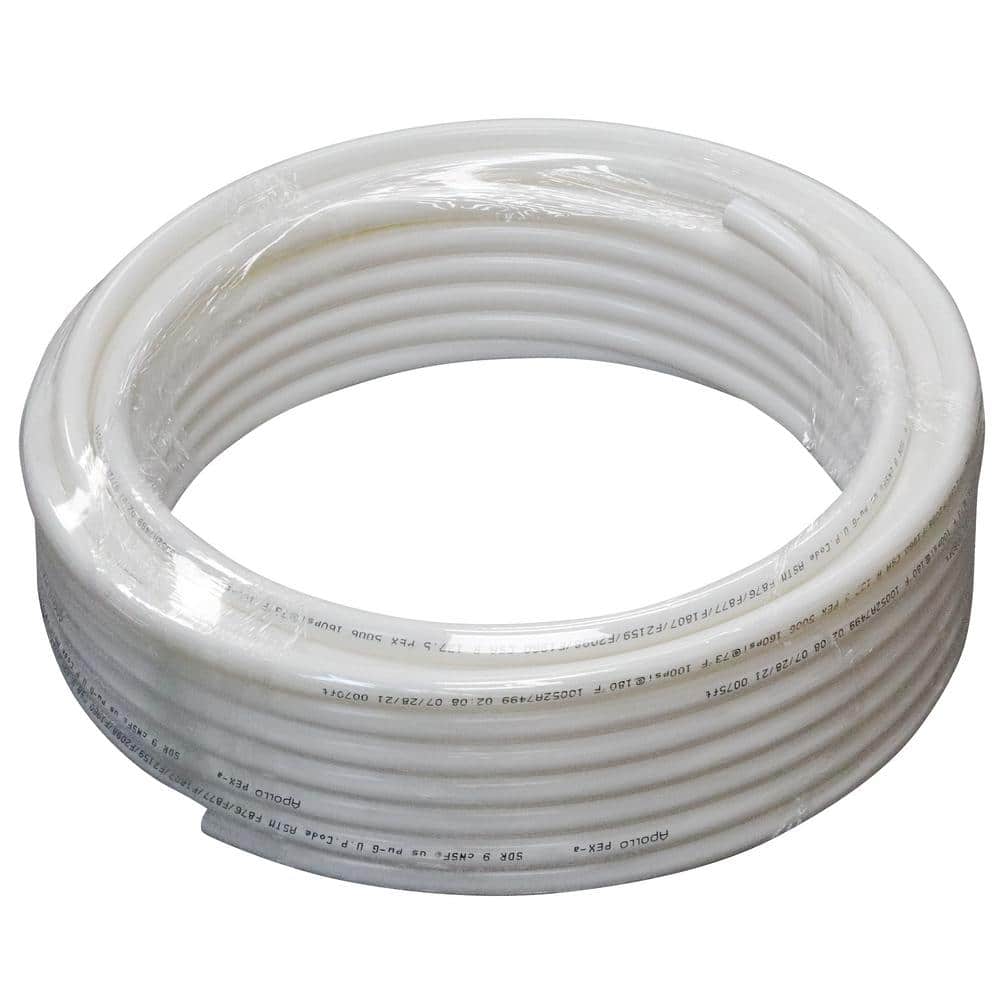

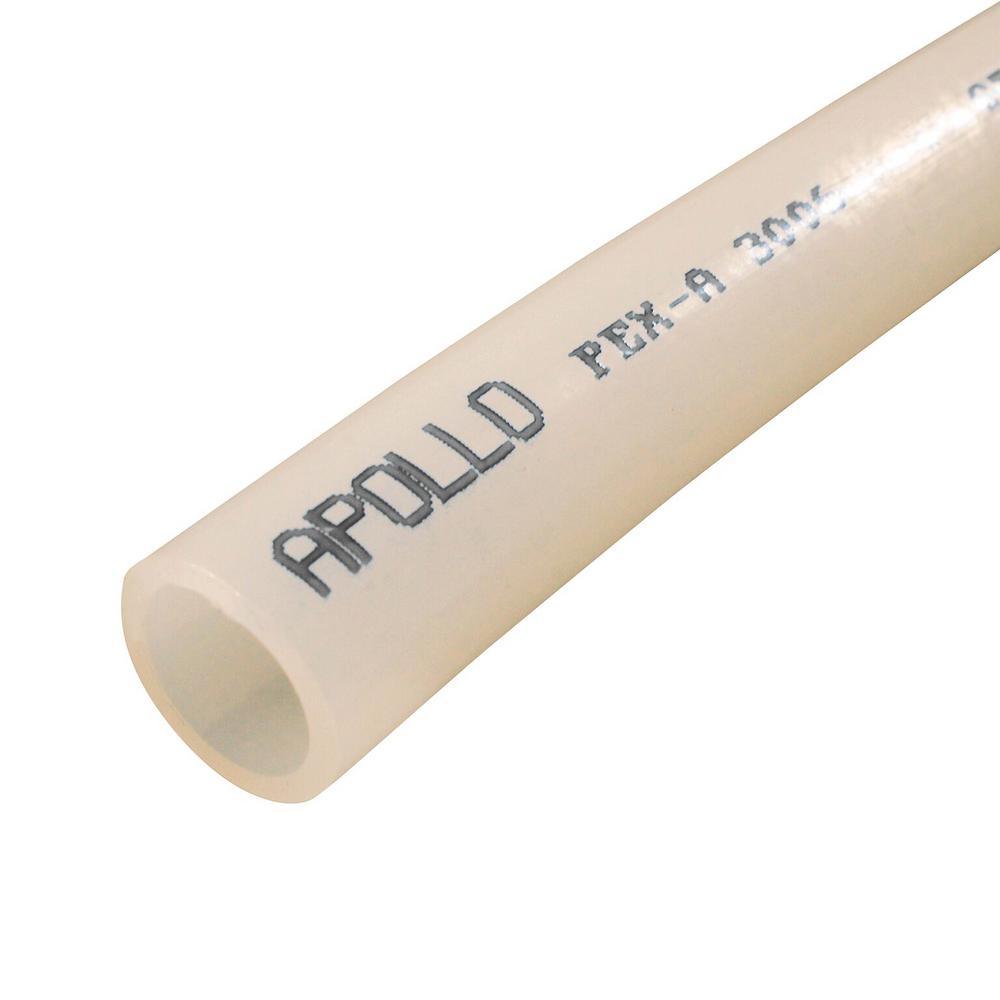

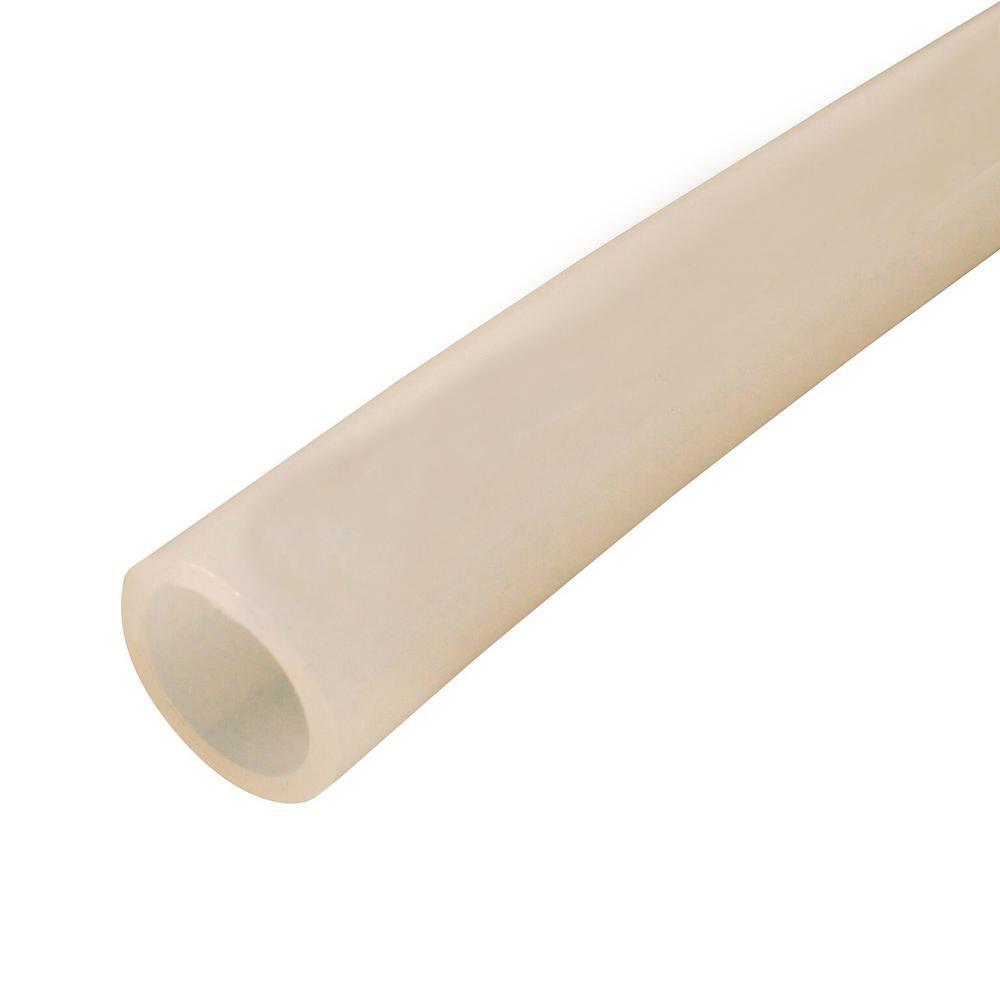

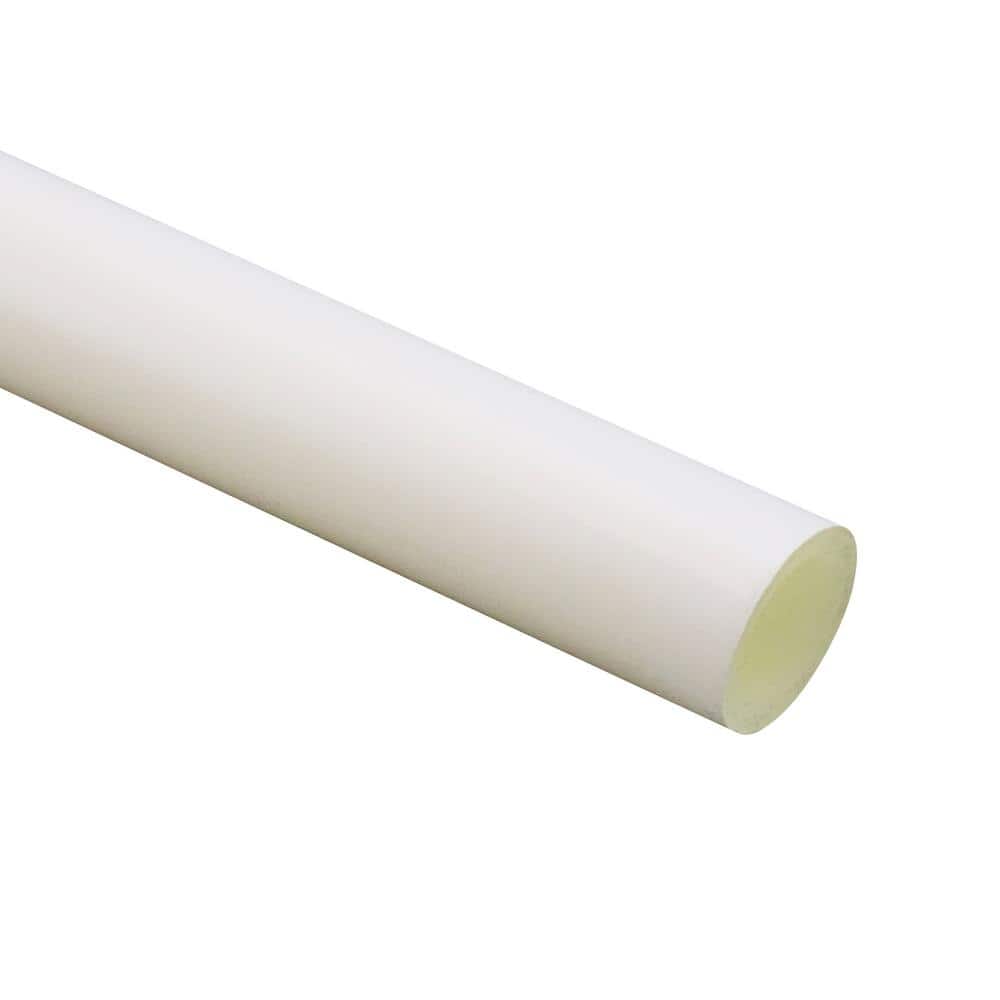

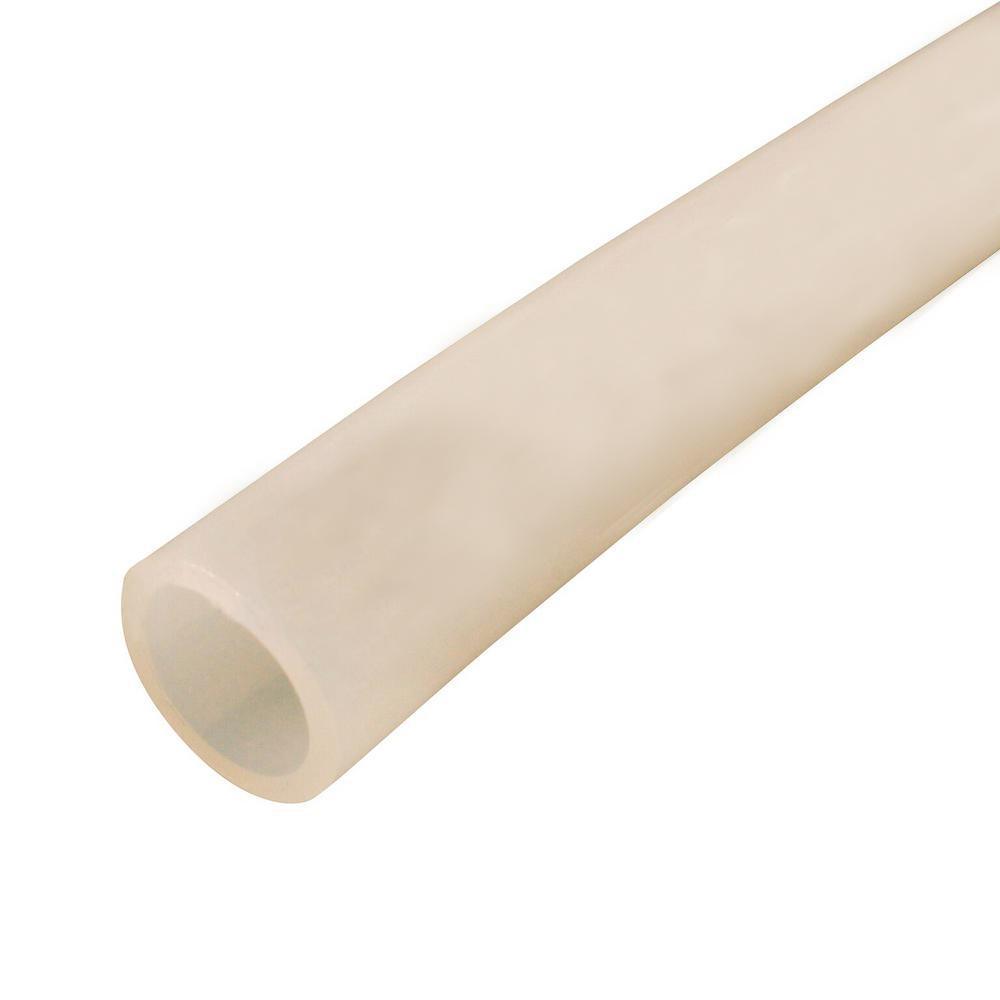

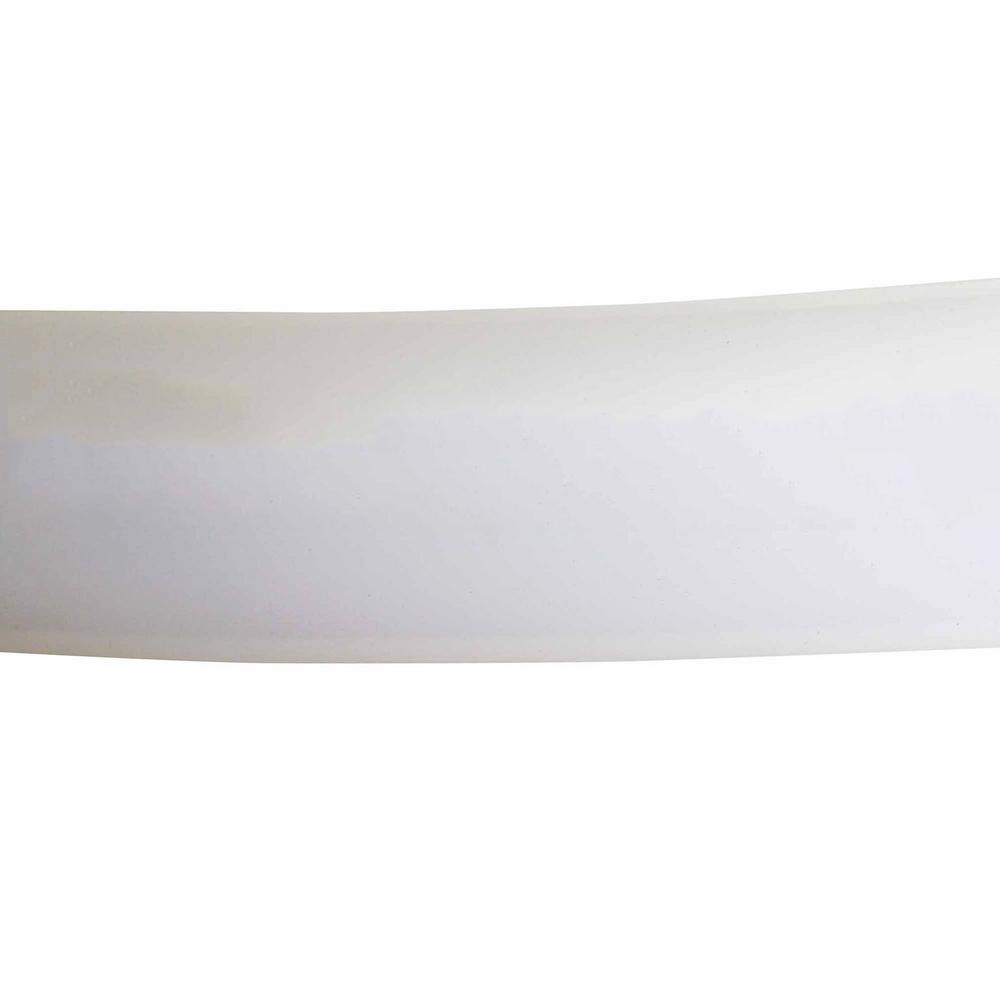

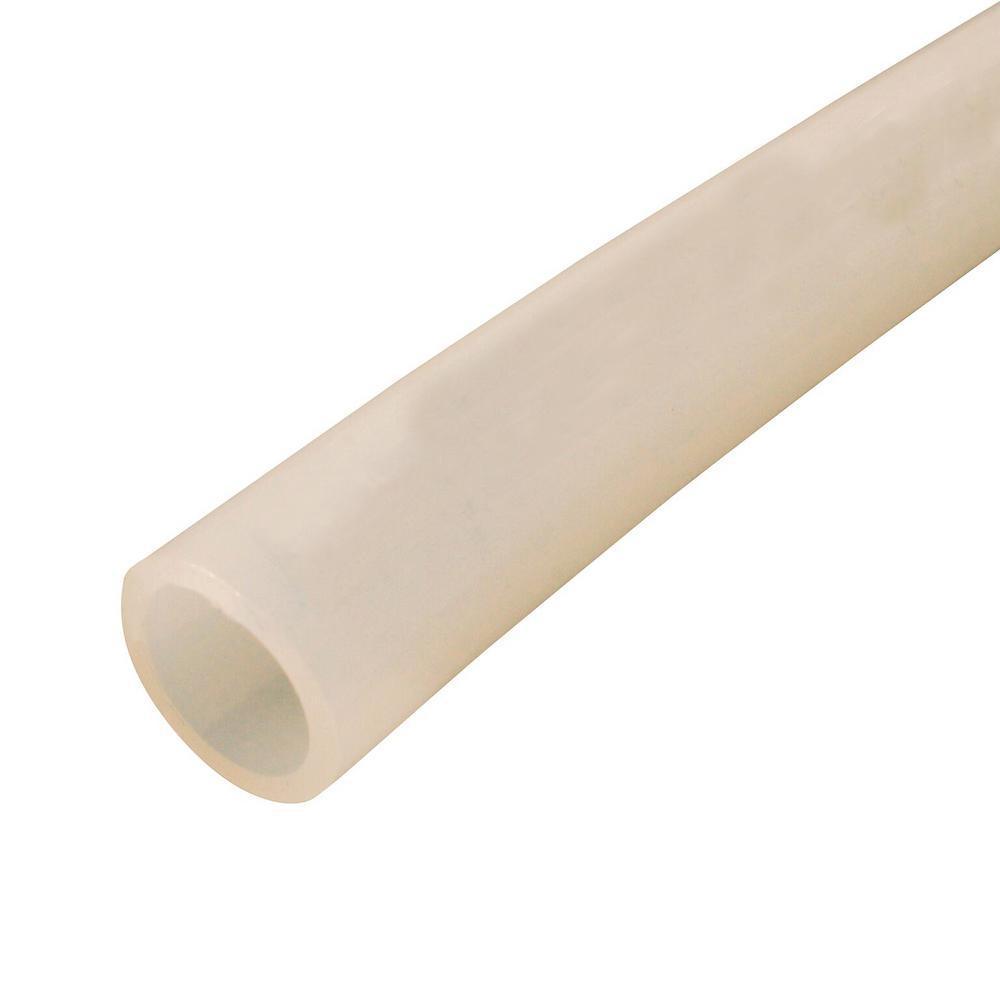

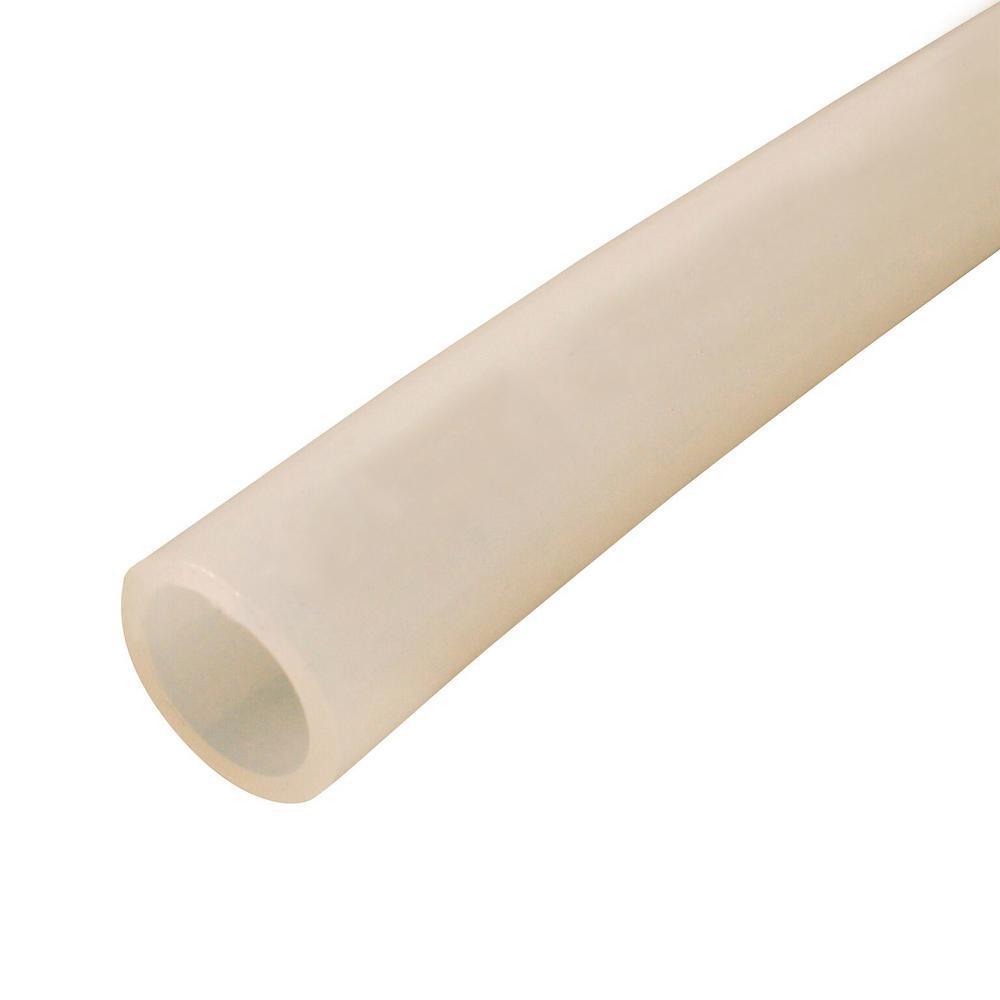

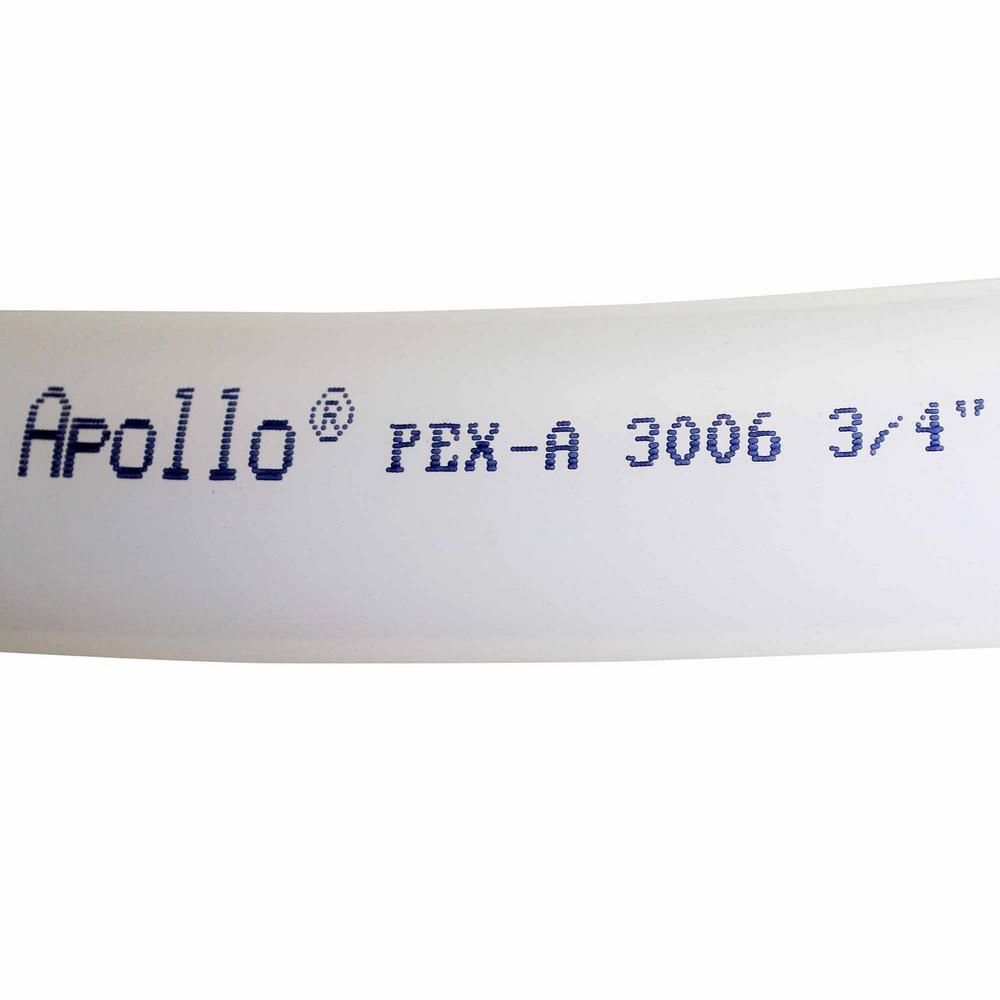

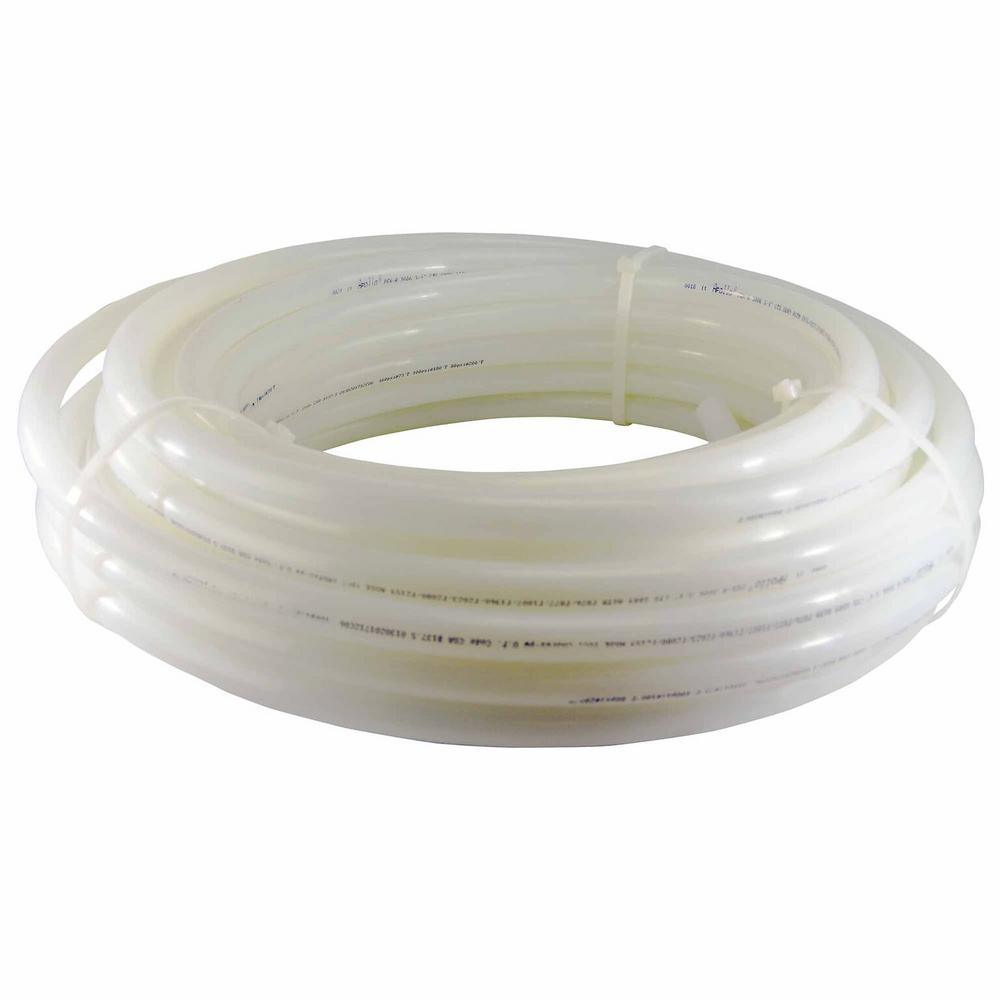

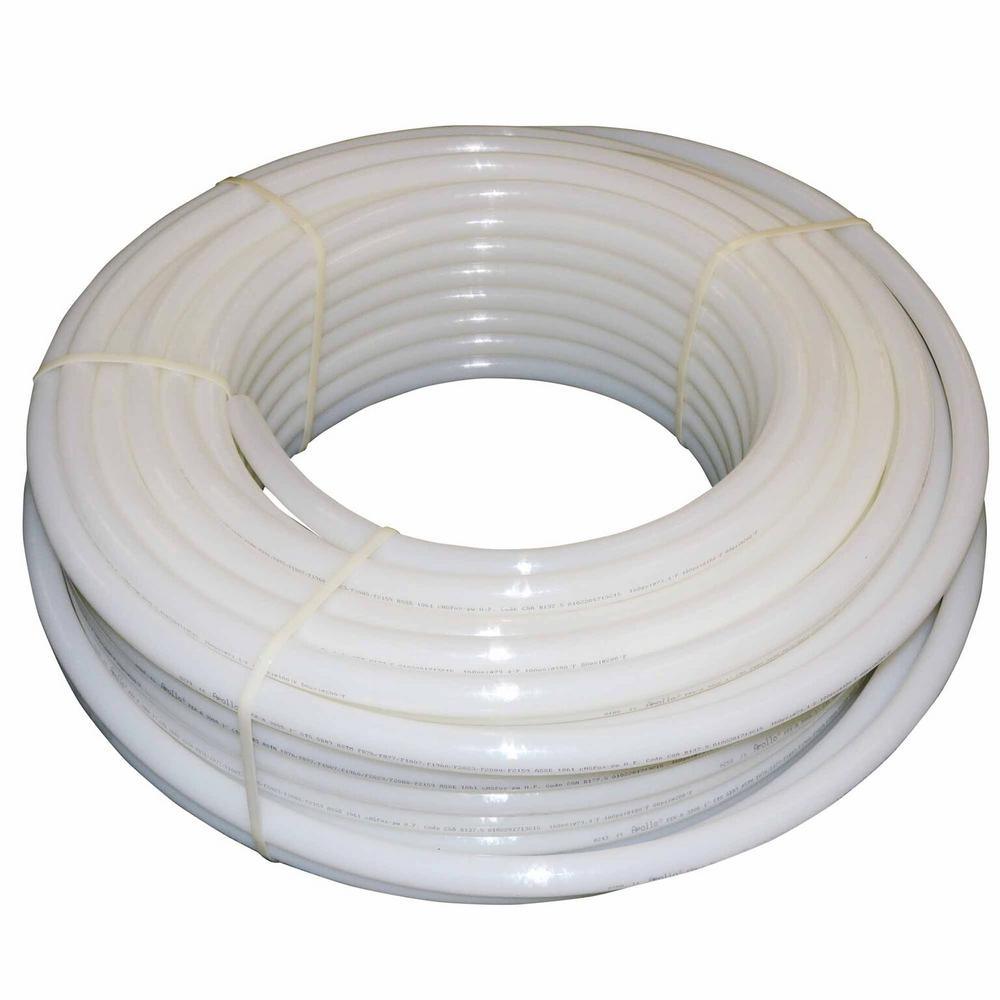

3/4 in. White PEX-A Pipe, 500 ft Coil

Durable, flexible PEX-A tubing for potable water systems, this 3/4 in. white coil delivers full-flow performance with fewer joints and excellent resistance to corrosion and cracking. Compatible with expansion, crimp, clamp, sleeve, and push-to-connect fittings for versatile installation across residential plumbing applications.

---

Key Features:

• Superior Flexibility: PEX-A construction minimizes coil memory for easier routing and fewer fittings
• Full-Flow Performance: Expansion design maintains internal diameter for maximum water output
• Wide Compatibility: Works with ASTM F1960 expansion, crimp, clamp, sleeve, and Tectite push-to-connect fittings
• Temperature & Pressure Rated: Up to 160 psi at 73.4°F, 100 psi at 180°F, and 80 psi at 200°F
• Jobsite Tough: Corrosion-resistant, ductile, and heat-reparable if kinked

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Application	Potable Water
Color Family	White
Color/Finish	White
Connectivity	Barb (compatible with expansion, crimp, clamp, sleeve, push-to-connect)
Material	Cross-Linked Polyethylene (PEX)
Maximum Flow Rate	4.6 GPM
Maximum Working Temperature	200°F
Maximum Working Pressure	160 psi
Minimum Working Temperature	-40°F
PEX Type	A
Pack Size	1
Pipe Features	Corrosion Resistant; Ductile; Flexible; Heat-reparable if kinked
Pipe or Fitting Product Type	Pipe & Tubing
Actual Inside Diameter	0.671 in.
Actual Outside Diameter	0.875 in.
Nominal Inside Pipe Diameter	3/4 in.
Product Length	500 ft
Certifications and Listings	ANSI, ASTM, CSA, NSF
Standards Compliance	ASTM F876, F877, F1807, F1960, F2023, F2080, F2159; CSA B137.5; cNSFus-pw
Maximum Pressure & Temperature Ratings	160 psi @ 73.4°F; 100 psi @ 180°F; 80 psi @ 200°F
Compatibility Notes	Compatible with Uponor and Wirsbo PEX systems; Tectite by Apollo push-to-connect fittings
Product Weight	50 lb

---

Frequently Asked Questions (FAQ):

Q: Can this pipe be used for potable water?
A: Yes. It is listed/complies with NSF and CSA standards for potable water applications.

---

Q: What fittings are compatible?

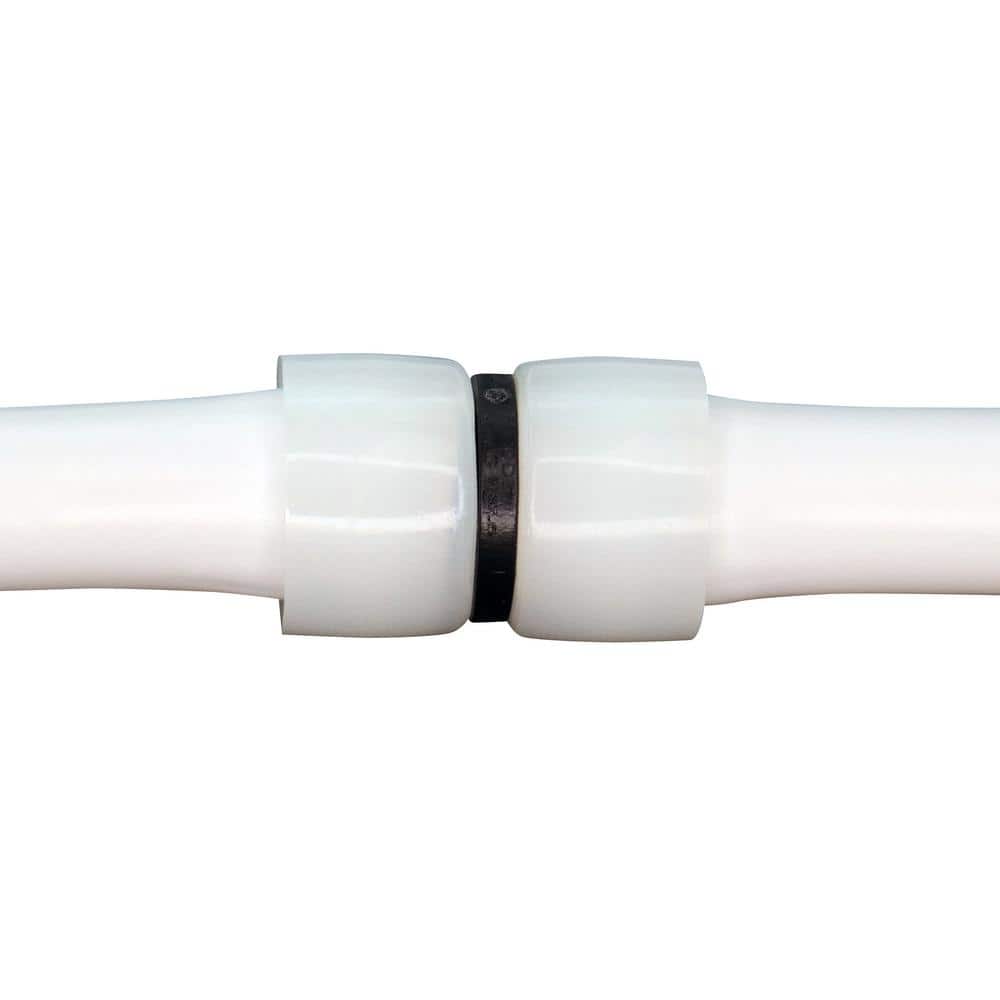

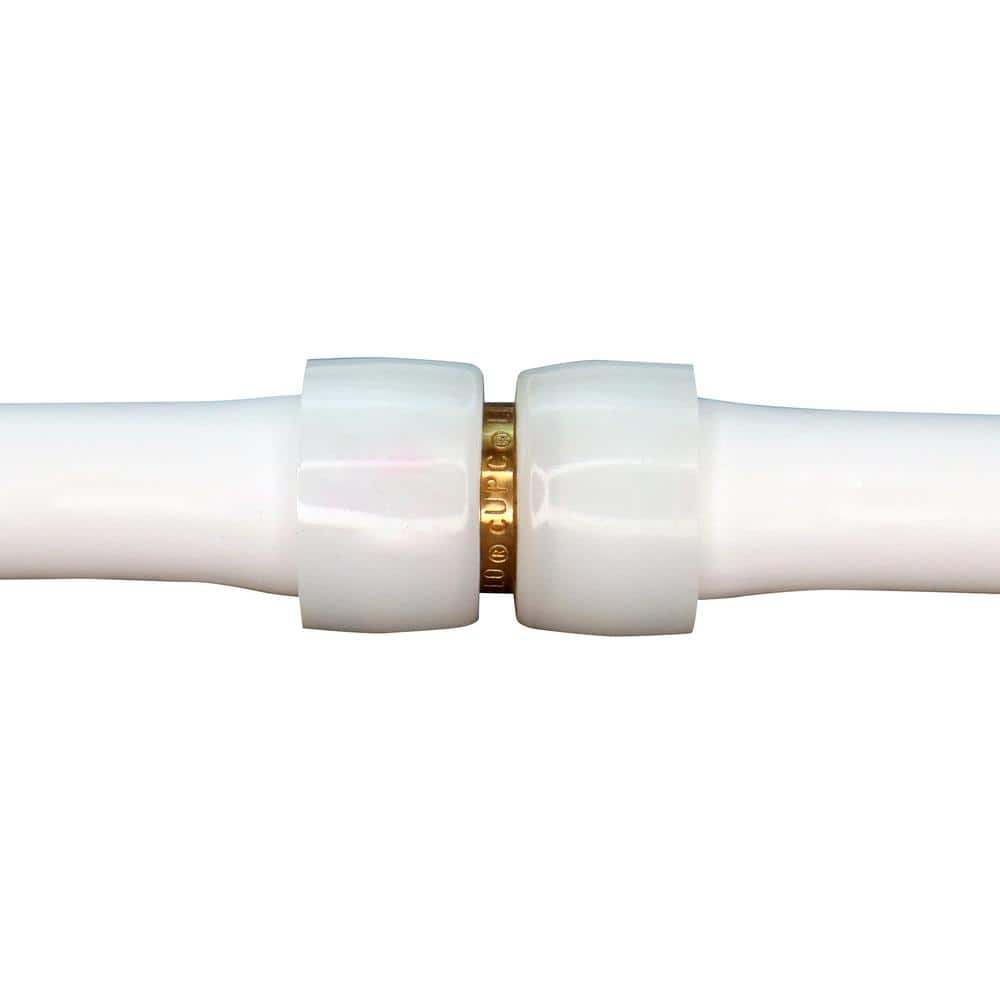

A: Use ASTM F1960 expansion fittings for best results; it is also compatible with crimp, clamp, sleeve, and Tectite push-to-connect fittings.

---

Q: What are the operating limits?
A: Max 160 psi at 73.4°F, 100 psi at 180°F, and 80 psi at 200°F; minimum working temperature -40°F.

---

Q: Can it be installed in slabs or behind walls?
A: Yes. It may be installed in concrete, lightweight gypsum, sand, asphalt, under wood flooring, or behind wallboard/plaster.

---

Q: What is the coil length and size?
A: 500 ft coil of 3/4 in. nominal PEX-A pipe; actual OD 0.875 in. and ID 0.671 in.

---

Streamlined Water Lines with Effortless Flow

The crisp white of this PEX-A coil brings a clean, modern sensibility to hidden infrastructure—quietly elevating performance behind the scenes. Its supple flexibility glides through framing with sculptural ease, reducing clutter and connections. Pair with brass expansion fittings for a refined, reliable assembly. This is the kind of discreet luxury that keeps a home running beautifully day after day.

---

Upgrade your plumbing with flexible, full‑flow PEX-A—add this 3/4 in. 500 ft coil to your project now.
