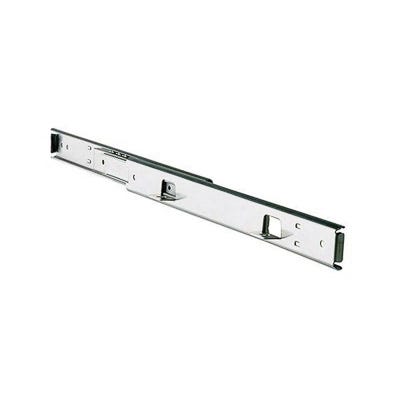

Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc

$76.98

Orders start at $399 — combine any items to reach the minimum. Learn more

Shipping calculated at checkout.

[{"id":67805552476374,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 28\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"28\"","option3":null,"sku":"A322-28-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 28\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 28\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","28\""],"price":7698,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552509142,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 26\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"26\"","option3":null,"sku":"A322-26-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 26\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 26\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","26\""],"price":7356,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552541910,"title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 24\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","option2":"24\"","option3":null,"sku":"A322-24-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 24\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 24\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","24\""],"price":6678,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552574678,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 24\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"24\"","option3":null,"sku":"A322-24-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 24\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 24\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","24\""],"price":7014,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552607446,"title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 22\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","option2":"22\"","option3":null,"sku":"A322-22-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 22\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 22\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","22\""],"price":4789,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552640214,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 22\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"22\"","option3":null,"sku":"A322-22-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 22\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 22\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","22\""],"price":6596,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552672982,"title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 20\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","option2":"20\"","option3":null,"sku":"A322-20-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 20\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 20\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","20\""],"price":5098,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552705750,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 20\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"20\"","option3":null,"sku":"A322-20-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 20\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 20\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","20\""],"price":7036,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552738518,"title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 18\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","option2":"18\"","option3":null,"sku":"A322-18-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 18\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 18\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","18\""],"price":4939,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552771286,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 18\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"18\"","option3":null,"sku":"A322-18-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 18\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 18\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","18\""],"price":6811,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552804054,"title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 16\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","option2":"16\"","option3":null,"sku":"A322-16-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 16\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 16\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","16\""],"price":4258,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552836822,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 16\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"16\"","option3":null,"sku":"A322-16-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 16\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 16\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","16\""],"price":5026,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552869590,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 14\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"14\"","option3":null,"sku":"A322-14-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 14\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 14\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","14\""],"price":5876,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552902358,"title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 12\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","option2":"12\"","option3":null,"sku":"A322-12-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 12\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ 12\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","12\""],"price":5615,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552935126,"title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 12\"","option1":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","option2":"12\"","option3":null,"sku":"A322-12-01","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 12\"","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Polybagged \/ 12\"","options":[".88\" Over-Travel, 100lb, Side Mount \/ Polybagged","12\""],"price":5651,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":67805552967894,"title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ Standard","option1":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","option2":"Standard","option3":null,"sku":"PID00003112","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc - .88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ Standard","public_title":".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack \/ Standard","options":[".88\" Over-Travel, 100lb, Side Mount \/ Bulk Pack","Standard"],"price":4258,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Accuride 322 Light-Duty Ball Bearing Drawer Slide, Full Extension with Over-Travel, 100 lb, Clear Zinc

The Accuride 322 is a light-duty side-mount ball bearing drawer slide with full extension, 0.88 in over-travel and a 100 lb load rating. Lengths from 12 to 28 inches are offered in clear zinc, sold as one pair (left and right members) per drawer. Bulk pack and polybagged packaging are available.

Key Features:

Over-travel extension: Full extension with 0.88 in over-travel lets the drawer clear the cabinet face completely.
100 lb capacity: Rated for 100 lb per pair, right for light-duty drawers up to 16 in wide.
Smooth steel balls: Steel ball bearing glide for smooth manual travel.
Low profile: 0.76 in side space and 1.38 in overall height fit tight cabinet cavities.
Tab mount design: Outer member tabs mount with #8 screws, and mounting screws are included.
Choice of packaging: Available polybagged per pair or in bulk pack boxes.

Specifications Table:

Specification	Details
Brand	Accuride
Sell unit	1 pair
Material	Cold rolled steel
Finish	Clear zinc
Series	322
Available lengths	12, 14, 16, 18, 20, 22, 24, 26, 28 in.
Extension	Full extension with 0.88 in over-travel
Load rating	100 lb
Mounting	Side (outer member tabs)
Closing	Manual (non-disconnect)
Glide mechanism	Steel ball bearing
Side clearance	0.76 in
Overall height	1.38 in.
For drawers	Up to 16 in wide
Screw size	#8
Packaging	Bulk pack or polybagged

Fit and Compatibility:

Side-mount installation on drawers up to 16 in wide; mounting screws included. Non-disconnect design means the drawer is not removed without unfastening. Sold per pair.

Frequently Asked Questions (FAQ):

Q: What comes with one purchase?
A: One pair of slides, left and right, with mounting screws included.

Q: Which lengths are available?
A: 12, 14, 16, 18, 20, 22, 24, 26 and 28 inches.

Q: How do I choose slide length?
A: Measure your cabinet depth and pick the longest length that fits; the 28 in slide offers 28.88 in of travel including over-travel.

Q: How much weight can it carry?
A: The 322 is rated for 100 lb, making it best for light-duty drawers up to 16 in wide.

Q: Can I remove the drawer without tools?
A: No, the 322 uses a non-disconnect design; the drawer stays attached to the slide.

Q: What is the difference between bulk pack and polybagged?
A: They are the same slide; bulk pack is a box of loose pairs for shops, polybagged is one wrapped pair.

Expert Verdict — Reviewed by the SuperArbor Pro Desk

The 322 is the value choice for desk, utility and occasional drawers where over-travel is useful for reaching contents behind a recessed face. Because it is non-disconnect and rated 100 lb, move up to a heavier disconnect series for file or kitchen base drawers. Allow 0.76 in of side space per side and mount with #8 screws through the outer member tabs for square travel.

Mount tabs securely into solid cabinet sides, since a non-disconnect slide cannot be separated to unload the drawer easily.

Order the Accuride 322 Full Extension Over-Travel Slide for dependable light-duty side-mount drawer action.
