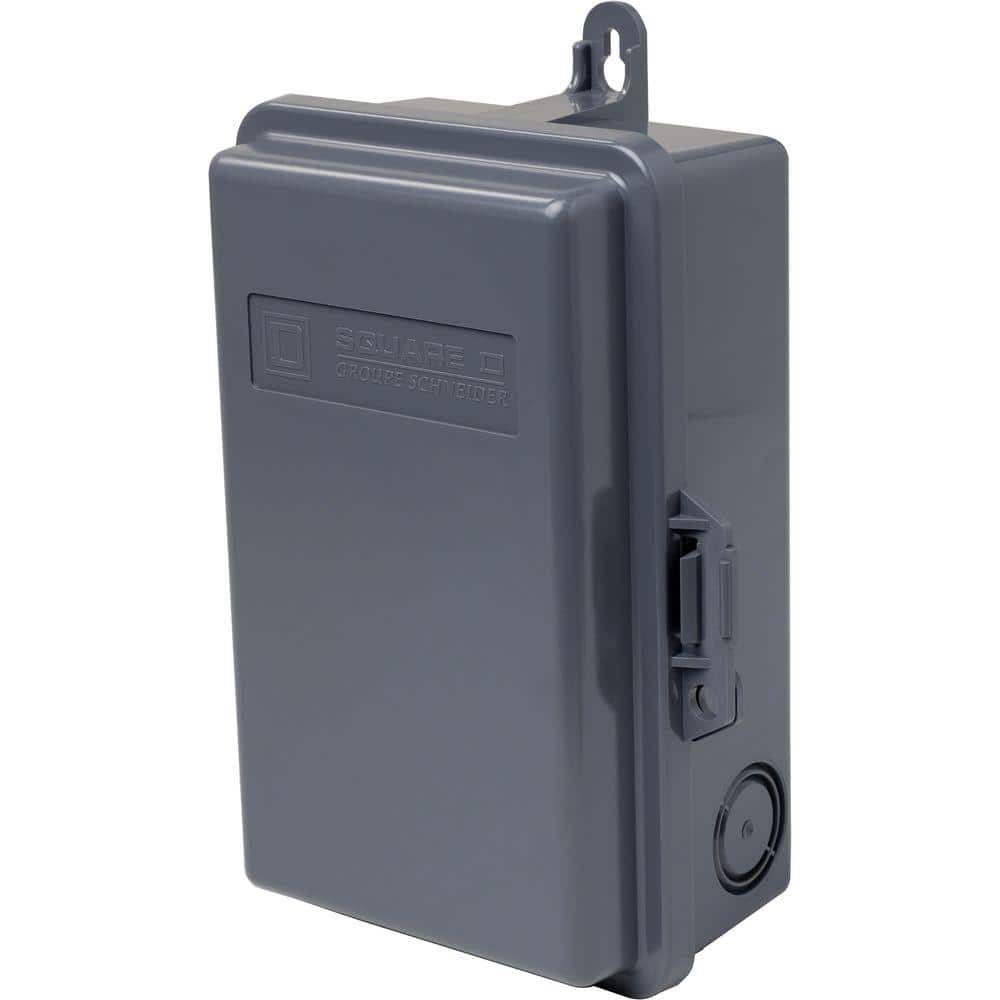

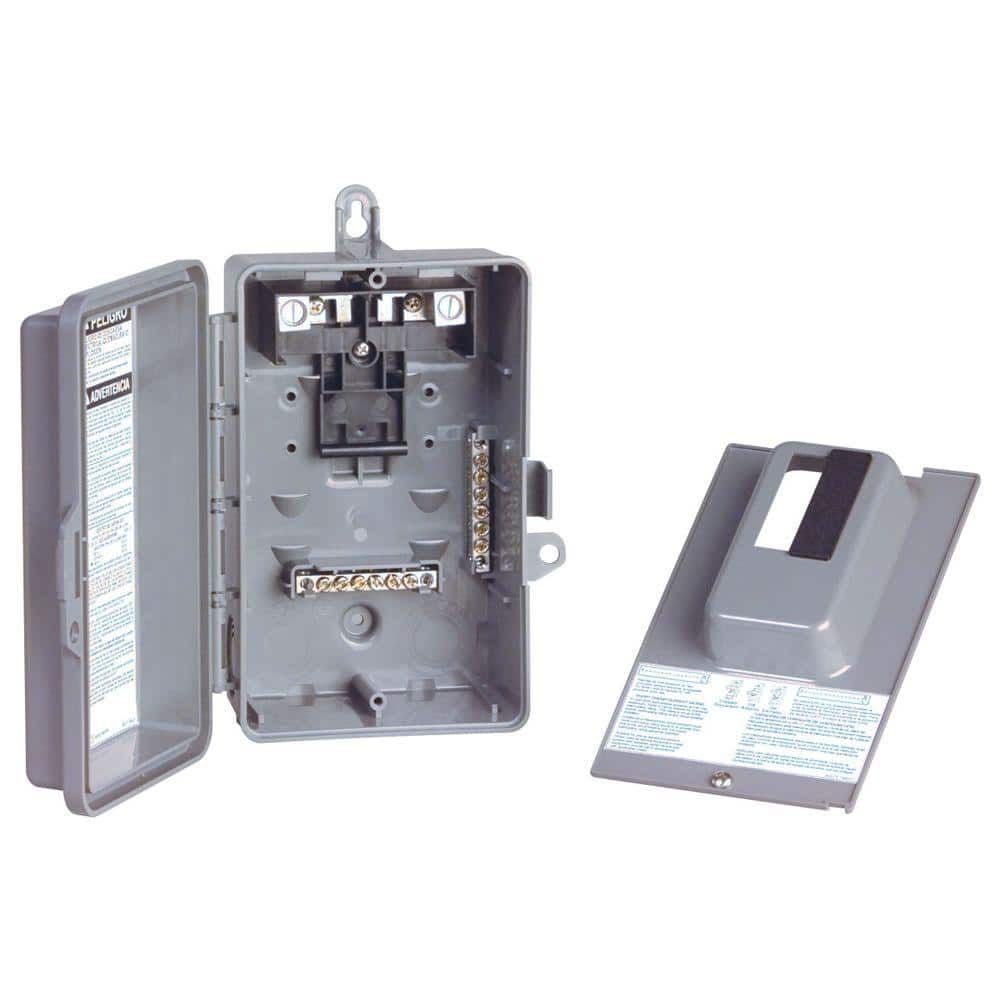

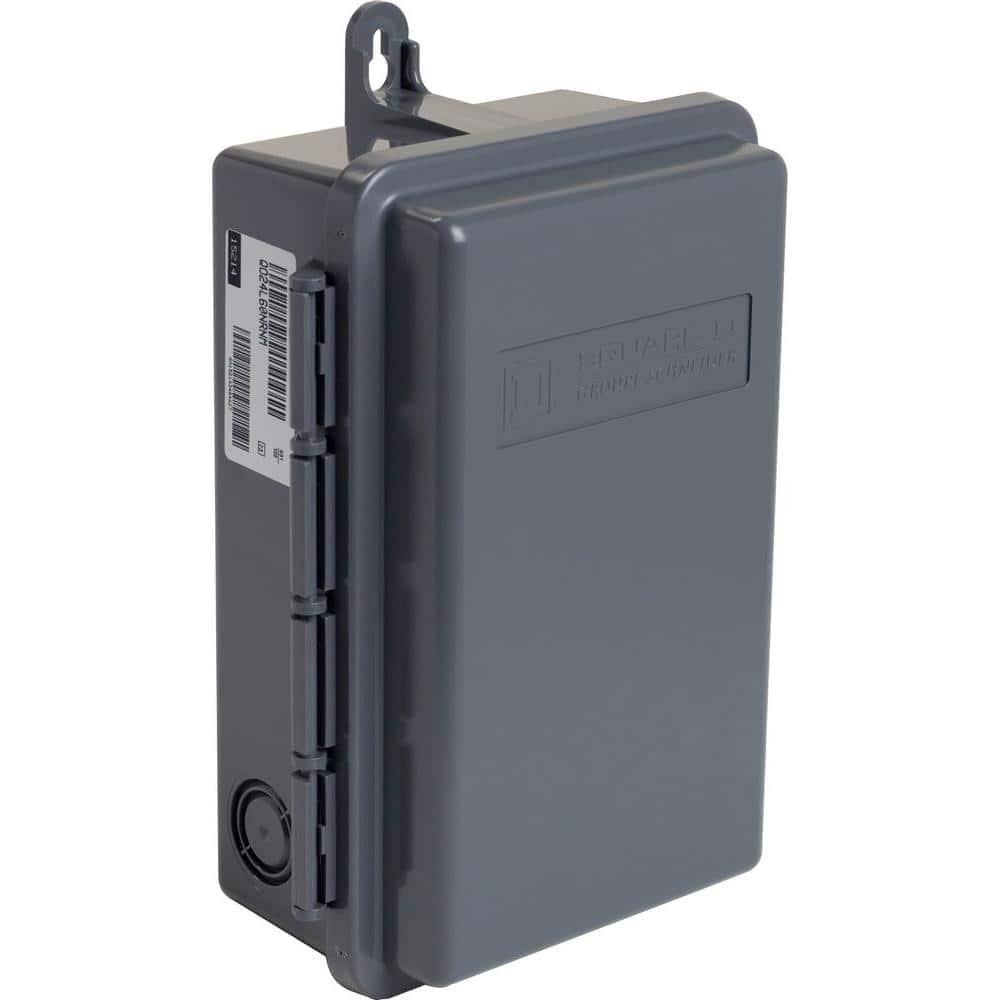

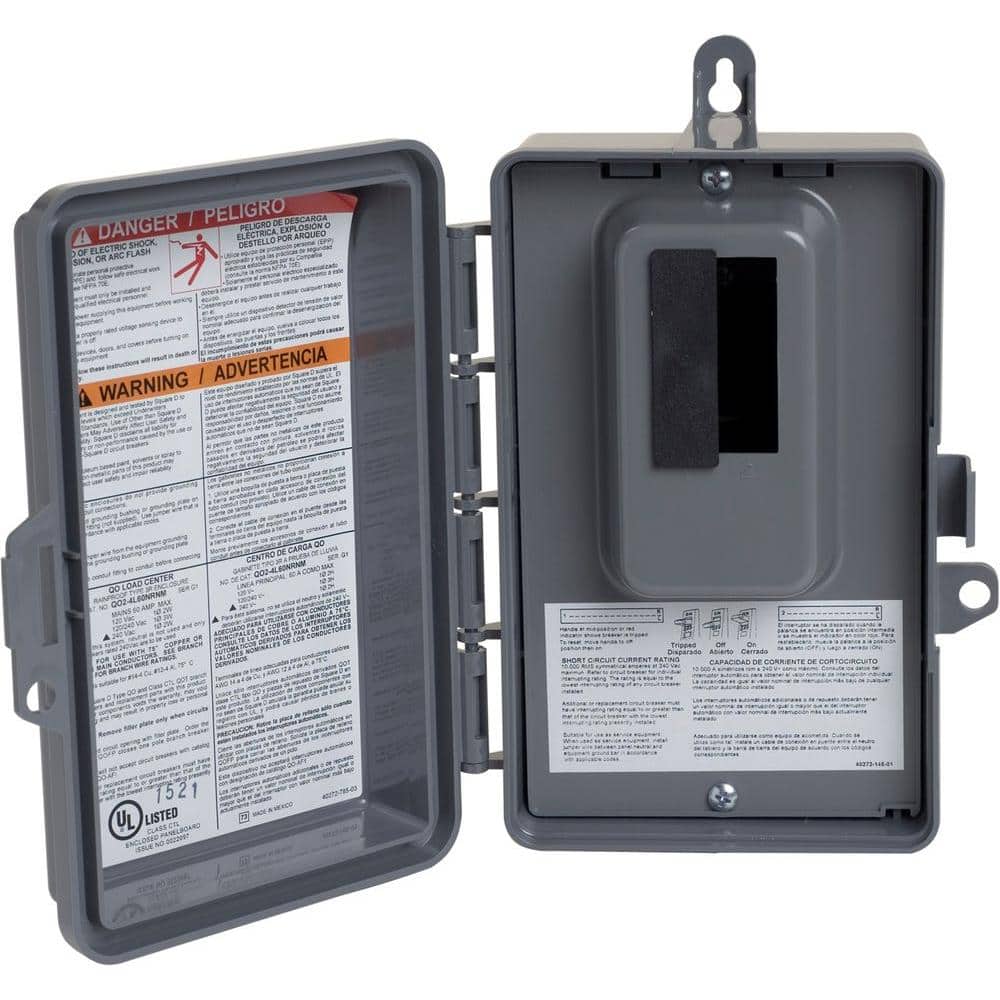

Square D QO 60 Amp Outdoor Load Center

Experience unparalleled power distribution with the Square D QO 60 Amp Outdoor Load Center. Designed for both residential and commercial use, this robust unit ensures reliability with its thermoplastic interior and aluminum bus bar. Ideal for fast installation, it's engineered for flexible applications and maximum efficiency.

---

Key Features:

• Outdoor Use: Rated for rainproof outdoor conditions with a durable non-metallic enclosure.
• Fast Installation: Includes slot/square drive screws for ease and accuracy during setup.
• High Reliability: Compatible with time-tested Square D QO circuit breakers.

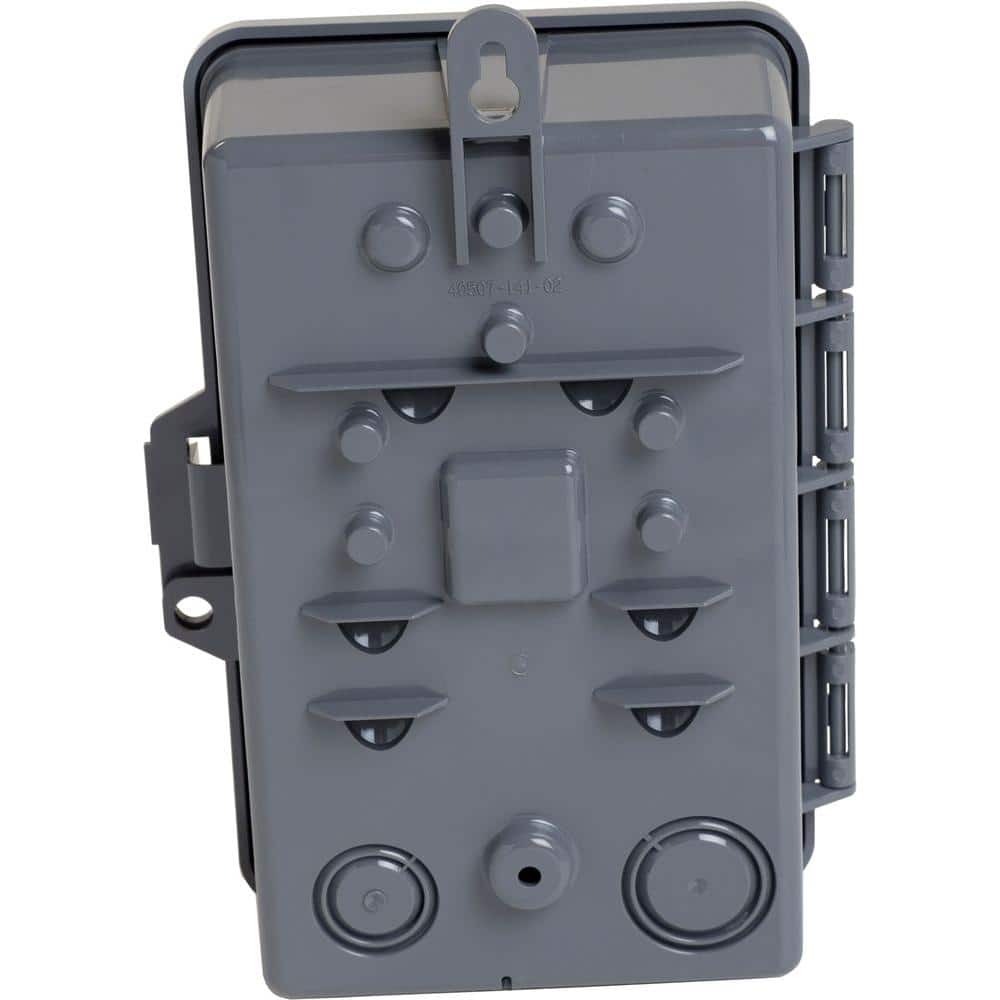

• Versatile Mounting: Main feeders terminate from the top, with multiple entry directions for feeders.
• Safety Certified: UL listed and built with industry-leading features for secure power distribution.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Breaker Box Type	Subpanel
Connection Type	Non-Neutral
Indoor/Outdoor	Outdoor
Maximum Amperage (A)	60 A
Mounting Type	Surface
NEMA Configuration	NEMA 3R
Number of Circuits	4
Number of Spaces	2
Product Weight (lb.)	1.47 lb
Series Type	QO
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

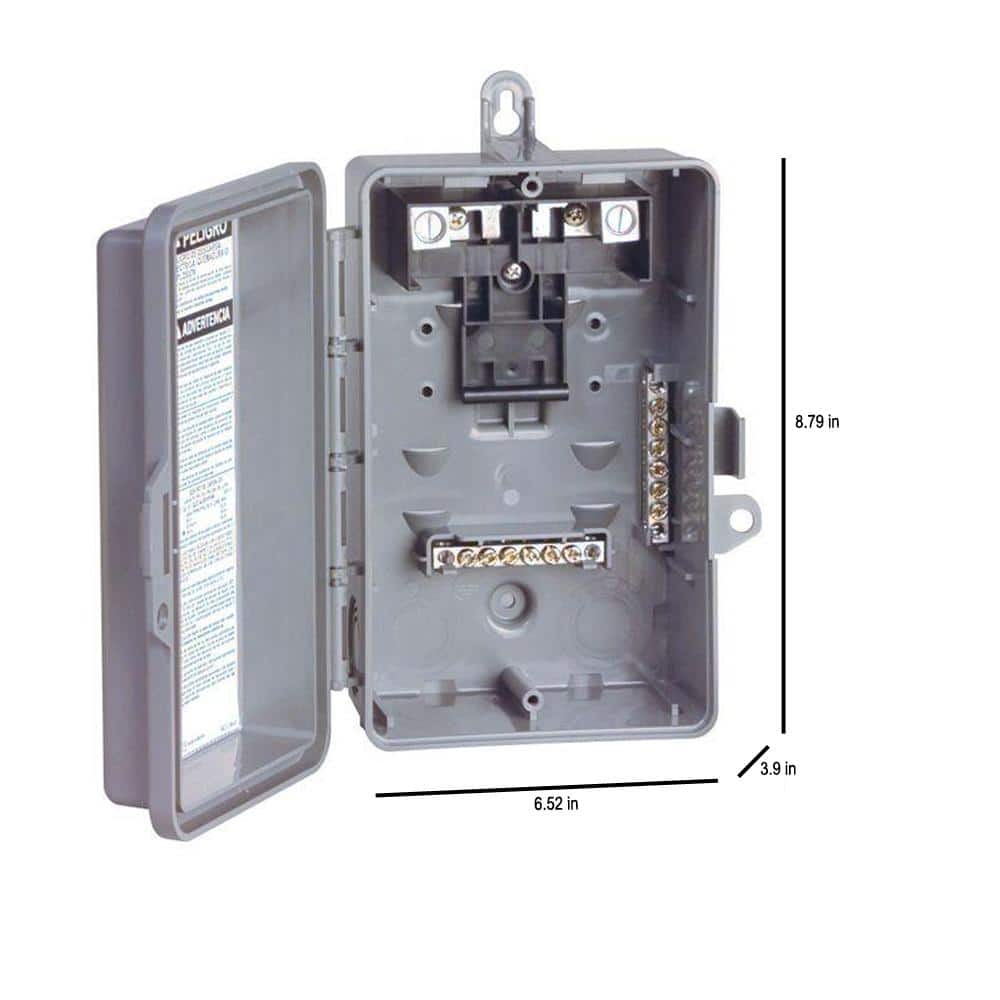

Product Depth (in.)	3.9 in
Product Height (in.)	8.79 in
Product Width (in.)	6.52 in

---

Frequently Asked Questions (FAQ):

Q: Can the load center be used indoors?
A: Although it's designed for outdoor use, this load center is versatile and can be installed indoors, provided it meets your local building codes.

---

Q: Does this load center come with circuit breakers?
A: No, circuit breakers need to be purchased separately. Ensure compatibility with Square D QO standard breakers.

---

Q: Is this load center suitable for both commercial and residential installations?
A: Yes, it's UL listed for both residential and commercial use, ensuring flexible applications.

---

Q: What additional components are needed for installation?
A: You'll need compatible circuit breakers and wire for connection. It also accommodates a plug-on secondary surge arrestor, sold separately.

---

Q: How durable is the non-metallic enclosure?
A: The enclosure is made from rugged thermoplastic, crafted to withstand outdoor elements effectively.

---

Harness the Power of Reliable Elegance

Transform your space with the Square D Outdoor Load Center, where functionality meets sleek design. The strikingly durable thermoplastic frame not only ensures long-lasting use but also adds a polished touch to any outdoor utility setup. Position it in harmony with your home's exterior layout for an unobtrusive yet powerful electrical solution. This piece isn't just essential for modern power distribution, it's a testament to efficient elegance.

---

Equip your project with the Square D QO 60 Amp Load Center today for unbeatable performance and peace of mind.
