Square D QO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center with Surface Mount Cover with Door
Regular price $41.30Square D QO 100 Amp 6-Space 12-Circuit Indoor Load Center
The Square D QO 100 Amp Indoor Load Center is a trusted choice for durable, reliable power distribution in residential and commercial settings. Featuring a robust thermoplastic interior and a sturdy aluminum bus bar, this panel supports up to 12 circuits, ensuring flexibility and efficiency. Designed exclusively for use with QO circuit breakers, it promises quick installation and reliable performance.
Key Features:
- Rugged Construction: Durable thermoplastic interior ensures longevity and reliability.
- Compatible Design: Accommodates QO circuit breakers exclusively, ensuring optimum performance.
- Easy Installation: Slot/square drive screws accommodate both flat blade and square-head drivers.

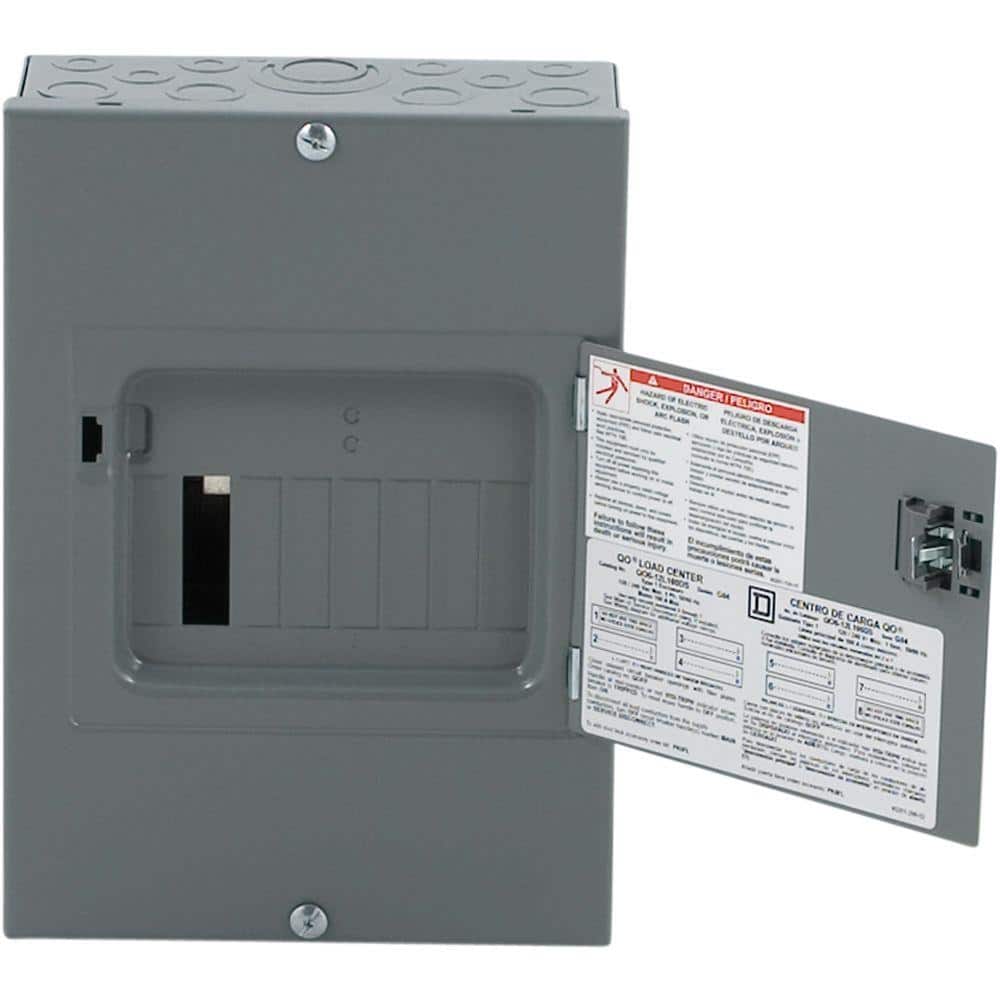

- Surface Mount: Includes an indoor cover with a door for a sleek, finished look.
- Flexible Feeder Entry: Main feeders terminate from the top but can enter from any direction.

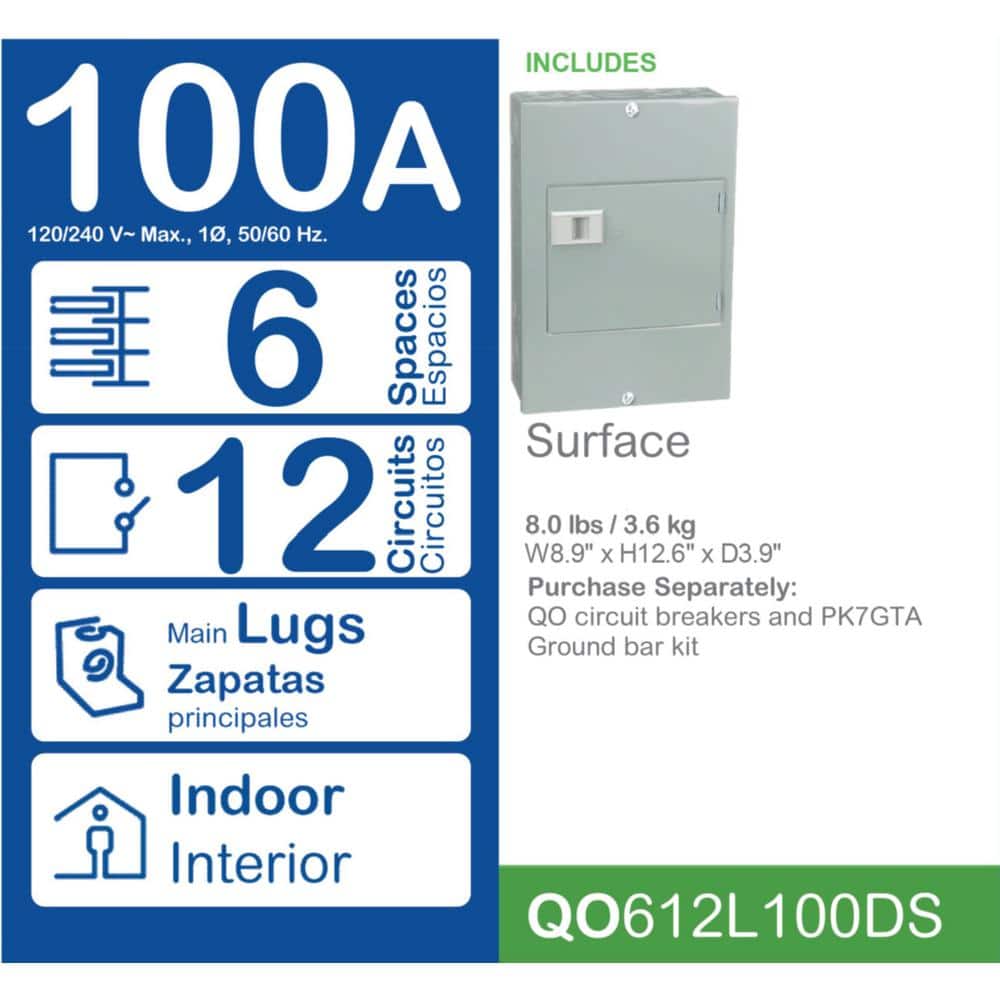

Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Non-Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 100 A |
| Mounting Type | Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 12 |
| Number of Spaces | 6 |
| Product Weight (lb.) | 8.29 lb |
| Series Type | QO |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty. |

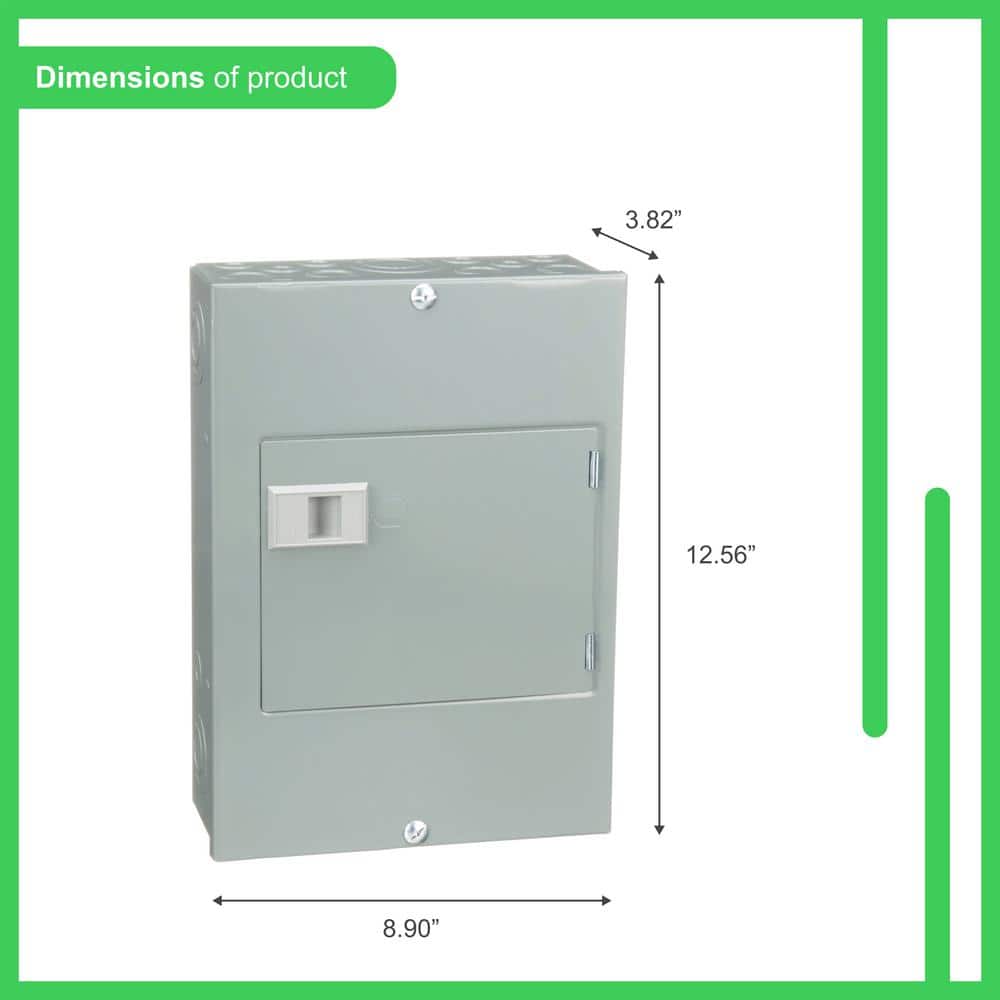

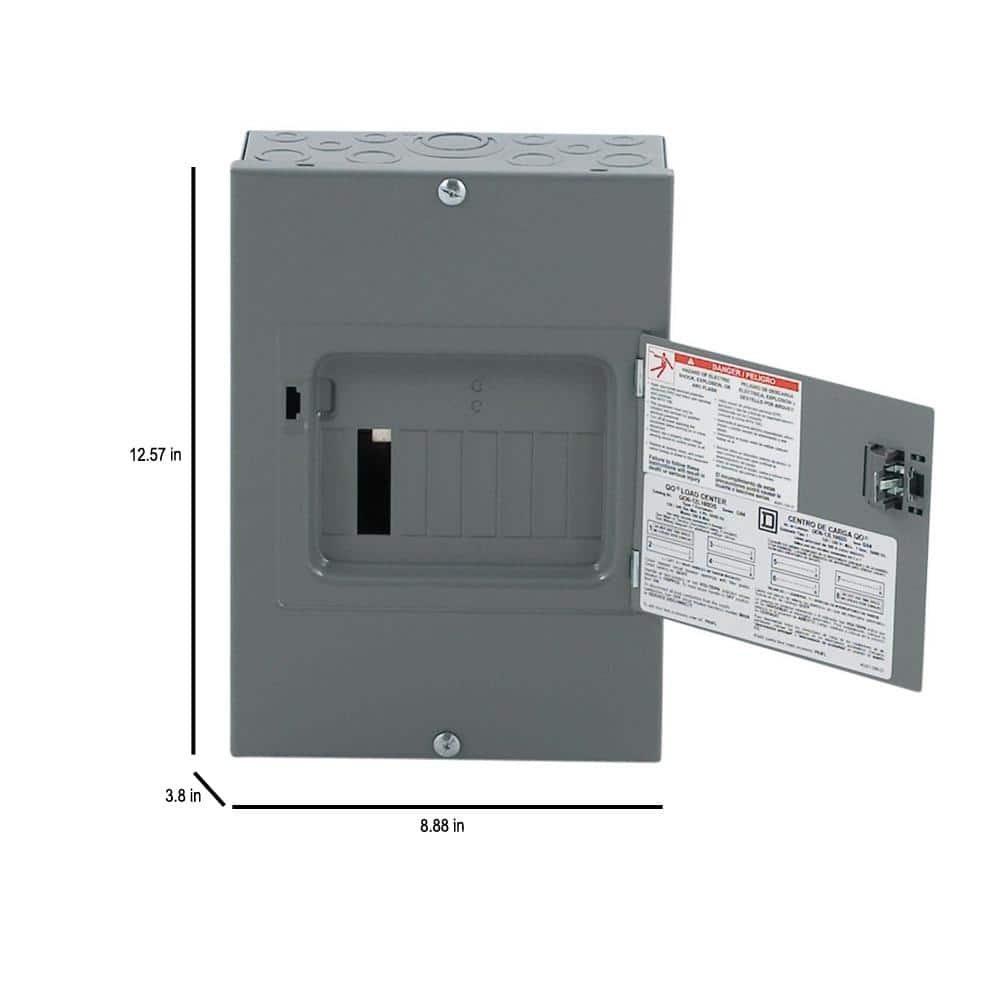

| Product Depth (in.) | 3.8 in |
| Product Height (in.) | 12.57 in |
| Product Width (in.) | 8.88 in |
Frequently Asked Questions (FAQ):
Q: Is this load center rated for indoor or outdoor use?
A: This load center is designed for indoor use only, with a NEMA 1 configuration suitable for residential and light commercial applications.
Q: Can this panel be used with any type of circuit breaker?
A: No, this load center is specifically designed for use with Square D QO series circuit breakers only.
Q: Does this load center come with a cover?
A: Yes, it includes a surface mount indoor cover with a door for added protection and aesthetic appeal.
Q: What is the load center's warranty coverage?
A: Square D offers a lifetime warranty on its QO branch circuit breakers against defects in material and workmanship when used in a residential setting.
Q: Can the unit's orientation be changed during installation?
A: No, the unit cannot be rotated as the main feeders must terminate from the top.
Elevate Your Power Distribution
The Square D QO 100 Amp load center is not just a functional item but a pivotal element in creating a safe and efficient electrical environment. Its sleek surface mount cover and minimalistic design blend discreetly within any utility space. Pair it with contemporary utility room finishes for a cohesive, high-functioning area. Embrace the seamless integration it offers, making high performance an elegant part of your lifestyle.
Enhance your project's electrical reliability with the Square D QO Load Center—order now to ensure superior power management!
