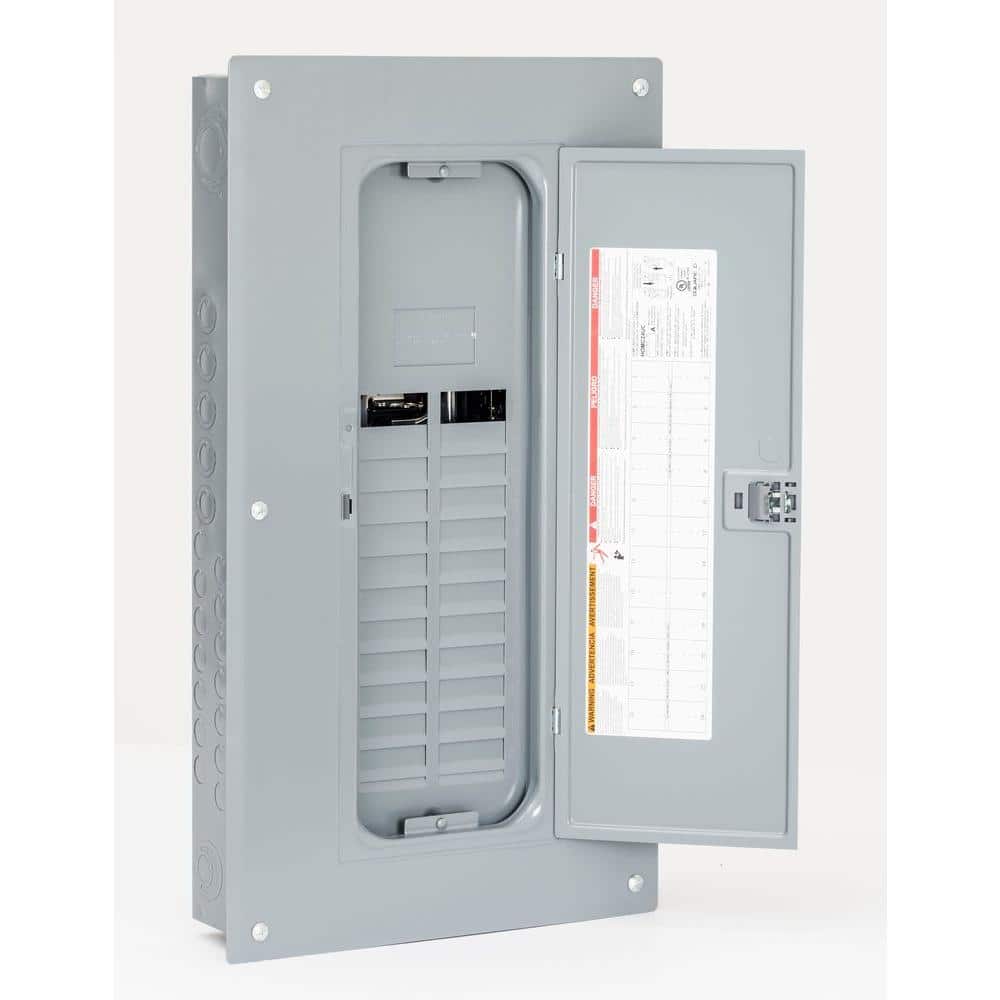

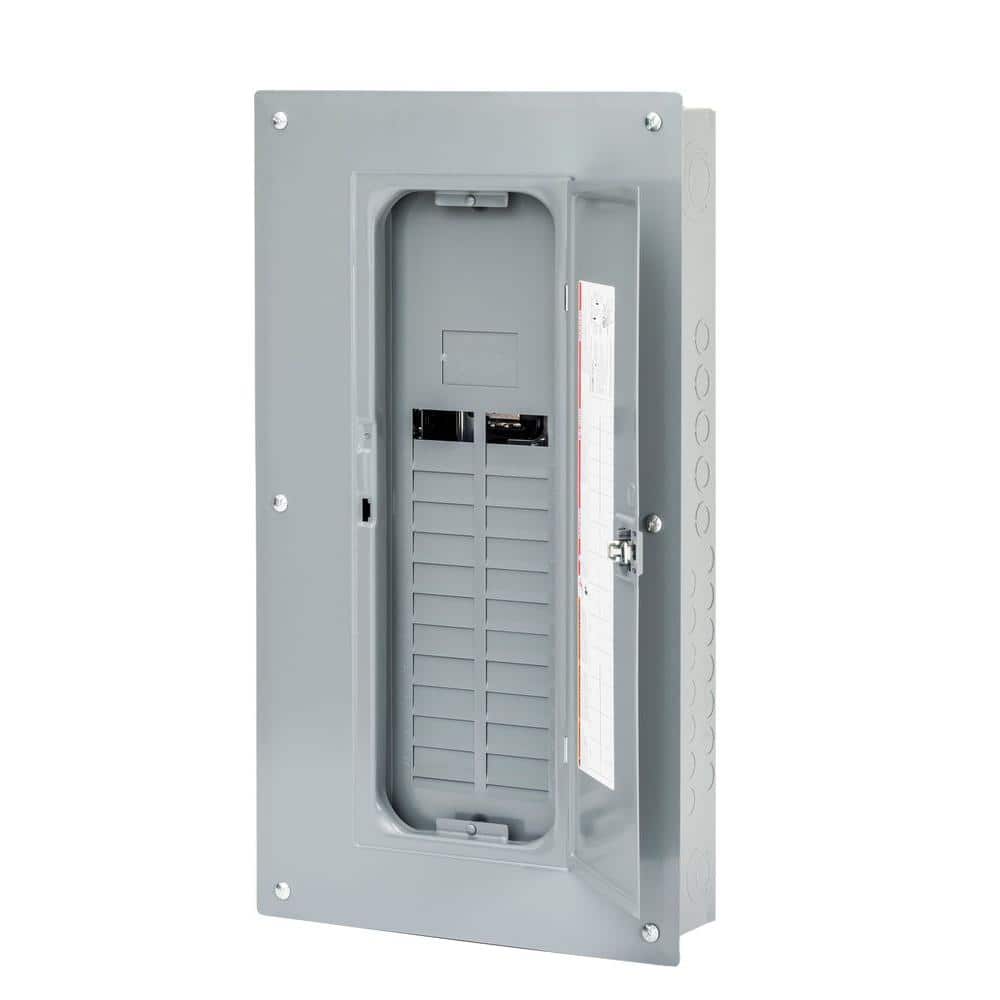

Square D Homeline 125 Amp Load Center

Elevate your electrical projects with the Square D Homeline 125 Amp Load Center, featuring an innovative Qwik-Grip Plug-On Neutral system that speeds up installation. Designed for both residential and commercial spaces, it provides unparalleled convenience and efficiency by incorporating a fully distributed neutral bar and a durable aluminum bus bar.

---

Key Features:

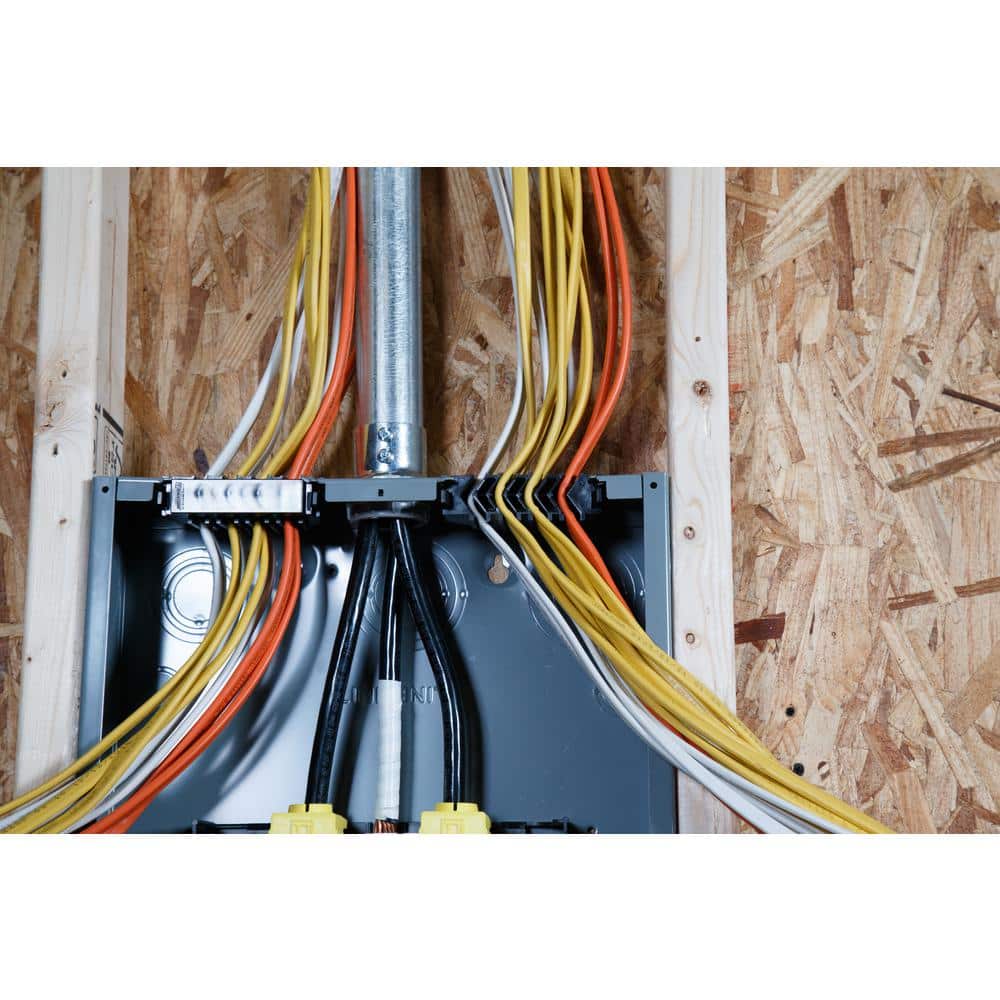

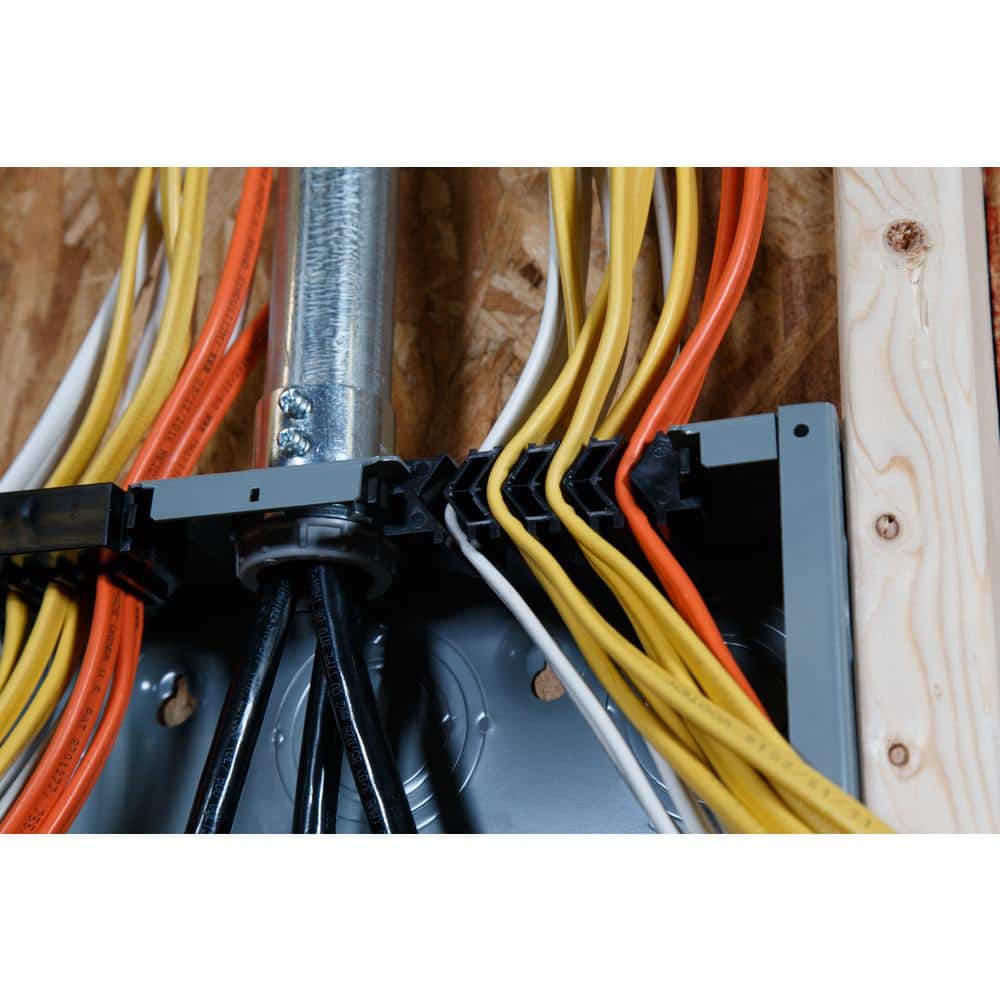

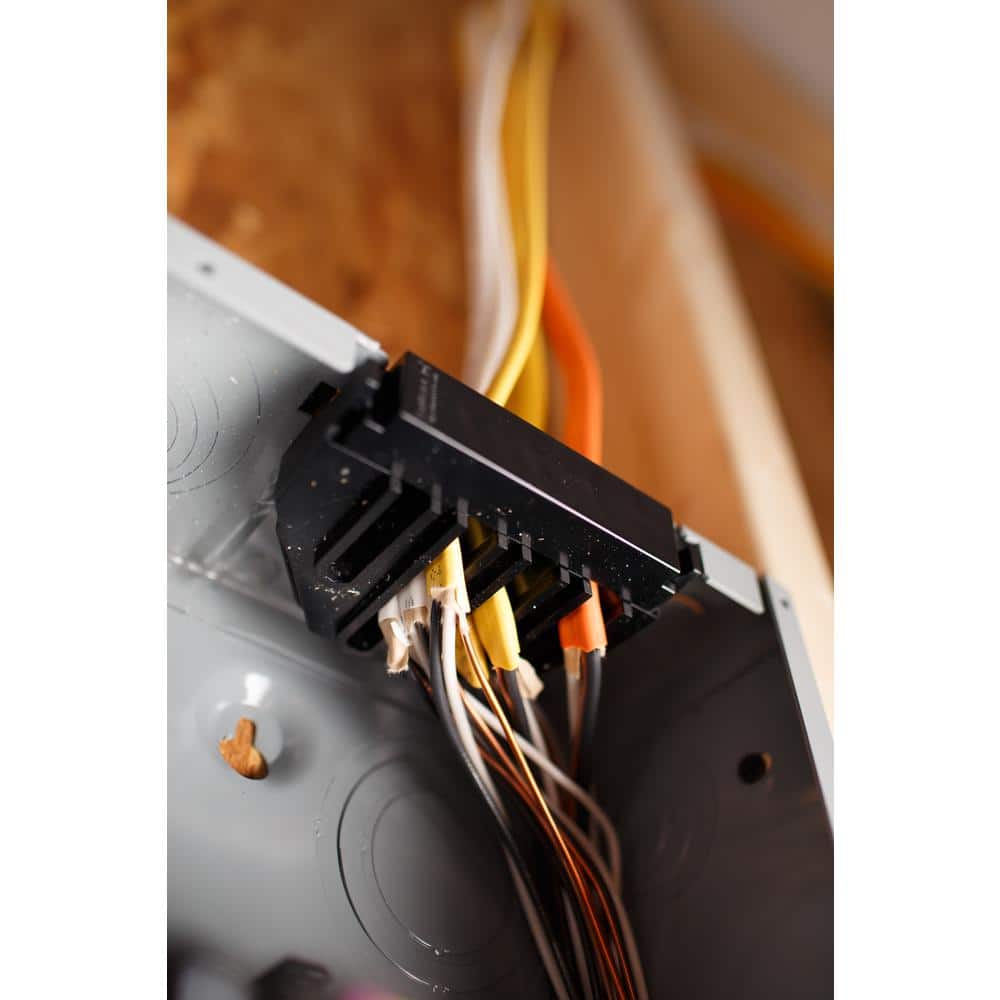

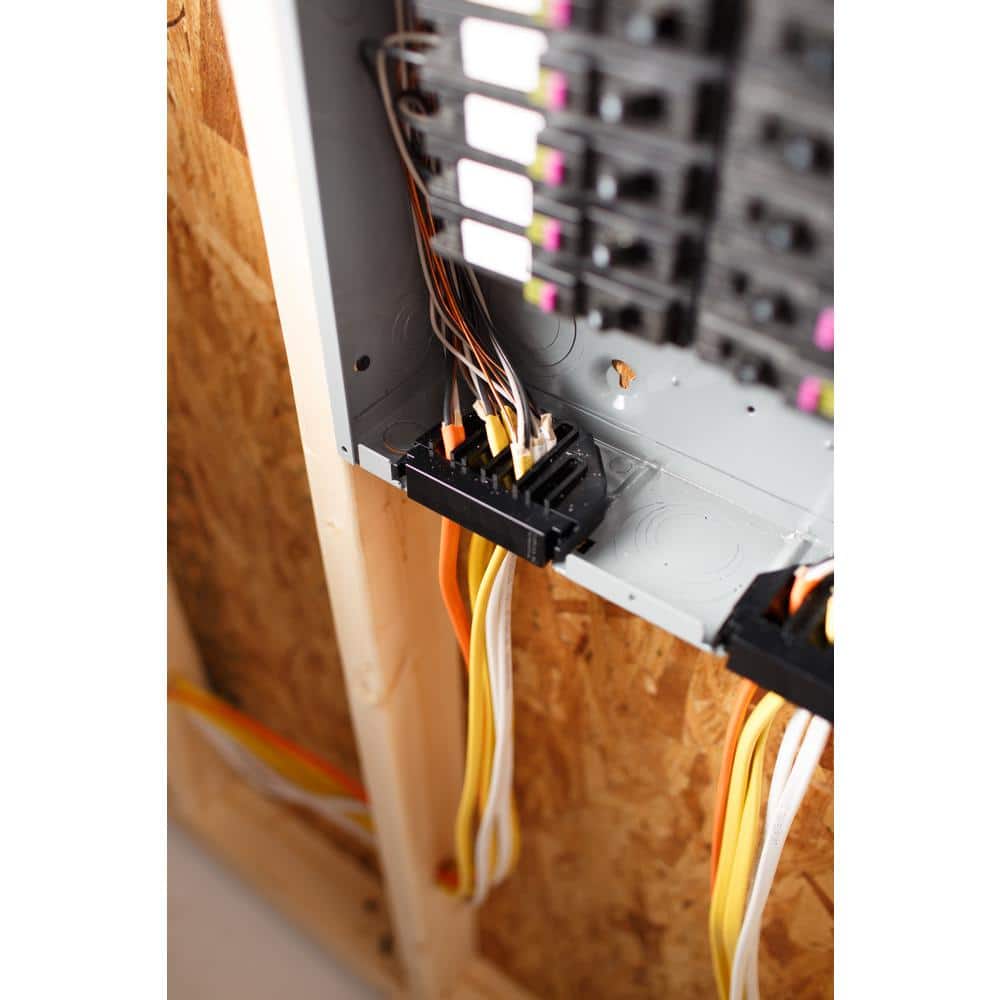

• Qwik-Grip System: Innovative cable entry for faster installation.

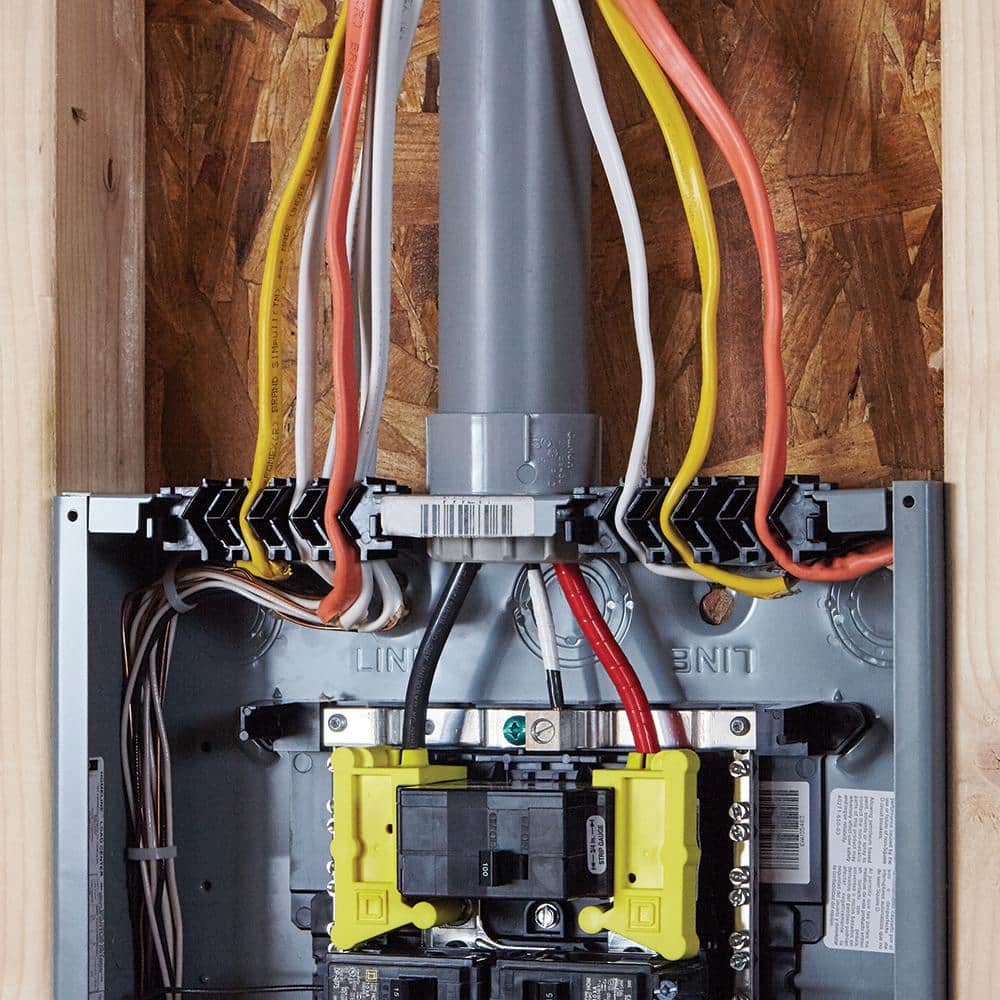

• Plug-On Neutral Advantage: Simplifies wiring and reduces clutter.
• Versatile Circuit Capacity: Supports 24 spaces and 48 circuits.
• Durable Construction: Aluminum bus bar with thermoplastic interior.

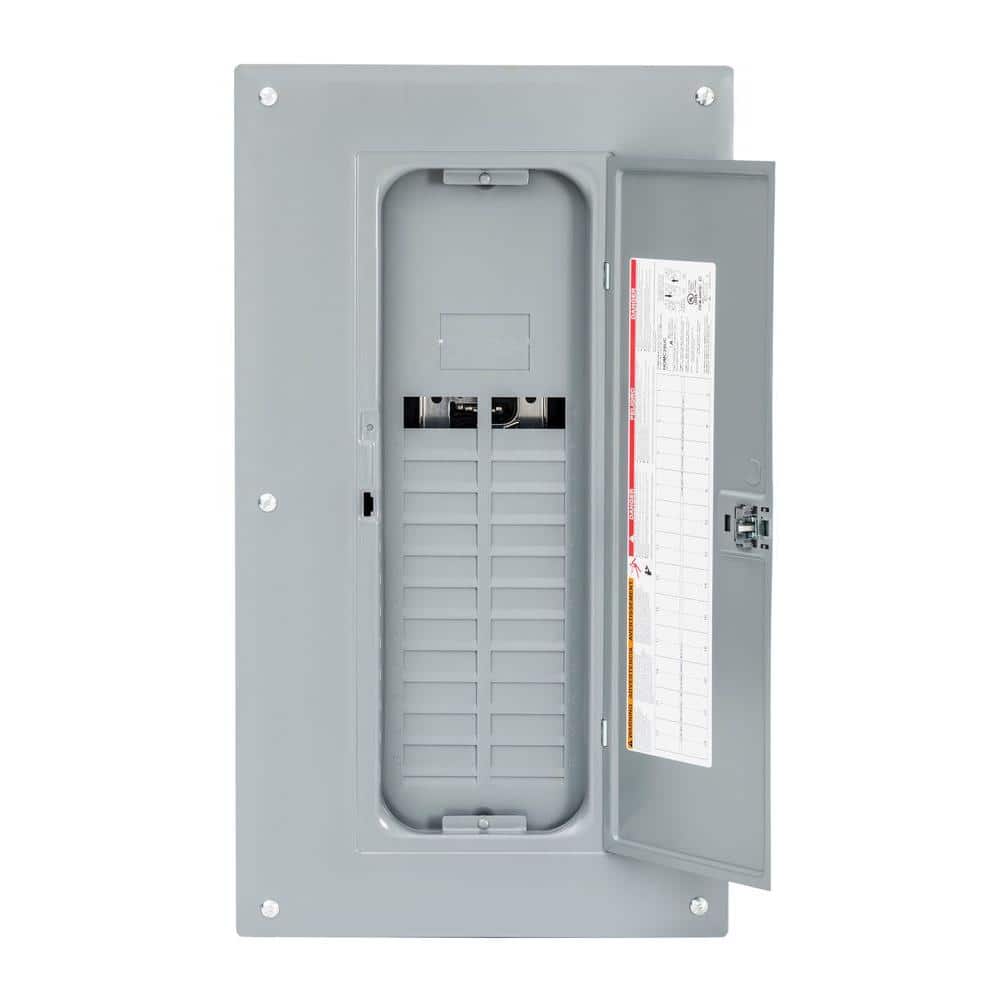

• Comes Complete: Includes a PK15GTAL ground bar and cover.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Breaker Box Type	Subpanel
Connection Type	Neutral
Indoor/Outdoor	Indoor
Maximum Amperage (A)	125 A
Mounting Type	Flush,Surface
NEMA Configuration	NEMA 1
Number of Circuits	48
Number of Spaces	24
Product Weight (lb.)	24.49 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

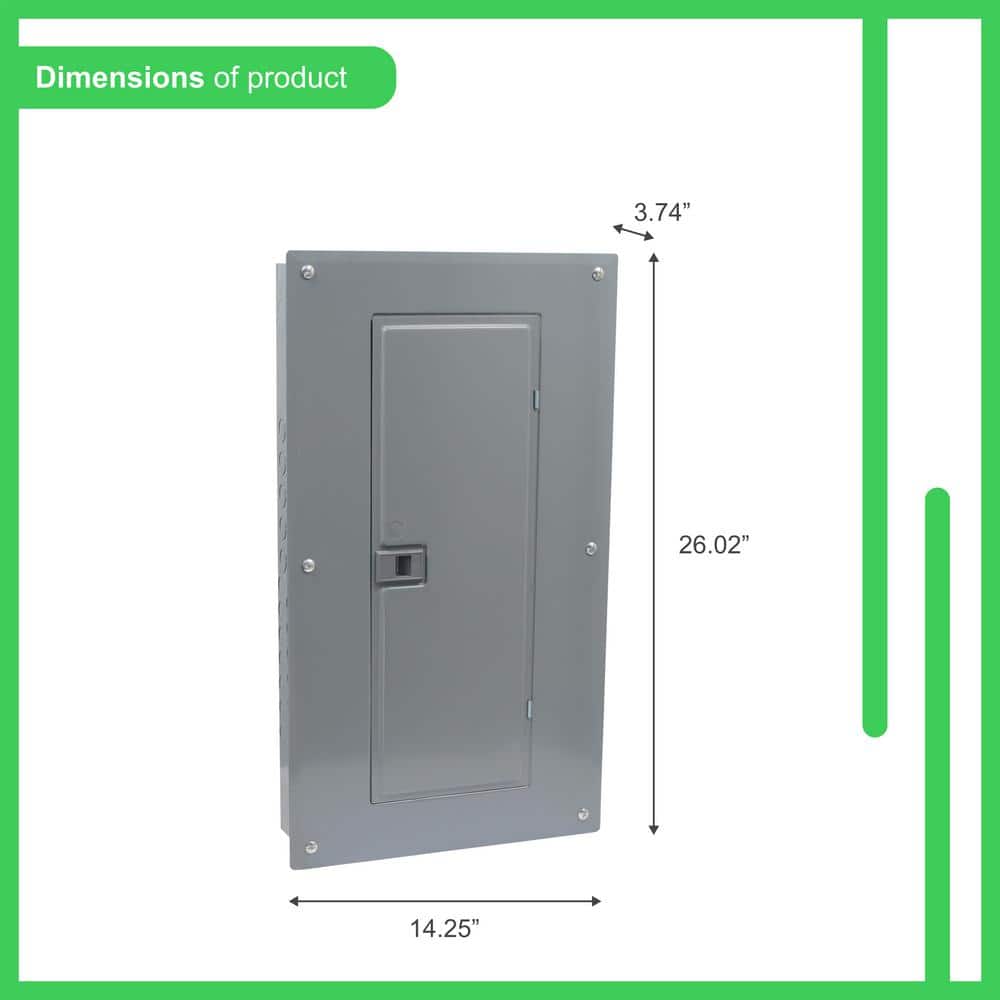

Product Depth (in.)	3.75 in
Product Height (in.)	26.04 in
Product Width (in.)	14.25 in

---

Frequently Asked Questions (FAQ):

Q: How do I install the Square D Homeline Load Center?
A: Installation is simplified with the Qwik-Grip Plug-On Neutral system, which eliminates the need for cumbersome knockout and connector installations. Ensure all power is disconnected before beginning installation, and follow the provided manual for detailed steps.

---

Q: Is this load center suitable for outdoor use?
A: No, this particular model is designed for indoor use only, as indicated by its NEMA 1 rating.

---

Q: What type of circuit breakers are compatible with this load center?
A: This load center is compatible exclusively with Homeline circuit breakers by Square D.

---

Q: Does it come with a main breaker?
A: No, this unit is a main lug type but it can be converted into a main breaker load center with a QOM1 main breaker, which is sold separately.

---

Q: What is the warranty for the Homeline Load Center?
A: Square D offers a 10-year warranty when the load center is used with Homeline branch circuit breakers in a residential setting.

---

Redefine Electrical Efficiency with Sleek Elegance

Imagine transforming your space with the refined efficiency of the Square D Homeline Load Center. Its intelligent design seamlessly integrates into any room, offering a clean, organized appearance while its rugged thermoplastic components ensure longevity. Pair it with contemporary decor to enhance its sleek, utilitarian aesthetic. An aesthetic as pragmatic as it is sophisticated, making it an indispensable addition to any modern home.

---

Revamp your electrical setup with the Square D Homeline Load Center, and experience faster, efficient installations today!
