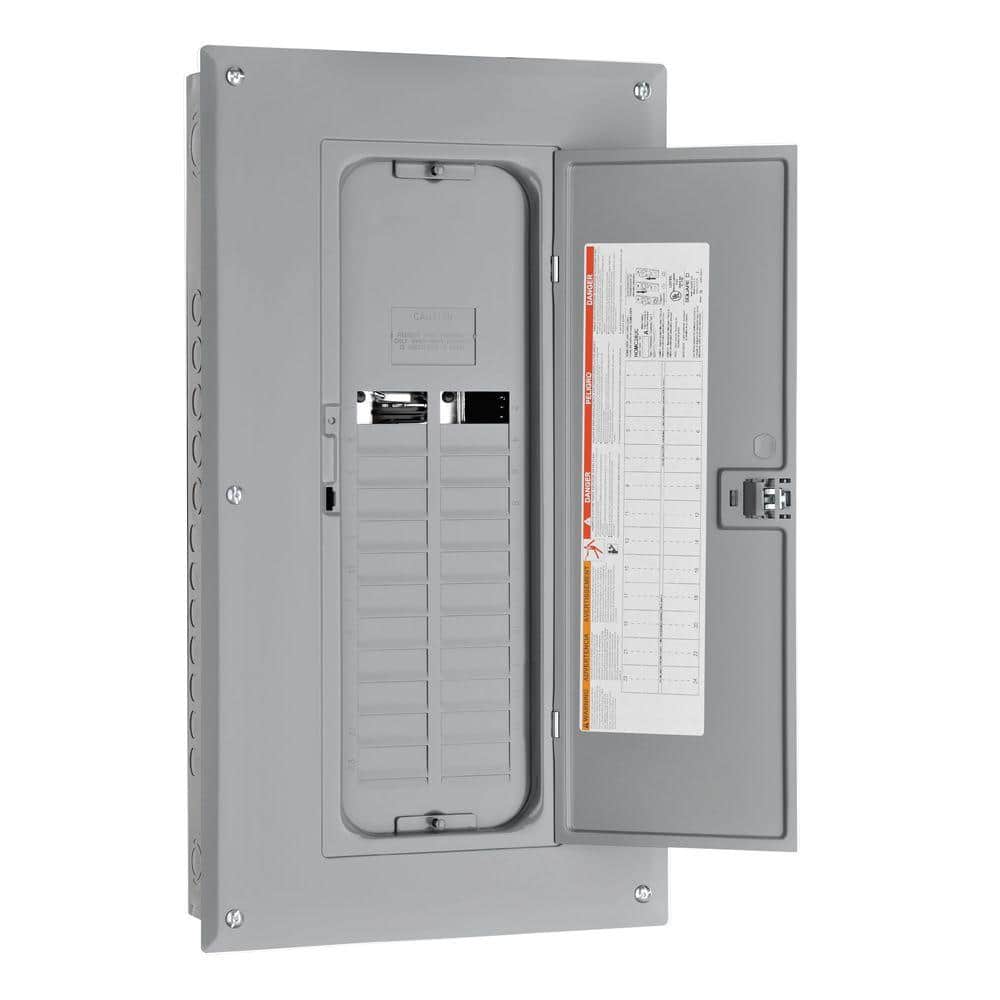

Square D Homeline 125 Amp Electrical Panel

The Square D Homeline 125 Amp Main Lug Electrical Panel is designed for efficient power distribution in residential and commercial settings. With its easy plug-on neutral feature, it facilitates faster installation while minimizing wiring. This robust panel supports up to 20 spaces and 40 circuits, making it ideal for various electrical setups.

---

Key Features:

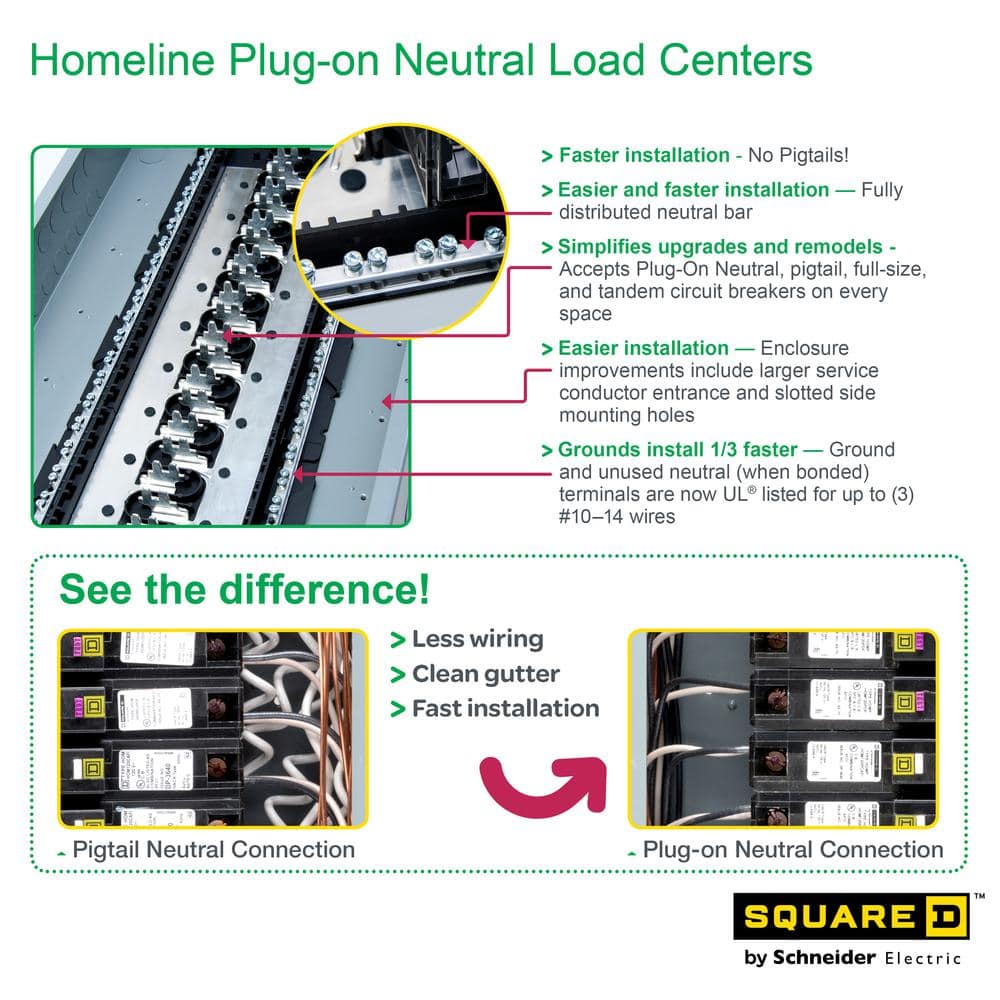

• Efficient Design: Supports plug-on neutral breakers for quicker wiring and clean layouts.
• Versatile Mounting: Convertible to main breaker with an optional QOM1 main breaker.
• Enhanced Protection: Includes a PK15GTAL ground bar and secure cover to safeguard circuits.
• Robust Build: Durable thermoplastic interior ensures reliable performance.
• USA-Made: Proudly manufactured in the USA, ensuring quality and reliability.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Breaker Box Type	Subpanel
Connection Type	Neutral
Electrical Product Type	Main Lug/ Main Lug Kit
Indoor/Outdoor	Indoor
Maximum Amperage (A)	125 A
Mounting Type	Flush,Surface
NEMA Configuration	NEMA 1
Number of Circuits	40
Number of Spaces	20
Phase Type	1 Phase
Product Weight (lb.)	24.2 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

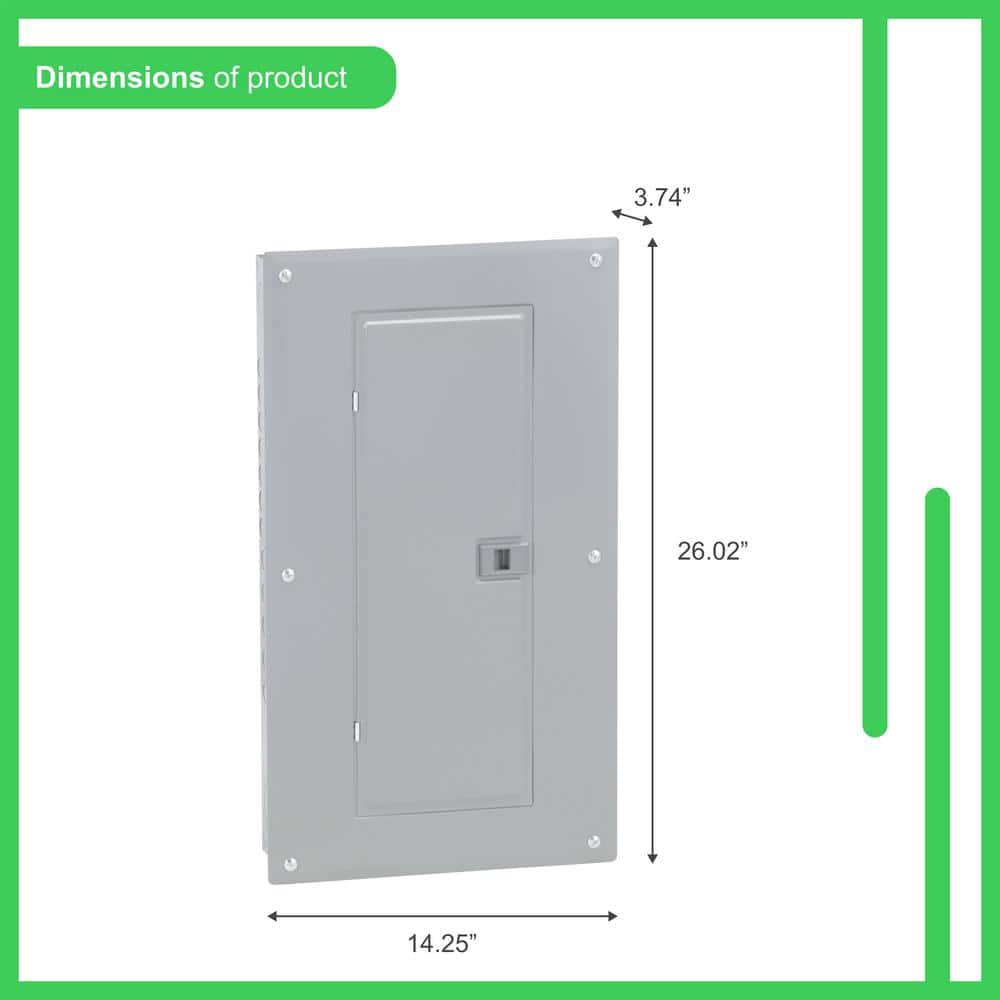

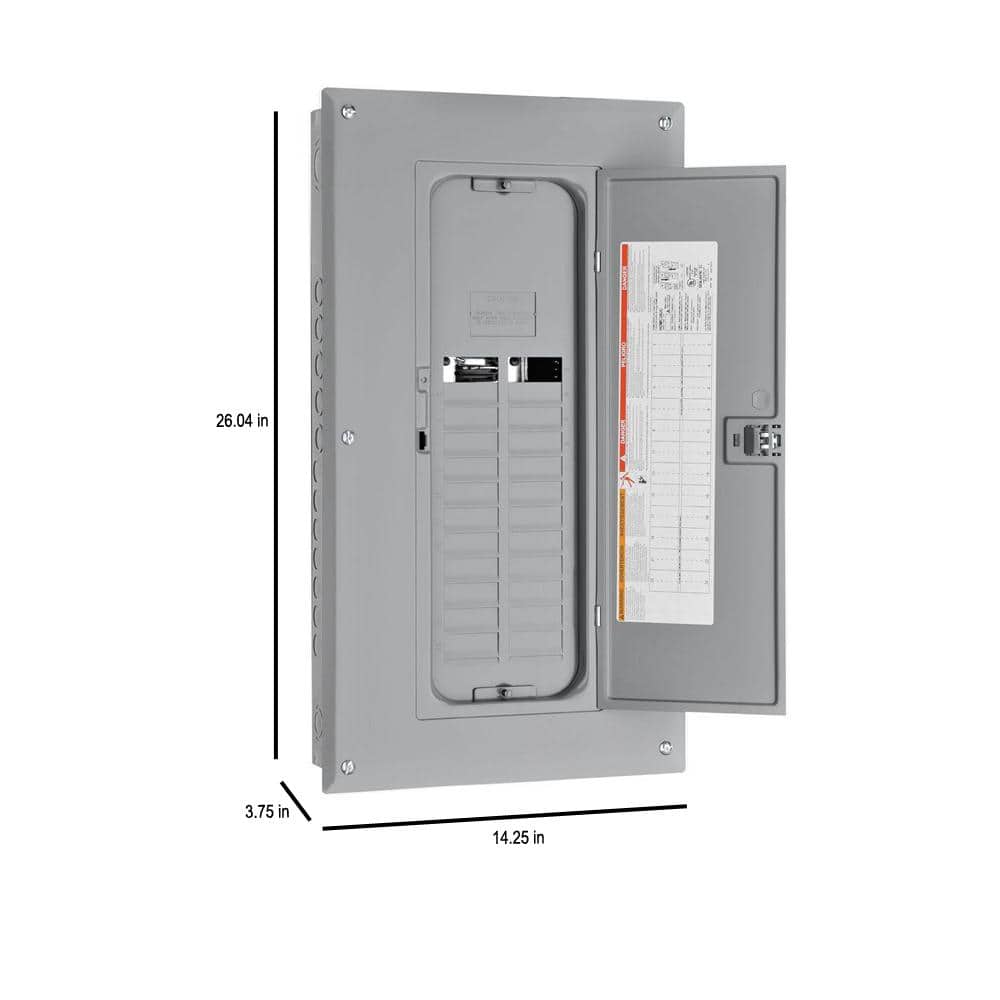

Product Depth (in.)	3.75 in
Product Height (in.)	26.04 in
Product Width (in.)	14.25 in

---

Frequently Asked Questions (FAQ):

Q: Can this electrical panel be used for both overhead and underground feeds?
A: Yes, the panel can accommodate both feed types by simply being rotated before installation.

---

Q: Is the ground bar included with the panel?
A: Yes, the panel comes with a PK15GTAL ground bar for easy setup.

---

Q: What kind of breaker is compatible with this panel?
A: This panel is compatible only with Square D Homeline circuit breakers.

---

Q: Can I convert this panel to a main breaker load center?
A: Yes, it can be converted using a QOM1 main breaker, which is sold separately.

---

Q: What is the warranty for this product?
A: The panel has a 10-year warranty against defects in material and workmanship when used with Square D Homeline branch circuit breakers.

---

Elevate Your Electrical Aesthetics

Transform the functional into beautiful with the Square D Homeline Electrical Panel. Its sleek and unobtrusive design merges seamlessly into any interior, offering an understated elegance while providing powerful functionality. Opt for an art-meets-engineering installation by showcasing it within a utility-focused space. This panel isn't just about practicality—it's an essential element of refined living, where form meets indispensable function.

---

Streamline your electrical installations with the Square D Homeline 125 Amp Electrical Panel for ultimate efficiency and reliability.
