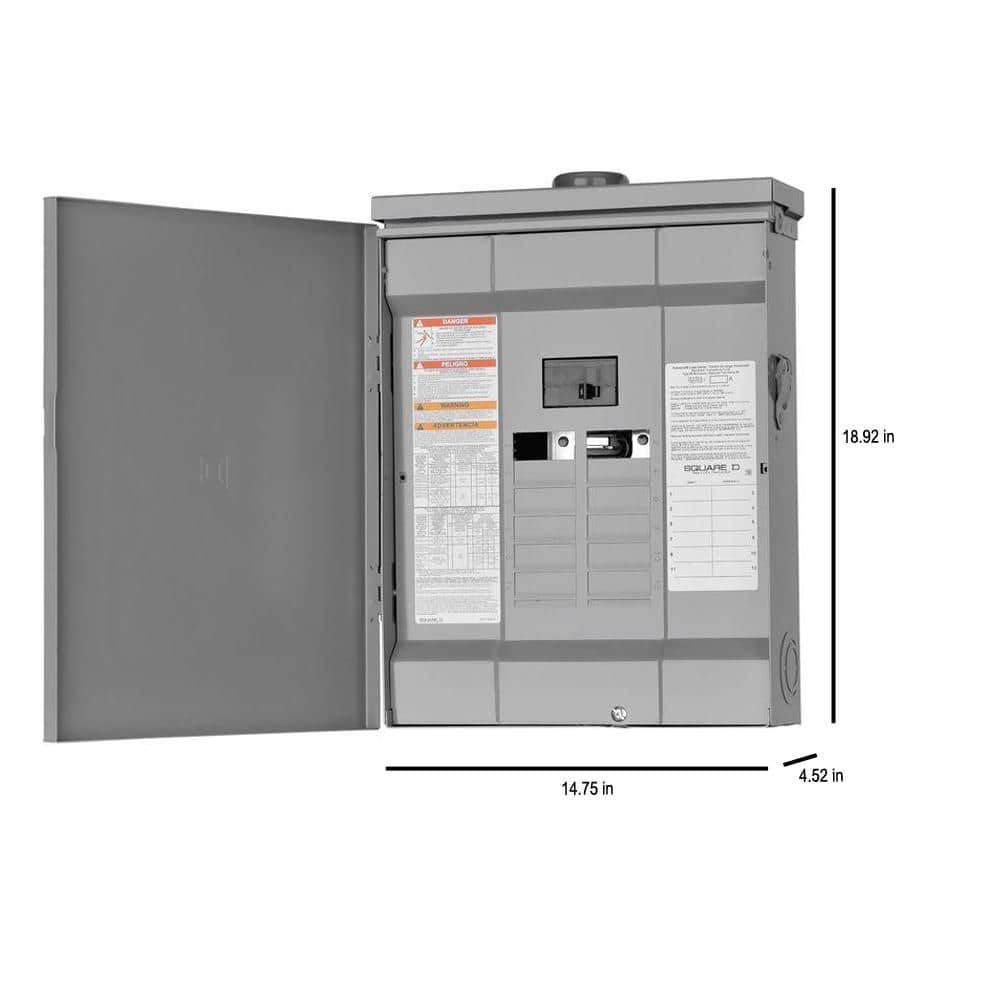

Square D Homeline 125 Amp Outdoor Load Center

The Square D Homeline 125 Amp Outdoor Load Center is an essential component for reliable power distribution. Designed for both residential and commercial use, this load center simplifies installation with its Plug-On Neutral feature and includes a rainproof cover, making it ideal for external environments.

---

Key Features:

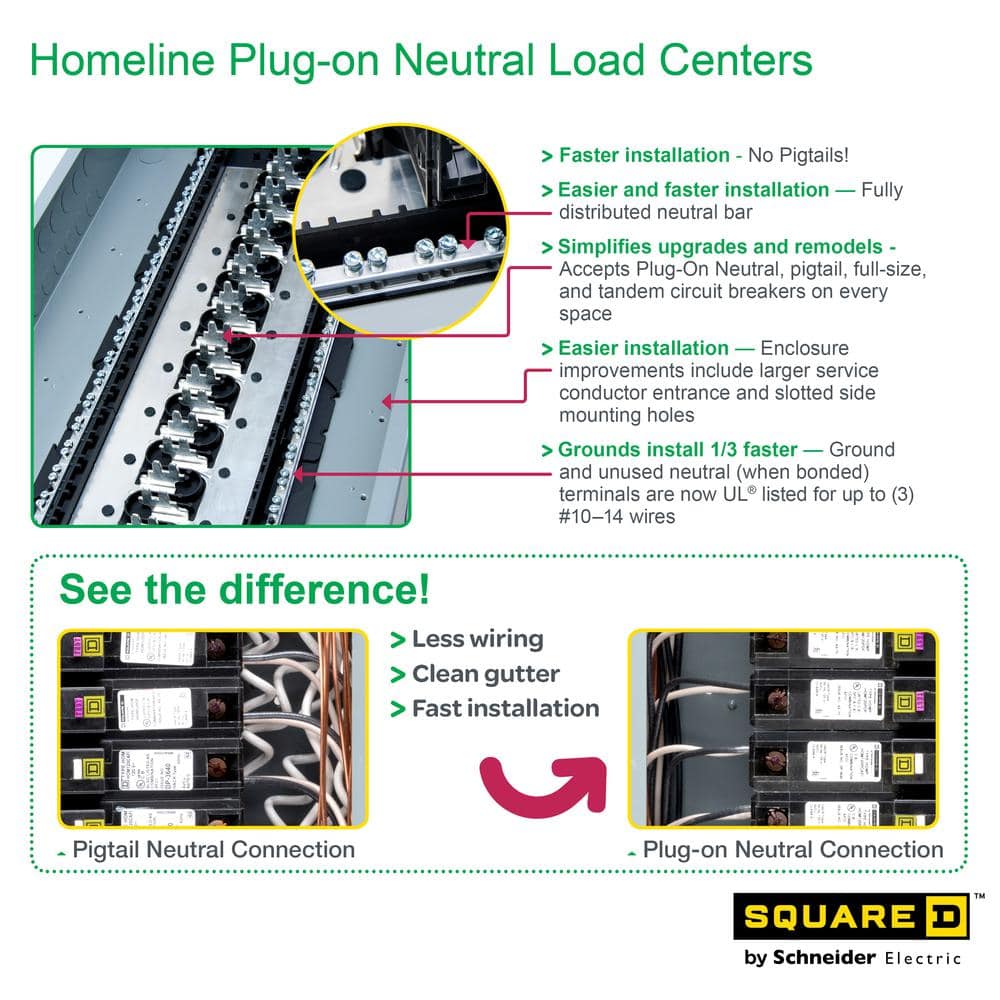

• Plug-On Neutral: Ensures a clean gutter and reduces wiring time.
• Rainproof Design: Features a stainless steel hasp for added security against theft and environmental protection.
• Versatile Compatibility: Accommodates any Square D Homeline circuit breaker.
• Fast Installation: Distributes neutral bar and split branch neutral with ample terminals to save time.
• Durable Construction: Built with a thermoplastic interior, offering robustness and reliability.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Breaker Box Type	Main Breaker Panel
Connection Type	Neutral
Included	Circuit Breaker,Cover
Indoor/Outdoor	Outdoor
Maximum Amperage (A)	125 A
Mounting Type	Surface
NEMA Configuration	NEMA 3R
Number of Circuits	24
Number of Pieces	6
Number of Spaces	12
Product Weight (lb.)	24.03 lb
Series Type	Homeline
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Product Depth (in.)	4.52 in
Product Height (in.)	18.92 in
Product Width (in.)	14.75 in

---

Frequently Asked Questions (FAQ):

Q: Is this load center suitable for outdoor installations?
A: Yes, the Square D Homeline Load Center is designed for outdoor use, featuring a rainproof cover.

---

Q: Can I use this load center with other types of breakers?
A: It is specifically engineered for use with Square D Homeline circuit breakers only.

---

Q: What is the maximum circuit capacity for this load center?
A: This load center can accommodate up to 24 circuits across 12 spaces.

---

Q: Is the load center secure against unauthorized access?
A: Yes, it includes a stainless steel hasp that can be padlocked for security.

---

Q: How long is the warranty for this product?
A: The load center has a 10-year warranty against defects in material and workmanship when used as specified.

---

Elevate Your Outdoor Space with Robust Electrical Infrastructure

Transform your outdoor living area with a seamlessly integrated, high-quality electrical solution like the Square D Homeline Load Center. Its rainproof, industrial-grade design ensures functionality without compromising aesthetic appeal. Perfect for lighting up alfresco dining settings or powering chic outdoor kitchens, this load center is the backbone of modern outdoor sophistication. Secure, durable, and elegantly efficient, it is an essential component to elevate any luxurious outdoor project.

---

Upgrade your power distribution with the Square D Homeline Load Center—streamline installation, enhance security, and ensure reliability today.
