RELIABILT 150 Series New Construction 35-1/2-in x 59-1/2-in x 3-1/4-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included

$221.34

/
Shipping calculated at checkout.

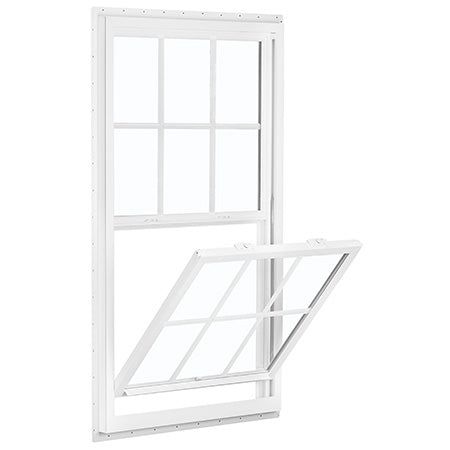

The 3100 Series single hung window is a versatile and high-performing option for replacing windows in your home. With a contemporary and beveled exterior, it features an operable tilt-in bottom sash for easy maintenance. Designed for replacement, this window is DP-50 rated (Design Pressure rating) for windows up to 36-in W x 74-in H. It also comes with a head expander, sill angle, and 3 jamb adjusters for easy installation. The window's energy-efficient Low-E glass helps to reflect heat away in the summer and retain warmth in the winter. With a 5/8-in contoured grid pattern between the glass panes, this window adds style to your home without the added cleaning hassle of exterior grids.

Specification Details
Color/Finish Family White
Interior Color/Finish White
Exterior Color/Finish White
Series Name 150 Series
Hardware Color/Finish White
Dimensions
Actual Height (Inches) 59.5
Jamb Depth (Inches) 3.25
Actual Size (W x H) 35-1/2-in x 59-1/2-in
Jamb Depth Measurement 3-1/4-in
Actual Width (Inches) 35.5
Overfit Flange Size N/A
Clear Opening Height (Inches) 25.8125
Rough Opening Height (Inches) 60.0
Clear Opening Size (W x H) 25-13/16-in x 30-11/16-in
Rough Opening Size (W x H) 36-in x 60-in
Clear Opening Width (Inches) 30.6875
Rough Opening Width (Inches) 36.0
Common Size (W x H) 36-in x 60-in
TTT Flange Size N/A
Grid Width 5/8-in
Weight 43.0
Features
Argon Gas Insulated Yes
J Channel Integrated
Balance System Block and tackle
Lock Type Cam
Clear Opening Sq Ft 5.5
Design Pressure (DP) Rating 50.0
Mulling N/A
For Use with Mobile Homes No
Nail Fin Integrated
Frame Material Vinyl
Number of Locks 2
Frame Profile Brick mould
Obscure Glass No
Glass Insulation Low-E argon
Paintable No
Glass Strength Single strength
Project Type New construction
Glazing Type Double pane
Screen Frame Type Roll-form
Grid Included Yes
Screen Included Half
Grid Pattern 1Hx2V-1Hx2V
Screen Type Fiberglass mesh
Grid Profile Contoured
Solar Heat Gain Coefficient 0.2
Grid Type Between the glass
Tilt Mechanism Flush
High Altitude Rated No
Tilting Yes
Impact Resistant No
Ventilation Latches N/A
Insect Screen Included Yes
Wood Jamb Extension None
Warranty
Warranty Limited lifetime
