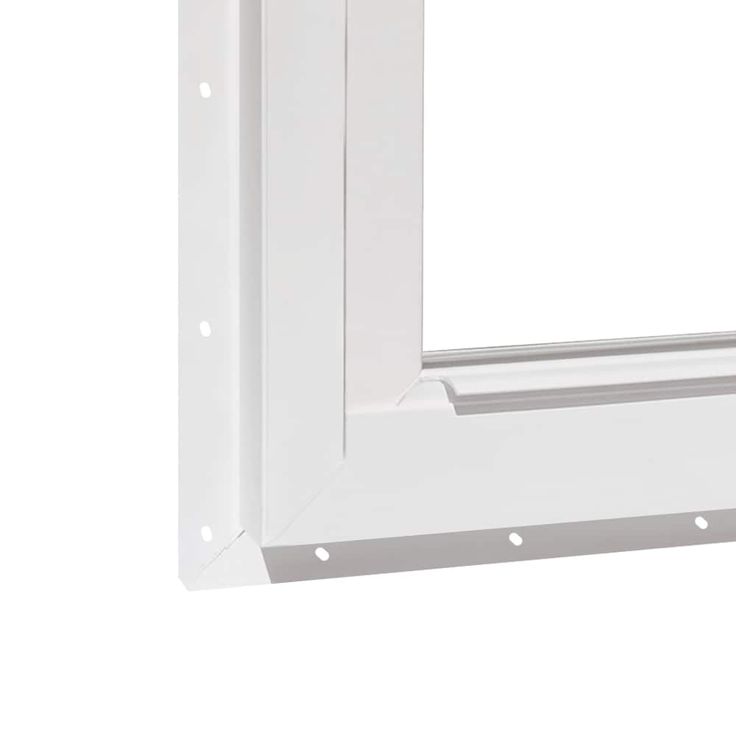

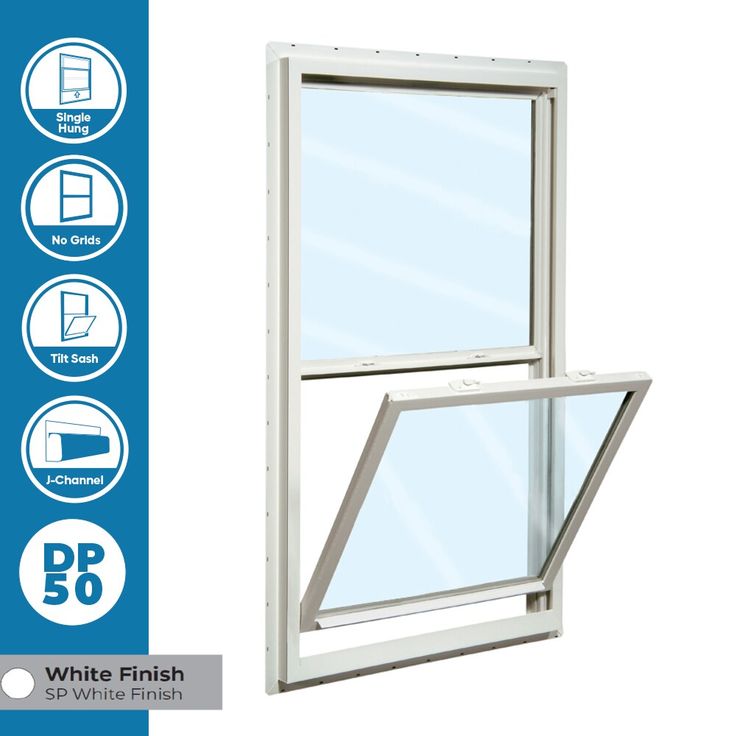

The RELIABILT Series 150 windows are a top choice among consumers and feature a brick mould exterior that adds to the aesthetic appeal of any home. Whether for new construction or renovation projects, these windows are designed for easy installation with a pre-punched, integrated nail fin and J-channel included. For added convenience, the bottom sash tilts in and operates smoothly with an integrated slim-line lift rail and block and tackle balance system. These windows have a DP-50 rating, making them suitable for windows up to 36-in W x 74-in H. Additionally, they feature energy-efficient Low-E glass that reflects heat away during the summer and helps retain warmth during the winter. The windows come in white as a standard color, with the option to choose from a variety of sizes, factory mulling, glass, wood jamb extensions, grid patterns, and colors. For more information on custom options, please consult with your local sales associate.
Specification
Details
Color/Finish Family
White
Interior Color/Finish
White
Exterior Color/Finish
White
Series Name
150 Series
Hardware Color/Finish
White
Dimensions
Actual Height (Inches)
61.5
Jamb Depth (Inches)
3.25
Actual Size (W x H)
31-1/2-in x 61-1/2-in
Jamb Depth Measurement
3-1/4-in
Actual Width (Inches)
31.5
Overfit Flange Size
N/A
Clear Opening Height (Inches)
26.8125
Rough Opening Height (Inches)
62.0
Clear Opening Size (W x H)
26-13/16-in x 26-11/16-in
Rough Opening Size (W x H)
32-in x 62-in
Clear Opening Width (Inches)
26.6875
Rough Opening Width (Inches)
32.0
Common Size (W x H)
32-in x 62-in
TTT Flange Size
N/A
Grid Width
N/A
Weight (lbs.)
44.0
Features
Argon Gas Insulated
No
J Channel
Integrated
Balance System
Block and tackle
Lock Type
Cam
Clear Opening Sq Ft
4.97
Design Pressure (DP) Rating
50.0
Mulling
N/A
For Use with Mobile Homes
No
Nail Fin
Integrated
Frame Material
Vinyl
Number of Locks
2
Frame Profile
Brick mould
Obscure Glass
No
Glass Insulation
Dual-pane
Paintable
No
Glass Strength
Single strength
Project Type
New construction
Glazing Type
Double pane
Screen Frame Type
Roll-form
Grid Included
No
Screen Included
Half
Grid Pattern
N/A
Screen Type
Fiberglass mesh
Grid Profile
N/A
Solar Heat Gain Coefficient (SHGC)
0.29
Grid Type
N/A
Tilt Mechanism
Flush
High Altitude Rated
No
Tilting
Yes
Impact Resistant
No
Ventilation Latches
N/A
Insect Screen Included
Yes
Wood Jamb Extension
None
Warranty
Warranty
Limited lifetime
