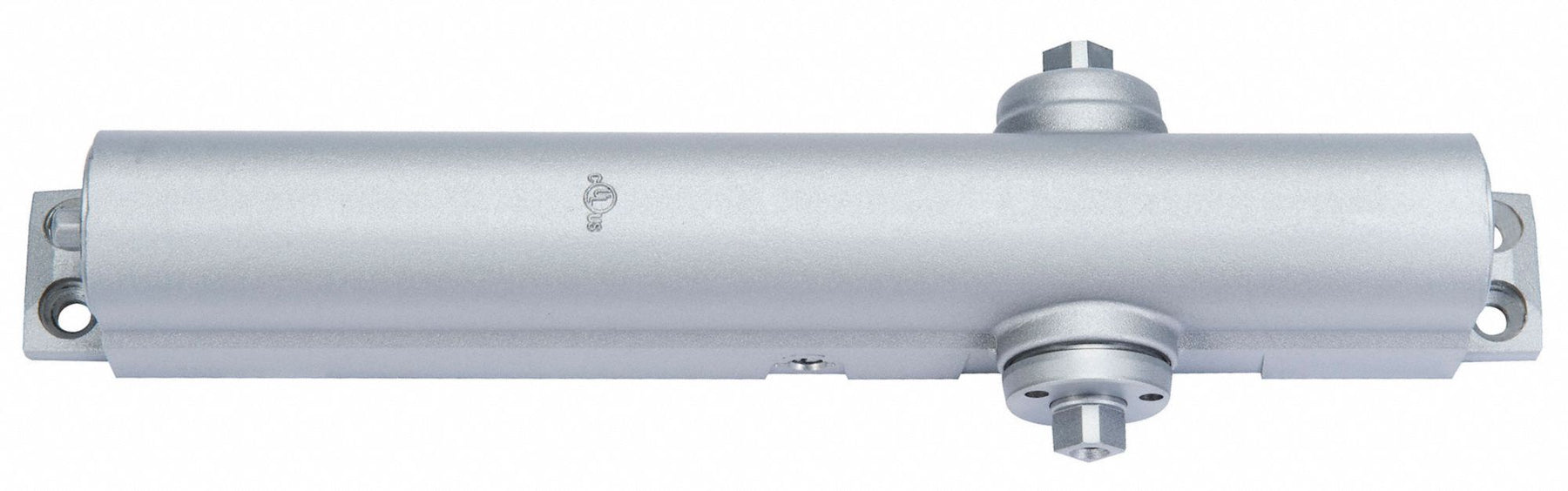

NORTON DOOR CONTROLS Grade 1 Heavy Duty Aluminum Door Closer
Regular price $330.07NORTON Heavy Duty Door Closer
Enhance your door functionality with the NORTON DOOR CONTROLS Grade 1 Heavy Duty Door Closer. Designed for both interior and exterior use, this parallel mount closer features a sleek, under-the-frame installation that ensures both aesthetic appeal and robust performance.
Key Features:
- Heavy Duty Performance: Supports doors up to 250 lbs for high-traffic areas.

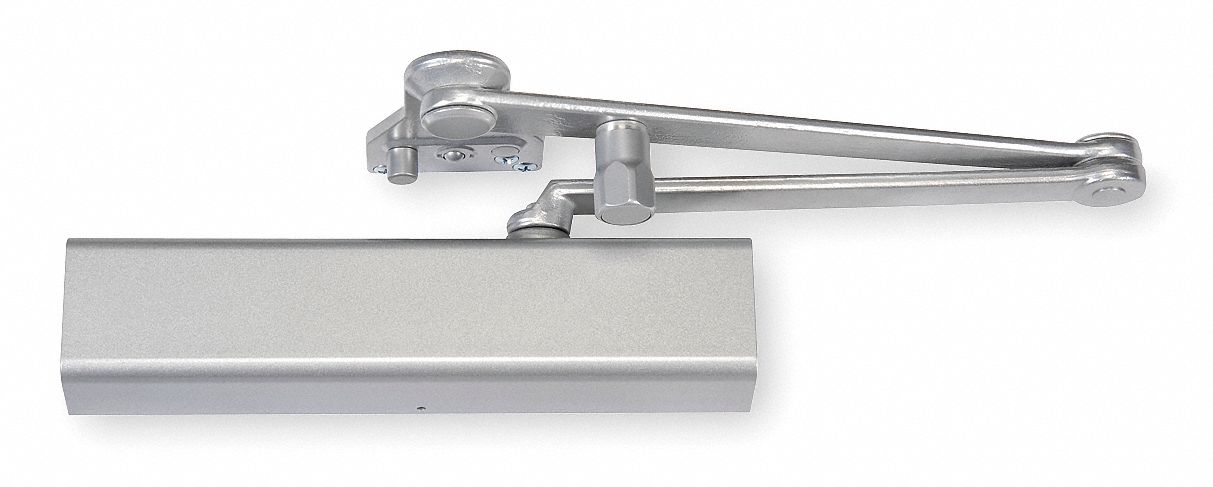

- Sleek Design: Parallel arm-mount folds discreetly under the door frame.
- Durable Material: Constructed from sturdy aluminum with an attractive finish.
- Fire Rated Safety: UL and cUL listed with a 3-hour fire rating for safety compliance.
- Adjustable Functionality: Features adjustable spring sizes for versatile door compatibility.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | CLP8501-T x 689 |
| Brand | NORTON DOOR CONTROLS |
| Closer Mounting Type | Parallel |
| Closer Series | 8000 |
| Closer Type | Hold Open |
| Color | Gray |
| Compatible with Brand | NORTON RIXSON |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 110 ° |
| Features | Staked Valves |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 2-1/8 in |
| Housing Height | 2-7/8 in |
| Energy Source | Hydraulic |
| Includes | Plastic Cover |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 48 in |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 3/4 in |
| Spring Size - Minimum | 1 |
| Material | Aluminum |
| Door Weight - Maximum | 250 lb |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-1/8 in |
| Spring Size | 6 |
| Arm Type | Parallel |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 13 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 12 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Aluminum ; Gray |
Frequently Asked Questions (FAQ):
Q: How is this door closer installed?
A: The NORTON Door Closer is installed using a parallel mounting style on the push side of the door. It includes a plastic cover and all necessary hardware for straightforward installation.
Q: Is this door closer suitable for exterior doors?
A: Yes, this door closer is designed for both interior and exterior use, allowing for versatile applications in residential and commercial settings.
Q: What is the maximum door weight capacity of this closer?
A: This closer can accommodate doors weighing up to 250 lbs, making it suitable for heavy-duty applications in busy areas.
Q: Does this door closer meet ADA requirements?
A: Yes, this product is ADA compliant, providing accessibility solutions for all users.
Q: Is the door closer adjustable for different door sizes?
A: Yes, it features an adjustable spring that supports a range of door sizes, enhancing its functionality and convenience.
Unmatched Elegance Meets Uncompromising Durability
Transform your doorway into a seamless blend of functionality and sophistication with the NORTON Heavy Duty Door Closer. Its sleek aluminum design and parallel arm mount create an effortless visual harmony while providing unmatched durability. Perfectly suited for those high-traffic areas demanding style and strength, this closer ensures that even the most demanding spaces maintain their grace. Essential for any project that treasures both aesthetic integrity and robust utility, this door closer is the epitome of elevated living.
Upgrade to the NORTON Heavy Duty Door Closer today and ensure both style and strength for your doors in any setting.
