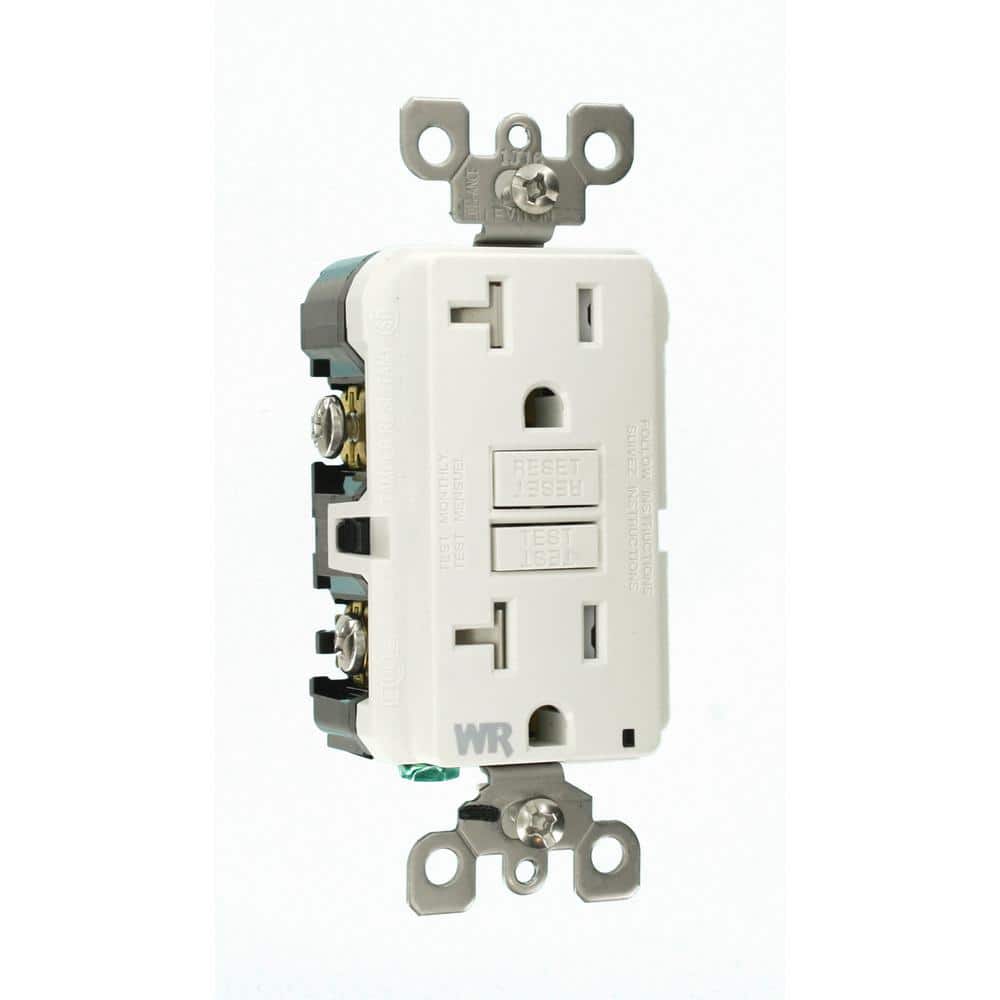

20A Self-Test TR/WR GFCI Duplex Outlet, White

Leviton’s SmartlockPro 20A GFCI provides continuous ground-fault protection with auto self-testing to verify safe operation. Its slim, spec-grade design installs easily in shallow boxes and is both tamper-resistant and weather-resistant for indoor or outdoor use.

---

Key Features:

• Auto-Monitoring Safety: Self-tests regularly and locks out reset if protection is compromised.
• TR/WR Durability: Tamper-resistant shutters and weather-resistant construction for indoor/outdoor locations.

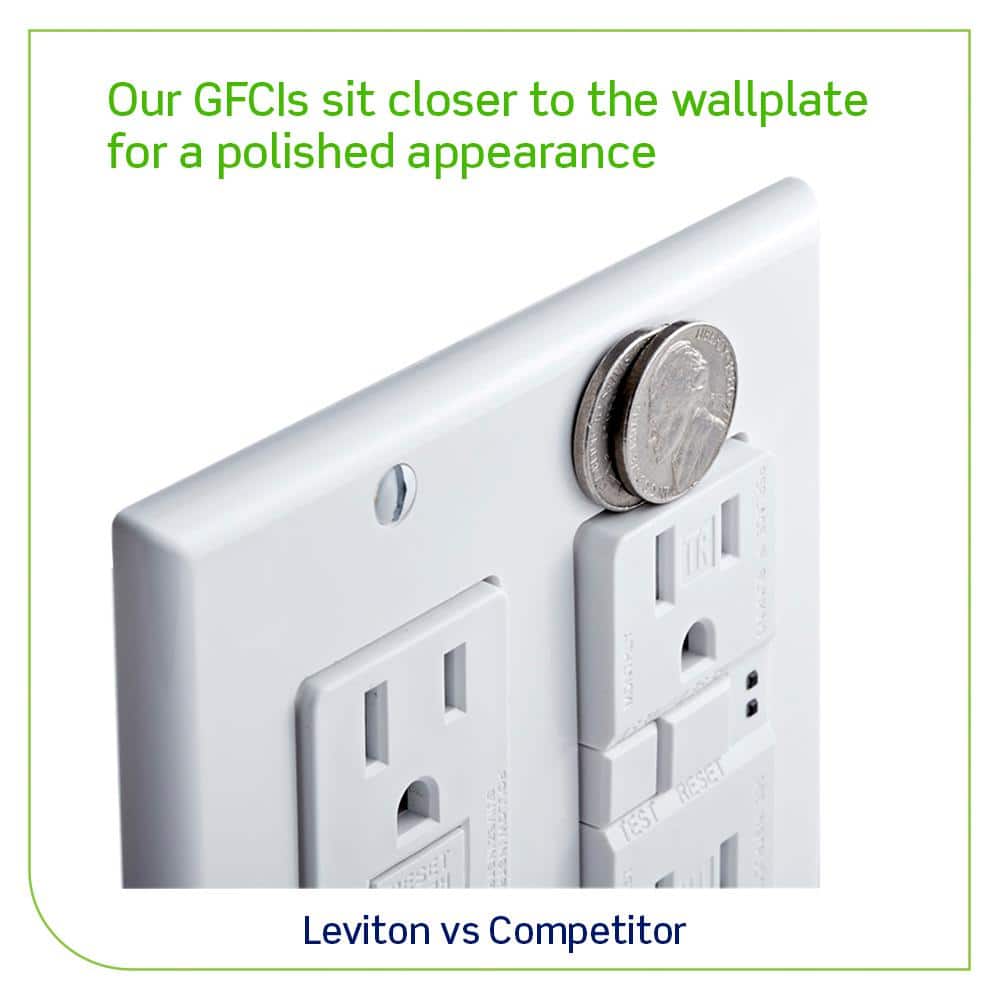

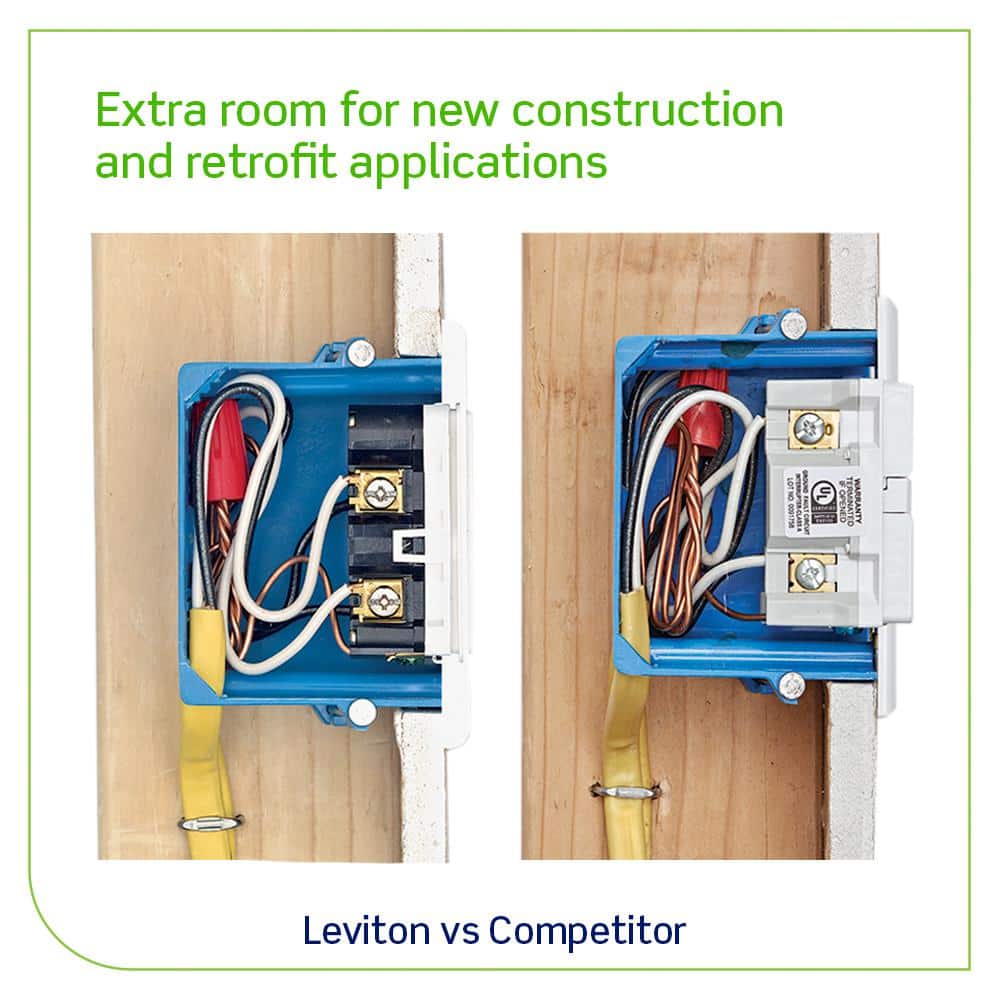

• Slim Profile: Reduced depth simplifies installation in tight or retrofit electrical boxes.

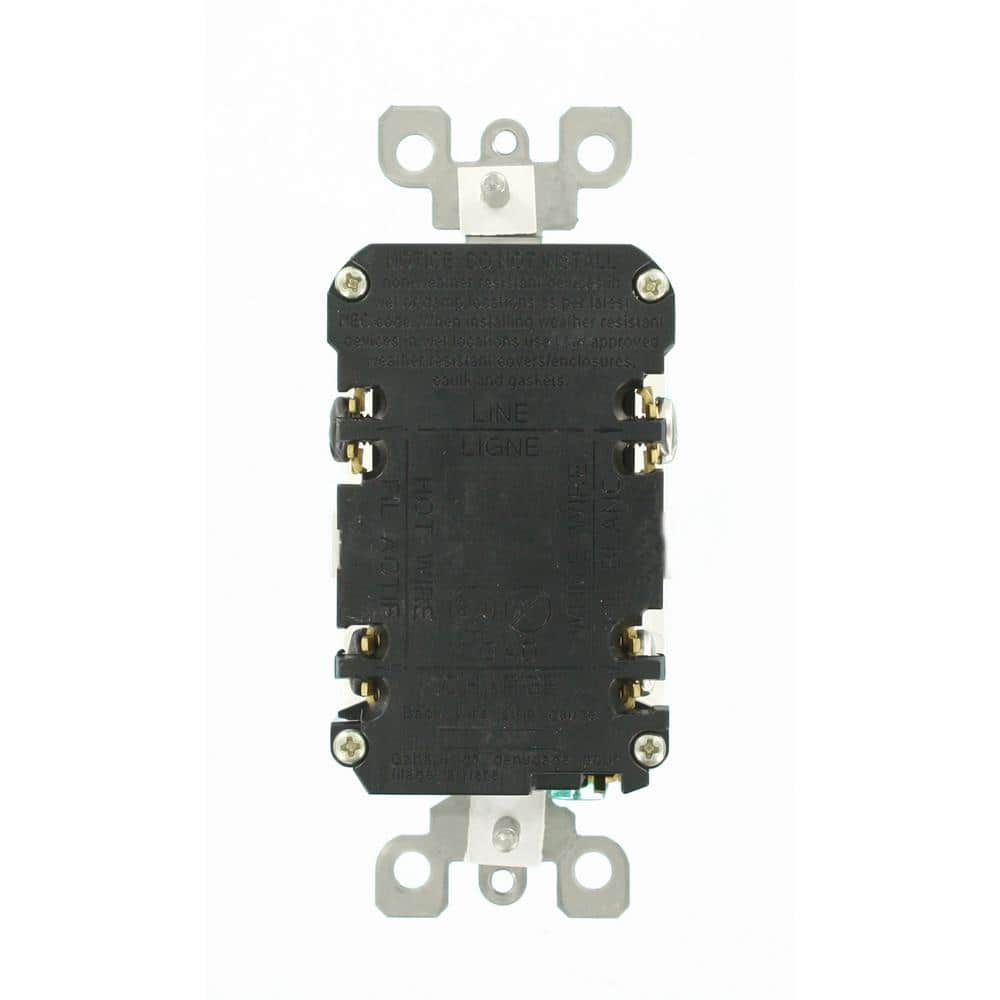

• Easy Wiring: Back and side wire capable with external back-wire clamps for secure connections.
• Status Indicator: LED provides intuitive power, protection, and line/load reversal feedback.

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Amperage	20 A
Voltage	125 V
Outlet Style	Duplex
NEMA Configuration	5-20R
Receptacle Configuration	5-20
Number of Receptacles	2
Color/Finish	White
Color Family	White
Grounding	Grounded
Indoor/Outdoor	Indoor, Outdoor
Durability	Tamper Resistant; Weather Resistant
Material	Polycarbonate face; Nylon outlet components; Stainless steel strap and screws
Mounting Type	Screw-In
Wire Connection Type	Screw Terminal
Wire Connection Location	Side; Back-wire capable with external clamps
Package Quantity	1
Safety Rating	GFCI
Certifications and Listings	CSA Certified; UL Listed; UL Fed Spec WC-596 rated
Manufacturer Warranty	2-Year Limited
Product Depth	1.02 in
Product Height	3.81 in
Product Width	1.68 in
Features	Self-test (auto-monitoring), patented reset lockout, status indicator light, improved immunity to high-frequency noise, surge/over-voltage resistant, reduced depth for easier installation, withstanding high torque and resisting wire pullout, compatible with Decora wall plates

---

Frequently Asked Questions (FAQ):

Q: Is a wall plate included?
A: No, the wall plate is sold separately.

---

Q: Can this GFCI be installed outdoors?
A: Yes, it is weather resistant; use in approved outdoor enclosures and covers.

---

Q: What wiring options are available?
A: It supports both side and back wiring with screw terminals and back-wire clamps.

---

Q: What is the amperage and voltage rating?
A: Rated 20 amps, 125 volts, NEMA 5-20R configuration.

---

Q: Is it compatible with Decora wall plates?
A: Yes, it is compatible with Decora devices and wall plates.

---

Clean, Safe Power with a Sleek, Low-Profile Face

This GFCI’s crisp white face and slim silhouette melt into modern backsplashes and spa-like baths, keeping the focus on refined surfaces. The subtle LED and sculpted reset/test buttons feel tailored and intentional. Pair it with a matching Decora wall plate for a seamless, gallery-like finish from kitchen to patio. Safety becomes an elegant essential in a luxuriously edited space.

---

Choose Leviton’s self-testing 20A GFCI to upgrade safety and style in minutes—indoors or out.
