M18 FUEL 18V Brushless Compact Router (Tool-Only)
Compact yet powerful, this 18V brushless trim router delivers corded performance up to 31,000 RPM with precise micro/macro depth adjustments. Part of the M18 system, it features dual LED lights, a 1/4 in. collet, and a fixed base for clean, accurate cuts in hardwoods without a cord.
Key Features:
-

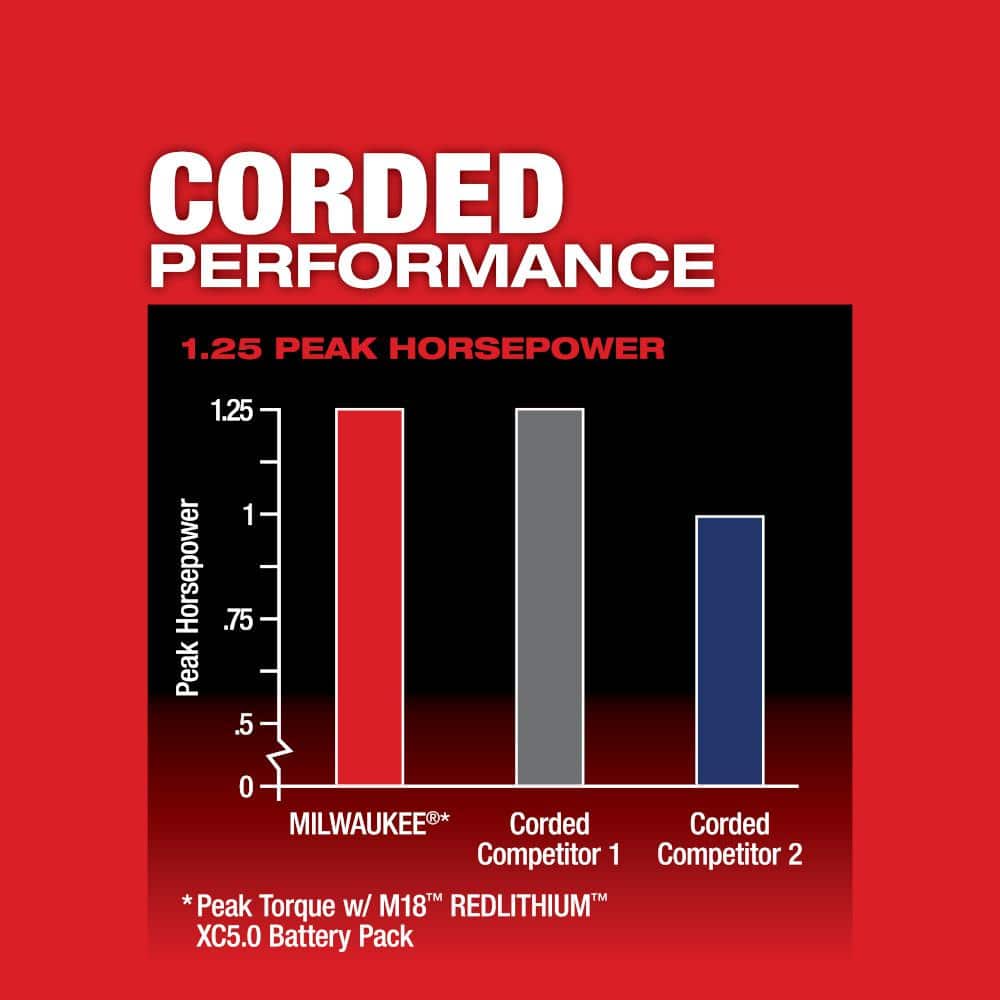

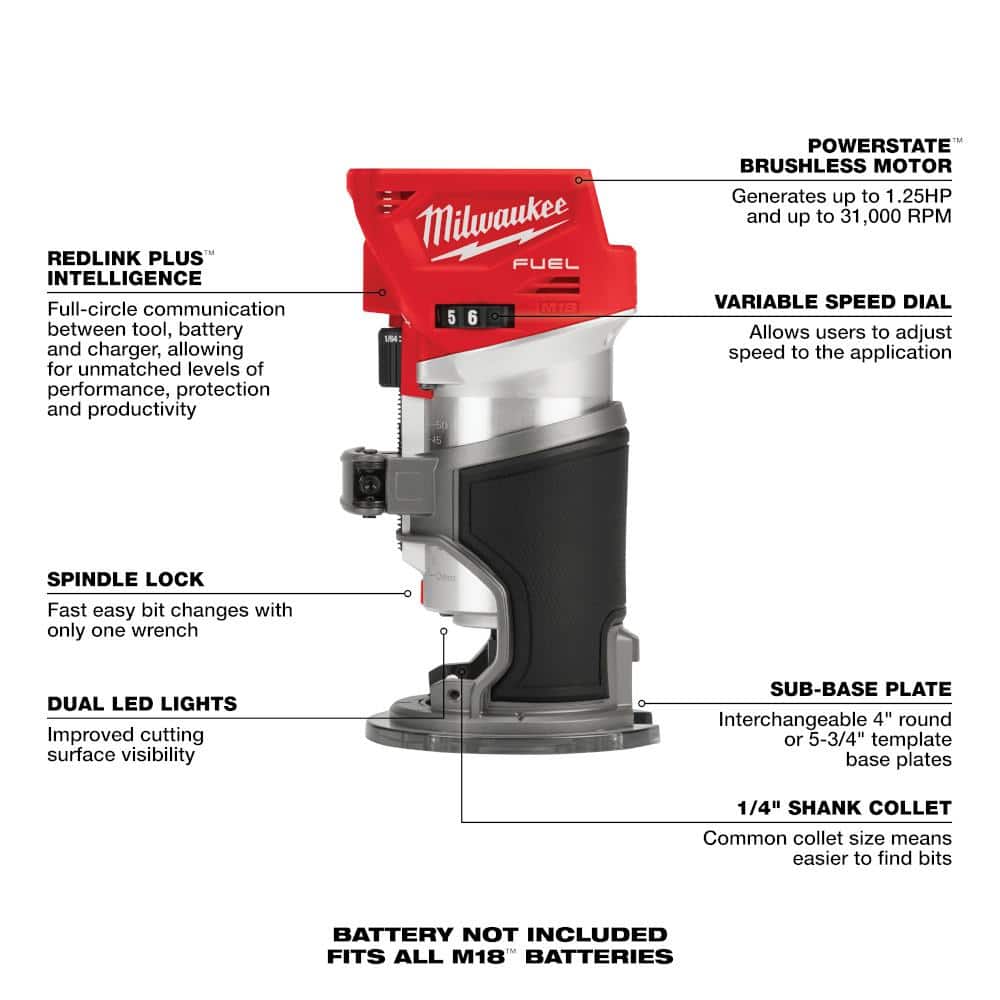

Corded Power, Cordless Freedom: POWERSTATE brushless motor delivers up to 1.25 HP and 31,000 RPM for clean cuts in hard woods.
-

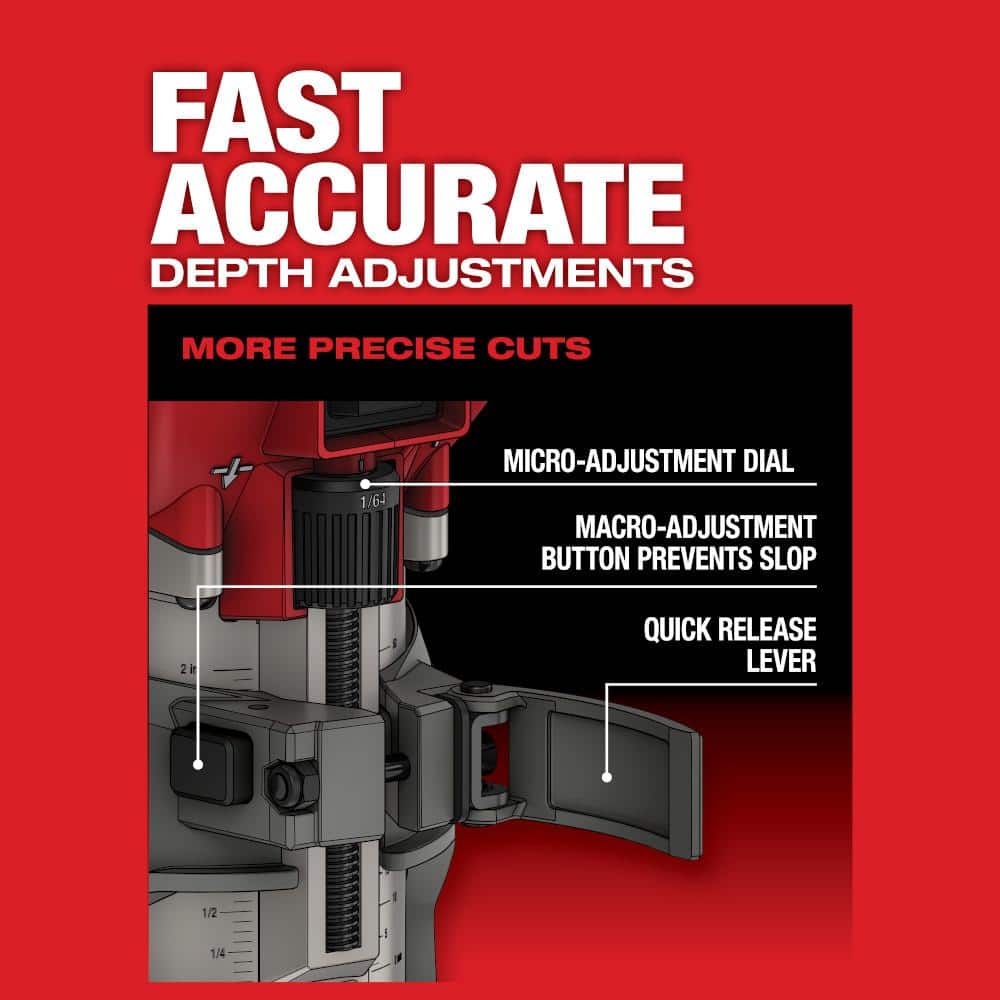

Precision Depth Control: Micro-adjust dial and macro-adjust button provide fast, accurate adjustments with 1.5 in. range.
-
Versatile Speed Settings: Variable speed dial from 10,000–31,000 RPM matches speed to the application.
-
Clear Visibility: Dual LED lights and interchangeable 4 in. and 5-3/4 in. sub-base plates enhance stability and sightlines.
-
M18 System Compatibility: Accepts 1/4 in. shank bits; works with optional plunge and offset bases (sold separately).
Specifications Table:
| Specification |
Details |
| Model |
2723-20 |
| Voltage |
18V |
| Battery Platform |
M18 REDLITHIUM (battery not included) |
| Motor Type |
Brushless (POWERSTATE) |
| Speed Range |
10,000–31,000 RPM |
| Horsepower |
1.25 HP (peak) |
| Collet Size |
1/4 in. |
| Base Type |
Fixed Base |
| Depth Adjustment |
Micro-adjust dial and macro-adjust button; 1.5 in. adjustable range |
| Lighting |
Dual LED |
| Spindle Lock |
Tool-free; single-wrench bit changes |
| Dust Collection |
Dust extraction attachment included |
| Power Tool Features |
Compact, Depth Adjustment, Multiple Base Compatible, Variable Speed |
| Portability |
Handheld |
| Product Weight |
2.95 lb |
| Dimensions (HxWxD) |
6.86 in x 3.23 in x 4.79 in |
| Batteries Included |
No (Tool-Only) |
| Charger Included |
No |
| Certifications |
UL Listed |
| Warranty |
5-year limited on tool |
Frequently Asked Questions (FAQ):
Q: What collet size does this router use?
A: It accepts 1/4 in. shank router bits.
Q: Are plunge and offset bases compatible?

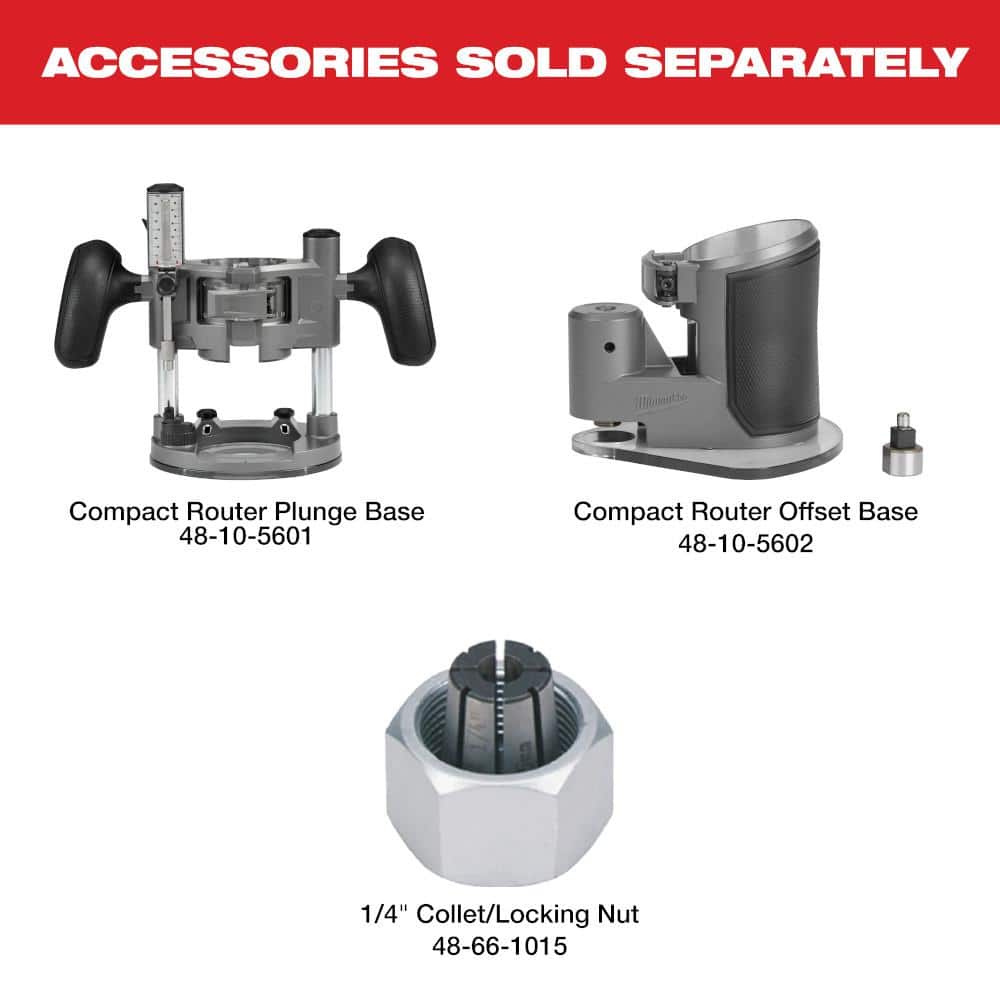

A: Yes. Milwaukee plunge base 48-10-5601 and offset base 48-10-5602 are compatible and sold separately.
Q: How long does the battery last?
A: With an M18 REDLITHIUM XC5.0 battery, it can cut up to 250 ft of 3/8 in. roundovers in red oak per charge.
Q: What accessories are included?
A: Straight edge guide, dust extraction attachment, two sub-baseplates, 1/4 in. collet, and collet/spindle wrenches.
Q: How does REDLINK PLUS help?
A: It optimizes performance and protects against overload, overheating, and over-discharging.
Compact Power, Cabinetmaker Precision
This trim router brings a refined, architectural crispness to edges and reveals, making millwork feel bespoke. I love the streamlined silhouette and intuitive depth controls that keep details razor-sharp. Pair it with a brass template bushing and contrast woods for decorative inlays that feel couture. It’s a small luxury that elevates craftsmanship to a gallery-level finish.
AI Review Summary:
Across retailer reviews, buyers consistently praise the router’s strong power for a compact cordless unit, noting smooth cuts in hardwoods and excellent runtime with XC5.0 packs. Users like the precise micro/macro depth controls, bright LEDs, and stable sub-base plates; many use it for cabinetry, trim, and hinge mortising. Common critiques mention that the included edge guide is basic, and some wish for a finer dust shroud seal and quieter operation. Representative quotes: “Every bit as strong as my corded trim router,” “Depth adjustments are spot on,” and “Dust collection works but could be better around the bit.”
Upgrade your shop with corded performance in a cordless package—add the M18 FUEL Compact Router to your cart today.
