Milwaukee M12 FUEL 12V Lithium-Ion Brushless Cordless 4-in-1 3/8 in. Installation Drill/Driver Kit with M12 ROCKET Stand Light
Regular price $389.00M12 FUEL 4-in-1 12V Drill/Driver Kit with ROCKET Stand Light
Compact yet powerful, this Milwaukee M12 FUEL 12V 4‑in‑1 installation drill/driver delivers up to 300 in.-lbs. of torque and 1,600 RPM with a brushless motor. Four dedicated heads—3/8 in. chuck, 1/4 in. hex, right angle, and offset—snap on for unmatched access and control in tight spaces. The kit includes two M12 REDLITHIUM CP2.0 batteries, charger, contractor bag, and an M12 ROCKET stand light providing 1,400 lumens of portable jobsite illumination.

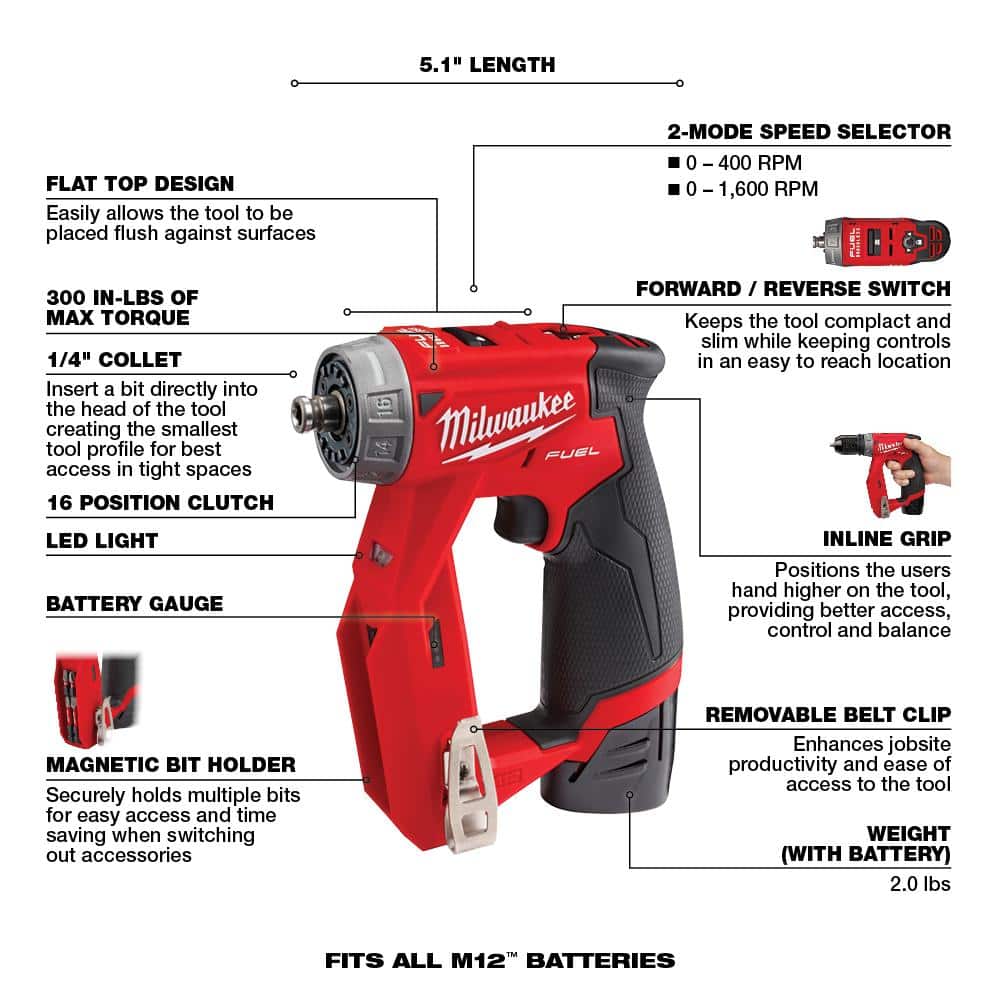

Key Features:

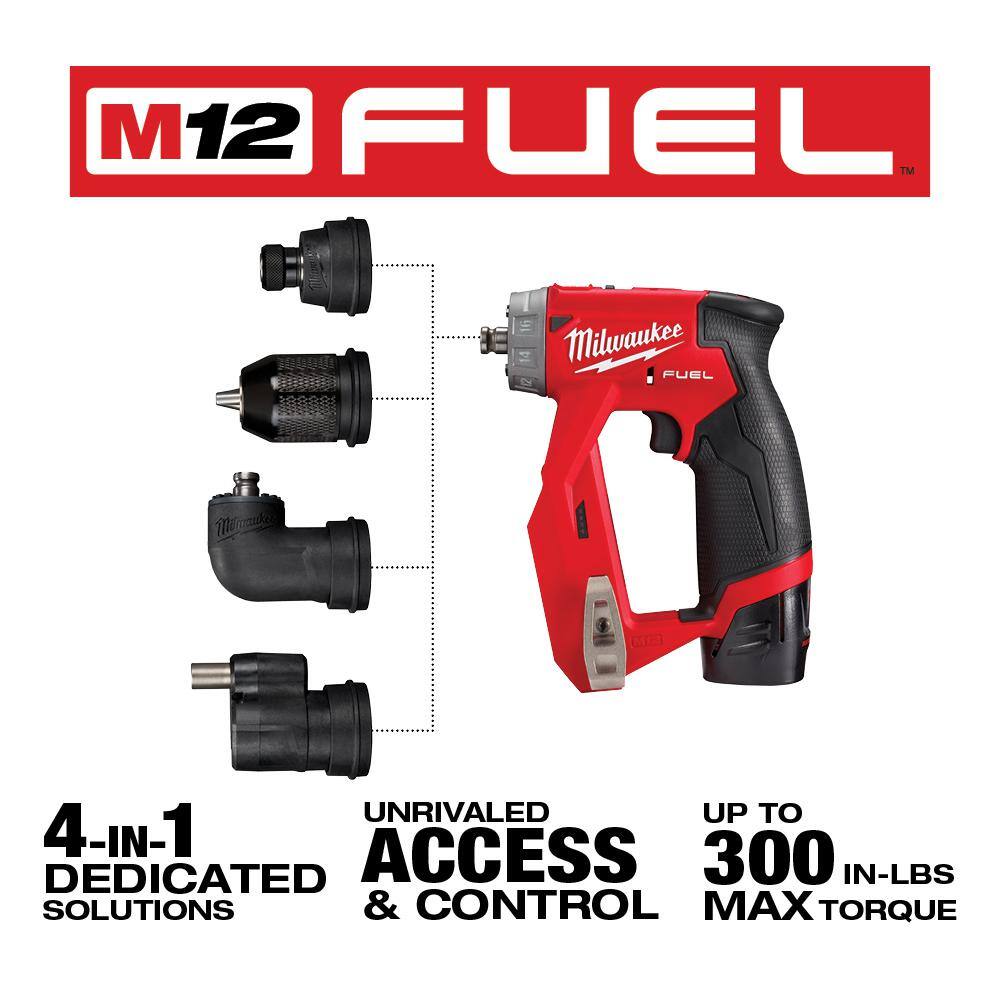

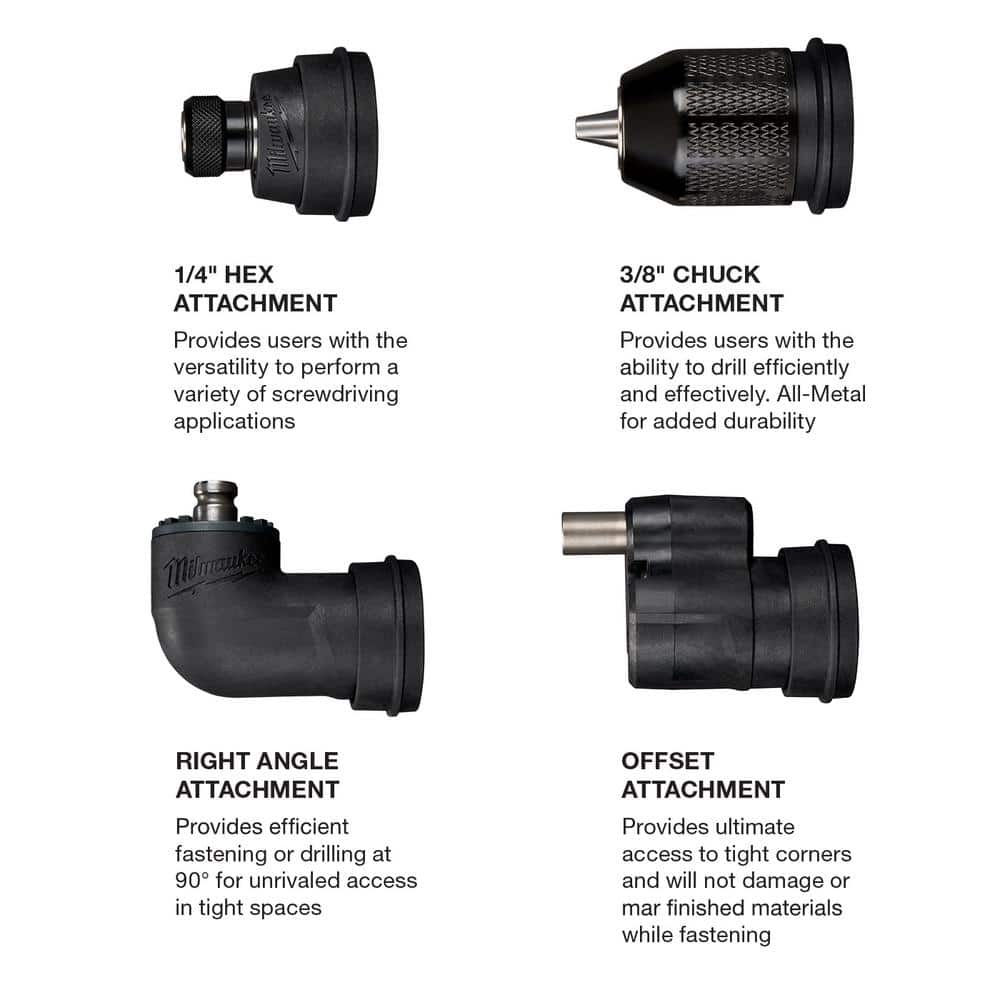

- 4-in-1 Modular Heads: Swap 3/8 in. chuck, 1/4 in. hex, right angle, and offset attachments for precise access in any installation task
- Compact, Inline Control: 5.12 in. length, flat-top design, and magnetic bit holder maximize maneuverability and productivity

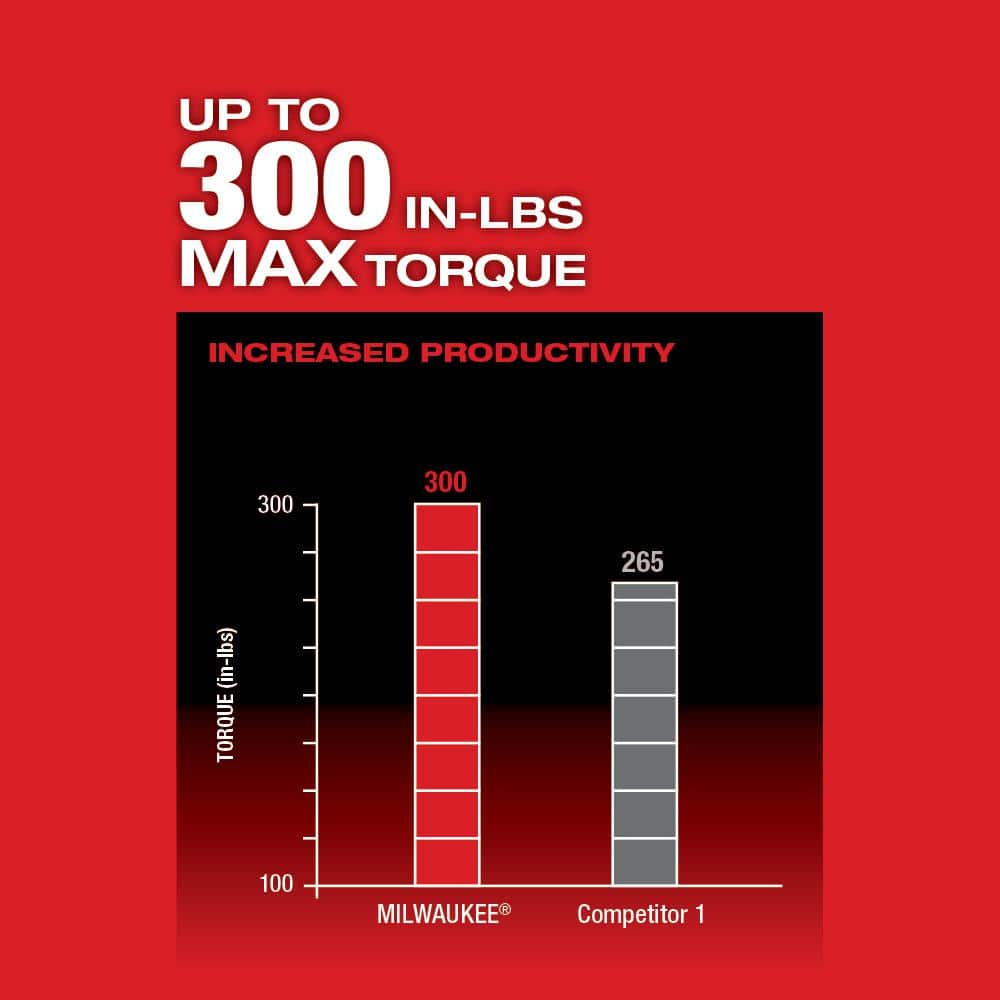

- Brushless Power: Up to 300 in.-lbs. torque and 0–1,600 RPM for drilling and fastening performance
- Complete Kit Power: Two M12 REDLITHIUM CP2.0 batteries, M12 charger, and contractor bag included

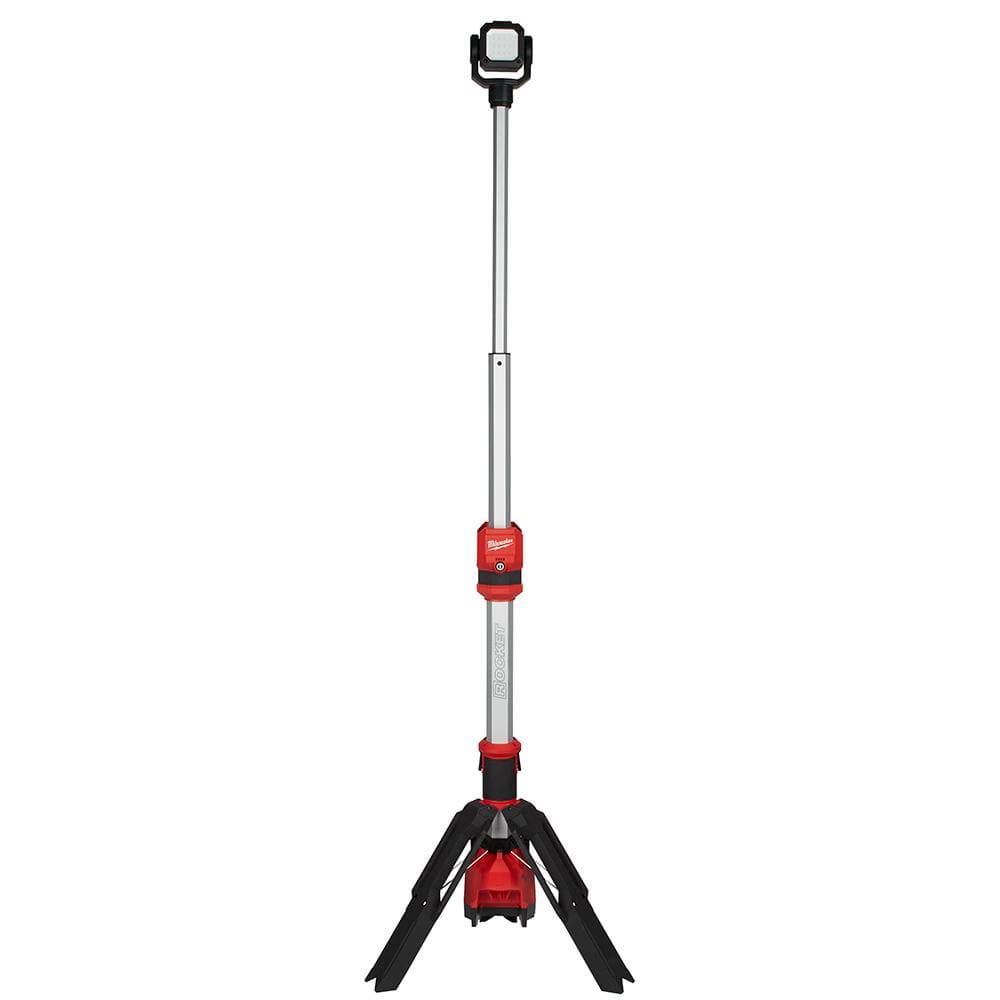

- Bright Jobsite Lighting: M12 ROCKET stand light delivers 1,400 lumens with 210° head rotation for portable illumination
Specifications Table:
| Specification | Details |
|---|---|
| Battery Amp Hours | 2 Ah |
| Battery Power Type | Lithium Ion |
| Battery Voltage (V) | 12V |
| Battery/Charger | 2 Batteries & Charger Included |
| Charger Included | Charger Included |
| Chuck Size (In.) | 3/8 In. |
| Chuck Type | Keyless |
| Color Family | Red |
| Cordless Tool Type | Drill/Driver |
| Cordless/Corded | Cordless |
| Drill/Driver Type | Power Drill |
| Included | Light, Tool Bag |
| Maximum Speed (RPM) | 1600 RPM |
| Motor Type | Brushless |
| Number of Total Batteries Included | 2 |
| Power Tool Features | Compact, Forward/Reverse Switch, Keyless Chuck, LED Light, Variable Speed |
| Product Weight (lb.) | 4.98 lb |
| Torque (lb-in) | 300 In lbs |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 5 Year Warranty on Tools, 2 Year on Compact Battery |
| Product Depth (in.) | 4.21 in |
| Product Height (in.) | 9.68 in |
| Product Width (in.) | 14.88 in |

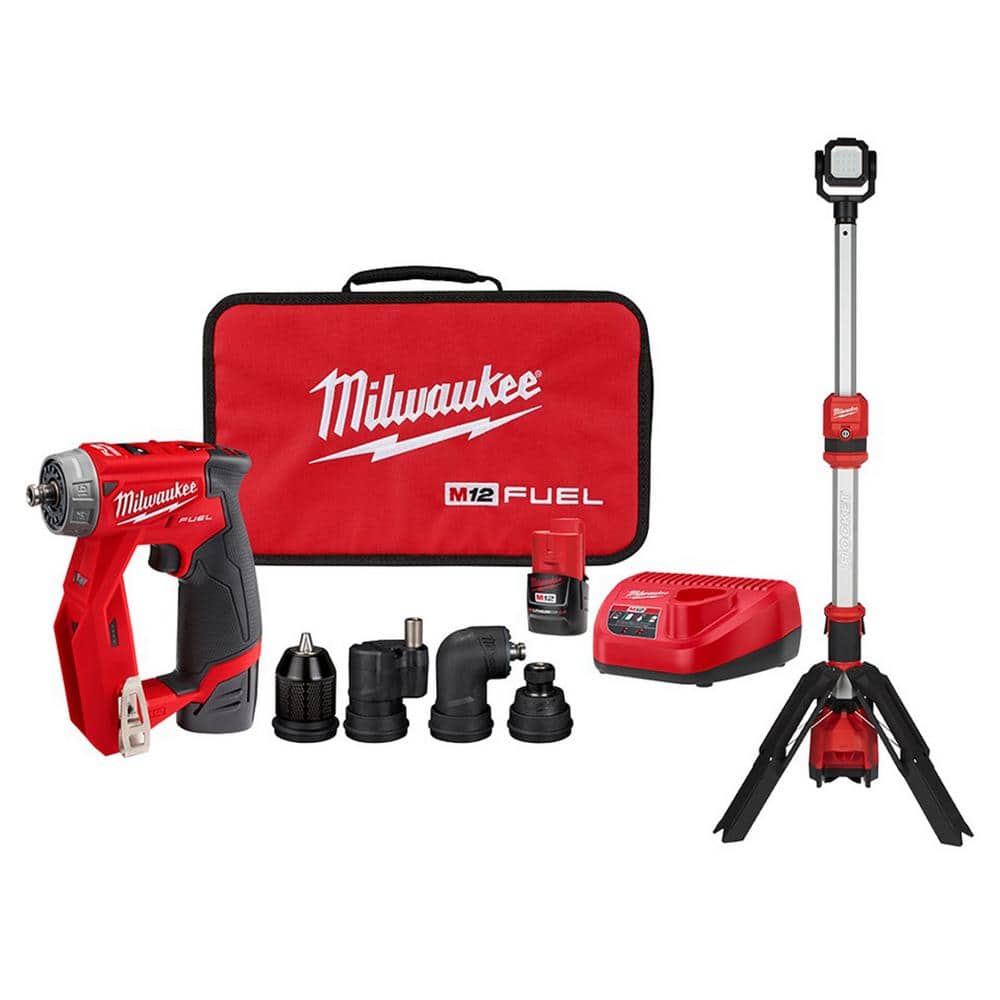

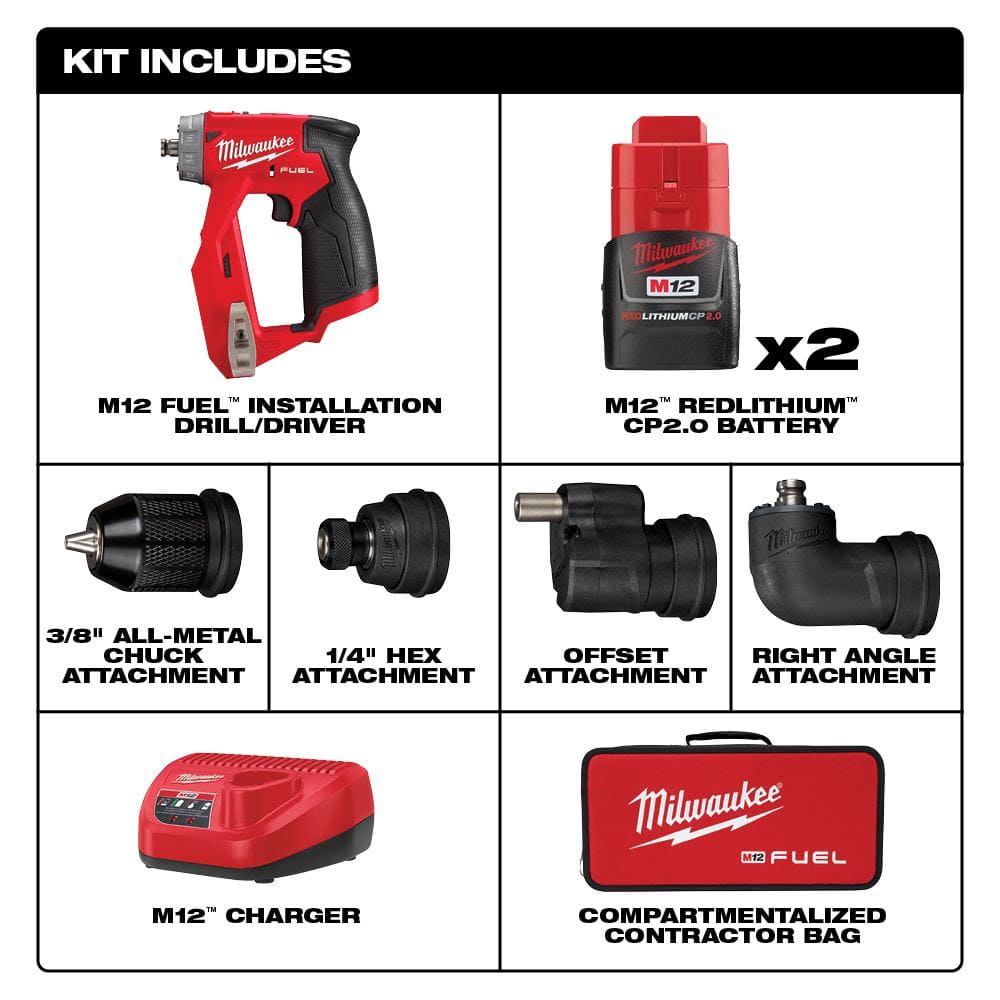

| Kit Components | Installation Drill/Driver (2505-20), 3/8 in. chuck, 1/4 in. hex, offset, right-angle attachments, 2× M12 REDLITHIUM CP2.0 batteries (48-11-2420), M12 charger (48-59-2401), belt clip, contractor bag |
| Light Output | 1,400 lumens (M12 ROCKET Stand Light) |
Frequently Asked Questions (FAQ):
Q: How do the heads attach and detach?
A: They click into place on the front coupler; rotate and pull to remove, then align and snap on the desired head.
Q: What batteries are included and how long do they last?
A: Two M12 REDLITHIUM CP2.0 batteries are included; runtime varies by application but is optimized by REDLINK Plus electronics.
Q: Can the right-angle and offset heads be used together?
A: Yes. The 1/4 in. hex, 3/8 in. chuck, and offset heads can connect to the right‑angle attachment for added versatility.
Q: Is the ROCKET stand light battery powered?
A: Yes. It runs on M12 batteries for cordless portability and sets up in seconds.
Q: Does it come with storage?
A: Yes. A compartmentalized contractor bag keeps the tool and attachments organized.
Precision Power Meets Sleek, Compact Form
This modular drill/driver whispers sophistication—its inline silhouette slips into cabinetry and millwork with effortless grace. The standout is its quartet of interchangeable heads, a minimalist solution that keeps your workspace pristine while tackling intricate installs. Style it with a clean, organized kit bag and the slender ROCKET light to bathe detail work in crisp illumination. It’s a polished essential for spaces where craftsmanship and luxury converge.
AI Review Summary:
Across major retailers, buyers praise the drill’s compact inline grip and modular heads for reaching tight cabinetry and HVAC spaces; many highlight strong torque for its size and quick head swaps. The kit’s inclusion of two CP2.0 batteries is appreciated, though some users wish for higher‑capacity packs for longer runtime. The ROCKET light is frequently noted as bright and fast to deploy, but a few report it’s best suited for task lighting rather than lighting large rooms. Common positives: versatility, build quality, and ergonomics. Common negatives: modest runtime with CP2.0 batteries and occasional learning curve when aligning attachments. Representative quotes: “The offset head saved a backsplash install,” “Surprisingly powerful for 12V,” and “Great light—wish the batteries lasted longer on high.”
Equip your crew with compact power and brilliant lighting—add this M12 FUEL 4‑in‑1 kit to your cart today.
