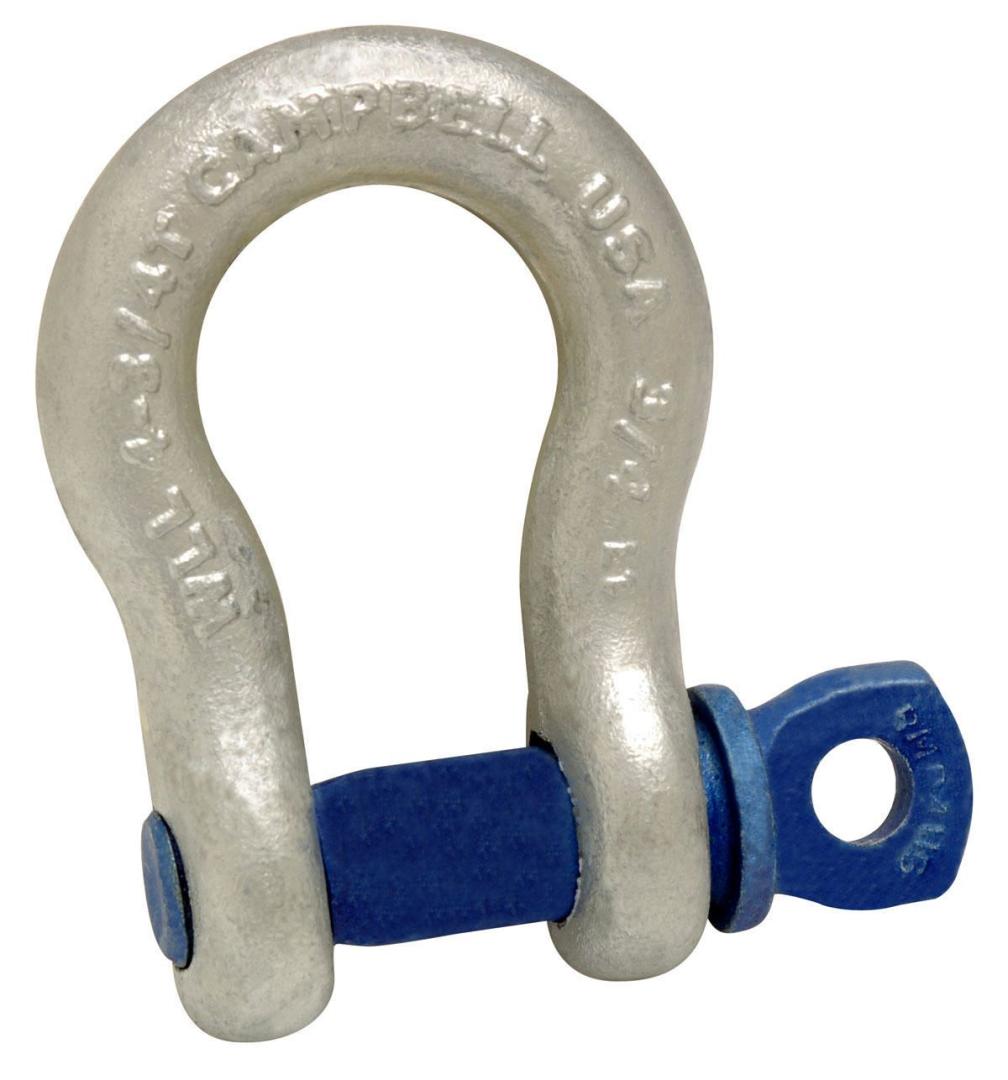

Campbell Galvanized Forged Steel Anchor Shackle, 3/4 in, Screw Pin
Regular price $13.99Galvanized Forged Steel Anchor Shackle, 3/4 in
Heavy-duty anchor shackle forged from carbon steel and hot-dip galvanized for corrosion resistance. Screw pin design delivers reliable rigging performance with a 4-3/4 ton working load limit, ideal for lifting, towing, and industrial applications.
Key Features:
- Forged Strength: Drop-forged carbon steel body for high tensile performance
- Corrosion Protection: Hot-dip galvanized finish meets ASTM A153
- Certified Rigging Hardware: Meets ASME B30.26 and Federal Spec RR-C-271 requirements
- Clear Identification: WLL, size, brand, date code, and USA permanently marked
- Heat-Treated Pin: Alloy-steel screw pin enhances durability and safety
Specifications Table:
| Specification | Details |
|---|---|
| Nominal Size | 3/4 in |
| Configuration | Anchor shackle with screw pin |
| Body Material | Drop-forged carbon steel |
| Pin Material | Heat-treated alloy steel |
| Finish | Hot-dip galvanized (meets ASTM A153) |
| Working Load Limit | 4-3/4 short tons |
| Weight Each | 2.15 lb |
| Weight per 100 pieces | 215 lb |

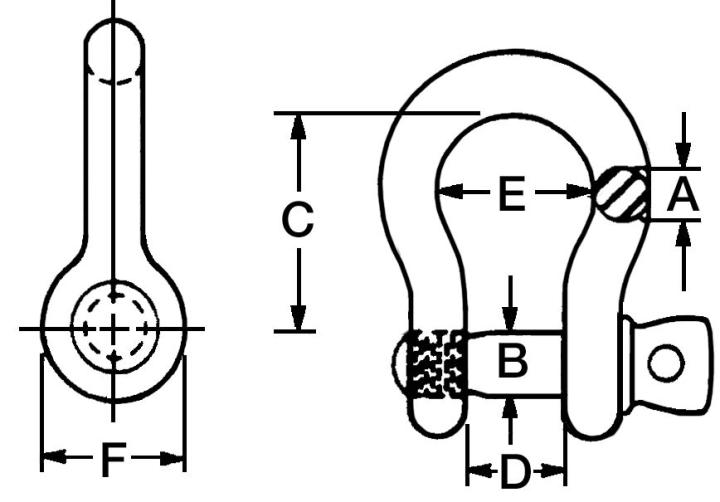

| B Dimension | 7/8 in |
| C Dimension | 2-13/16 in |
| D Dimension | 1-1/4 in |
| E Dimension | 1-13/16 in |
| F Dimension | 1-3/4 in |
| Width Tolerance | +/- 1/8 in |
| Length Tolerance | +/- 1/4 in |
| Standards | ASME B30.26; Federal Spec RR-C-271 Type IVA Grade A Class 2 |
| Markings | WLL, size, manufacturer name, date code, and USA permanently marked |
| Set | No |
| Packaging | Boxed |
Frequently Asked Questions (FAQ):
Q: What is the working load limit?
A: 4-3/4 short tons (WLL), do not exceed this limit.
Q: What size is this shackle?
A: 3/4 inch nominal size with screw pin configuration.
Q: What material is it made from?
A: Drop-forged carbon steel body with an alloy-steel, heat-treated pin.
Q: Is it suitable for outdoor use?
A: Yes, the hot-dip galvanized finish resists corrosion and meets ASTM A153.
Q: Are certifications available?
A: Yes, proof testing and certifications are available upon request.
Industrial Elegance, Built to Endure
This shackle brings a sculptural, utilitarian beauty to functional spaces—its galvanized sheen and bold blue pin feel both rugged and refined. The generous bow and crisp markings celebrate precision engineering as design. Style it on exposed rigging or nautical-inspired installations where hardware becomes the hero. A small yet powerful detail that elevates the language of luxury through authenticity and strength.
Choose Campbell’s forged, galvanized anchor shackle for certified strength and dependable rigging performance.
