RENO-RAMP Satin Aluminum Reducer Tile Edge Trim, 0.563-in x 98.5-in

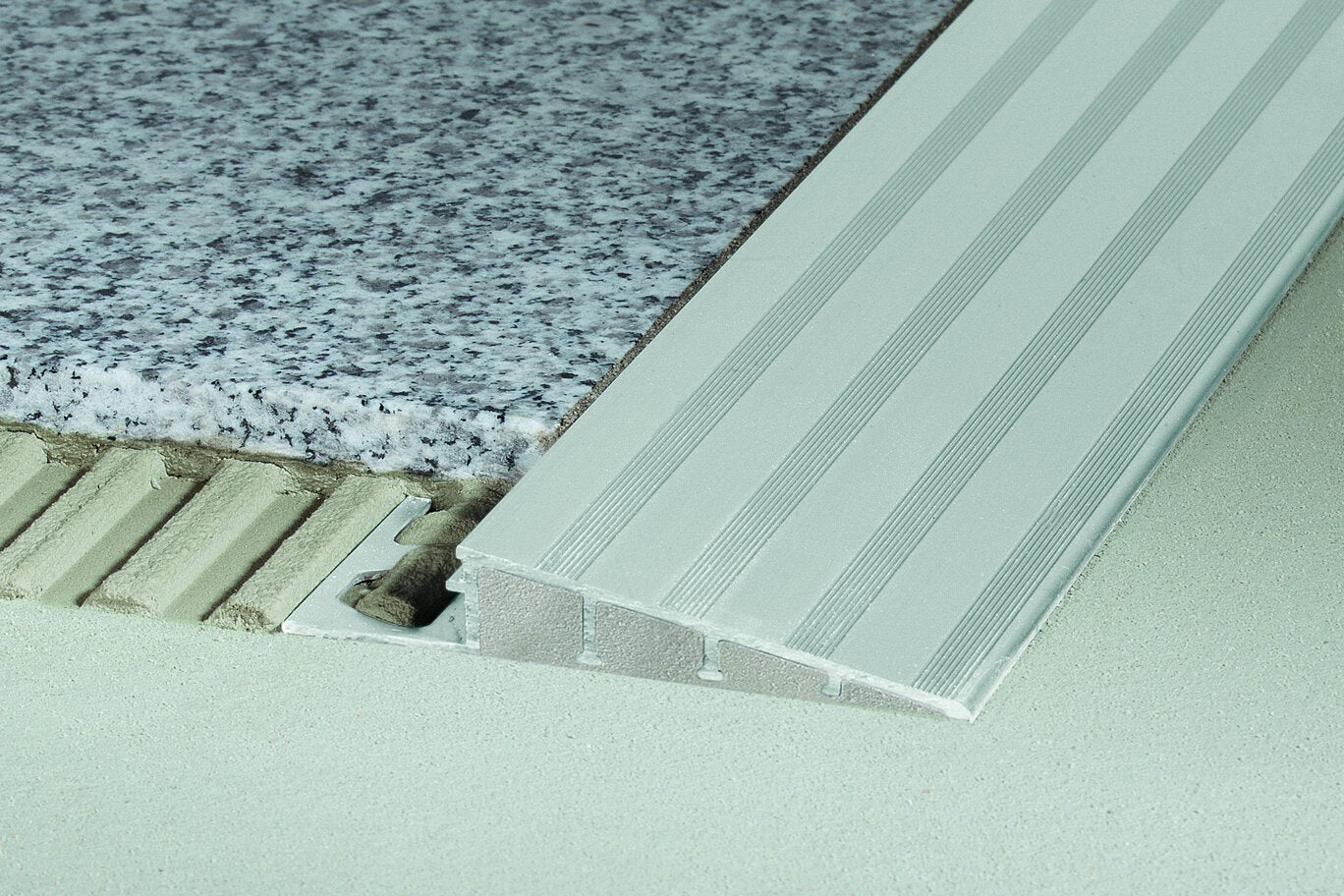

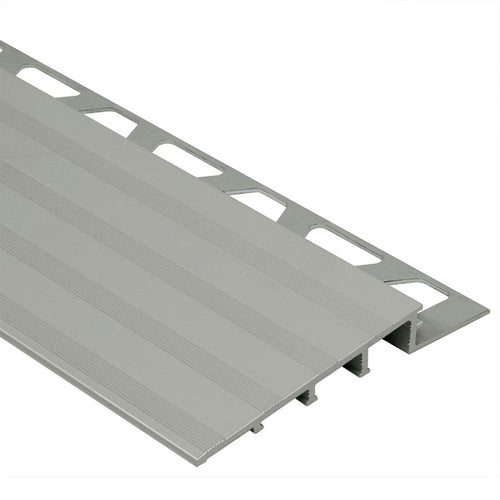

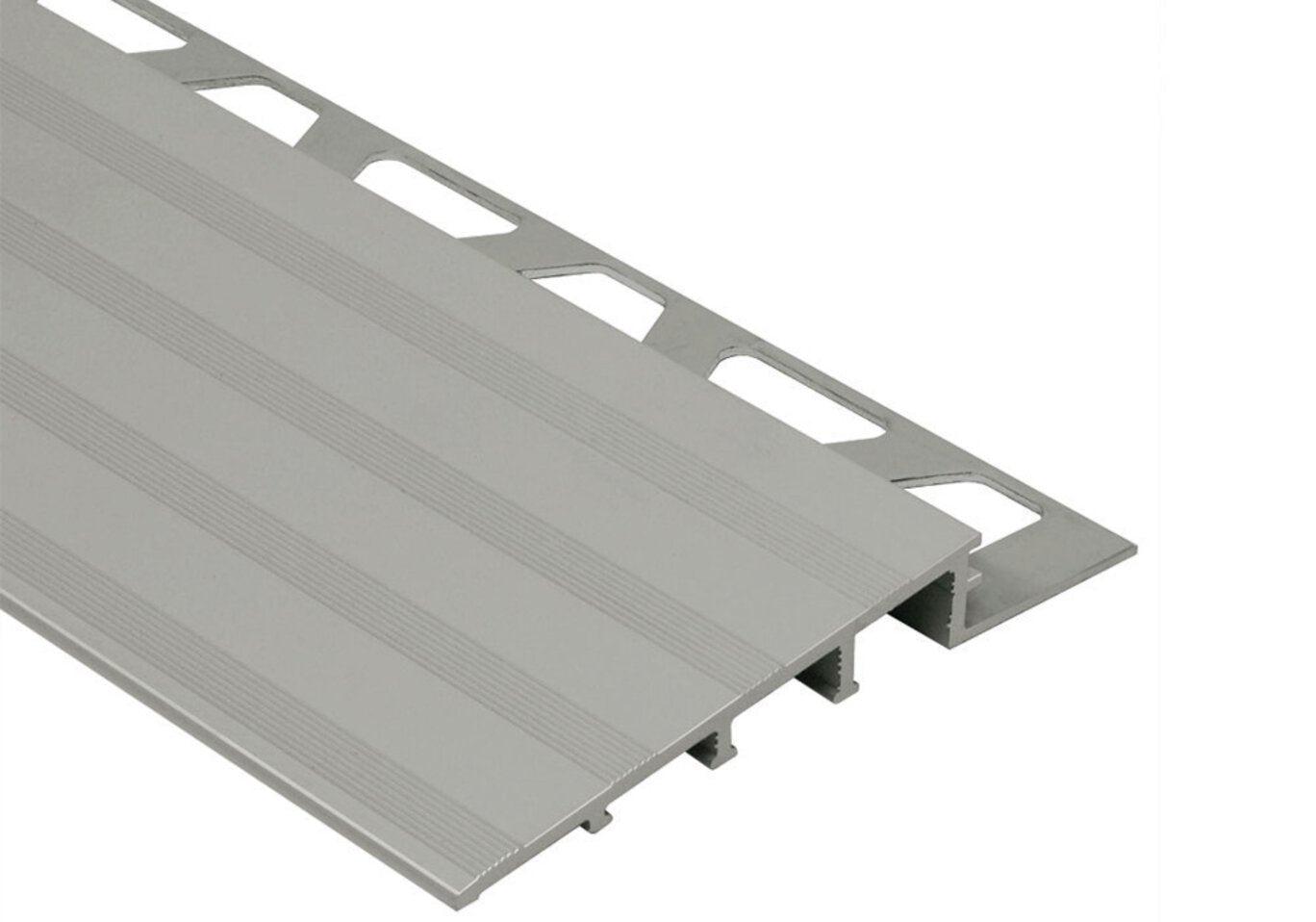

Create safe, smooth floor transitions with Schluter Systems RENO-RAMP. This satin anodized aluminum profile protects tile edges and reduces from tiled surfaces to lower adjacent floors over a 98.5-in run, ideal for new floor installations in residential or commercial spaces.

---

Key Features:

• Smooth Transitions: Sloped profile reduces from tile to lower adjacent flooring to eliminate trip hazards
• Edge Protection: Anchoring leg embeds in thin-set to prevent chipping at tile edges
• Durable Build: Made from satin anodized aluminum for long-lasting wear in high-traffic areas
• Commercial Ready: Suitable for wheel carts; select sizes meet ADA guidelines
• Easy Integration: Installs with the tile during setting for a clean, finished look

---

Specifications Table:

Specification	Details
Profile name	Schluter RENO-RAMP
Intended use	Sloped transition from tiled floor to lower adjacent floor coverings or finished concrete
Installation	Installed with tile; anchoring leg embedded in tile bond coat
Material	Satin anodized aluminum
Width / Length	0.563 in W x 98.5 in L (as variant in listing)
Commercial suitability	Suitable for wheel carts
ADA	Certain sizes ADA-compliant

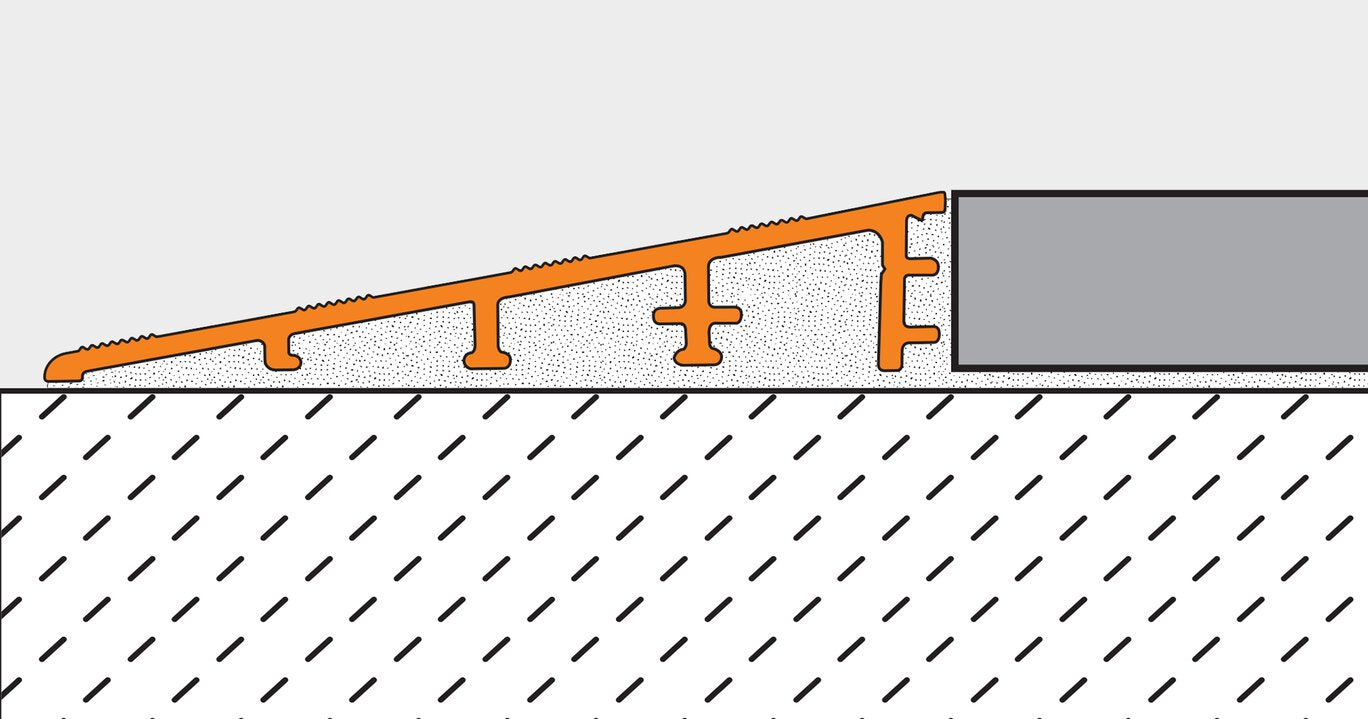

Alternative for retrofit	Use RENO-RAMP-K for bonding to existing floor coverings

---

Frequently Asked Questions (FAQ):

Q: Is this profile for new installs or retrofits?
A: RENO-RAMP installs with the tile during new floor construction; use RENO-RAMP-K for bonding to existing floors in retrofit applications.

---

Q: What material and finish is it?
A: Satin anodized aluminum.

---

Q: Does it protect tile edges?
A: Yes, the anchoring leg is embedded in the tile bond coat to protect exposed tile edges from chipping.

---

Q: Is it suitable for commercial traffic and carts?
A: Yes, it’s designed to handle wheel carts in commercial settings.

---

Q: Are sizes ADA-compliant?
A: Certain heights in the RENO-RAMP line meet ADA requirements; verify your selected size.

---

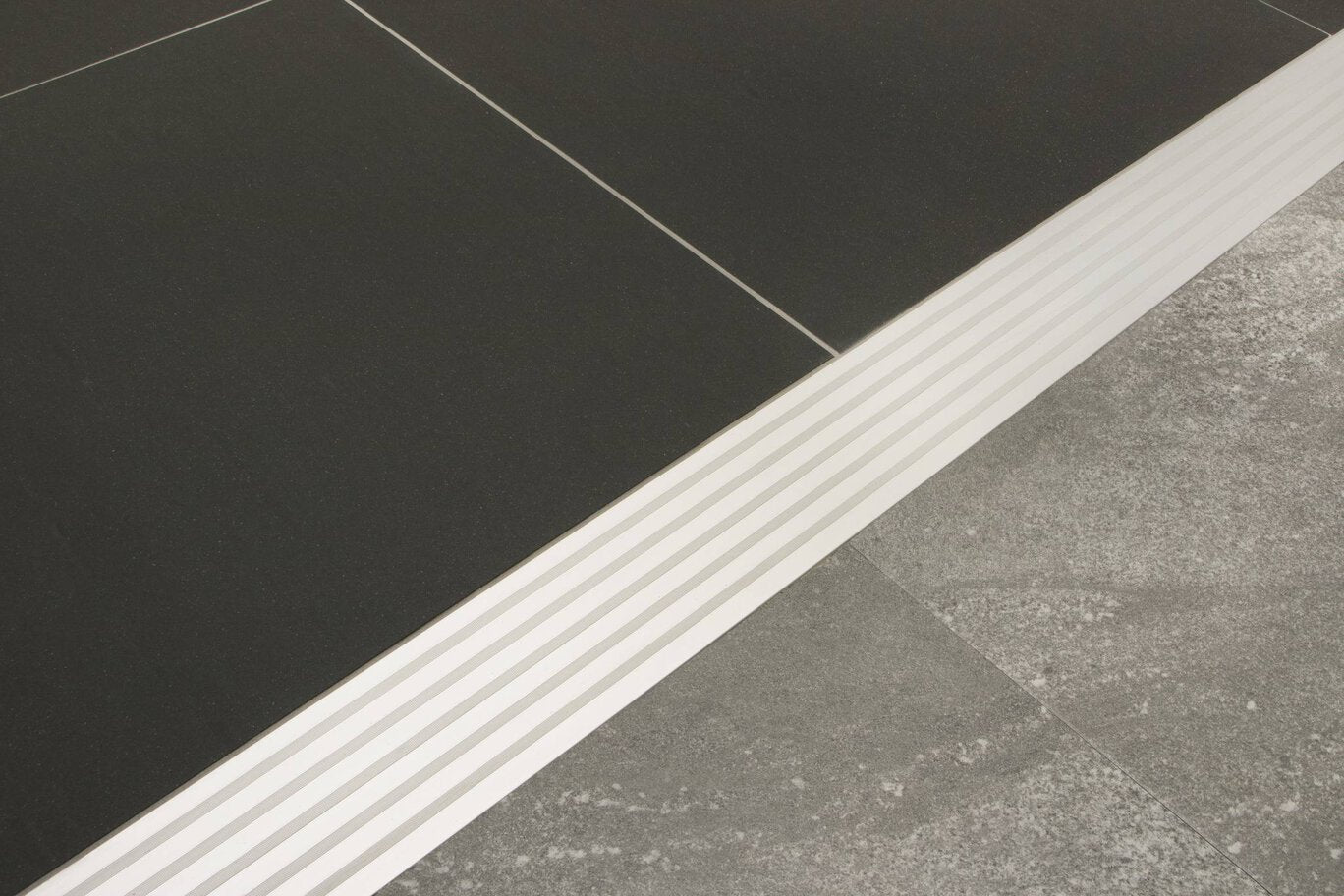

Sleek Transition, Elevated Finish

This profile delivers a crisp, architectural line that glides from tile to adjacent flooring with effortless poise. The satin anodized aluminum catches light with a subtle sheen, adding a tailored edge to modern interiors. Run it along expansive thresholds for a seamless, gallery-like flow between materials. It’s the quiet, refined detail that signals luxury underfoot.

---

Complete your flooring project with a safe, polished transition—add RENO-RAMP to your cart today.
