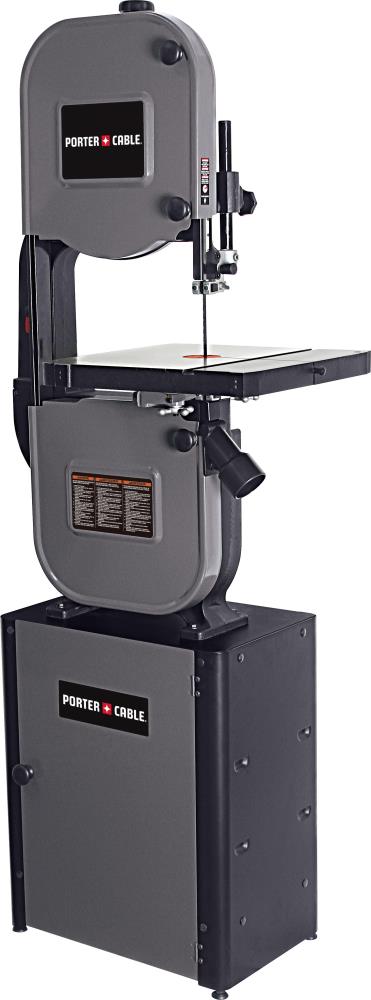

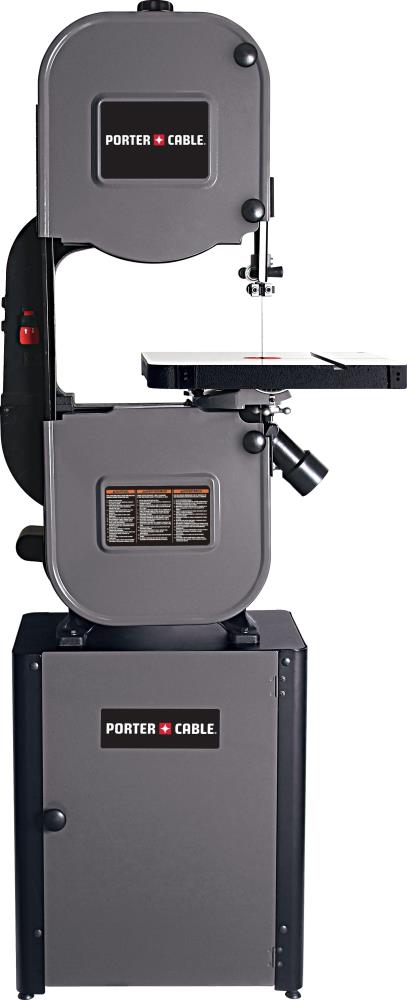

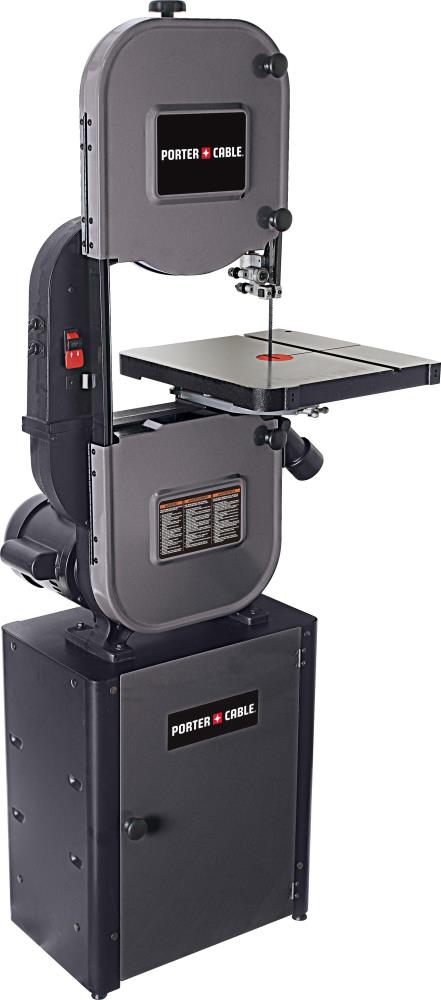

PORTER-CABLE 13.625-in 10-Amp Floor Band Saw

A robust floor-standing band saw built for precise ripping and resawing. Features a cast-iron 16 x 16-in table, 10-amp induction motor with two speeds, and a cabinet stand with storage.

---

Key Features:

• Powerful Two-Speed Motor: 10-amp induction motor delivers 1,630 and 2,730 FPM for cutting various materials
• Generous Capacity: 6-in depth of cut with 13.625-in throat handles larger workpieces
• Cast-Iron Work Surface: 16-in x 16-in T-slotted table supports miter gauge and tilts 0–45° right
• Integrated Dust Collection: 2-1/2-in port connects to standard wet/dry vacs for cleaner cuts
• Cabinet Stand Storage: Large cabinet-style base stores extra blades and accessories

---

Specifications Table:

Specification	Details
Amperage	10 A
Voltage	120 V
Horsepower	1.5 HP
Speed Capability	2 speeds (1,630 FPM and 2,730 FPM)
Cutting Capacity Height	6 in
Throat Depth	13.625 in
Table Size	16 in L x 16 in W
Table Height	43 in
Table Tilt Range Left	0°
Table Tilt Range Right	45°
Dust Chute Diameter (OD)	2.5 in
Frame Material	Cast iron
Table Material	Cast iron
Built-In Light	No
Cordless	No
Blade Included	Yes
Maximum Blade Length	93-1/2 in
Minimum Blade Length	91-1/2 in
Maximum Blade Width	1/2 in
Minimum Blade Width	1/8 in
Motor Type	Induction
Motor Bearings	Ball bearings
Micro Adjust Blade Guides Top	Yes
Micro Adjust Blade Guides Bottom	Yes
Dust Chute	Yes
Safety Listing	cULus
Color/Finish Family	Gray
Width	16.5 in
Length	26 in
Height	66.6 in
Tool Weight	191 lb
Package Contents	Band saw, 1/4-in x 93-1/2-in blade, sawdust port, stand, power cord hooks, wrench, manual
Warranty	3-year limited
CA Residents: Prop 65 Warning(s)	Yes
UNSPSC	23101500

---

Frequently Asked Questions (FAQ):

Q: What blade size does it use?
A: It includes a 93.5-in L x 1/4-in W blade and supports 91.5–93.5 in lengths with 1/8–1/2 in widths.

---

Q: What are the cutting capacities?
A: Depth of cut is 6 inches and throat capacity is 13.625 inches.

---

Q: Does the table tilt?
A: Yes, the right-tilt table adjusts from 0° to 45° for bevel cuts.

---

Q: Is dust collection supported?
A: Yes, there’s a 2-1/2-in dust port designed to connect to a wet/dry vacuum.

---

Q: What’s included in the box?
A: Band saw, 1/4-in x 93-1/2-in blade, sawdust port, stand, power cord hooks, wrench, and manual.

---

Industrial Precision, Studio-Ready Presence

This band saw brings sculptural utility to the workshop—its cast-iron table and tall silhouette feel confidently architectural. I love the generous 16-inch square table, a plane of graphite gray that invites ambitious curves and exacting lines. Style it with matte-black clamps and a walnut offcut to echo its refined palette. For makers, it’s a cornerstone of a luxe, thoughtfully equipped studio.

---

Upgrade your shop with this powerful, two-speed PORTER-CABLE band saw and start tackling larger, cleaner, more precise cuts today.
