M12 FORCE LOGIC Press Tool Kit with Copper Tubing Cutter
This Milwaukee M12 FORCE LOGIC cordless press tool kit delivers compact, one-handed pressing for copper, PEX, stainless, and black iron systems. It includes 1/2 in., 3/4 in., and 1 in. jaws, two M12 REDLITHIUM batteries, charger, carrying case, and a free M12 Copper Tubing Cutter for fast, clean cuts.
Key Features:
-

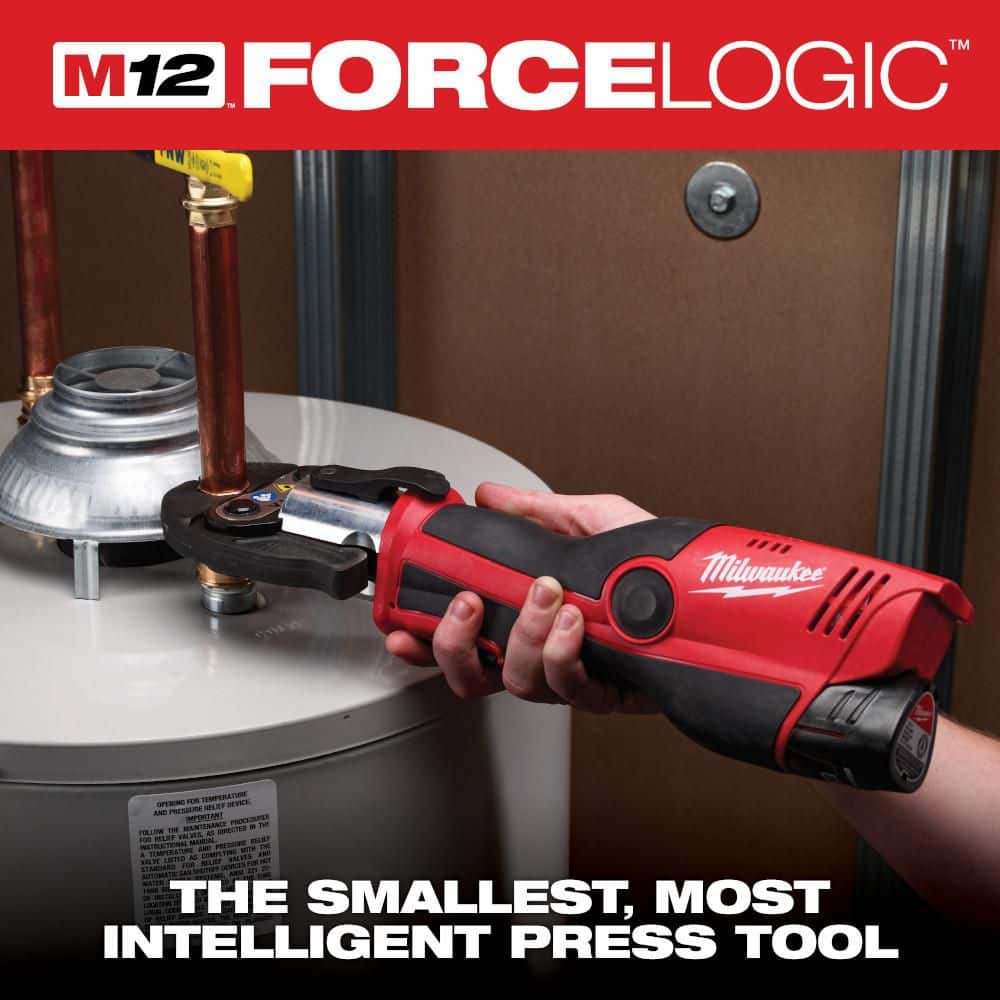

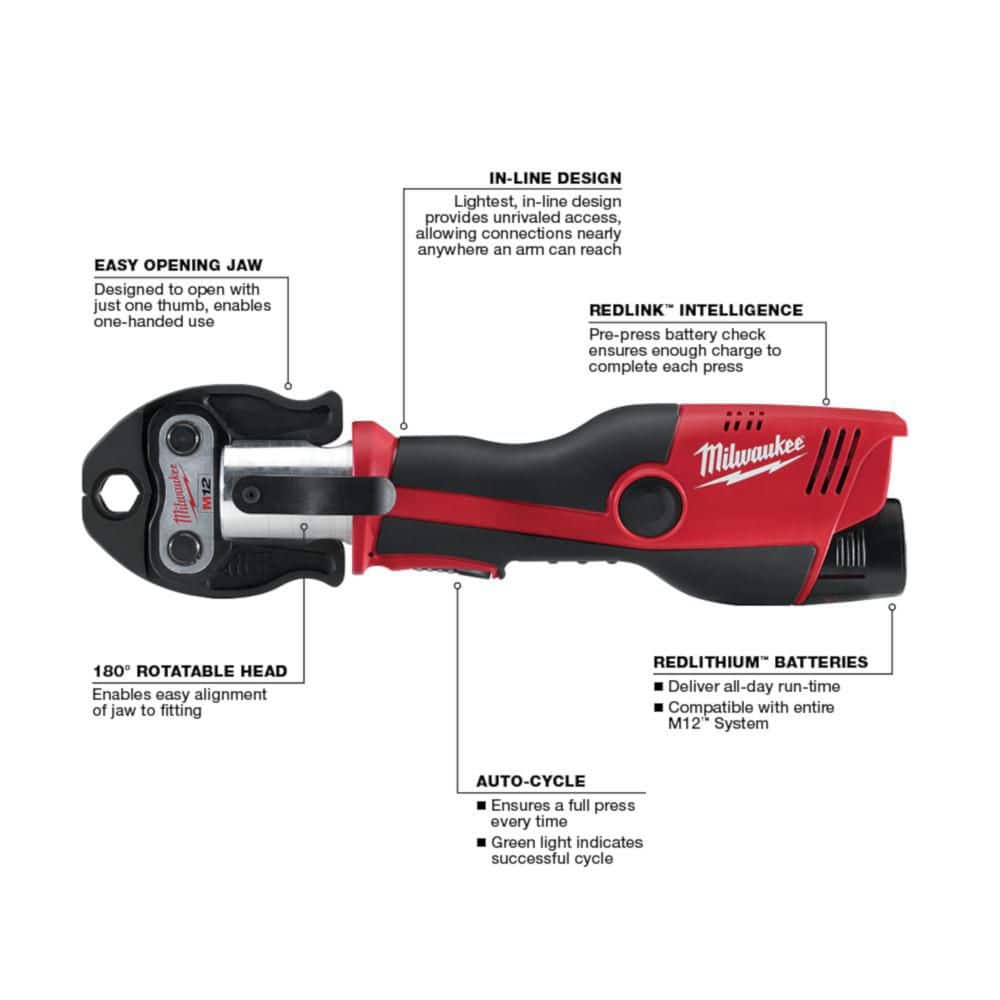

Lightweight, In-Line Design: Operate one-handed in tight spaces; smallest press tool in its class
-
Intelligent Pressing: REDLINK electronics monitor force and indicate successful connections and calibration needs
-
Extended Service Intervals: Up to 32,000 crimps between inspections for maximum uptime
-

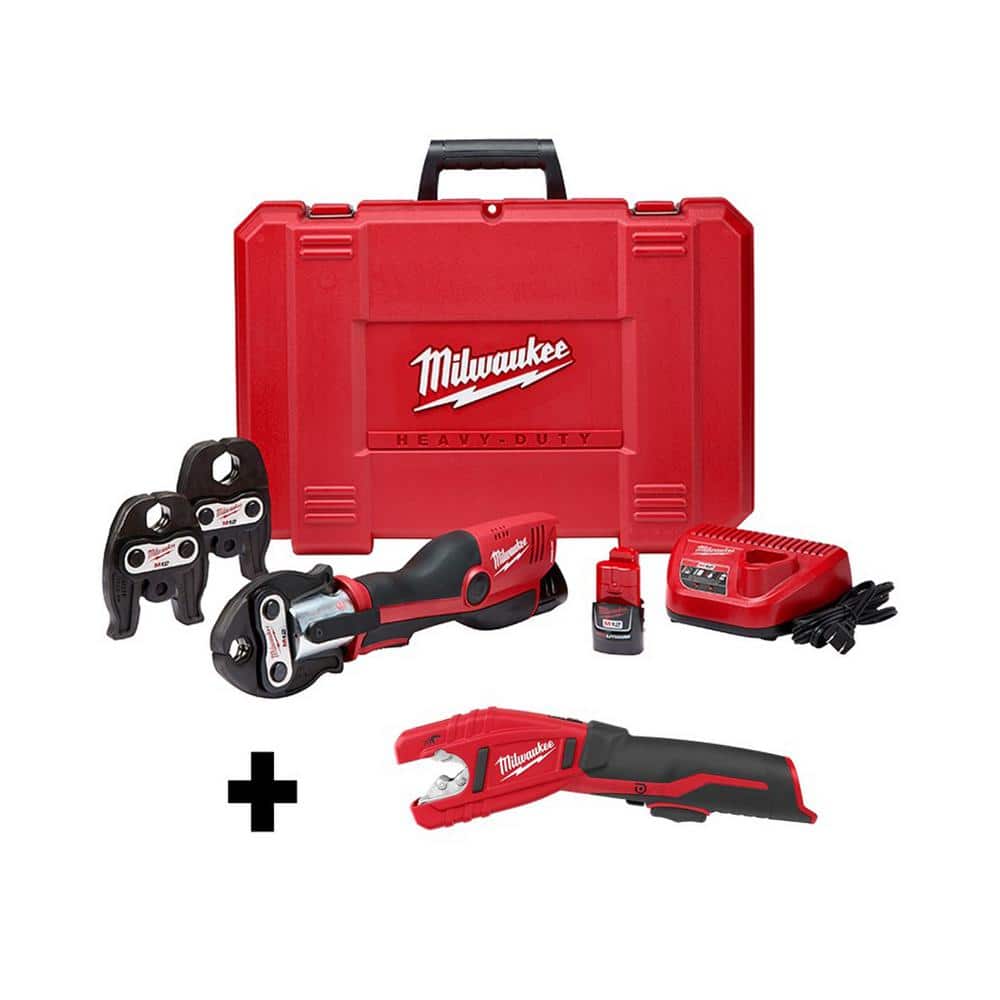

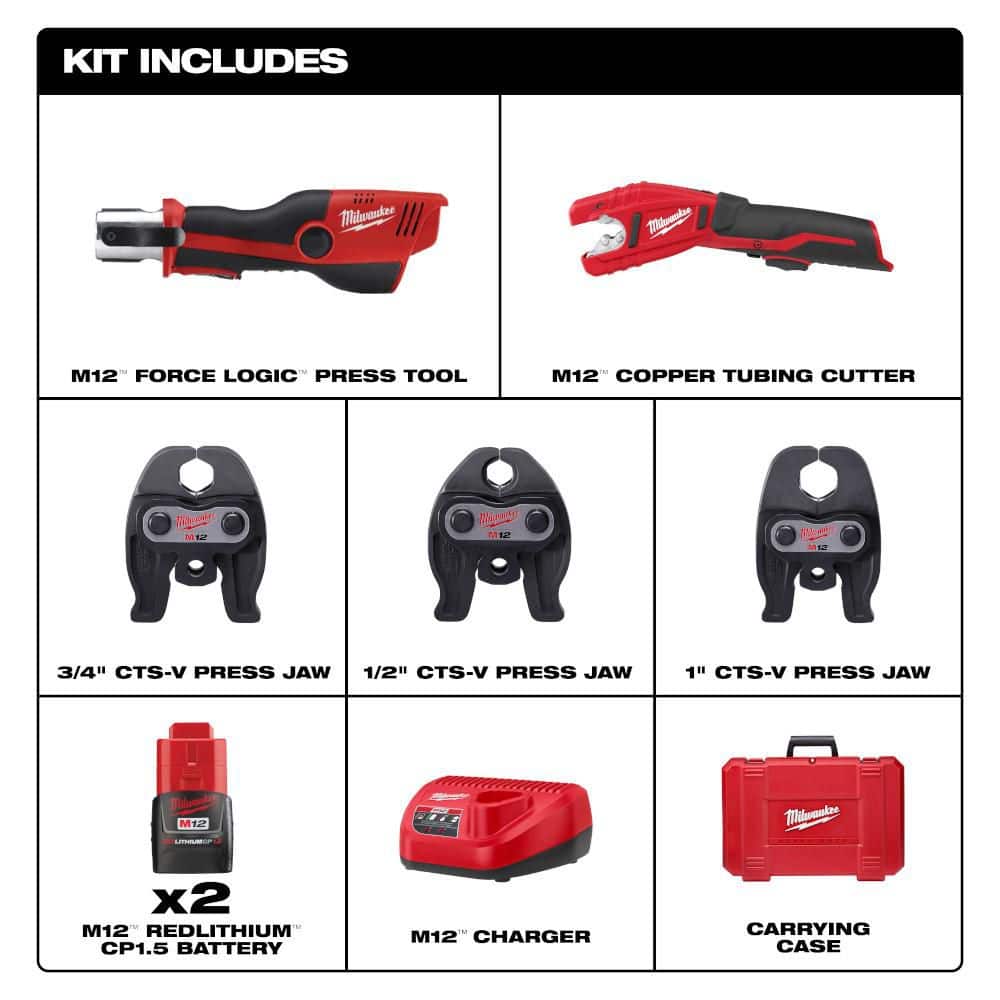

Complete Kit: Includes 1/2 in., 3/4 in., 1 in. jaws, two M12 batteries, charger, case, and free M12 copper tubing cutter (2471-20)
-
System Compatibility: Works with all M12 batteries and chargers; accommodates optional 1-1/4 in. press ring (49-16-2453)
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Voltage |
12V |
| Power Type |
Cordless |
| Number of Jaws/Rings Included |
3 |
| Included Jaws |
1/2 in., 3/4 in., 1 in. CTS-V jaws |
| Compatible Pipe Material |
Black malleable iron, Copper, PEX, Stainless Steel |
| Compatible Pipe Size (in.) |
1/2, 3/4, 1; accommodates 1-1/4 in. press ring (sold separately 49-16-2453) |
| Maximum Pipe Diameter (in.) |
1 |
| Force |
Up to 5,400 lbs |
| Service Interval |
32,000 crimps between inspections |
| Batteries Included |
(2) M12 REDLITHIUM batteries |
| Charger Included |
M12 charger |
| Carrying Case |
Yes |
| Tool Weight |
3.8 lb (press tool) |
| Product Dimensions (from body html) |
21.40 in. W x 14.50 in. D x 5.50 in. H |
| Kit Weight |
20.85 lb |
| Copper Tubing Cutter Model |
2471-20 |
| Copper Tubing Cutter Capacity |
3/8 in. to 1 in.; up to 200 cuts per charge |
| Warranty |
5-year tool; 2-year battery/charger/jaw |
Frequently Asked Questions (FAQ):
Q: What pipe materials can this tool press?
A: It makes quality press connections on copper, PEX, stainless steel, and black malleable iron when used with the appropriate Milwaukee M12 press jaws.
Q: What jaw sizes are included?
A: The kit includes 1/2 in., 3/4 in., and 1 in. CTS-V press jaws.
Q: How often does the tool need service?
A: It requires service every 32,000 crimps under normal use.
Q: What batteries are included and how fast do they charge?
A: Two M12 REDLITHIUM batteries are included; they recharge in about 30 minutes with the included M12 charger.

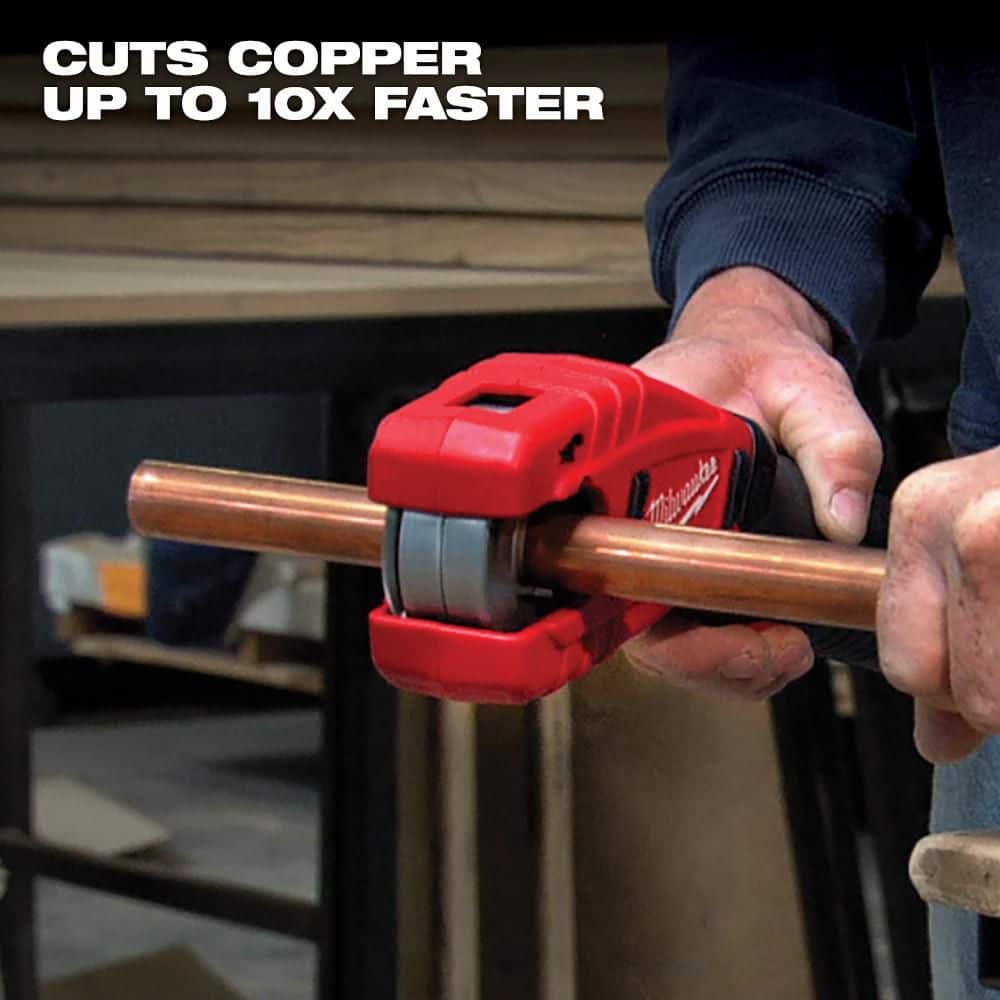

Q: What sizes can the free copper tubing cutter handle?

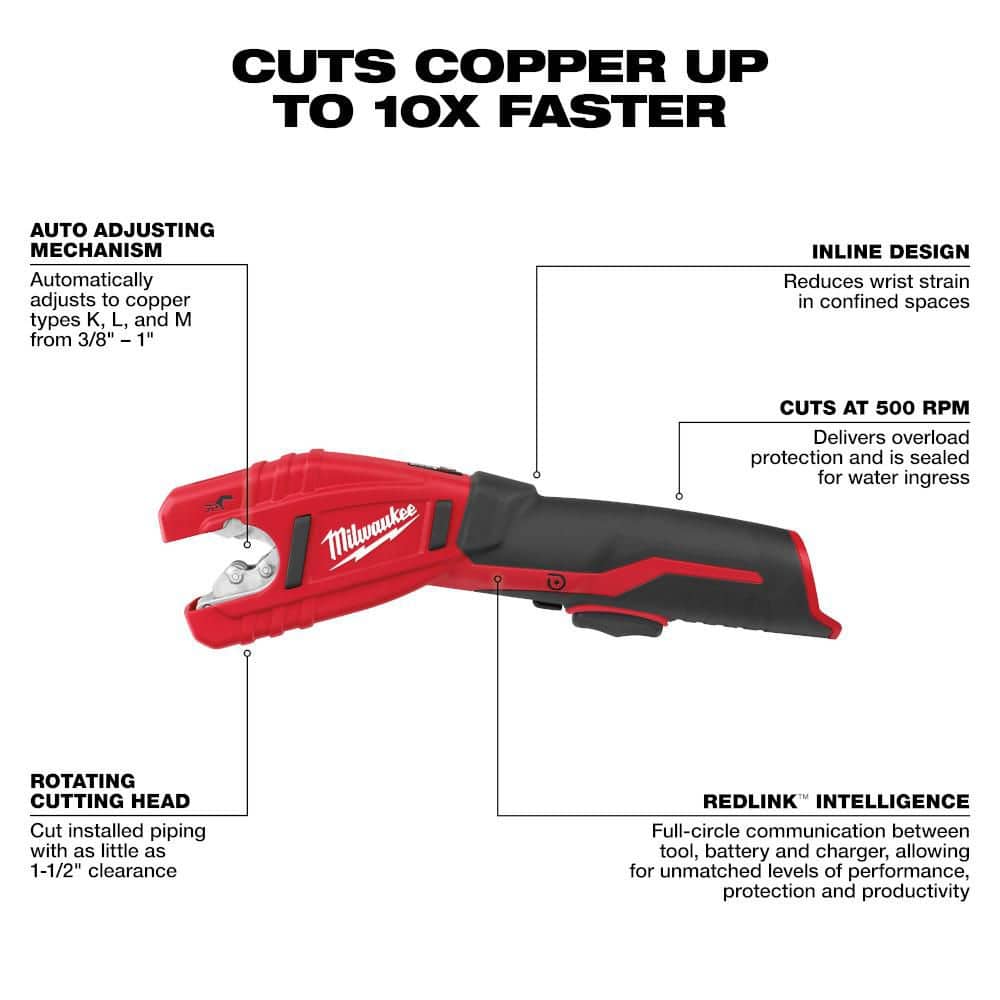

A: The M12 Copper Tubing Cutter (2471-20) automatically adjusts to 3/8 in. to 1 in. copper and can deliver up to 200 cuts per charge.
Precision Plumbing, Streamlined
This compact press tool brings order and efficiency to service spaces, tucking neatly into tight mechanical rooms while delivering confident, repeatable connections. Its sleek in-line silhouette and rotating head feel refined in hand, a smart addition to any pro’s kit. Style it with a clean, organized case layout so every jaw and battery has a place—ready for rapid deployments on site. For projects that demand polished results and zero fuss, it’s a modern essential.
Equip your crew with Milwaukee’s M12 FORCE LOGIC kit for faster, cleaner pipe installs—add it to your cart today.
