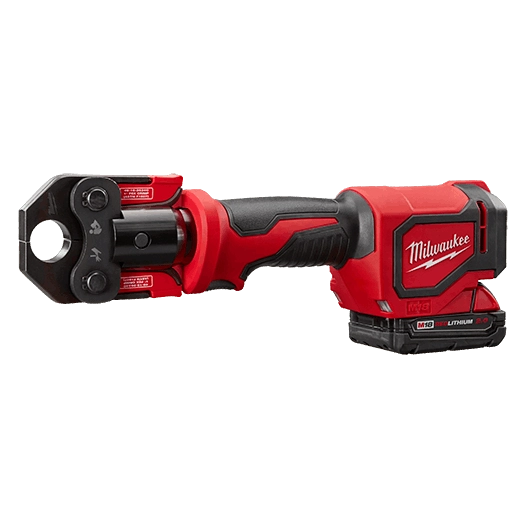

M18 Cordless Short Throw Press Tool Kit (PEX)

Milwaukee’s M18 Short Throw Press Tool delivers fast, one-handed PEX connections with auto-cycle assurance and spring-loaded crimp jaws. Optimized for residential installs, the kit includes 1/2 in., 3/4 in., and 1 in. PEX crimp jaws, two M18 REDLITHIUM CP2.0 batteries, a multi-voltage charger, and a hard case.

---

Key Features:

• Faster Installs: Presses up to 40% faster for quick branch-to-fixture connections
• One-Handed Operation: Compact, balanced design with spring-loaded jaws for precise alignment
• Auto-Cycle Assurance: Completes a full press every time with green LED confirmation
• Residential Optimized: Force tuned for PEX F1807/F2159 rings up to 1 in.; no calibration interval

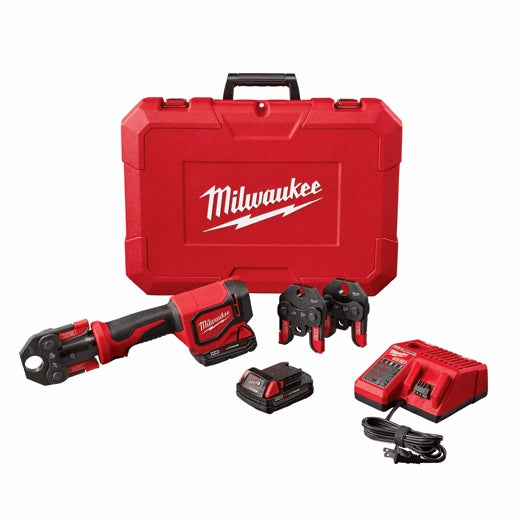

• Complete Kit: Includes 1/2 in., 3/4 in., 1 in. jaws, (2) CP2.0 batteries, M18/M12 charger, and carrying case

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Battery System	M18
Voltage	18V
Power Type	Cordless / Battery

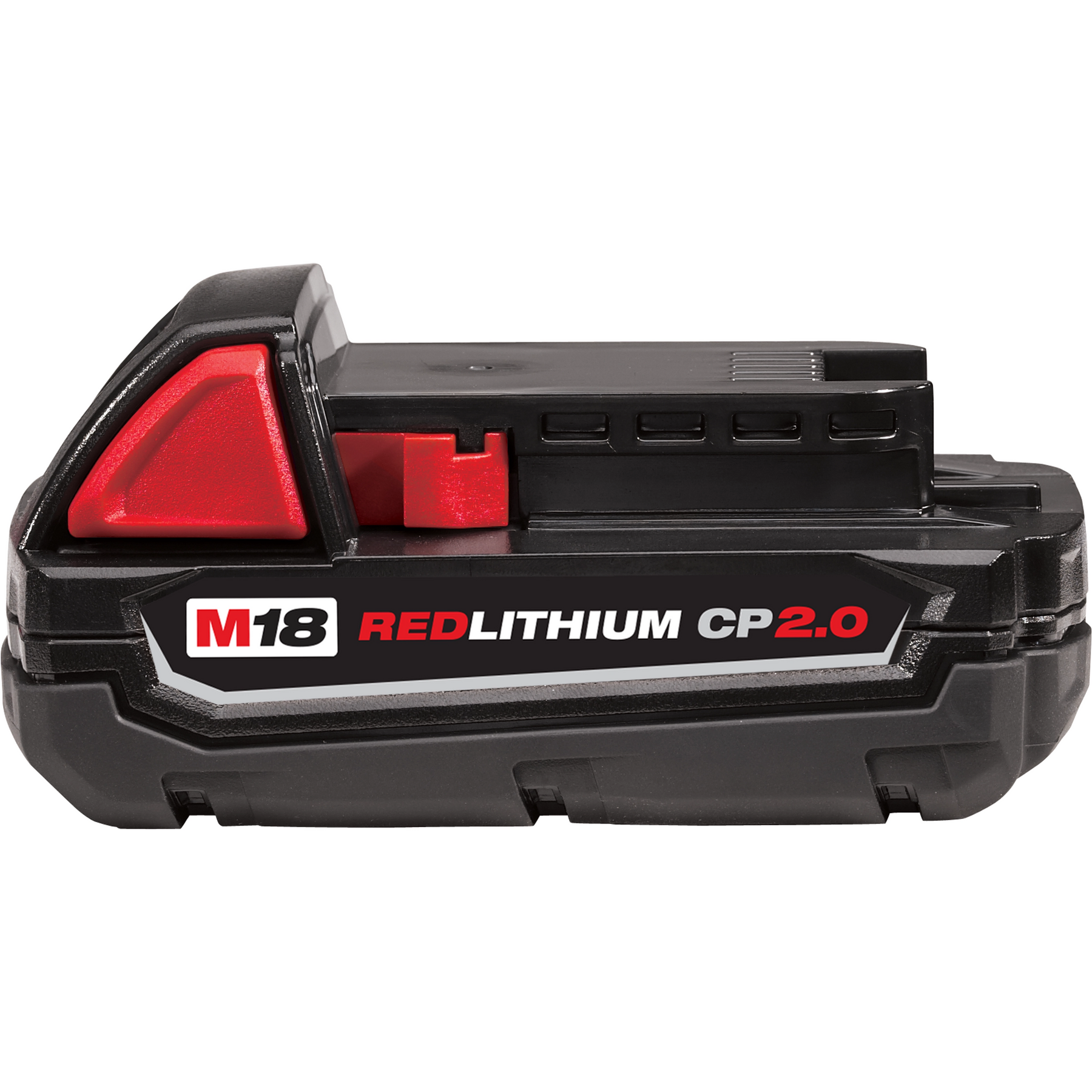

Battery Type	M18 REDLITHIUM CP2.0 (2 included)

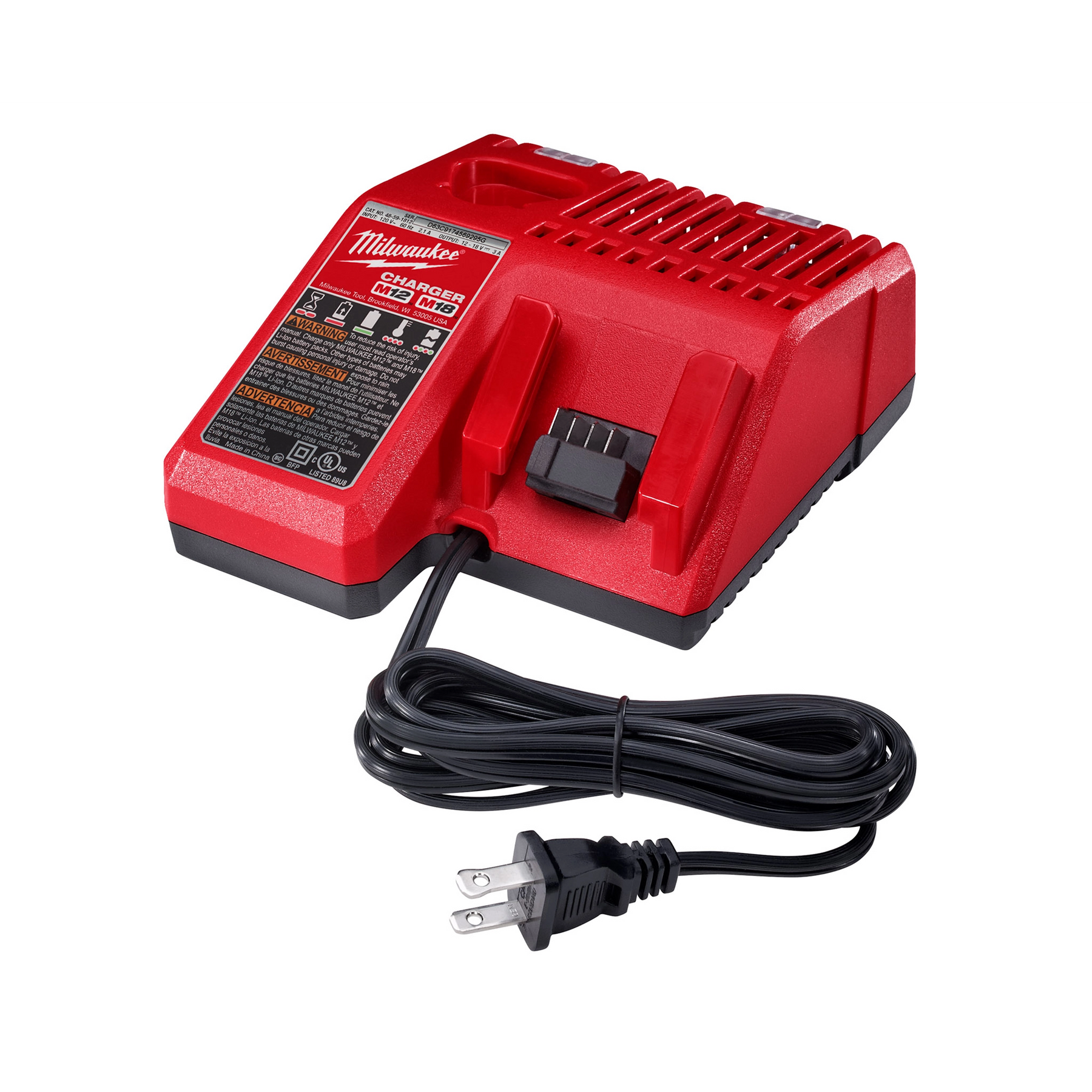

Charger	M18 & M12 Multi-Voltage Charger
Compatible Pipe Material	PEX
Compatible Pipe Sizes (in.)	1/2, 3/4, 1 (3/8 and 5/8 jaws sold separately)
Maximum Pipe Diameter	1 in.
Auto-Cycle	Ensures full press; green LED completion indicator
Calibration	No calibration interval
Pre-Press Battery Check	Yes
Tool Weight	4.8 lb
Dimensions (H x L x W)	13.5 in x 3 in x 3.8 in
Material	Steel components
Color	Red/Black
Number of Jaws Included	3 (1/2 in., 3/4 in., 1 in.)
Warranty	5 Year Tool Warranty; 2 Year Jaw Warranty

---

Frequently Asked Questions (FAQ):

Q: What pipe materials and sizes are supported?
A: The tool is for PEX and crimps ASTM F1807/F2159 rings from 1/2 in. and 3/4 in. up to 1 in.; 3/8 in. and 5/8 in. jaws are available separately.

---

Q: Does it require periodic calibration?
A: No. The tool has no calibration interval, reducing maintenance downtime.

---

Q: How does the tool ensure a complete press?
A: An Auto Cycle feature completes a full press and a green LED indicates a successful cycle.

---

Q: What batteries are included and compatible?
A: Two M18 REDLITHIUM CP2.0 batteries are included; the tool works with all M18 batteries.

---

Q: What is the warranty?
A: 5-year tool warranty and 2-year jaw warranty.

---

Streamlined Power for Clean, Confident Connections

This compact press tool brings a polished, professional finish to exposed mechanical rooms and utility spaces. The sculpted grip and bold Milwaukee red feel purposeful in hand while delivering crisp, repeatable crimps. Pair it with neatly routed PEX in contrasting red and blue to create a visually organized service wall. It’s the kind of precision instrument that elevates everyday plumbing into a hallmark of refined, reliable living.

---

Make faster, flawless PEX connections—add this Milwaukee M18 Short Throw Press Tool Kit to your cart today.
